2003 FORD MUSTANG rear entertainment

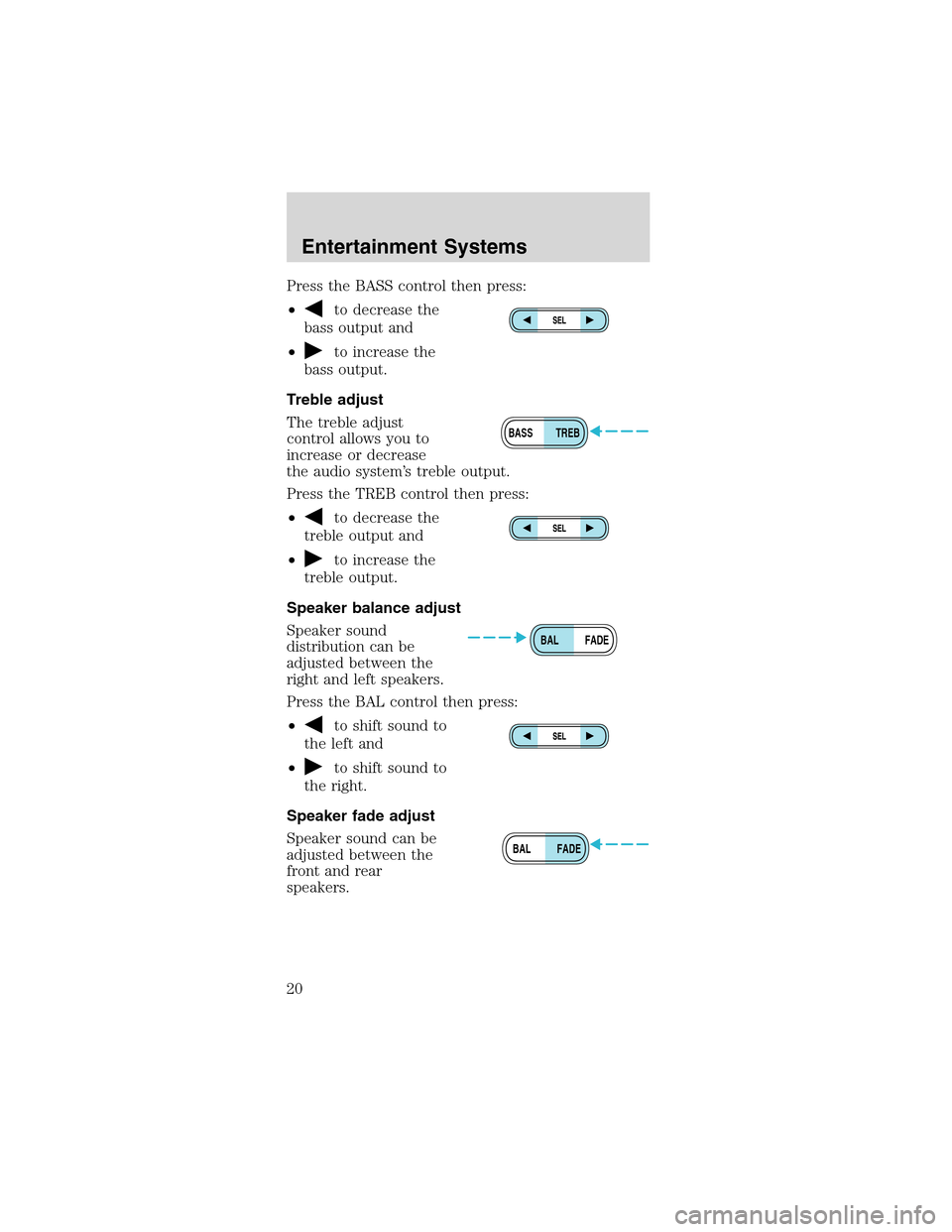

Press the BASS control then press:
•
to decrease the
bass output and
•
to increase the
bass output.
Treble adjust
The treble adjust
control allows you to
increase or decrease
the audio system’s treble output.
Press the TREB control then press:
•
to decrease the
treble output and
•
to increase the
treble output.
Speaker balance adjust
Speaker sound
distribution can be
adjusted between the
right and left speakers.
Press the BAL control then press:
•
to shift sound to
the left and
•
to shift sound to
the right.
Speaker fade adjust
Speaker sound can be
adjusted between the
front and rear
speakers.
BASS TREB
BAL FADE
BAL FADE
Entertainment Systems
20

Press the FADE control then press:
•
to shift the
sound to the front
and
•
to shift the sound to the rear.
Seek function
The seek function control works in radio, tape or CD
mode.
Seek function in radio mode
•Press
to find the
next listenable
station down the
frequency band.
•Press
to find the next listenable station up
the frequency band.
Seek function in tape mode
•Press
to listen to the previous selection on
the tape.
•Press
to listen to the next selection on the
tape.
Seek function for CD or CD changer
(if equipped)
•Press
to seek to
the previous track of
the current disc. If a
selection has been playing for three seconds or
more and you press
, the CD changer will
replay that selection from the beginning.
•Press
to seek forward to the next track of the
current disc. After the last track has been
completed, the first track of the current disc will
automatically replay.
Entertainment Systems
21

Speaker fade adjust
Speaker sound can be
adjusted between the
front and rear
speakers.
Speaker balance adjust
Speaker sound
distribution can be
adjusted between the
right and left speakers.
MP3 functions
Your audio system is equipped with MP3 capability
which allows you to listen to songs in MP3 flat file
mode and MP3 directory mode.
To engage MP3 flat file mode, insert an MP3 disc. If
an MP3 disc is already present in the player, press
the CD control. The MP3 icon will display while the
player is in MP3 mode.
While in MP3 flat file
mode, press the MP3
DIR control to enter
into MP3 directory mode. The MP3 icon and the DIR
icon will display while the player is in directory
mode.
Your MACHMP3 player is also equipped with an
anti-shock buffer for MP3 discs.
MP3 file directory structure
The MACHMP3 music system recognizes MP3 disc
file and directory (folder) structure as follows:
•There are two different modes for MP3 disc
playback: MP3 flat file mode (default) and MP3
directory mode.
•MP3 flat file mode ignores any directory structure
present on the MP3 disc. The player sequentially
Entertainment Systems
30

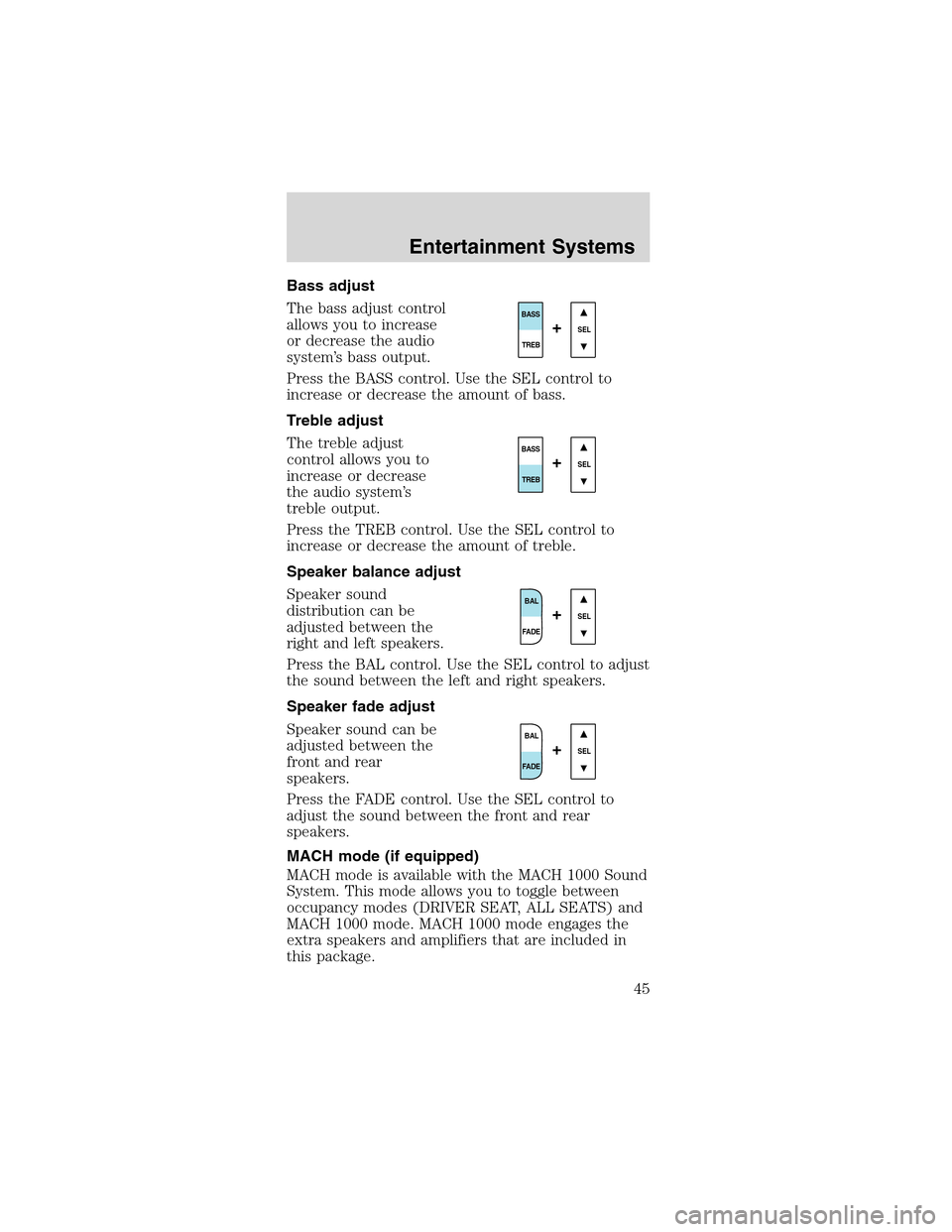

Bass adjust
The bass adjust control
allows you to increase
or decrease the audio
system’s bass output.
Press the BASS control. Use the SEL control to
increase or decrease the amount of bass.
Treble adjust
The treble adjust
control allows you to
increase or decrease
the audio system’s
treble output.
Press the TREB control. Use the SEL control to
increase or decrease the amount of treble.
Speaker balance adjust
Speaker sound
distribution can be
adjusted between the
right and left speakers.
Press the BAL control. Use the SEL control to adjust
the sound between the left and right speakers.
Speaker fade adjust
Speaker sound can be
adjusted between the
front and rear
speakers.
Press the FADE control. Use the SEL control to
adjust the sound between the front and rear
speakers.
MACH mode (if equipped)
MACH mode is available with the MACH 1000 Sound
System. This mode allows you to toggle between
occupancy modes (DRIVER SEAT, ALL SEATS) and
MACH 1000 mode. MACH 1000 mode engages the
extra speakers and amplifiers that are included in
this package.
SELBASS
TREB
+
SELBASS
TREB
+
BAL
FADESEL+
BAL
FADESEL+
Entertainment Systems
45

Use the SEL control to select the desired signal
mode (the selected mode will appear in the display).
The following can be selected:
•DSP
OFF—disengages
the feature
•STADIUM—outdoor
stadium with a capacity of about 30 000
•CHURCH—church with a high vault
•HALL—rectangular concert hall capacity of about
2 000
•JAZZ CLUB—jazz club with clearly reflected
sounds
•NEWS—”voice-only”type of sound with a limited
audio band
Press the DSP control again to access the occupancy
modes. Use the SEL control to optimize the sound
based upon the occupants in the vehicle.
The following occupancy modes can be selected for
the MACH 460 Sound System:
•ALL SEATS
•DRIVER SEAT
•REAR SEATS
The following occupancy modes can be selected for
the MACH 1000 Sound System:
•ALL SEATS
•DRIVER SEAT
•MACH 1000
MACH 1000 mode raises the bass response of the
trunk mounted subwoofers.
Mute mode
Press the control to
mute the playing
media. Press the
control again to return to the playing media.
SEL
Entertainment Systems
57
