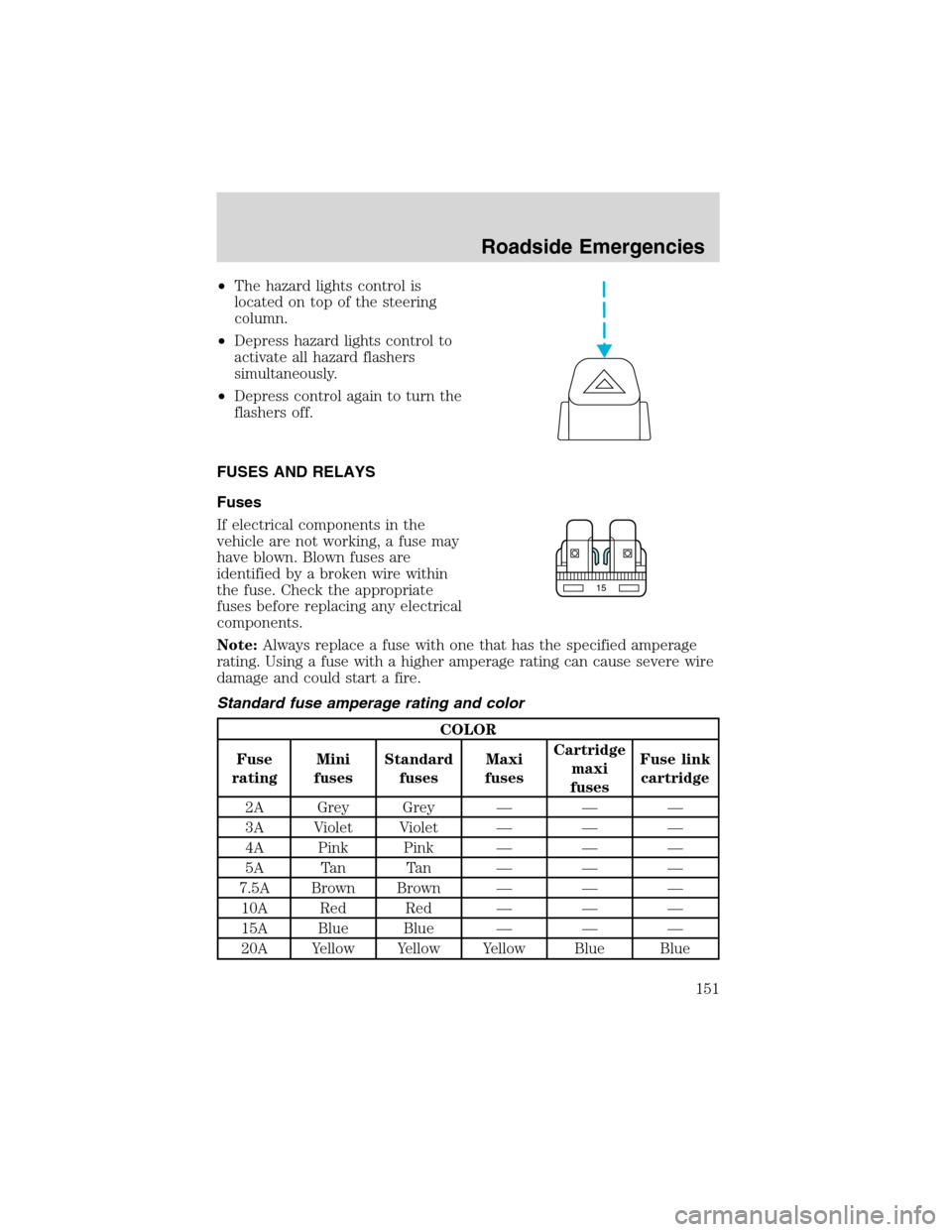

•The hazard lights control is
located on top of the steering
column.
•Depress hazard lights control to
activate all hazard flashers
simultaneously.
•Depress control again to turn the
flashers off.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
Note:Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
Standard fuse amperage rating and color
COLOR
Fuse
ratingMini
fusesStandard
fusesMaxi
fusesCartridge
maxi
fusesFuse link
cartridge
2A Grey Grey———
3A Violet Violet———
4A Pink Pink———
5A Tan Tan———
7.5A Brown Brown———
10A Red Red———
15A Blue Blue———
20A Yellow Yellow Yellow Blue Blue
15
Roadside Emergencies
151

COLOR
Fuse
ratingMini
fusesStandard
fusesMaxi
fusesCartridge
maxi
fusesFuse link
cartridge
25A Natural Natural———
30A Green Green Green Pink Pink
40A——Orange Green Green
50A——Red Red Red
60A——Blue—Yellow
70A——Ta n—Brown
80A——Natural—Black
Passenger compartment fuse panel
The fuse panel is located below and to the left of the steering wheel by
the brake pedal. Remove the panel cover to access the fuses.
To remove a fuse use the fuse puller tool provided on the fuse panel
cover.
Relay #1
Relay #2
Relay #3
Horn
Relay #4
Relay #5 One Touch
Down Interior
Lamps#1
#12#22
#2
#3
#4
#5
#6
#7
#8
#9
#10
#11#13
#23
#14
#15
#16
#17#24
#25
#26
#27
#18
#28
#19
#29
#20
#21#30
#31
Roadside Emergencies
152

The fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
1 20A Horn
2 15A Turn/Hazard lamps
3 20A Cigar lighter
4 10A Diagnostic connectors
5 15A Back-up lamps, Daytime Running
Lamps (DRL) relays, Blend door
actuator, Heated seat module
(SuperCrewzer only), On/Off fan
clutch (SuperCrewzer only),
Warning chime module
(SuperCrewzer and Ambulance)
6—Not used
7—Not used
8 5A Radio, GEM
9 5A Switch Illumination (headlamp,
power windows, power door
locks), Power window relay,
Trailer hook-up lamps
(SuperCrewzer only)
10—Not used
11 30A Wiper motor, Washer pump relay
12 10A Stoplamp switch (hydraulic brake
vehicles only)
13 20A Radio, Cluster, 7.3L Power Stroke
Powertrain Control Module
(PCM), Keep Alive Memory
14 10A Interior lamps, Running board
lamps (SuperCrewzer only)
Roadside Emergencies
153

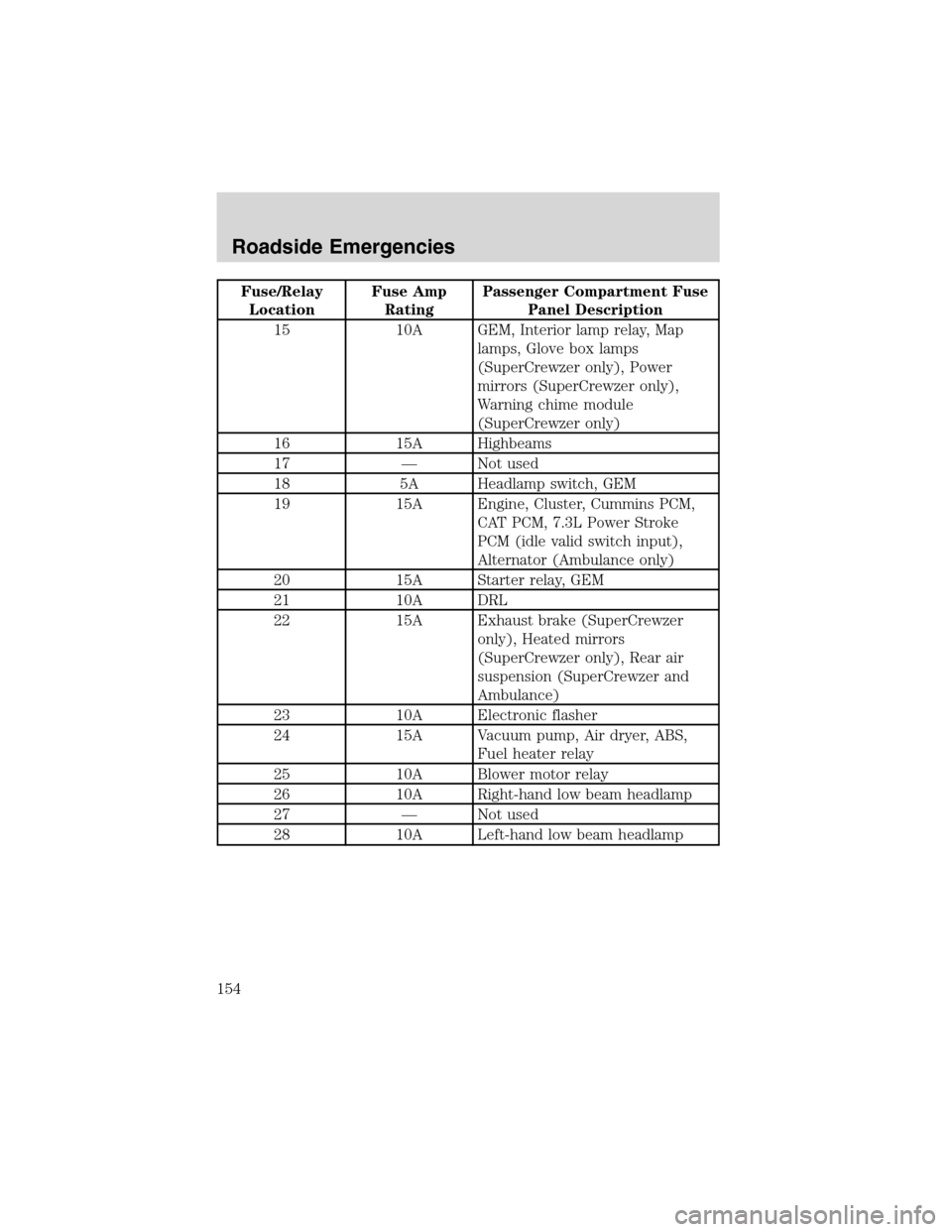

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
15 10A GEM, Interior lamp relay, Map
lamps, Glove box lamps
(SuperCrewzer only), Power
mirrors (SuperCrewzer only),
Warning chime module
(SuperCrewzer only)
16 15A Highbeams
17—Not used
18 5A Headlamp switch, GEM
19 15A Engine, Cluster, Cummins PCM,
CAT PCM, 7.3L Power Stroke
PCM (idle valid switch input),
Alternator (Ambulance only)
20 15A Starter relay, GEM
21 10A DRL
22 15A Exhaust brake (SuperCrewzer
only), Heated mirrors
(SuperCrewzer only), Rear air
suspension (SuperCrewzer and
Ambulance)
23 10A Electronic flasher
24 15A Vacuum pump, Air dryer, ABS,
Fuel heater relay
25 10A Blower motor relay
26 10A Right-hand low beam headlamp
27—Not used
28 10A Left-hand low beam headlamp
Roadside Emergencies
154

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
29 10A Cluster, GEM, 7.3L Power Stroke
PCM (clutch switch input), APCM
(7.3L Power Stroke only),
Overhead console (SuperCrewzer
only), Keyless entry module
(SuperCrewzer only), Traxx
(Fuel) module (SuperCrewzer
only)
30 30A 7.3L Power Stroke PCM diode,
7.3L Power Stroke fuel heater
31 15A Allison MD Transmission, Neutral
start relay and PCM (7.3L Power
Stroke only)
Relay 1—Interior lamps
Relay 2—Not used
Relay 3—Horn
Relay 4—One touch down power window
Relay 5—Not used
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
Always disconnect the battery before servicing high current
fuses.
Always replace the cover to the power distribution box before
reconnecting the battery or refilling fluid reservoirs
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and specificationschapter.
Roadside Emergencies
155

The high-current fuses and relays are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 15A* Park lamps, Roof lamps
2 25A* Cummins Powertrain Control
Module (PCM)
15A* Foglamps (SuperCrewzer only)
3 10A* Generator
4 15A* Washer pump
5 15A* CAT air intake heater relay,
Cummins PCM
6 20A* CAT PCM, Cummins PCM
7 15A* Stop lamps
8 25A* CAT fuel heater
9 30A* Trailer hook-up lamps
(SuperCrewzer only)
10 15A* Shift modulator (Allison AT
transmission only) (except for
F–650 SuperCrewzer and
Caterpillar/Cummins)
503
304
303
302301
502
501
207201
202
203
204122118114110106102
121117113109105101
120116112108104
119115111107103
24
209206
208
18161412108642
1715131197531
205
23
22
21
401
20
19
Roadside Emergencies
156

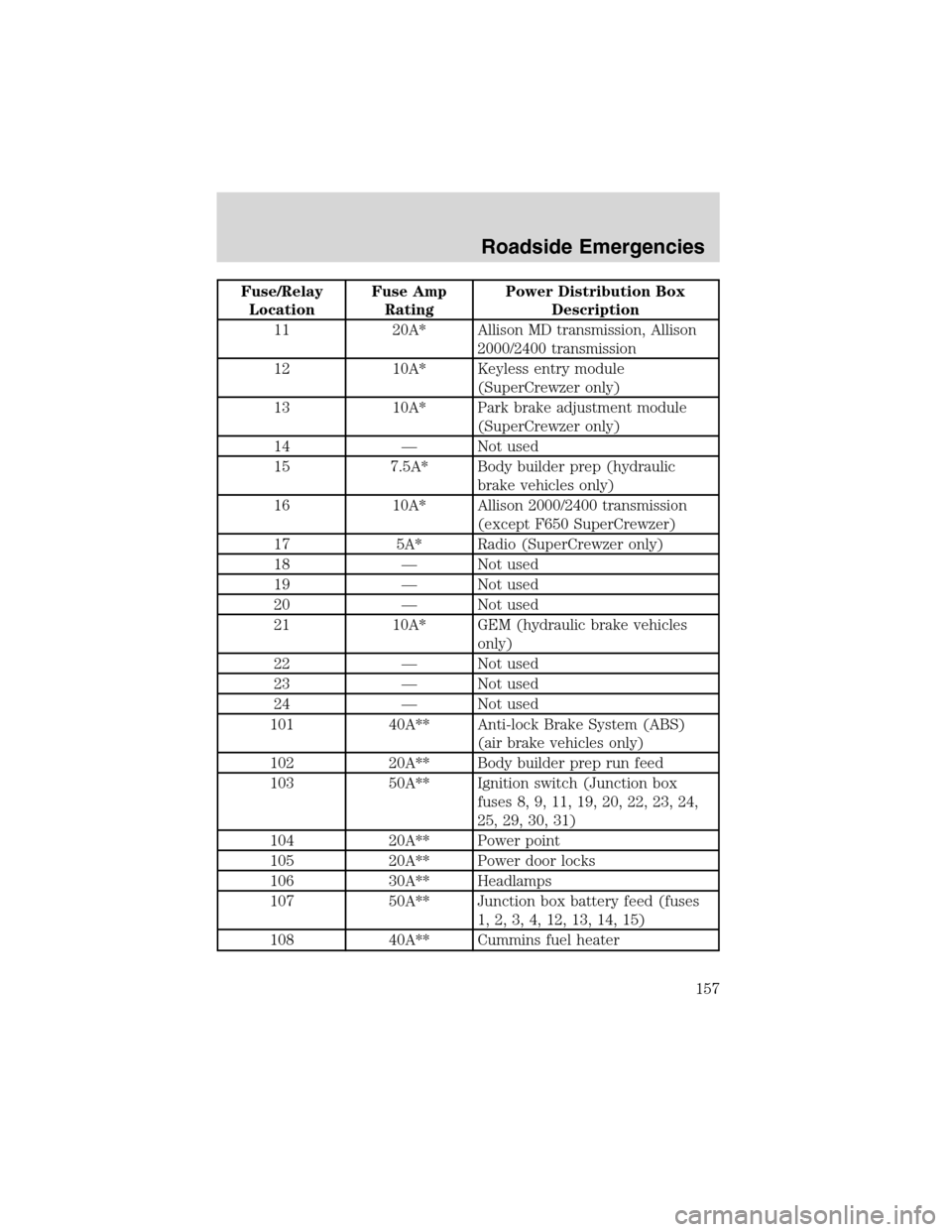

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
11 20A* Allison MD transmission, Allison
2000/2400 transmission
12 10A* Keyless entry module
(SuperCrewzer only)
13 10A* Park brake adjustment module
(SuperCrewzer only)
14—Not used
15 7.5A* Body builder prep (hydraulic
brake vehicles only)
16 10A* Allison 2000/2400 transmission
(except F650 SuperCrewzer)
17 5A* Radio (SuperCrewzer only)
18—Not used
19—Not used
20—Not used
21 10A* GEM (hydraulic brake vehicles
only)
22—Not used
23—Not used
24—Not used
101 40A** Anti-lock Brake System (ABS)
(air brake vehicles only)
102 20A** Body builder prep run feed
103 50A** Ignition switch (Junction box
fuses 8, 9, 11, 19, 20, 22, 23, 24,
25, 29, 30, 31)
104 20A** Power point
105 20A** Power door locks
106 30A** Headlamps
107 50A** Junction box battery feed (fuses
1, 2, 3, 4, 12, 13, 14, 15)
108 40A** Cummins fuel heater
Roadside Emergencies
157
