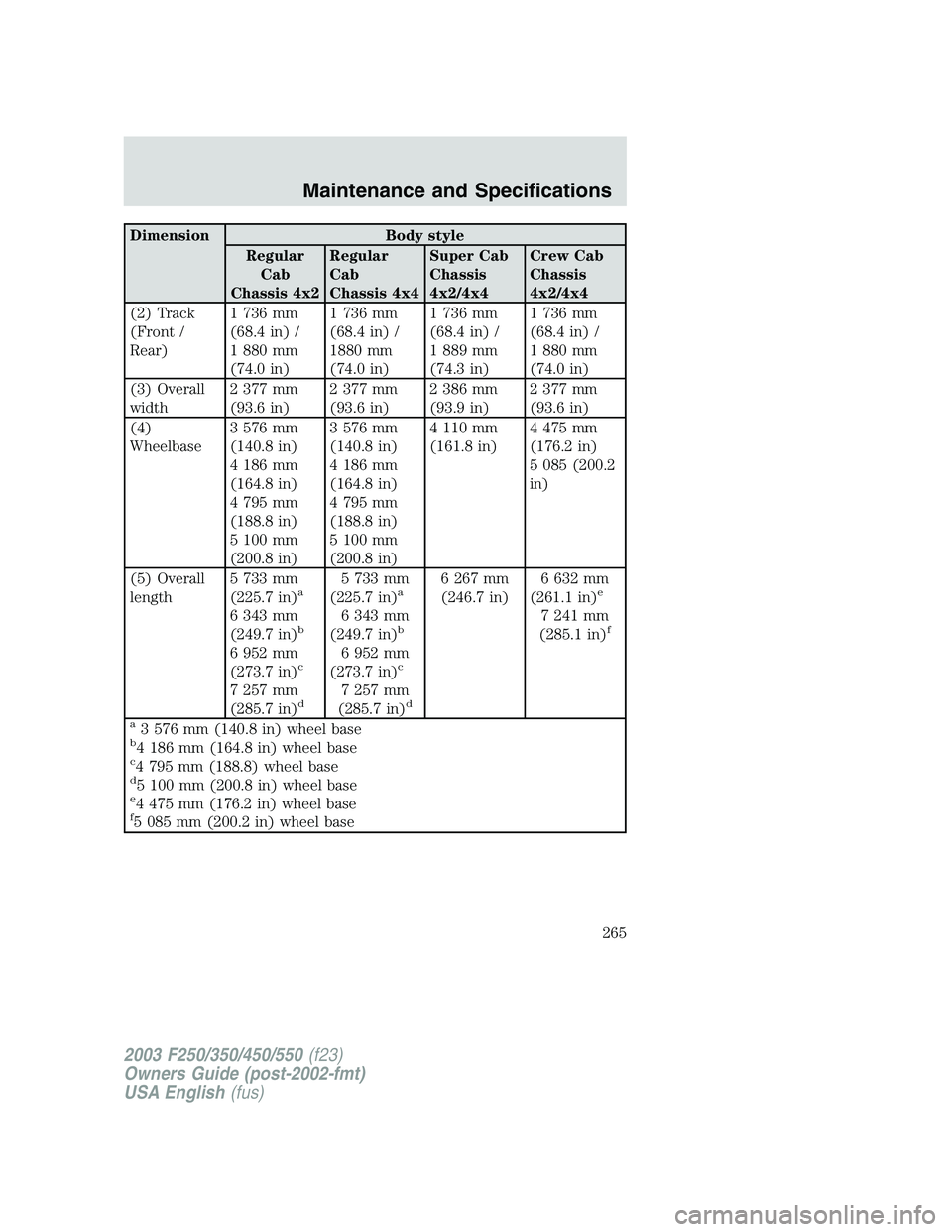

Dimension Body style
Regular
Cab
Chassis 4x2Regular
Cab
Chassis 4x4Super Cab
Chassis
4x2/4x4Crew Cab
Chassis
4x2/4x4
(2) Track
(Front /
Rear)1 736 mm
(68.4 in) /
1 880 mm
(74.0 in)1 736 mm
(68.4 in) /
1880 mm
(74.0 in)1 736 mm
(68.4 in) /
1 889 mm
(74.3 in)1 736 mm
(68.4 in) /
1 880 mm
(74.0 in)
(3) Overall
width2 377 mm
(93.6 in)2 377 mm
(93.6 in)2 386 mm
(93.9 in)2 377 mm
(93.6 in)
(4)
Wheelbase3 576 mm
(140.8 in)
4 186 mm
(164.8 in)
4 795 mm
(188.8 in)
5 100 mm
(200.8 in)3 576 mm
(140.8 in)
4 186 mm
(164.8 in)
4 795 mm
(188.8 in)
5 100 mm
(200.8 in)4 110 mm
(161.8 in)4 475 mm
(176.2 in)
5 085 (200.2
in)
(5) Overall
length5 733 mm
(225.7 in)
a
6 343 mm
(249.7 in)b
6 952 mm
(273.7 in)c
7 257 mm
(285.7 in)d
5 733 mm
(225.7 in)a
6 343 mm
(249.7 in)b
6 952 mm
(273.7 in)c
7 257 mm
(285.7 in)d
6 267 mm
(246.7 in)6 632 mm
(261.1 in)e
7 241 mm
(285.1 in)f
a
3 576 mm (140.8 in) wheel baseb4 186 mm (164.8 in) wheel basec4 795 mm (188.8) wheel based5 100 mm (200.8 in) wheel basee4 475 mm (176.2 in) wheel basef5 085 mm (200.2 in) wheel base
2003 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
265

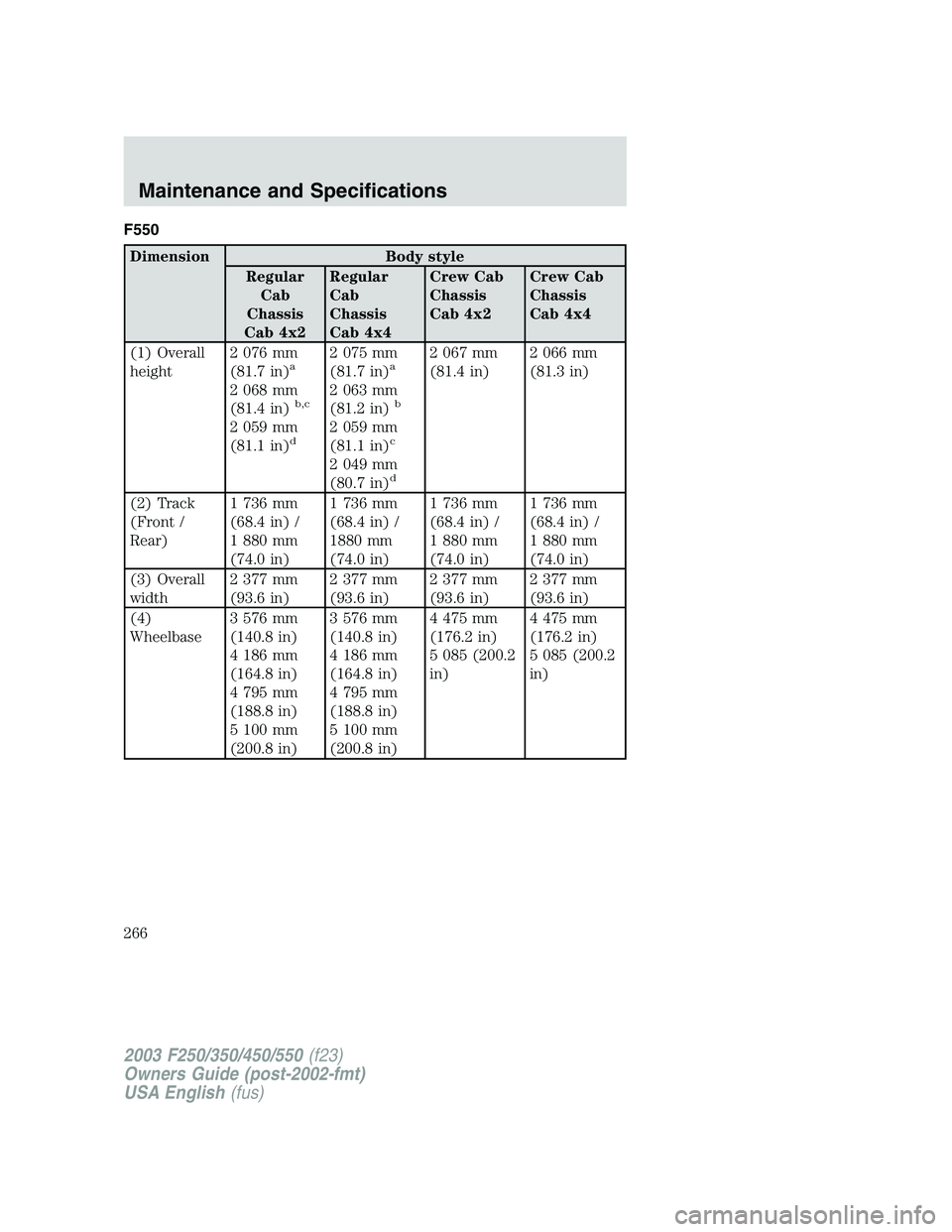

F550
Dimension Body style
Regular
Cab
Chassis
Cab 4x2Regular
Cab
Chassis
Cab 4x4Crew Cab
Chassis
Cab 4x2Crew Cab
Chassis
Cab 4x4
(1) Overall
height2 076 mm
(81.7 in)
a
2 068 mm
(81.4 in)b,c
2 059 mm
(81.1 in)d
2 075 mm
(81.7 in)a
2 063 mm
(81.2 in)b
2 059 mm
(81.1 in)c
2 049 mm
(80.7 in)d
2 067 mm
(81.4 in)2 066 mm
(81.3 in)
(2) Track
(Front /
Rear)1 736 mm
(68.4 in) /
1 880 mm
(74.0 in)1 736 mm
(68.4 in) /
1880 mm
(74.0 in)1 736 mm
(68.4 in) /
1 880 mm
(74.0 in)1 736 mm
(68.4 in) /
1 880 mm
(74.0 in)
(3) Overall
width2 377 mm
(93.6 in)2 377 mm
(93.6 in)2 377 mm
(93.6 in)2 377 mm
(93.6 in)
(4)
Wheelbase3 576 mm
(140.8 in)
4 186 mm
(164.8 in)
4 795 mm
(188.8 in)
5 100 mm
(200.8 in)3 576 mm
(140.8 in)
4 186 mm
(164.8 in)
4 795 mm
(188.8 in)
5 100 mm
(200.8 in)4 475 mm
(176.2 in)
5 085 (200.2
in)4 475 mm
(176.2 in)
5 085 (200.2
in)
2003 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
266

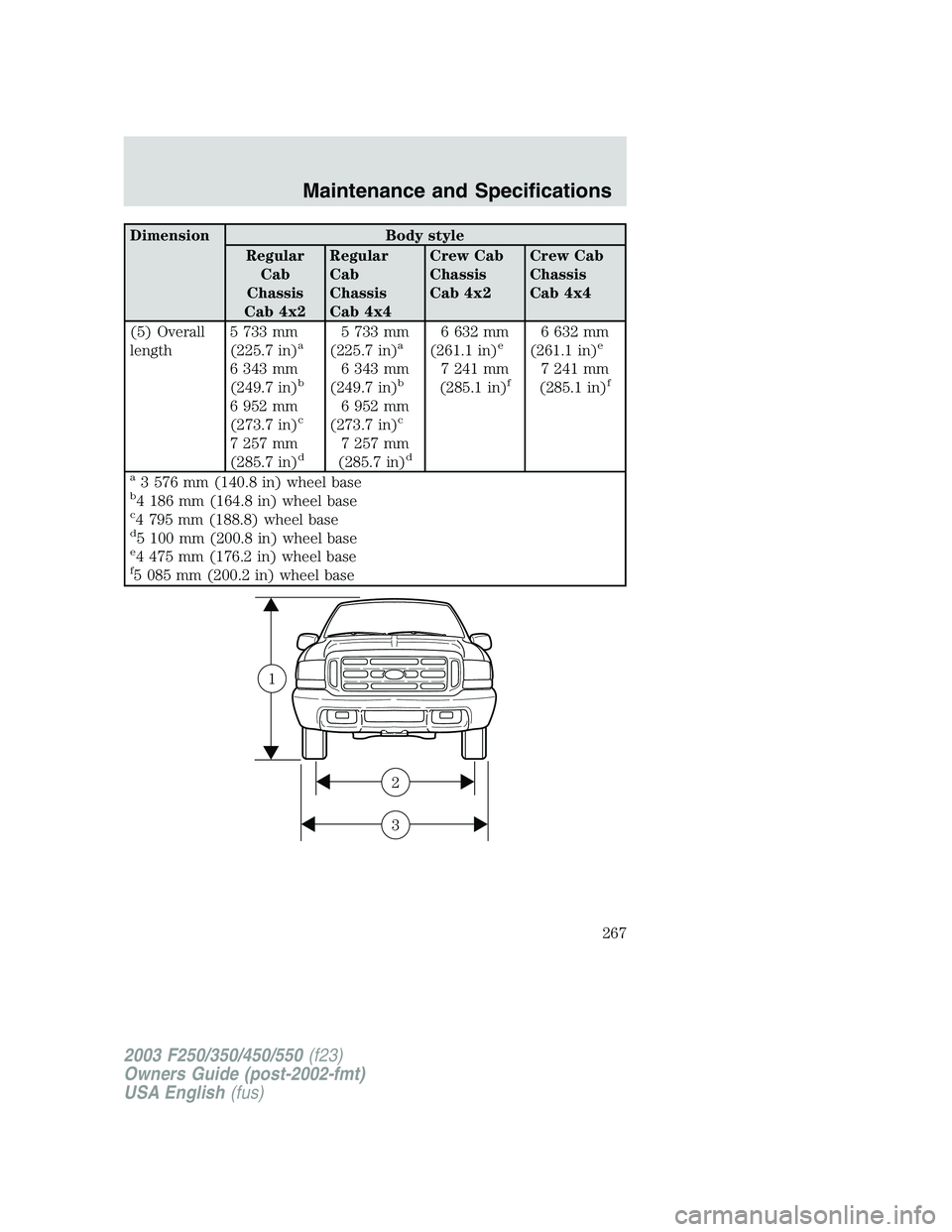

Dimension Body style
Regular
Cab
Chassis
Cab 4x2Regular
Cab
Chassis
Cab 4x4Crew Cab
Chassis
Cab 4x2Crew Cab
Chassis
Cab 4x4
(5) Overall
length5 733 mm
(225.7 in)
a
6 343 mm
(249.7 in)b
6 952 mm
(273.7 in)c
7 257 mm
(285.7 in)d
5 733 mm
(225.7 in)a
6 343 mm
(249.7 in)b
6 952 mm
(273.7 in)c
7 257 mm
(285.7 in)d
6 632 mm
(261.1 in)e
7 241 mm
(285.1 in)f
6 632 mm
(261.1 in)e
7 241 mm
(285.1 in)f
a
3 576 mm (140.8 in) wheel baseb4 186 mm (164.8 in) wheel basec4 795 mm (188.8) wheel based5 100 mm (200.8 in) wheel basee4 475 mm (176.2 in) wheel basef5 085 mm (200.2 in) wheel base
3
2
1
2003 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
267

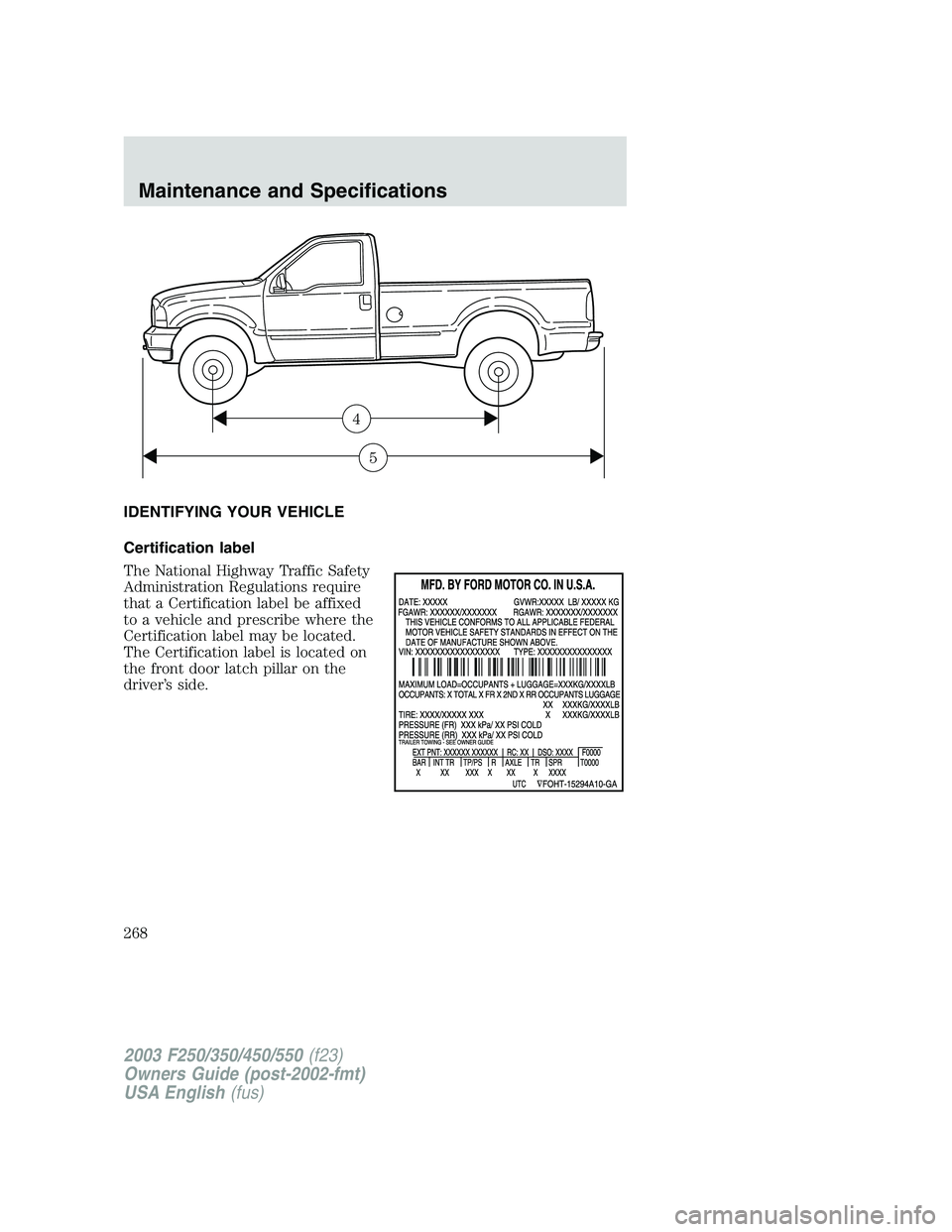

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the front door latch pillar on the
driver’s side.
5
4
2003 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
268

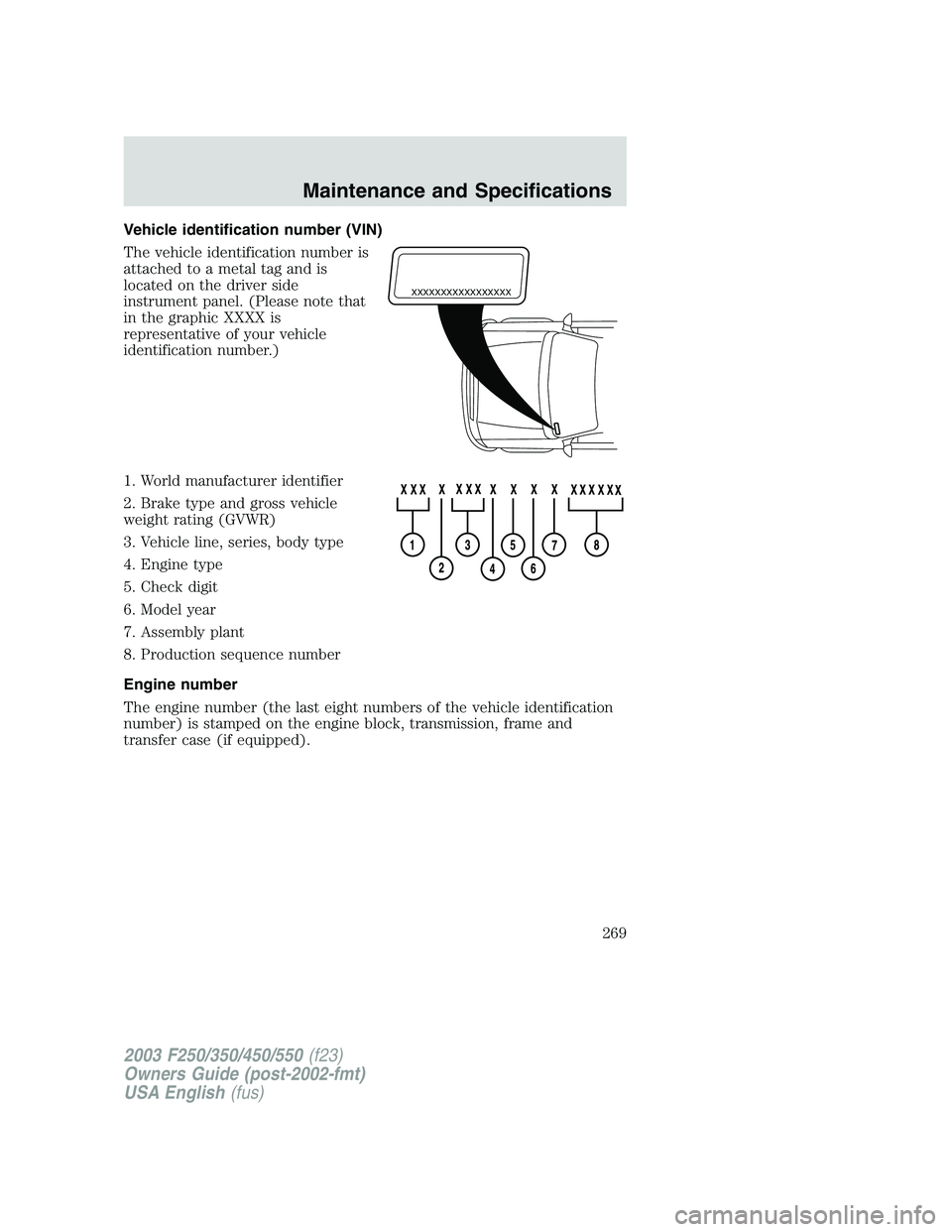

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
XXXXXXXXXXXXXXXXX
2003 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
269

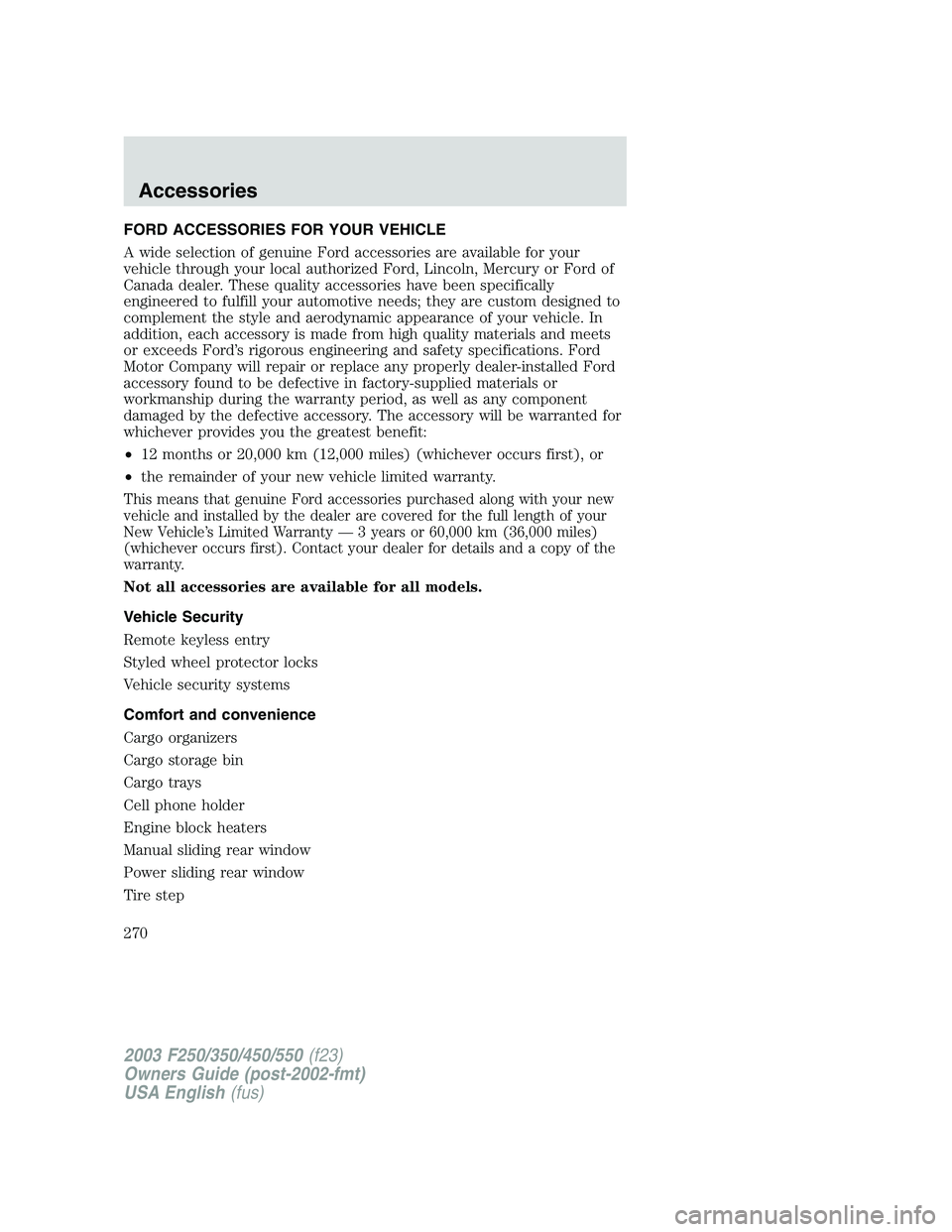

FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of genuine Ford accessories are available for your
vehicle through your local authorized Ford, Lincoln, Mercury or Ford of
Canada dealer. These quality accessories have been specifically
engineered to fulfill your automotive needs; they are custom designed to
complement the style and aerodynamic appearance of your vehicle. In
addition, each accessory is made from high quality materials and meets
or exceeds Ford’s rigorous engineering and safety specifications. Ford
Motor Company will repair or replace any properly dealer-installed Ford
accessory found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessory. The accessory will be warranted for
whichever provides you the greatest benefit:
•12 months or 20,000 km (12,000 miles) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that genuine Ford accessories purchased along with your new
vehicle and installed by the dealer are covered for the full length of your
New Vehicle’s Limited Warranty—3 years or 60,000 km (36,000 miles)
(whichever occurs first). Contact your dealer for details and a copy of the
warranty.
Not all accessories are available for all models.
Vehicle Security
Remote keyless entry
Styled wheel protector locks
Vehicle security systems
Comfort and convenience
Cargo organizers
Cargo storage bin
Cargo trays
Cell phone holder
Engine block heaters
Manual sliding rear window
Power sliding rear window
Tire step
2003 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
Accessories
270

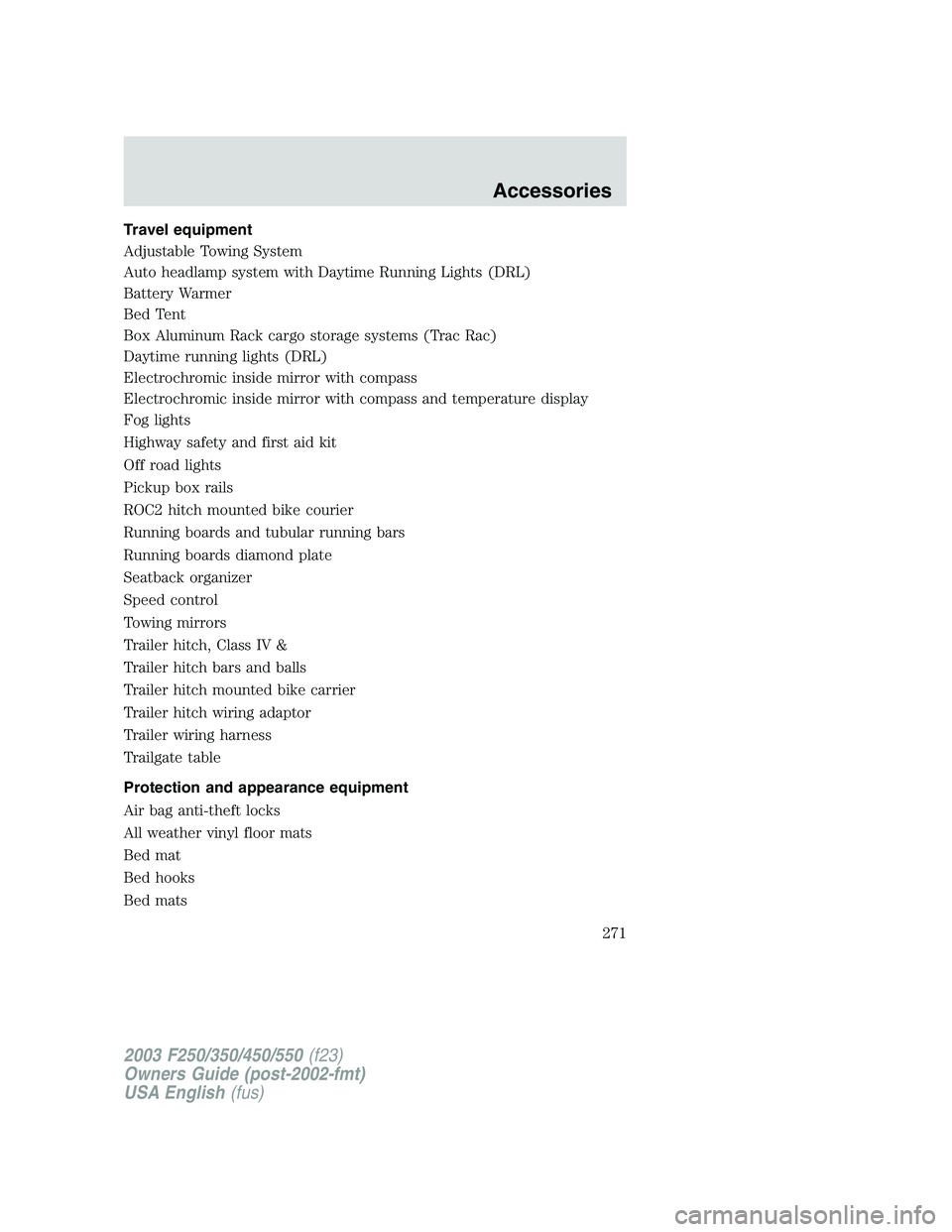

Travel equipment
Adjustable Towing System
Auto headlamp system with Daytime Running Lights (DRL)
Battery Warmer
Bed Tent
Box Aluminum Rack cargo storage systems (Trac Rac)
Daytime running lights (DRL)
Electrochromic inside mirror with compass
Electrochromic inside mirror with compass and temperature display
Fog lights
Highway safety and first aid kit
Off road lights
Pickup box rails
ROC2 hitch mounted bike courier
Running boards and tubular running bars
Running boards diamond plate
Seatback organizer
Speed control
Towing mirrors
Trailer hitch, Class IV &
Trailer hitch bars and balls
Trailer hitch mounted bike carrier
Trailer hitch wiring adaptor
Trailer wiring harness
Trailgate table
Protection and appearance equipment
Air bag anti-theft locks
All weather vinyl floor mats
Bed mat
Bed hooks
Bed mats
2003 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
271

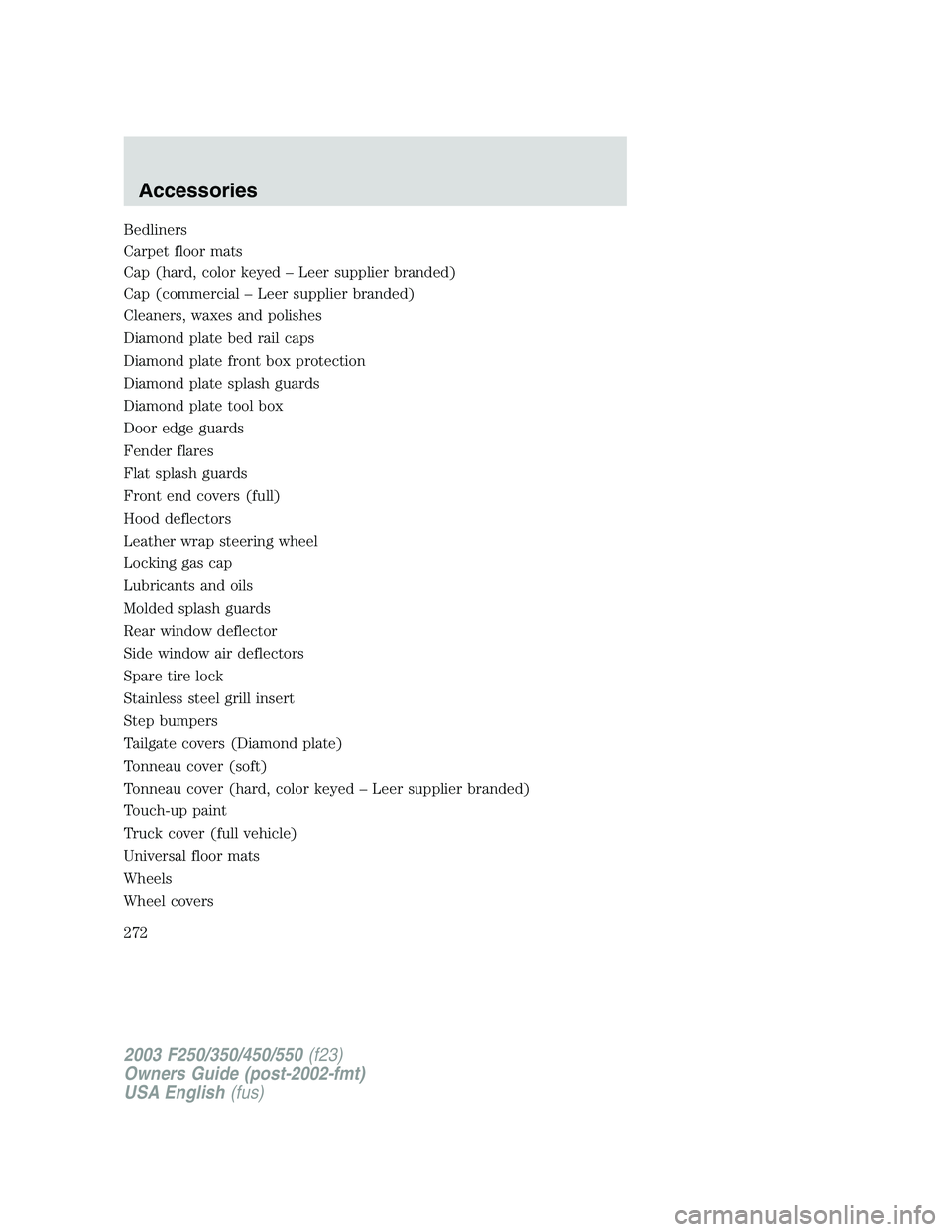

Bedliners
Carpet floor mats
Cap (hard, color keyed–Leer supplier branded)
Cap (commercial–Leer supplier branded)
Cleaners, waxes and polishes
Diamond plate bed rail caps
Diamond plate front box protection
Diamond plate splash guards
Diamond plate tool box
Door edge guards
Fender flares
Flat splash guards
Front end covers (full)
Hood deflectors
Leather wrap steering wheel
Locking gas cap
Lubricants and oils
Molded splash guards
Rear window deflector
Side window air deflectors
Spare tire lock
Stainless steel grill insert
Step bumpers
Tailgate covers (Diamond plate)
Tonneau cover (soft)
Tonneau cover (hard, color keyed–Leer supplier branded)
Touch-up paint
Truck cover (full vehicle)
Universal floor mats
Wheels
Wheel covers
