components. Also, once ethylene-glycol and propy-
lene-glycol based coolants are mixed in the vehicle,
conventional methods of determining freeze point will
not be accurate. Both the refractive index and spe-
cific gravity differ between ethylene glycol and propy-
lene glycol.
DESCRIPTION - HOAT COOLANT
WARNING: ANTIFREEZE IS AN ETHYLENE-GLYCOL
BASE COOLANT AND IS HARMFUL IF SWAL-
LOWED OR INHALED. IF SWALLOWED, DRINK
TWO GLASSES OF WATER AND INDUCE VOMIT-
ING. IF INHALED, MOVE TO FRESH AIR AREA.
SEEK MEDICAL ATTENTION IMMEDIATELY. DO NOT
STORE IN OPEN OR UNMARKED CONTAINERS.
WASH SKIN AND CLOTHING THOROUGHLY AFTER
COMING IN CONTACT WITH ETHYLENE-GLYCOL.
KEEP OUT OF REACH OF CHILDREN. DISPOSE OF
GLYCOL BASE COOLANT PROPERLY, CONTACT
YOUR DEALER OR GOVERNMENT AGENCY FOR
LOCATION OF COLLECTION CENTER IN YOUR
AREA. DO NOT OPEN A COOLING SYSTEM WHEN
THE ENGINE IS AT OPERATING TEMPERATURE OR
HOT UNDER PRESSURE, PERSONAL INJURY CAN
RESULT. AVOID RADIATOR COOLING FAN WHEN
ENGINE COMPARTMENT RELATED SERVICE IS
PERFORMED, PERSONAL INJURY CAN RESULT.
CAUTION: Use of Propylene-Glycol based coolants
is not recommended, as they provide less freeze
protection and less corrosion protection.
The cooling system is designed around the coolant.
The coolant must accept heat from engine metal, in
the cylinder head area near the exhaust valves and
engine block. Then coolant carries the heat to the
radiator where the tube/fin radiator can transfer the
heat to the air.
The use of aluminum cylinder blocks, cylinder
heads, and water pumps requires special corrosion
protection. MopartAntifreeze/Coolant, 5
Year/100,000 Mile Formula (MS-9769), or the equiva-
lent ethylene-glycol base coolant with organic corro-
sion inhibitors (called HOAT, for Hybrid Organic
Additive Technology) is recommended. This coolant
offers the best engine cooling without corrosion when
mixed with 50% ethylene-glycol and 50% distilled
water to obtain a freeze point of -37ÉC (-35ÉF). If it
loses color or becomes contaminated, drain, flush,
and replace with fresh properly mixed coolant solu-
tion.
CAUTION: MoparTAntifreeze/Coolant, 5
Year/100,000 Mile Formula (MS-9769) may not be
mixed with any other type of antifreeze. Mixing ofcoolants other than specified (non-HOAT or other
HOAT), may result in engine damage that may not
be covered under the new vehicle warranty, and
decreased corrosion protection.
COOLANT PERFORMANCE
The required ethylene-glycol (antifreeze) and water
mixture depends upon climate and vehicle operating
conditions. The coolant performance of various mix-
tures follows:
Pure Water-Water can absorb more heat than a
mixture of water and ethylene-glycol. This is for pur-
pose of heat transfer only. Water also freezes at a
higher temperature and allows corrosion.
100 percent Ethylene-Glycol-The corrosion
inhibiting additives in ethylene-glycol need the pres-
ence of water to dissolve. Without water, additives
form deposits in system. These act as insulation
causing temperature to rise to as high as 149ÉC
(300ÉF). This temperature is hot enough to melt plas-
tic and soften solder. The increased temperature can
result in engine detonation. In addition, 100 percent
ethylene-glycol freezes at -22ÉC (-8ÉF).
50/50 Ethylene-Glycol and Water-Is the recom-
mended mixture, it provides protection against freez-
ing to -37ÉC (-34ÉF). The antifreeze concentration
must alwaysbe a minimum of 44 percent, year-
round in all climates. If percentage is lower, engine
parts may be eroded by cavitation. Maximum protec-
tion against freezing is provided with a 68 percent
antifreeze concentration, which prevents freezing
down to -67.7ÉC (-90ÉF). A higher percentage will
freeze at a warmer temperature. Also, a higher per-
centage of antifreeze can cause the engine to over-
heat because specific heat of antifreeze is lower than
that of water.
CAUTION: Richer antifreeze mixtures cannot be
measured with normal field equipment and can
cause problems associated with 100 percent ethyl-
ene-glycol.
COOLANT SELECTION AND ADDITIVES
The use of aluminum cylinder blocks, cylinder
heads and water pumps requires special corrosion
protection. Only MopartAntifreeze/Coolant, 5
Year/100,000 Mile Formula (glycol base coolant with
corrosion inhibitors called HOAT, for Hybrid Organic
Additive Technology) is recommended. This coolant
offers the best engine cooling without corrosion when
mixed with 50% distilled water to obtain to obtain a
freeze point of -37ÉC (-35ÉF). If it loses color or
becomes contaminated, drain, flush, and replace with
fresh properly mixed coolant solution.
DRENGINE 7 - 37
COOLANT (Continued)

ber boot is installed over the engagement dowel to
eliminate contact noise between the dowel and the
steering wheel. The two lobes on the turn signal can-
cel cam on the lower surface of the clockspring rotor
hub contact a turn signal cancel actuator of the
multi-function switch to provide automatic turn sig-
nal cancellation. The yellow sleeved pigtail wires on
the upper surface of the clockspring rotor connect the
clockspring to the driver airbag, while a steering
wheel wire harness connects the two connector recep-
tacles on the upper surface of the clockspring rotor to
the horn switch feed pigtail wire connector and, if
the vehicle is so equipped, to the optional speed con-
trol and remote radio switches on the steering wheel.
Like the clockspring in a timepiece, the clockspring
tape has travel limits and can be damaged by being
wound too tightly during full stop-to-stop steering
wheel rotation. To prevent this from occurring, the
clockspring is centered when it is installed on the
steering column. Centering the clockspring indexes
the clockspring tape to the movable steering compo-
nents so that the tape can operate within its
designed travel limits. However, if the clockspring is
removed from the steering column or if the steering
shaft is disconnected from the steering gear, the
clockspring spool can change position relative to the
movable steering components. The clockspring must
be re-centered following completion of this service or
the tape may be damaged.
Service replacement clocksprings are shipped pre-
centered and with a plastic locking pin installed.
This locking pin should not be disengaged until the
clockspring has been installed on the steering col-
umn. If the locking pin is removed or damaged before
the clockspring is installed on a steering column, the
clockspring centering procedure must be performed.
(Refer to 8 - ELECTRICAL/RESTRAINTS/CLOCK-
SPRING - STANDARD PROCEDURE - CLOCK-
SPRING CENTERING).
STANDARD PROCEDURE - CLOCKSPRING
CENTERING
The clockspring is designed to wind and unwind
when the steering wheel is rotated, but is only
designed to rotate the same number of turns (about
five complete rotations) as the steering wheel can be
turned from stop to stop. Centering the clockspring
indexes the clockspring tape to other steering compo-
nents so that it can operate within its designed
travel limits. The rotor of a centered clockspring can
be rotated two and one-half turns in either direction
from the centered position, without damaging the
clockspring tape.
However, if the clockspring is removed for service
or if the steering column is disconnected from the
steering gear, the clockspring tape can change posi-tion relative to the other steering components. The
clockspring must then be re-centered following com-
pletion of such service or the clockspring tape may be
damaged. Service replacement clocksprings are
shipped pre-centered, with a plastic locking pin
installed (Fig. 19). This locking pin should not be
removed until the clockspring has been installed on
the steering column. If the locking pin is removed
before the clockspring is installed on a steering col-
umn, the clockspring centering procedure must be
performed.
WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS, DISABLE THE SUPPLEMENTAL RESTRAINT
SYSTEM BEFORE ATTEMPTING ANY STEERING
WHEEL, STEERING COLUMN, DRIVER AIRBAG,
PASSENGER AIRBAG, SEAT BELT TENSIONER,
SIDE CURTAIN AIRBAG, OR INSTRUMENT PANEL
COMPONENT DIAGNOSIS OR SERVICE. DISCON-
NECT AND ISOLATE THE BATTERY NEGATIVE
(GROUND) CABLE, THEN WAIT TWO MINUTES FOR
THE SYSTEM CAPACITOR TO DISCHARGE BEFORE
PERFORMING FURTHER DIAGNOSIS OR SERVICE.
THIS IS THE ONLY SURE WAY TO DISABLE THE
SUPPLEMENTAL RESTRAINT SYSTEM. FAILURE TO
TAKE THE PROPER PRECAUTIONS COULD
RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND POSSIBLE PERSONAL INJURY.
Fig. 19 Clockspring and Multi-Function Switch
1 - CLOCKSPRING
2 - LOCATING PIN
3 - SCREW (2)
4 - LOCKING PIN
5 - ENGAGEMENT DOWEL BOOT
DRRESTRAINTS 8O - 19
CLOCKSPRING (Continued)

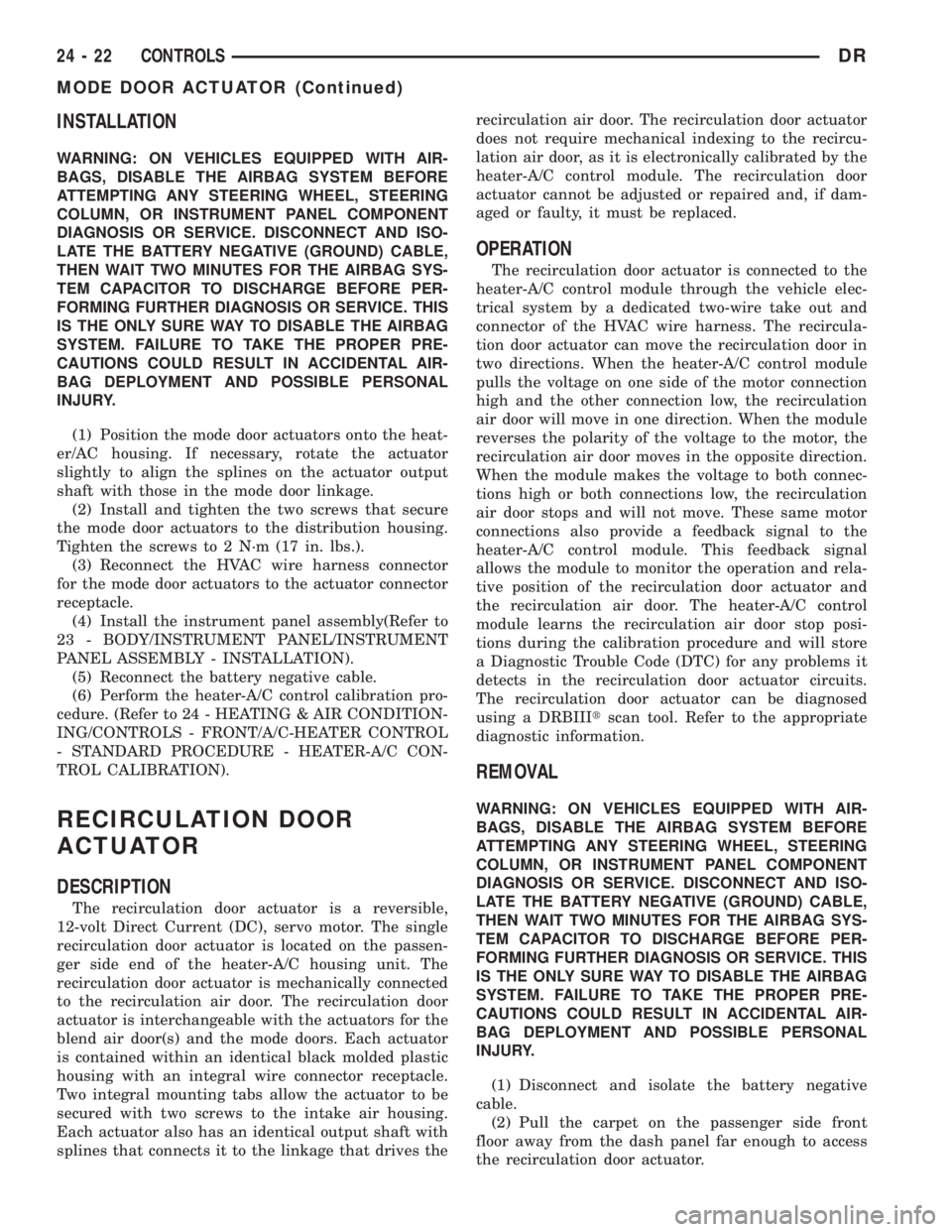

INSTALLATION
WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS, DISABLE THE AIRBAG SYSTEM BEFORE
ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, OR INSTRUMENT PANEL COMPONENT
DIAGNOSIS OR SERVICE. DISCONNECT AND ISO-
LATE THE BATTERY NEGATIVE (GROUND) CABLE,
THEN WAIT TWO MINUTES FOR THE AIRBAG SYS-
TEM CAPACITOR TO DISCHARGE BEFORE PER-
FORMING FURTHER DIAGNOSIS OR SERVICE. THIS
IS THE ONLY SURE WAY TO DISABLE THE AIRBAG
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT AND POSSIBLE PERSONAL
INJURY.
(1) Position the mode door actuators onto the heat-
er/AC housing. If necessary, rotate the actuator
slightly to align the splines on the actuator output
shaft with those in the mode door linkage.
(2) Install and tighten the two screws that secure
the mode door actuators to the distribution housing.
Tighten the screws to 2 N´m (17 in. lbs.).
(3) Reconnect the HVAC wire harness connector
for the mode door actuators to the actuator connector
receptacle.
(4) Install the instrument panel assembly(Refer to
23 - BODY/INSTRUMENT PANEL/INSTRUMENT
PANEL ASSEMBLY - INSTALLATION).
(5) Reconnect the battery negative cable.
(6) Perform the heater-A/C control calibration pro-
cedure. (Refer to 24 - HEATING & AIR CONDITION-
ING/CONTROLS - FRONT/A/C-HEATER CONTROL
- STANDARD PROCEDURE - HEATER-A/C CON-
TROL CALIBRATION).
RECIRCULATION DOOR
ACTUATOR
DESCRIPTION
The recirculation door actuator is a reversible,
12-volt Direct Current (DC), servo motor. The single
recirculation door actuator is located on the passen-
ger side end of the heater-A/C housing unit. The
recirculation door actuator is mechanically connected
to the recirculation air door. The recirculation door
actuator is interchangeable with the actuators for the
blend air door(s) and the mode doors. Each actuator
is contained within an identical black molded plastic
housing with an integral wire connector receptacle.
Two integral mounting tabs allow the actuator to be
secured with two screws to the intake air housing.
Each actuator also has an identical output shaft with
splines that connects it to the linkage that drives therecirculation air door. The recirculation door actuator
does not require mechanical indexing to the recircu-
lation air door, as it is electronically calibrated by the
heater-A/C control module. The recirculation door
actuator cannot be adjusted or repaired and, if dam-
aged or faulty, it must be replaced.
OPERATION
The recirculation door actuator is connected to the
heater-A/C control module through the vehicle elec-
trical system by a dedicated two-wire take out and
connector of the HVAC wire harness. The recircula-
tion door actuator can move the recirculation door in
two directions. When the heater-A/C control module
pulls the voltage on one side of the motor connection
high and the other connection low, the recirculation
air door will move in one direction. When the module
reverses the polarity of the voltage to the motor, the
recirculation air door moves in the opposite direction.
When the module makes the voltage to both connec-
tions high or both connections low, the recirculation
air door stops and will not move. These same motor
connections also provide a feedback signal to the
heater-A/C control module. This feedback signal
allows the module to monitor the operation and rela-
tive position of the recirculation door actuator and
the recirculation air door. The heater-A/C control
module learns the recirculation air door stop posi-
tions during the calibration procedure and will store
a Diagnostic Trouble Code (DTC) for any problems it
detects in the recirculation door actuator circuits.
The recirculation door actuator can be diagnosed
using a DRBIIItscan tool. Refer to the appropriate
diagnostic information.
REMOVAL
WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS, DISABLE THE AIRBAG SYSTEM BEFORE
ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, OR INSTRUMENT PANEL COMPONENT
DIAGNOSIS OR SERVICE. DISCONNECT AND ISO-
LATE THE BATTERY NEGATIVE (GROUND) CABLE,
THEN WAIT TWO MINUTES FOR THE AIRBAG SYS-
TEM CAPACITOR TO DISCHARGE BEFORE PER-
FORMING FURTHER DIAGNOSIS OR SERVICE. THIS
IS THE ONLY SURE WAY TO DISABLE THE AIRBAG
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT AND POSSIBLE PERSONAL
INJURY.
(1) Disconnect and isolate the battery negative
cable.
(2) Pull the carpet on the passenger side front
floor away from the dash panel far enough to access
the recirculation door actuator.
24 - 22 CONTROLSDR
MODE DOOR ACTUATOR (Continued)

MOLDING - INSTALLATION, REAR DOOR
INNER BELT.........................23-94
MOLDING - INSTALLATION, REAR DOOR
OUTER BELT........................23-94
MOLDING - REMOVAL, FRONT DOOR
INNER BELT.........................23-93
MOLDING - REMOVAL, FRONT DOOR
OUTER BELT........................23-93
MOLDING - REMOVAL, REAR DOOR
INNER BELT.........................23-94
MOLDING - REMOVAL, REAR DOOR
OUTER BELT........................23-94
MOLDINGS - INSTALLATION, BODY SIDE . . 23-36
MOLDINGS - REMOVAL, BODY SIDE.....23-36
MONITORED SYSTEMS - DESCRIPTION....25-1
MONITORS - DESCRIPTION,
COMPONENT.........................25-4
MOTOR - DESCRIPTION, ADJUSTABLE
PEDAL..............................5-24
MOTOR - DESCRIPTION, BLOWER.......24-25
MOTOR - DESCRIPTION, DOOR LOCK.....8N-5
MOTOR - DESCRIPTION, IDLE AIR
CONTROL..........................14-33
MOTOR - DESCRIPTION, LUMBAR.......8N-19
MOTOR - DESCRIPTION, SHIFT . . 21-686,21-720
MOTOR - DIAGNOSIS AND TESTING,
BLOWER...........................24-26
MOTOR - DIAGNOSIS AND TESTING,
DOOR LOCK.........................8N-5
MOTOR - DIAGNOSIS AND TESTING,
LUMBAR...........................8N-20
MOTOR - DIAGNOSIS AND TESTING,
STARTER ...........................8F-34
MOTOR - INSTALLATION, ADJUSTABLE
PEDAL..............................5-24
MOTOR - INSTALLATION, BLOWER......24-26
MOTOR - INSTALLATION, IDLE AIR
CONTROL..........................14-35
MOTOR - INSTALLATION, SHIFT . . 21-686,21-720
MOTOR - INSTALLATION, STARTER......8F-37
MOTOR - OPERATION, BLOWER.........24-25
MOTOR - OPERATION, DOOR LOCK.......8N-5
MOTOR - OPERATION, IDLE AIR
CONTROL..........................14-33
MOTOR - OPERATION, LUMBAR........8N-20
MOTOR - OPERATION, SHIFT....21-686,21-720
MOTOR - REMOVAL, ADJUSTABLE
PEDAL..............................5-24
MOTOR - REMOVAL, BLOWER..........24-26
MOTOR - REMOVAL, IDLE AIR CONTROL . . 14-34
MOTOR - REMOVAL, SHIFT.....21-686,21-720
MOTOR - REMOVAL, STARTER..........8F-34
MOTOR - REMOVAL, WINDOW..........8N-22
MOTOR RELAY - DESCRIPTION,
STARTER ...........................8F-38
MOTOR RELAY - INSTALLATION,
STARTER ...........................8F-39
MOTOR RELAY - OPERATION, STARTER . . . 8F-38
MOTOR RELAY - REMOVAL, STARTER....8F-39
MOTOR RESISTOR - DIAGNOSIS AND
TESTING, BLOWER...................24-18
MOTOR RESISTOR BLOCK -
DESCRIPTION, BLOWER...............24-17
MOTOR RESISTOR BLOCK -
INSTALLATION, BLOWER
..............24-18
MOTOR RESISTOR BLOCK - OPERATION,
BLOWER
...........................24-17
MOTOR RESISTOR BLOCK - REMOVAL,
BLOWER
...........................24-18
MOTOR SWITCH - DESCRIPTION,
BLOWER
...........................24-18
MOTOR SWITCH - DIAGNOSIS AND
TESTING, BLOWER
...................24-18
MOTOR SWITCH - INSTALLATION,
BLOWER
...........................24-19
MOTOR SWITCH - OPERATION, BLOWER
. . 24-18
MOTOR SWITCH - REMOVAL, BLOWER
. . . 24-19
MOUNT - INSTALLATION, DISC BRAKE
CALIPER ADAPTER
....................5-17
MOUNT - INSTALLATION, FRONT
. . . 9-144,9-211,
9-265,9-335,9-392,9-58
MOUNT - INSTALLATION, REAR
....9-147,9-213,
9-267,9-337,9-393,9-60
MOUNT - REMOVAL, FRONT
. 9-144,9-211,9-264,
9-335,9-392,9-57
MOUNT - REMOVAL, REAR
. . 9-147,9-213,9-266,
9-337,9-393,9-60MOUNTED STOP LAMP - INSTALLATION,
CENTER HIGH.......................8L-10
MOUNTED STOP LAMP - REMOVAL,
CENTER HIGH.......................8L-10
MOUNTED STOP LAMP UNIT -
INSTALLATION, CENTER HIGH..........8L-10
MOUNTED STOP LAMP UNIT -
REMOVAL, CENTER HIGH..............8L-10
MOUNTING - STANDARD PROCEDURE,
MATCH .............................22-3
MUFFLER - 5.9L DIESEL - INSTALLATION . . 11-9
MUFFLER - 5.9L DIESEL - REMOVAL......11-9
MUFFLER - INSTALLATION..............11-8
MUFFLER - REMOVAL..................11-8
MULTI-FUNCTION SWITCH - DIAGNOSIS
AND TESTING.......................8L-18
MULTI-FUNCTION SWITCH -
INSTALLATION.......................8L-19
MULTI-FUNCTION SWITCH - REMOVAL . . . 8L-18
NAME PLATES - INSTALLATION,
EXTERIOR..........................23-38
NAME PLATES - REMOVAL, EXTERIOR....23-38
NATURAL VAC LEAK DETECTION ASSY -
DESCRIPTION.......................25-23
NATURAL VAC LEAK DETECTION ASSY -
INSTALLATION.......................25-24
NATURAL VAC LEAK DETECTION ASSY -
OPERATION.........................25-23
NATURAL VAC LEAK DETECTION ASSY -
REMOVAL..........................25-24
NECK SEAL - DIAGNOSIS AND TESTING,
RADIATOR CAP-TO-FILLER...............7-61
NEW MODULE / SWITCH OPERATING
MODES, STANDARD PROCEDURE -
CONFIGURING A......................8Q-3
NIGHT MIRROR - DESCRIPTION,
AUTOMATIC DAY.....................8N-12
NIGHT MIRROR - DIAGNOSIS AND
TESTING, AUTOMATIC DAY.............8N-12
NIGHT MIRROR - OPERATION,
AUTOMATIC DAY.....................8N-12
NIGHT MIRROR - REMOVAL,
AUTOMATIC DAY.....................8N-13
NOISE - DIAGNOSIS AND TESTING, A/C
COMPRESSOR.......................24-36
NOISE - DIAGNOSIS AND TESTING,
WIND...............................23-2
NOISE OR VIBRATION - DIAGNOSIS AND
TESTING, TIRE.......................22-7
NOISE SUPPRESSION GROUND STRAP -
DESCRIPTION, RADIO..................8A-8
NOISE SUPPRESSION GROUND STRAP -
INSTALLATION, RADIO................8A-10
NOISE SUPPRESSION GROUND STRAP -
OPERATION, RADIO...................8A-8
NOISE SUPPRESSION GROUND STRAP -
REMOVAL, RADIO.....................8A-9
NON-DEPLOYED SUPPLEMENTAL
RESTRAINTS - STANDARD
PROCEDURE, HANDLING...............8O-6
NON-MONITORED CIRCUITS -
OPERATION..........................25-8
NOZZLE - DESCRIPTION, WASHER......8R-12
NOZZLE - INSTALLATION, WASHER......8R-12
NOZZLE - OPERATION, WASHER........8R-12
NOZZLE - REMOVAL, WASHER..........8R-12
NUMBER - DESCRIPTION, VEHICLE
IDENTIFICATION....................Intro.-2
NV241 GENII - ASSEMBLY, TRANSFER
CASE.............................21-604
NV241 GENII - CLEANING, TRANSFER
CASE.............................21-602
NV241 GENII - DESCRIPTION, TRANSFER
CASE................................0-4
NV241 GENII - DESCRIPTION, TRANSFER
CASE.............................21-591
NV241 GENII - DIAGNOSIS AND
TESTING, TRANSFER CASE............21-592
NV241 GENII - DISASSEMBLY,
TRANSFER CASE
....................21-593
NV241 GENII - INSPECTION, TRANSFER
CASE
.............................21-602
NV241 GENII - INSTALLATION,
TRANSFER CASE
....................21-614
NV241 GENII - OPERATION, TRANSFER
CASE
.............................21-591
NV241 GENII - REMOVAL, TRANSFER
CASE
.............................21-593NV241 GENII - TRANSFER CASE........21-614
NV241/NV243 - TRANSFER CASE . 21-615,21-680
NV243 - ASSEMBLY, TRANSFER CASE . . . 21-670
NV243 - CLEANING, TRANSFER CASE . . . 21-668
NV243 - DESCRIPTION, TRANSFER CASE . . . 0-4
NV243 - DESCRIPTION, TRANSFER CASE . 21-658
NV243 - DIAGNOSIS AND TESTING,
TRANSFER CASE....................21-659
NV243 - DISASSEMBLY, TRANSFER
CASE.............................21-660
NV243 - INSPECTION, TRANSFER CASE . . 21-668
NV243 - INSTALLATION, TRANSFER
CASE.............................21-679
NV243 - OPERATION, TRANSFER CASE . . 21-659
NV243 - REMOVAL, TRANSFER CASE....21-660
NV243 - TRANSFER CASE.............21-680
NV271 - ASSEMBLY, TRANSFER CASE . . . 21-637
NV271 - CLEANING, TRANSFER CASE . . . 21-635
NV271 - DESCRIPTION, TRANSFER CASE . . . 0-4
NV271 - DESCRIPTION, TRANSFER CASE . 21-623
NV271 - DIAGNOSIS AND TESTING,
TRANSFER CASE....................21-624
NV271 - DISASSEMBLY, TRANSFER
CASE.............................21-625
NV271 - INSPECTION, TRANSFER CASE . . 21-635
NV271 - INSTALLATION, TRANSFER
CASE.............................21-649
NV271 - OPERATION, TRANSFER CASE . . 21-623
NV271 - REMOVAL, TRANSFER CASE....21-625
NV271 - TRANSFER CASE.............21-649
NV271/NV273, SPECIAL TOOLS -
TRANSFER CASE..............21-650,21-714
NV273 - ASSEMBLY, TRANSFER CASE . . . 21-701
NV273 - CLEANING, TRANSFER CASE . . . 21-698
NV273 - DESCRIPTION, TRANSFER CASE . . . 0-4
NV273 - DESCRIPTION, TRANSFER CASE . 21-687
NV273 - DIAGNOSIS AND TESTING,
TRANSFER CASE....................21-688
NV273 - DISASSEMBLY, TRANSFER
CASE.............................21-689
NV273 - INSPECTION, TRANSFER CASE . . 21-699
NV273 - INSTALLATION, TRANSFER
CASE.............................21-713
NV273 - OPERATION, TRANSFER CASE . . 21-688
NV273 - REMOVAL, TRANSFER CASE....21-689
NV273 - TRANSFER CASE.............21-713
NV3500 - ASSEMBLY, MANUAL
TRANSMISSION......................21-17
NV3500 - CLEANING, MANUAL
TRANSMISSION......................21-15
NV3500 - DESCRIPTION, MANUAL
TRANSMISSION.......................21-1
NV3500 - DIAGNOSIS AND TESTING,
MANUAL TRANSMISSION...............21-3
NV3500 - DISASSEMBLY, MANUAL
TRANSMISSION.......................21-4
NV3500 - INSPECTION, MANUAL
TRANSMISSION......................21-15
NV3500 - INSTALLATION, MANUAL
TRANSMISSION......................21-38
NV3500 - OPERATION, MANUAL
TRANSMISSION.......................21-1
NV3500 - REMOVAL, MANUAL
TRANSMISSION.......................21-3
NV3500 - SPECIAL TOOLS, MANUAL
TRANSMISSION......................21-40
NV3500 - SPECIFICATIONS, MANUAL
TRANSMISSION......................21-39
NV4500 - ASSEMBLY, MANUAL
TRANSMISSION......................21-61
NV4500 - CLEANING, MANUAL
TRANSMISSION......................21-60
NV4500 - DESCRIPTION, MANUAL
TRANSMISSION......................21-42
NV4500 - DIAGNOSIS AND TESTING,
MANUAL TRANSMISSION..............21-43
NV4500 - DISASSEMBLY, MANUAL
TRANSMISSION......................21-44
NV4500 - INSPECTION, MANUAL
TRANSMISSION
......................21-60
NV4500 - INSTALLATION, MANUAL
TRANSMISSION
......................21-77
NV4500 - OPERATION, MANUAL
TRANSMISSION
......................21-42
NV4500 - REMOVAL, MANUAL
TRANSMISSION
......................21-43
NV4500 - SPECIAL TOOLS, MANUAL
TRANSMISSION
......................21-79
22 INDEXDR
Description Group-Page Description Group-Page Description Group-Page
