DAEWOO MATIZ 2003 Service Repair Manual ENGINE CONTROLS 1F – 55
DAEWOO M-150 BL2
DIAGNOSTIC TROUBLE CODE DIAGNOSIS
CLEARING TROUBLE CODES
Notice: To prevent Engine Control Module (ECM) dam-
age, the key must be OFF when disconnecting or

ENGINE CONTROLS 1F – 55
DAEWOO M-150 BL2
DIAGNOSTIC TROUBLE CODE DIAGNOSIS
CLEARING TROUBLE CODES
Notice: To prevent Engine Control Module (ECM) dam-
age, the key must be OFF when disconnecting or recon-
necting the power to the ECM (for example battery
cable, ECM pigtail connector, ECM fuse, jumper cables,
etc.).When the ECM sets a Diagnostic Trouble Code
(DTC), the Malfunction Indicator Lamp (MIL) lamp will
be turned on only for type A, B and E but a DTC will be
stored in the ECM’s memory for all types of DTC. If theproblem is intermittent, the MIL will go out after 10 sec-
onds if the fault is no longer present. The DTC will stay
in the ECM’s memory until cleared by scan tool. Remov-
ing battery voltage for 10 seconds will clear some stored
DTCs.
DTCs should be cleared after repairs have been com-
pleted. Some diagnostic tables will tell you to clear the
codes before using the chart. This allows the ECM to set
the DTC while going through the chart, which will help to
find the cause of the problem more quickly.
DIAGNOSTIC TROUBLE CODES
DTCFunctionError TypeIlluminate MIL
P0107Manifold Absolute Pressure Sensor Low VoltageAYES
P0108Manifold Absolute Pressure Sensor High voltageAYES
P0112Intake Air Temperature Sensor Low VoltageEYES
P0113Intake Air Temperature Sensor High voltageEYES
P0117Engine Coolant Temperature Sensor Low VoltageAYES
P0118Engine Coolant Temperature Sensor High voltageAYES
P0122Throttle Position Sensor Low VoltageAYES
P0123Throttle Position Sensor Hig voltageAYES
P0131Oxygen Sensor Low VoltageAYES
P0132Oxygen Sensor High VoltageAYES
P0133Oxygen Sensor No ActivityEYES
P0137Heated Oxygen Sensor Low VoltageEYES
P0138Heated Oxygen Sensor high voltageEYES
P0140Heated Oxygen Sensor No ActivityEYES
P0141Heated Oxygen Sensor Heater MalfuctionEYES
P0171Fuel Trim System Too LeanEYES
P0172Fuel Trim System Too RichEYES
P1230Fuel Pump Relay Low VoltageAYES
P1231Fuel Pump Relay High VoltageAYES
P0261Injector 1 Low VoltageAYES
P0262Injector 1 high voltageAYES
P0264Injector 2 Low VoltageAYES
P0265Injector 2 high voltageAYES
P0267Injector 3 Low VoltageAYES
P0268Injector 3 high voltageAYES
P0300Multifle Cylinder MisfireA/EBLINKING/ON
P1320Crankshatft Segment Period Segment Adaptation At LimitEYES
P1321Crankshatft Segment Period Tooth ErrorEYES
P0327Knock Sensor Circuit FaultEYES
P0335Magnetic Crankshaft Position Sensor Electrical ErrorEYES

Page 888 of 1184

DAEWOO MATIZ 2003 Service Repair Manual SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR) 8B–61
DAEWOO M-150 BL2

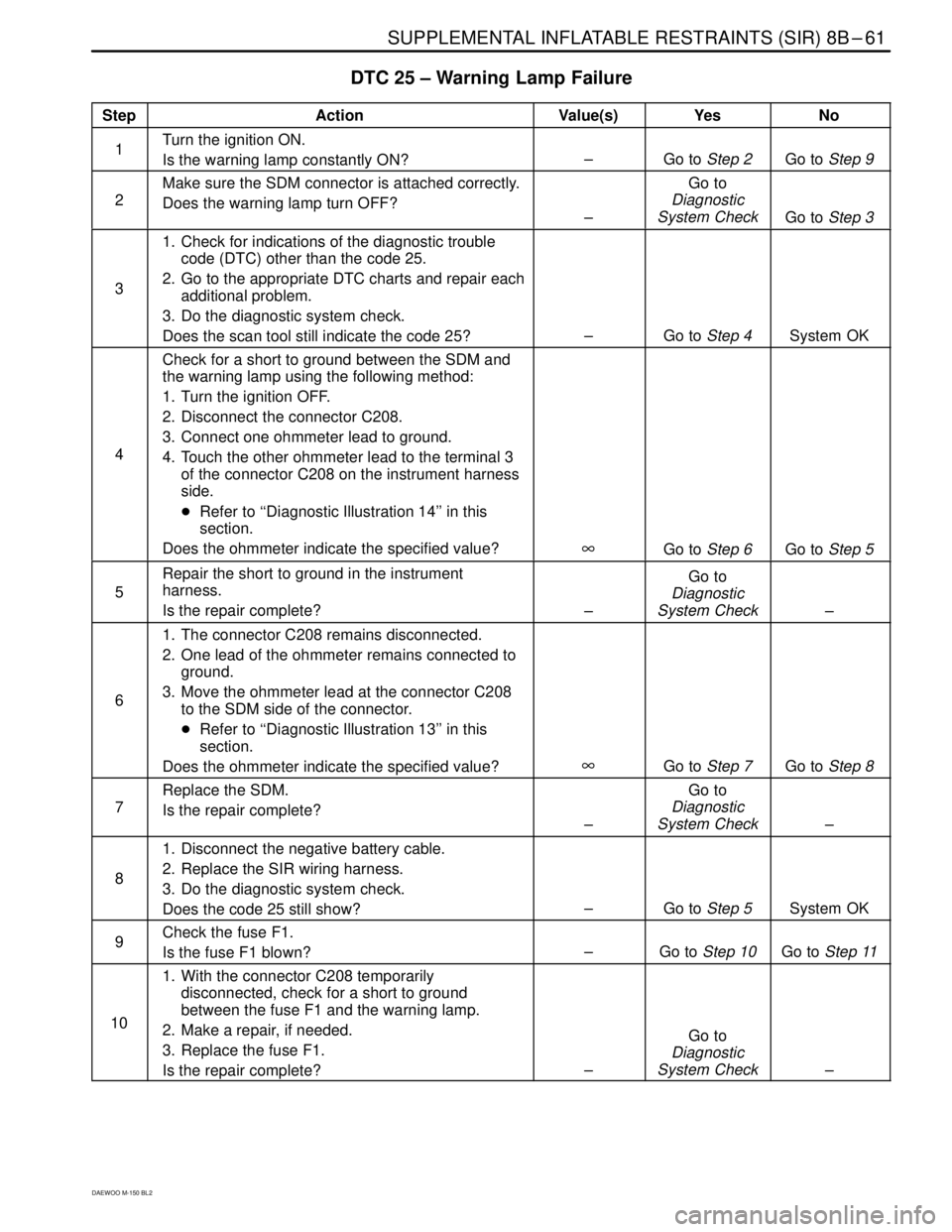

DTC 25 – Warning Lamp Failure
�� Step�� Action�� Value(s)�� Yes��

SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR) 8B–61
DAEWOO M-150 BL2
DTC 25 – Warning Lamp Failure
Step Action Value(s) Yes No

1

Turn the ignition ON.
Is the warning lamp constantly ON?
–

Go to Step 2

Go to Step 9

2

Make sure the SDM connector is attached correctly.
Does the warning lamp turn OFF?
–

Go to
Diagnostic
System Check
Go to Step 3

3

1. Check for indications of the diagnostic trouble
code (DTC) other than the code 25.
2. Go to the appropriate DTC charts and repair each
additional problem.
3. Do the diagnostic system check.
Does the scan tool still indicate the code 25?

–

Go to Step 4

System OK

4

Check for a short to ground between the SDM and
the warning lamp using the following method:
1. Turn the ignition OFF.
2. Disconnect the connector C208.
3. Connect one ohmmeter lead to ground.
4. Touch the other ohmmeter lead to the terminal 3
of the connector C208 on the instrument harness
side.
Refer to ‘‘Diagnostic Illustration 14’’ in this
section.
Does the ohmmeter indicate the specified value?

∞

Go to Step 6

Go to Step 5

5

Repair the short to ground in the instrument
harness.
Is the repair complete?

–

Go to
Diagnostic
System Check

–

6

1. The connector C208 remains disconnected.
2. One lead of the ohmmeter remains connected to
ground.
3. Move the ohmmeter lead at the connector C208
to the SDM side of the connector.
Refer to ‘‘Diagnostic Illustration 13’’ in this
section.
Does the ohmmeter indicate the specified value?

∞

Go to Step 7

Go to Step 8

7

Replace the SDM.
Is the repair complete?

–

Go to
Diagnostic
System Check

–

8

1. Disconnect the negative battery cable.
2. Replace the SIR wiring harness.
3. Do the diagnostic system check.
Does the code 25 still show?

–

Go to Step 5

System OK

9

Check the fuse F1.
Is the fuse F1 blown?
–

Go to Step 10

Go to Step 11

10

1. With the connector C208 temporarily
disconnected, check for a short to ground
between the fuse F1 and the warning lamp.
2. Make a repair, if needed.
3. Replace the fuse F1.
Is the repair complete?

–

Go to
Diagnostic
System Check

–

Page 907 of 1184

DAEWOO MATIZ 2003 Service Repair Manual DAEWOO M-150 BL2
SECTION 9A
BODY WIRING SYSTEM
CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact

Page 909 of 1184

DAEWOO MATIZ 2003 Service Repair Manual BODY WIRING SYSTEM 9A–3
DAEWOO M-150 BL2
Contents of Electrical Wiring Diagram
PositionExplanation
A
–The box above the fuse box: Power supply lines
–Power supply lines: 30, 15, 15A, Ka, 58, 50

Page 916 of 1184

DAEWOO MATIZ 2003 Service Repair Manual 9A–10 BODY WIRING SYSTEM
DAEWOO M-150 BL2
FUSE CHART
FuseRating/ SourceCircuit
Ef1 (Engine Fuse)50ABATABS
Ef240ABATIgnition Switch, Instrument Panel Fuse Block
(F5, F11 ~ F13)
Ef310ABATFuel cut-off
