2003 CHEVROLET SSR seat memory

Front Seats
Power Seats
Driver’s Seat
The power seat controls are located on the outboard
side of the driver’s seat.
Horizontal Control

Move the front of the seat control up or down to
adjust the front portion of the cushion.
Move the rear of the seat control up or down to
adjust the rear portion of the cushion.
Lift up or push down on the center of the seat
control to move the entire seat up or down.
Slide the seat control forward or rearward to move
the seat forward or rearward.
Vertical Control
The vertical control is used to operate the power
lumbar.
Adjust the seat cushion using the horizontal control.
To adjust the seatback, seeReclining Seatbacks
on page 1-4. Once the seat is in the desired position,
adjust the lumbar.
Press the vertical control forward to increase support
and rearward to decrease support.
If your vehicle has the memory seat feature, you can
program seat positions for up to two drivers. See
Memory Seat on page 2-44for more information. Power seat with memory seat controls shown
1-2

Keys...............................................................2-2
Remote Keyless Entry System.........................2-4
Remote Keyless Entry System Operation...........2-5
Doors and Locks.............................................2-7
Door Locks....................................................2-7
Power Door Locks..........................................2-8
Programmable Automatic Door Locks................2-8
Leaving Your Vehicle......................................2-9
Tailgate........................................................2-9
Windows........................................................2-10
Power Windows............................................2-11
Sun Visors...................................................2-12
Theft-Deterrent Systems..................................2-12
Content Theft-Deterrent.................................2-12
Passlock
®....................................................2-14
Starting and Operating Your Vehicle................2-14
New Vehicle Break-In....................................2-14
Ignition Positions..........................................2-15
Starting the Engine.......................................2-16
Automatic Transmission Operation...................2-17
Parking Brake..............................................2-19
Shifting Into Park (P).....................................2-20
Shifting Out of Park (P).................................2-21
Parking Over Things That Burn.......................2-22
Engine Exhaust............................................2-22
Running the Engine While Parked...................2-23Mirrors...........................................................2-24
Manual Rearview Mirror.................................2-24
Automatic Dimming Rearview Mirror with
HomeLink
®...............................................2-24
Outside Power Heated Mirrors........................2-25
Outside Convex Mirror...................................2-25
Outside Automatic Dimming Heated Mirror........2-26
HomeLink
®Transmitter...................................2-26
HomeLink®Wireless Control System...............2-26
HomeLink®Wireless Control
System Operation......................................2-27
Storage Areas................................................2-31
Glove Box...................................................2-31
Cupholder(s)................................................2-31
Instrument Panel Storage Area.......................2-31
Center Console Storage Area.........................2-31
Map Pocket.................................................2-31
Cargo Cover................................................2-32
Cargo Net System........................................2-36
Side-Saddle Storage.....................................2-37
Convertible Top..............................................2-37
Vehicle Personalization...................................2-44
Memory Seat...............................................2-44
Section 2 Features and Controls
2-1

Remote Keyless Entry System
Operation
You can lock and unlock your doors and cargo area
from about 3 feet (1 m) up to 30 feet (9 m) away using
the remote keyless entry transmitter supplied with
your vehicle.
W(Unlock):When you
press unlock, the driver’s
door will unlock
automatically, the parking
lamps may ash, the
horn may sound, and the
interior lights will turn on.
If your vehicle has the memory seat feature and you
have previously programmed a seat position, the driver’s
seat will move to that position when you press the
unlock button. SeeMemory Seat on page 2-44for
more information.
Q(Lock):Press lock to lock all the doors. Press lock
again within three seconds and the horn will chirp.
F(Cargo Cover Release):To release the cargo
cover, press the button with this symbol on it. The
convertible top must be all the way up or down for this
feature to work properly. The cargo cover can also
be released using the cargo cover release button
located in the glovebox. SeeCargo Cover on page 2-32
for more information.
L(Remote Alarm):Press the button with the horn
symbol on it, to sound the horn and make the
headlamps and taillamps ash for up to 30 seconds.
This can be turned off by pressing the horn button again,
or by waiting for 30 seconds, or by starting the vehicle.
You can program different feedback settings for up
to two drivers using the Driver Information Center (DIC).
For more information seeDriver Information
Center (DIC) on page 3-41.
2-5

Vehicle Personalization
Memory Seat
Your vehicle may have a memory driver’s seat. The
controls are located on the outboard of the driver’s seat,
and are used to program and recall memory settings
for the driver’s seating positions.
Adjust the driver’s seat to the desired position. Press
the SET button, then press and hold button 1 (for
Driver 1) for three seconds. A double chime will sound
to let you know that the position has been stored.A second seating position can be programmed by
repeating the procedure with a second driver and
pressing button 2 for three seconds. Each time
button 1 or 2 is pressed and released while the vehicle
is in PARK (P), a single chime will sound, and the
memory position will be recalled.
If you use the unlock button on the remote keyless entry
transmitter to enter your vehicle, the preset driver’s
seat positions will be recalled if programmed to do so
through the Driver Information Center (DIC). The
numbers on the back of the transmitters, 1 or 2,
correspond to the numbers on the memory controls.
The seat positions can also be recalled by placing the
key in the ignition if programmed to do so through
the Driver Information Center (DIC).
To stop recall movement of the memory feature at
any time, press one of the power seat controls or
memory buttons.
Further programming for automatic seat can be done
through the Driver Information Center (DIC). See
DIC Vehicle Personalization on page 3-52for more
information.
2-44

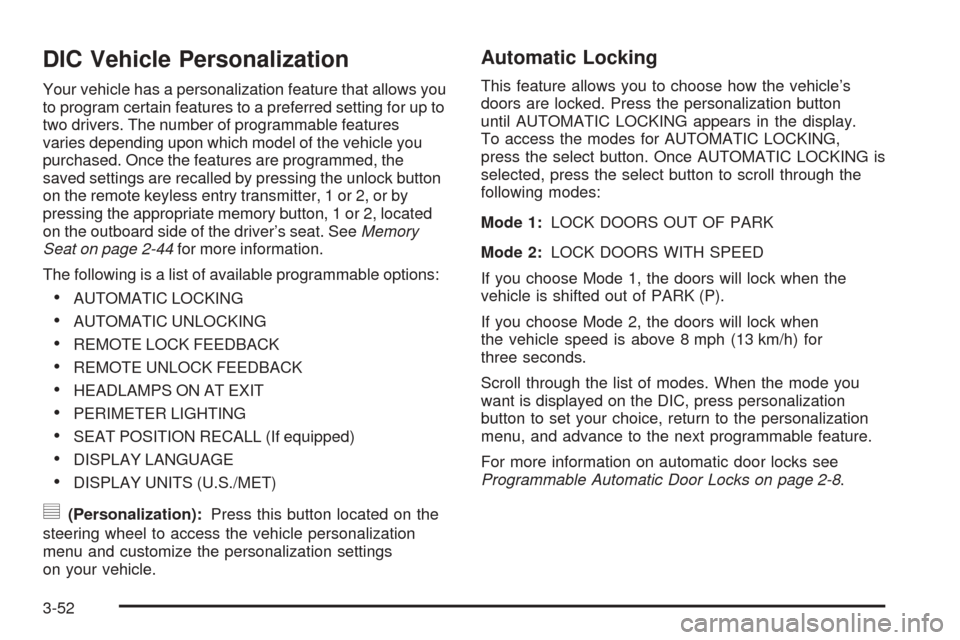

DIC Vehicle Personalization
Your vehicle has a personalization feature that allows you
to program certain features to a preferred setting for up to
two drivers. The number of programmable features
varies depending upon which model of the vehicle you
purchased. Once the features are programmed, the
saved settings are recalled by pressing the unlock button
on the remote keyless entry transmitter, 1 or 2, or by
pressing the appropriate memory button, 1 or 2, located
on the outboard side of the driver’s seat. SeeMemory
Seat on page 2-44for more information.
The following is a list of available programmable options:
AUTOMATIC LOCKING
AUTOMATIC UNLOCKING
REMOTE LOCK FEEDBACK
REMOTE UNLOCK FEEDBACK
HEADLAMPS ON AT EXIT
PERIMETER LIGHTING
SEAT POSITION RECALL (If equipped)
DISPLAY LANGUAGE
DISPLAY UNITS (U.S./MET)
y(Personalization):Press this button located on the
steering wheel to access the vehicle personalization
menu and customize the personalization settings
on your vehicle.
Automatic Locking
This feature allows you to choose how the vehicle’s
doors are locked. Press the personalization button
until AUTOMATIC LOCKING appears in the display.
To access the modes for AUTOMATIC LOCKING,
press the select button. Once AUTOMATIC LOCKING is
selected, press the select button to scroll through the
following modes:
Mode 1:LOCK DOORS OUT OF PARK
Mode 2:LOCK DOORS WITH SPEED
If you choose Mode 1, the doors will lock when the
vehicle is shifted out of PARK (P).
If you choose Mode 2, the doors will lock when
the vehicle speed is above 8 mph (13 km/h) for
three seconds.
Scroll through the list of modes. When the mode you
want is displayed on the DIC, press personalization
button to set your choice, return to the personalization
menu, and advance to the next programmable feature.
For more information on automatic door locks see
Programmable Automatic Door Locks on page 2-8.
3-52

Seat Position Recall
This feature allows you to choose how any previously
programmed seat position is recalled. Press the
personalization button until SEAT POSITION RECALL
appears in the display. To access the modes for
SEAT POSITION RECALL, press the select button.
Once SEAT POSITION RECALL is selected, press the
select button to scroll through the following modes:
Mode 1:SEAT POSITION RECALL OFF
Mode 2:SEAT POSITION RECALL AT KEY IN
Mode 3:SEAT POSITION RECALL ON REMOTE
If you choose Mode 1, the memory seat position you
saved will only be recalled when the memory
button 1 or 2 is pressed.
If you choose Mode 2, the memory seat position you
saved will be recalled when you put the key in the
ignition.
If you choose Mode 3, the memory seat position you
saved will be recalled when you unlock the vehicle with
the remote keyless entry transmitter.
Scroll through the list of modes. When the mode you want
is displayed on the DIC, press personalization button to
set your choice, return to the personalization menu, and
advance to the next programmable feature. SeeMemory
Seat on page 2-44for more information.
Display Language
This feature allows you to choose the language in which
the DIC information will be displayed. Press the select
button until DISPLAY LANGUAGE appears on the
DIC. Once DISPLAY LANGUAGE is selected, press the
select button to scroll through the following modes:
Mode 1:ENGLISH
Mode 2:FRANCAIS (French)
Mode 3:ESPANOL (Spanish)
When the language you desire is displayed on the DIC,
press personalization button to set your choice,
return to the personalization menu, and advance to the
next programmable feature.
If you accidentally choose a language that you don’t
want, press and hold the personalization button and the
trip information button at the same time. The DIC will
begin scrolling through the languages in their particular
language. English will be in English, French will be
in French and so on. When you see the language that
you would like, release both buttons. The DIC will
then display the information in the language you chose.
3-57

Light (cont.)
TCS Warning Light......................................3-29
Traction Control System (TCS) Warning..........3-29
Lighted Visor Vanity Mirrors..............................2-12
Loading Your Vehicle.......................................4-31
Locks
Door........................................................... 2-7
Leaving Your Vehicle..................................... 2-9
Power Door.................................................. 2-8
Programmable Automatic Door Locks............... 2-8
Loss of Control...............................................4-13
M
Maintenance, Normal Replacement Parts............5-91
Maintenance Schedule
At Each Fuel Fill........................................... 6-9
At Least Once a Month.................................. 6-9
At Least Once a Year..................................6-10
At Least Twice a Year................................... 6-9
Brake System Inspection..............................6-14
Engine Cooling System Inspection.................6-14
Exhaust System Inspection...........................6-13
Fuel System Inspection................................6-13
How This Section is Organized....................... 6-3
Introduction.................................................. 6-2
Maintenance Requirements............................. 6-2
Part A - Scheduled Maintenance Services......... 6-4
Part B - Owner Checks and Services............... 6-9Maintenance Schedule (cont.)
Part C - Periodic Maintenance Inspections.......6-13
Part D - Recommended Fluids and
Lubricants...............................................6-15
Part E - Maintenance Record.........................6-17
Scheduled Maintenance................................. 6-5
Steering, Suspension and Front Drive Axle
Boot and Seal Inspection..........................6-13
Using.......................................................... 6-4
Your Vehicle and the Environment................... 6-2
Maintenance When Trailer Towing.....................4-49
Making Turns.................................................4-47
Malfunction Indicator Light................................3-30
Manually Open Tonneau..................................3-47
Map Pocket...................................................2-31
Matching Transmitter(s) to Your Vehicle............... 2-6
Memory Seat.................................................2-44
Message
DIC Warnings and Messages........................3-45
Mexico, Central America and Caribbean Islands/
Countries (Except Puerto Rico and U.S. Virgin
Islands) — Customer Assistance..................... 7-4
Mirrors
Manual Rearview Mirror................................2-24
Outside Automatic Dimming Heated Mirror......2-26
Outside Convex Mirror.................................2-25
Outside Power Heated Mirrors.......................2-25
Mode Knob....................................................3-19
MyGMLink.com................................................ 7-3
9

Removing the Cargo Cover..............................2-33
Replacement Bulbs.........................................5-48
Replacing Brake System Parts..........................5-35
Reporting Safety Defects
Canadian Government................................... 7-9
General Motors............................................. 7-9
United States Government.............................. 7-8
Reprogramming a Single HomeLink
®Button.......2-30
Resetting Defaults...........................................2-30
Restraint System Check.................................... 6-9
Checking the Restraint Systems....................1-52
Replacing Restraint System Parts
After a Crash..........................................1-53
Rfa X Battery Low..........................................3-49
Roadside
Assistance Program....................................... 7-5
Rocking Your Vehicle To Get It Out...................4-30
Roof Ajar.......................................................3-49
Roof Cycle Timeout.........................................3-49
Roof Hall Switch Fault.....................................3-50
Roof Tonneau.................................................2-37
Running the Engine While Parked.....................2-23
S
Safety Belt
Reminder Light............................................3-24
Safety Belts
Care of......................................................5-75
Driver Position............................................1-12
How to Wear Safety Belts Properly................1-12
Passenger Position......................................1-19
Questions and Answers About Safety Belts.....1-11
Safety Belt Extender....................................1-19
Safety Belt Use During Pregnancy.................1-18
Safety Belts Are for Everyone......................... 1-6
Safety Chains.................................................4-45
Safety Warnings and Symbols.............................. iii
Scheduled Maintenance..................................... 6-5
Seatback Latches............................................. 1-6
Seats
Heated Seats............................................... 1-4
Memory.....................................................2-44
Power Seats................................................. 1-2
Reclining Seatbacks...................................... 1-4
Seatback Latches.......................................... 1-6
12
