2003 CHEVROLET SSR boot

15. Insert the convertible top release tool into the latch
closing mechanism between the sun visors and turn
it counterclockwise until the roof latches are
secured and the convertible top is fully closed.
Then replace the plastic cap.16. From the upright position, push down on the outer
area of the boot cover panel where the hinges and
hydraulic cylinders are located to separate it
from the roof tonneau. Then, continue to push the
boot cover panel down as far as it will go.
2-42

17. Push down the roof tonneau cover. Be sure the
boot cover clears the rear roof panel.18. Latch the tonneau panel. Pull the red cable with the
release tool until the cable is pulled tight and the
roof tonneau latch engages.
19. Repeat Step 18 on the other side of the vehicle.
20. You will know the latches are engaged if the
roof tonneau cannot be raised. If the roof tonneau
can be raised, repeat Step 18 on both sides of
the vehicle until the roof tonneau cannot be raised.
21. Once the roof tonneau is closed, adjust the cables
located behind the seats. Pull the cable with the red
band until both cables are the same length.
Repeat this step on the other side of the vehicle.
22. Check the roof tonneau to make sure it is secure
before driving.
Boot cover panel down, roof tonneau up
2-43

Engine Overheated Stop Engine
Notice:If your engine catches re because you
keep driving with no coolant, your vehicle can
be badly damaged. The costly repairs would not be
covered by your warranty.
If your engine is overheated, this message will be
displayed on the DIC. Stop the vehicle as soon as
possible and do not drive it until the engine cools down.
You may need to add more coolant to your vehicle
before driving again. SeeEngine Overheating on
page 5-27andEngine Coolant Temperature Gage on
page 3-30for more information. This message will clear
from the DIC display when the coolant temperature
drops to a safe operating temperature.
Flip Hall Switch Fault
This message will be displayed on the DIC when trying
to raise or lower the convertible top and there is a
fault with this switch. If the message persists, see your
dealer for service.
Fuel Level Low
If the fuel level is low in the vehicle’s gas tank this
message will appear on the DIC and you will hear a
chime. You will also see the check gages warning light
on the instrument panel cluster. SeeCheck Gages
Warning Light on page 3-36for more information.
Refuel as soon as possible. SeeFilling the Tank on
page 5-8andFuel Gage on page 3-37for more
information. Press the select button to acknowledge
and clear the message from the display.
Hdr (Header) Latch Switch Fault
This message will be displayed on the DIC when trying
to raise or lower the convertible top and there is a
fault with this switch. If the message persists, see your
dealer for service.
Manually Open Tonneau
This message will be displayed on the DIC when
trying to raise or lower the convertible top while the
convertible top and roof tonneau are where the system
cannot verify their position. The roof system may
need to be restored manually to a stable position by
fully opening the roof tonneau and boot cover panel.
SeeConvertible Top on page 2-37for more information.
3-47

Relays Usage
34 Air Conditioning
35 Fuel Pump
36 Fog Lamps
37 High Beam Headlamps
38 Cargo Cover Release
39 Horn
40 Windshield Washer
41 Headlamp Driver Module
42 Ignition
43 StarterRelay Center
There is a relay center located in the area where the
convertible top is stored when it is open. To access the
relay center, do the following:
1. Open the convertible top until the roof tonneau and
the boot cover panel are upright so that you can
reach into the convertible top storage area as
shown. See “Convertible Top Operation” under
Convertible Top on page 2-37for more information.
5-87

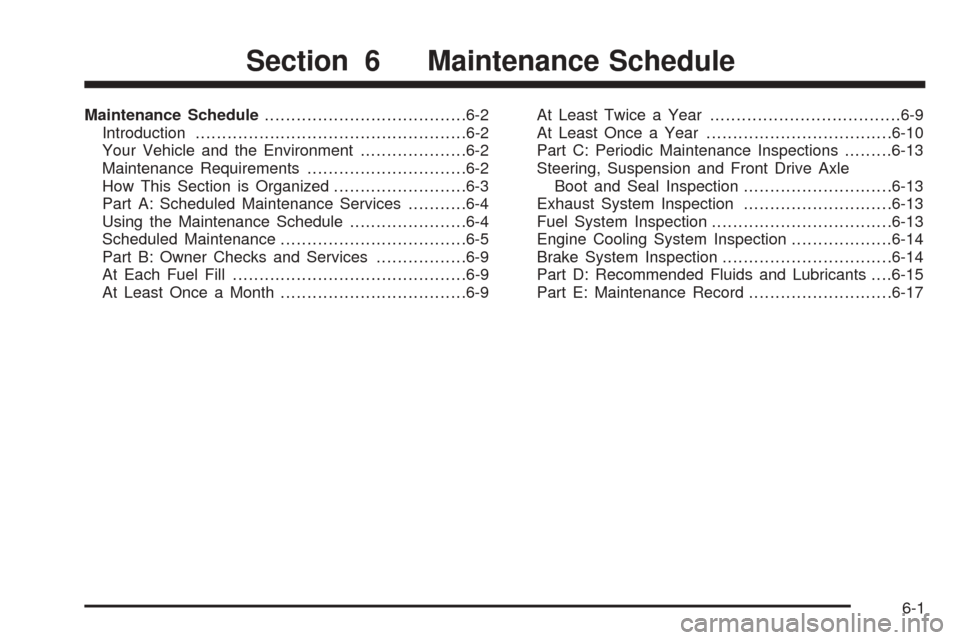

Maintenance Schedule......................................6-2
Introduction...................................................6-2
Your Vehicle and the Environment....................6-2
Maintenance Requirements..............................6-2
How This Section is Organized.........................6-3
Part A: Scheduled Maintenance Services...........6-4
Using the Maintenance Schedule......................6-4
Scheduled Maintenance...................................6-5
Part B: Owner Checks and Services.................6-9
At Each Fuel Fill............................................6-9
At Least Once a Month...................................6-9At Least Twice a Year....................................6-9
At Least Once a Year...................................6-10
Part C: Periodic Maintenance Inspections.........6-13
Steering, Suspension and Front Drive Axle
Boot and Seal Inspection............................6-13
Exhaust System Inspection............................6-13
Fuel System Inspection..................................6-13
Engine Cooling System Inspection...................6-14
Brake System Inspection................................6-14
Part D: Recommended Fluids and Lubricants. . . .6-15
Part E: Maintenance Record...........................6-17
Section 6 Maintenance Schedule
6-1

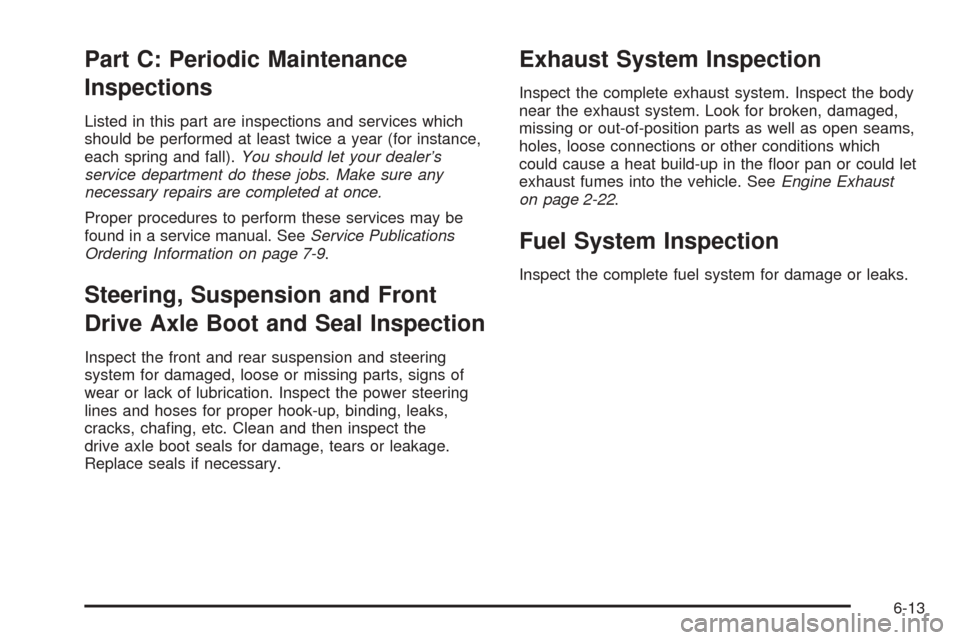

Part C: Periodic Maintenance
