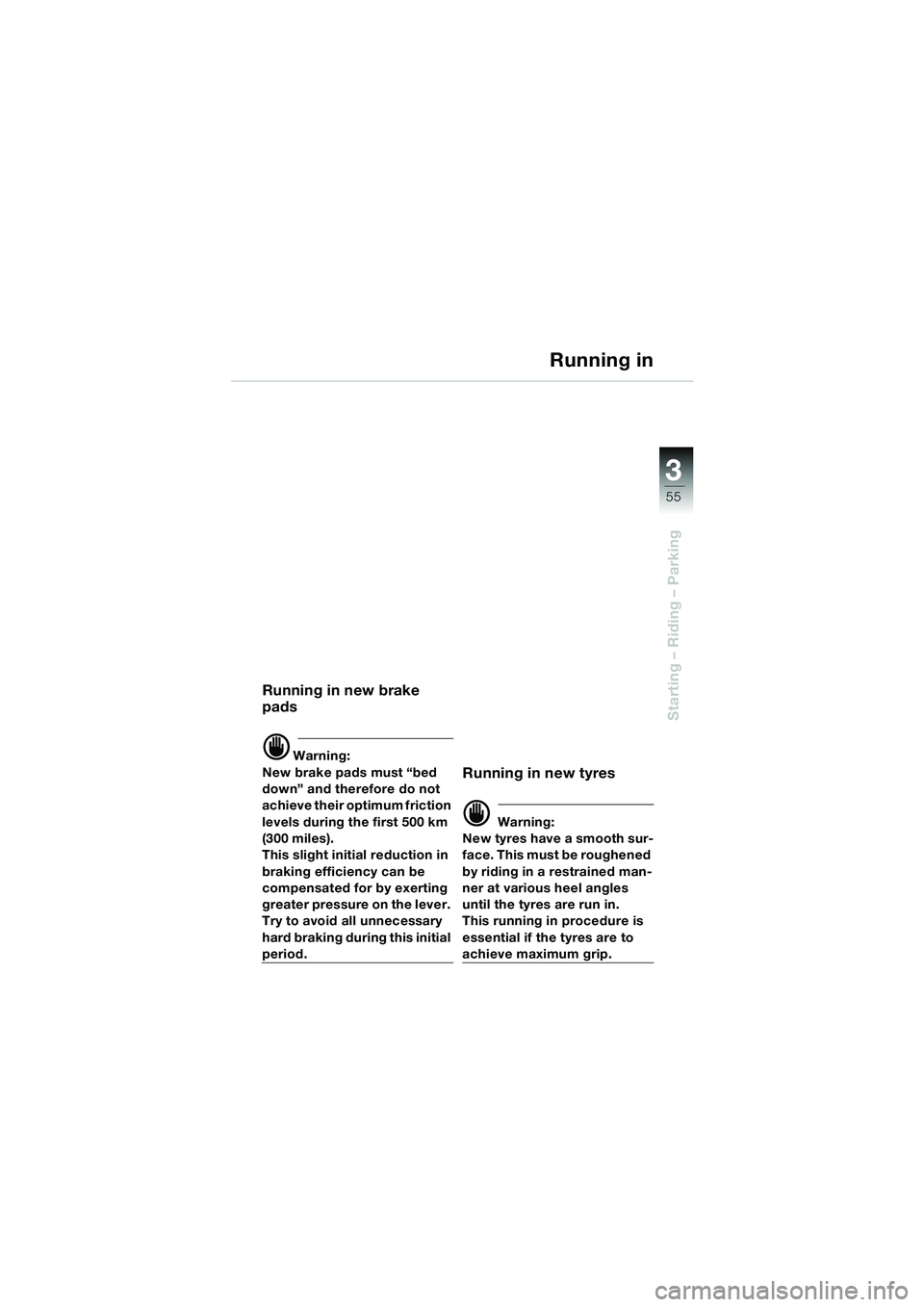

Page 57 of 88
3
55
Starting – Riding – Parking
Running in
Running in new brake
pads
d Warning:
New brake pads must “bed
down” and therefore do not
achieve their optimum friction
levels during the first 500 km
(300 miles).
This slight initial reduction in
braking efficiency can be
compensated for by exerting
greater pressure on the lever.
Try to avoid all unnecessary
hard braking during this initial
period.
Running in new tyres
d Warning:
New tyres have a smooth sur-
face. This must be roughened
by riding in a restrained man-
ner at various heel angles
until the tyres are run in.
This running in procedure is
essential if the tyres are to
achieve maximum grip.
10R13bkg4.book Seite 55 Montag, 22. September 2003 4:26 16

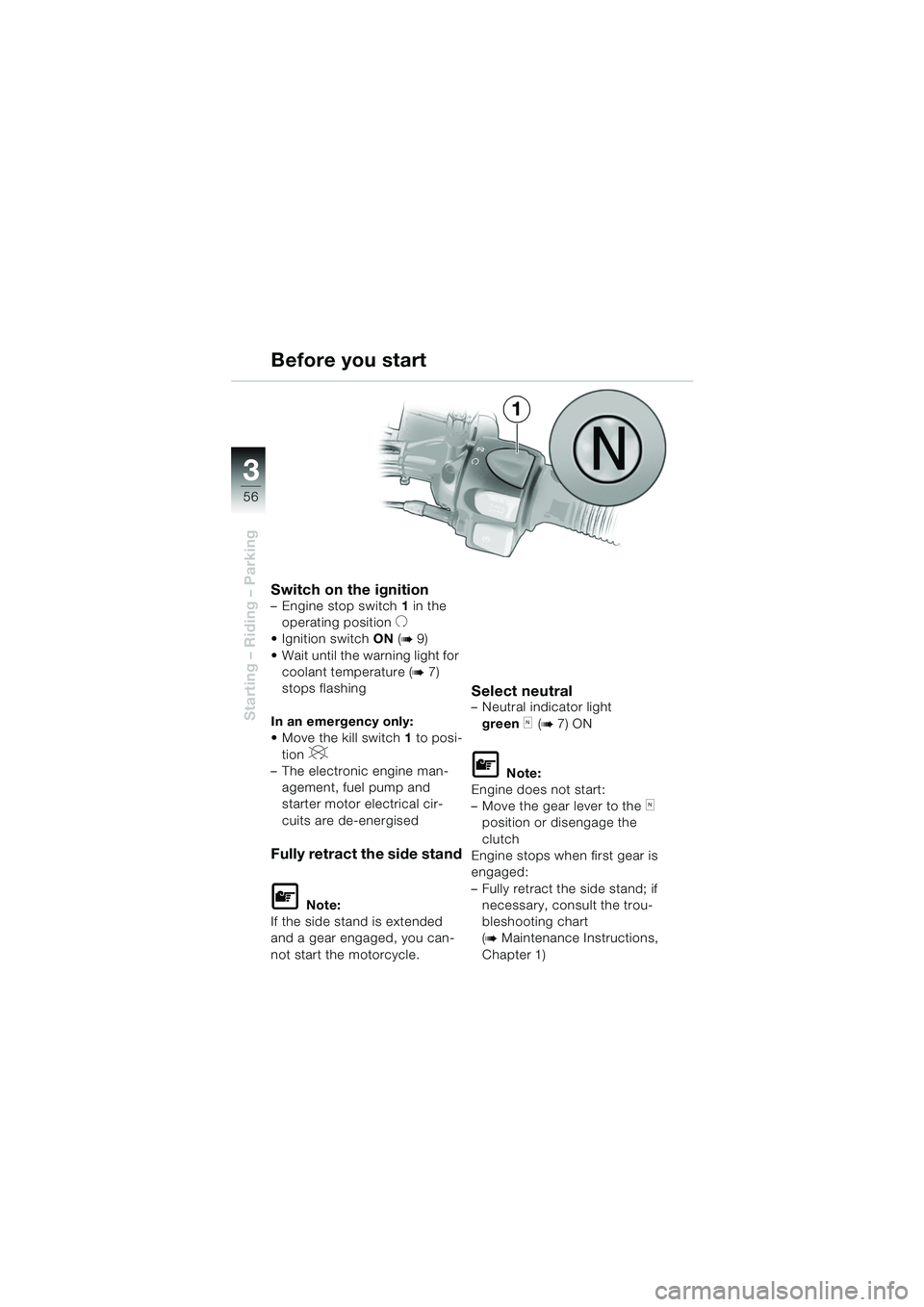

Page 58 of 88
3
56
Starting – Riding – Parking
1
Switch on the ignition– Engine stop switch 1 in the
operating position
U
Ignition switch ON (b9)
Wait until the warning light for coolant temperature (
b7)
stops flashing
In an emergency only:
Move the kill switch 1 to posi-
tion
V
– The electronic engine man- agement, fuel pump and
starter motor electrical cir-
cuits are de-energised
Fully retract the side stand
L Note:
If the side stand is extended
and a gear engaged, you can-
not start the motorcycle.
Select neutral– Neutral indicator light
green
k (b7) ON
L Note:
Engine does not start:
– Move the gear lever to the
k
position or disengage the
clutch
Engine stops when first gear is
engaged:
– Fully retract the side stand; if necessary, consult the trou-
bleshooting chart
(
b Maintenance Instructions,
Chapter 1)
Before you start
10R13bkg4.book Seite 56 Montag, 22. September 2003 4:26 16

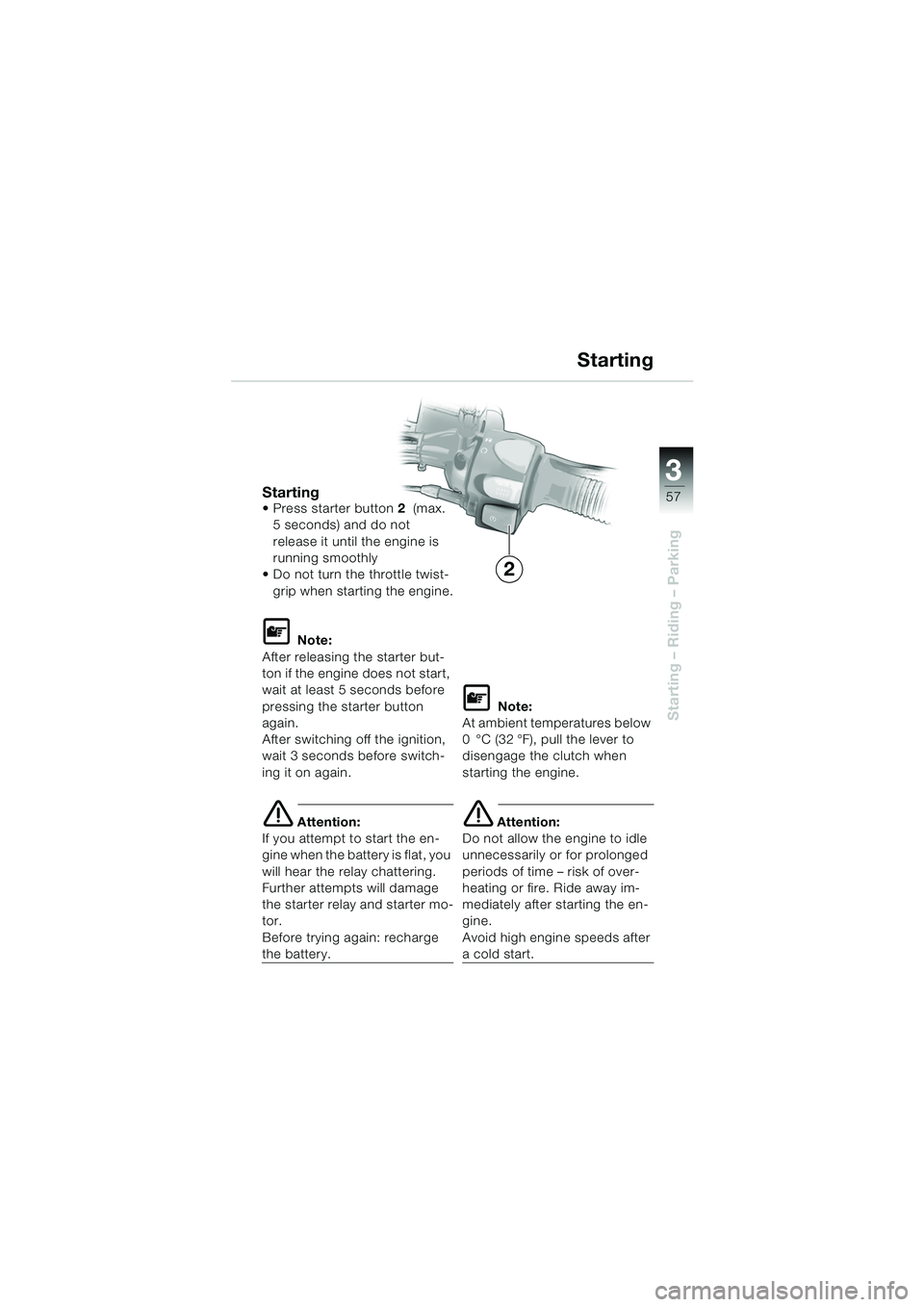

Page 59 of 88
3
57
Starting – Riding – Parking
Starting Press starter button2 (max.
5 seconds) and do not
release it until the engine is
running smoothly
Do not turn the throttle twist- grip when starting the engine.
L Note:
After releasing the starter but-
ton if the engine does not start,
wait at least 5 seconds before
pressing the starter button
again.
After switching off the ignition,
wait 3 seconds before switch-
ing it on again.
e Attention:
If you attempt to start the en-
gine when the battery is flat, you
will hear the relay chattering.
Further attempts will damage
the starter relay and starter mo-
tor.
Before trying again: recharge
the battery.
L Note:
At ambient temperatures below
0 °C (32 °F), pull the lever to
disengage the clutch when
starting the engine.
e Attention:
Do not allow the engine to idle
unnecessarily or for prolonged
periods of time – risk of over-
heating or fire. Ride away im-
mediately after starting the en-
gine.
Avoid high engine speeds after
a cold start.
Starting
2
10R13bkg4.book Seite 57 Montag, 22. September 2003 4:26 16

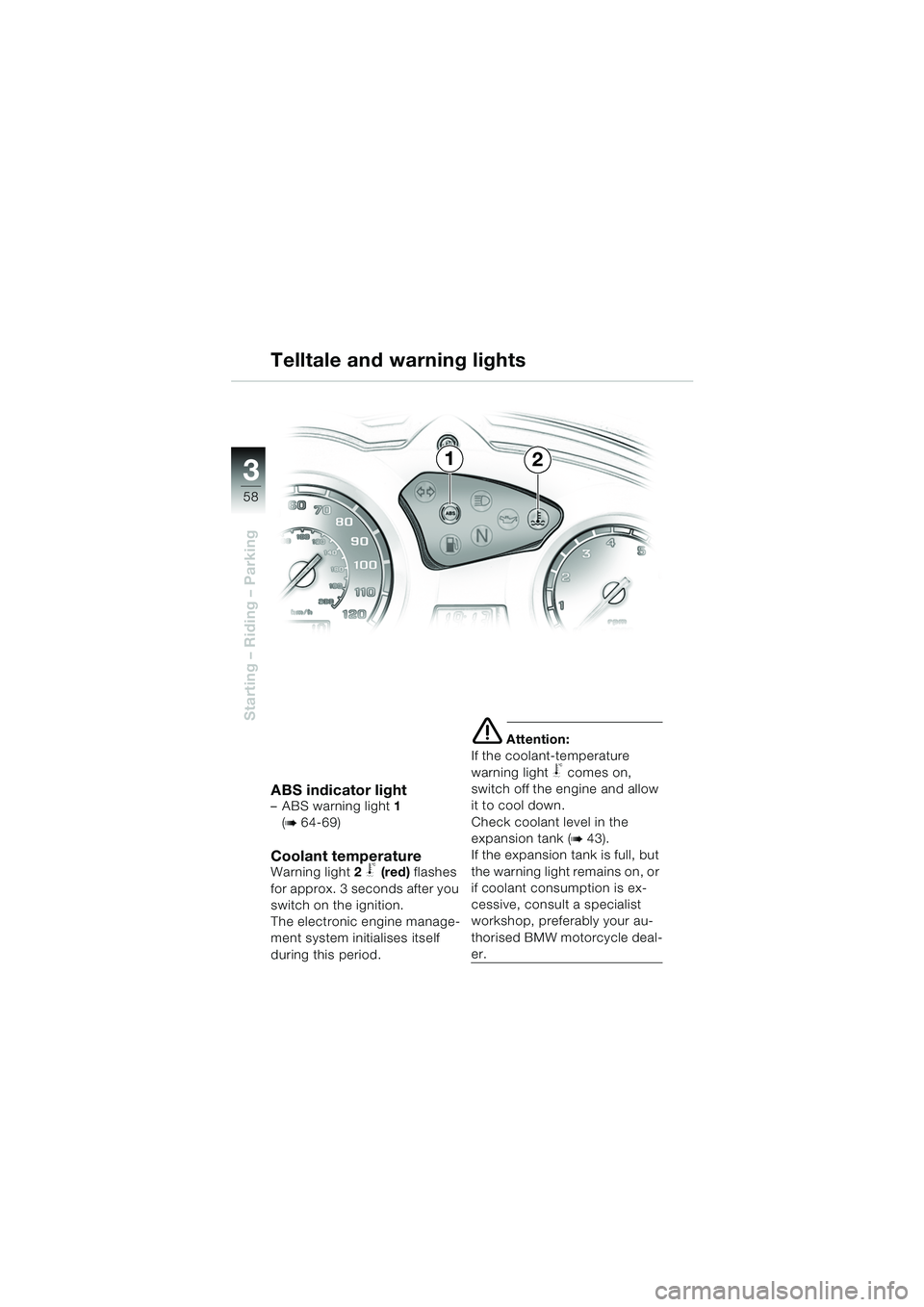

Page 60 of 88
3
58
Starting – Riding – Parking
ABS indicator light– ABS warning light1
(
b 64-69)
Coolant temperatureWarning light 2 j (red) flashes
for approx. 3 seconds after you
switch on the ignition.
The electronic engine manage-
ment system initialises itself
during this period.
e Attention:
If the coolant-temperature
warning light
j comes on,
switch off the engine and allow
it to cool down.
Check coolant level in the
expansion tank (
b43).
If the expansion tank is full, but
the warning light remains on, or
if coolant consumption is ex-
cessive, consult a specialist
workshop, preferably your au-
thorised BMW motorcycle deal-
er.
Telltale and warning lights
12
10R13bkg4.book Seite 58 Montag, 22. September 2003 4:26 16

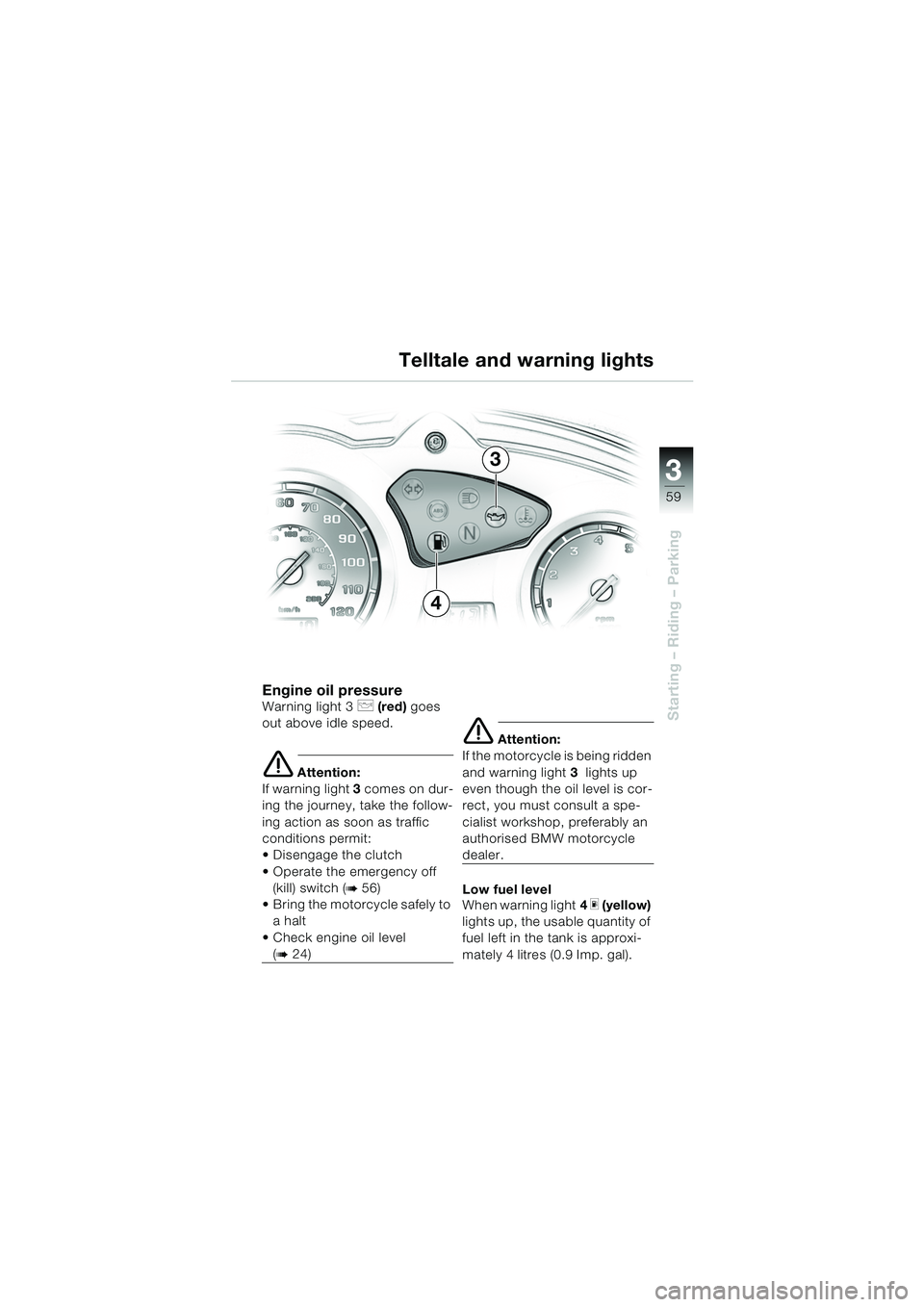

Page 61 of 88
3
59
Starting – Riding – Parking
Engine oil pressureWarning light 3 p (red) goes
out above idle speed.
e Attention:
If warning light 3 comes on dur-
ing the journey, take the follow-
ing action as soon as traffic
conditions permit:
Disengage the clutch
Operate the emergency off (kill) switch (
b56)
Bring the motorcycle safely to a halt
Check engine oil level
(b24)
e Attention:
If the motorcycle is being ridden
and warning light 3 lights up
even though the oil level is cor-
rect, you must consult a spe-
cialist workshop, preferably an
authorised BMW motorcycle
dealer.
Low fuel level
When warning light 4
m (yellow)
lights up, the usable quantity of
fuel left in the tank is approxi-
mately 4 litres (0.9 Imp. gal).
Telltale and warning lights
4
3
10R13bkg4.book Seite 59 Montag, 22. September 2003 4:26 16

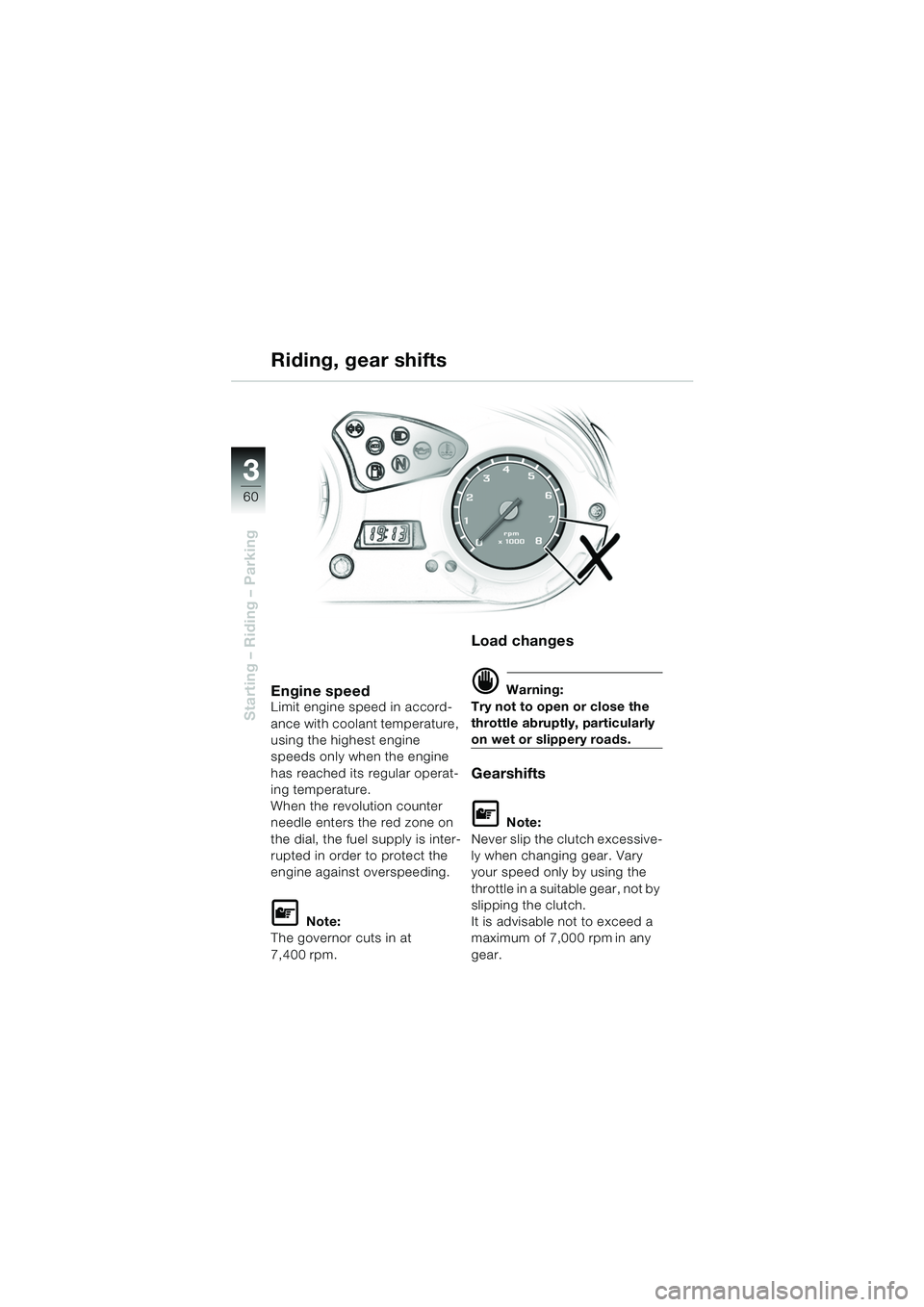

Page 62 of 88
3
60
Starting – Riding – Parking
Riding, gear shifts
Engine speedLimit engine speed in accord-
ance with coolant temperature,
using the highest engine
speeds only when the engine
has reached its regular operat-
ing temperature.
When the revolution counter
needle enters the red zone on
the dial, the fuel supply is inter-
rupted in order to protect the
engine against overspeeding.
L Note:
The governor cuts in at
7,400 rpm.
Load changes
d Warning:
Try not to open or close the
throttle abruptly, particularly
on wet or slippery roads.
Gearshifts
L Note:
Never slip the clutch excessive-
ly when changing gear. Vary
your speed only by using the
throttle in a suitable gear, not by
slipping the clutch.
It is advisable not to exceed a
maximum of 7,000 rpm
in any
gear.
10R13bkg4.book Seite 60 Montag, 22. September 2003 4:26 16

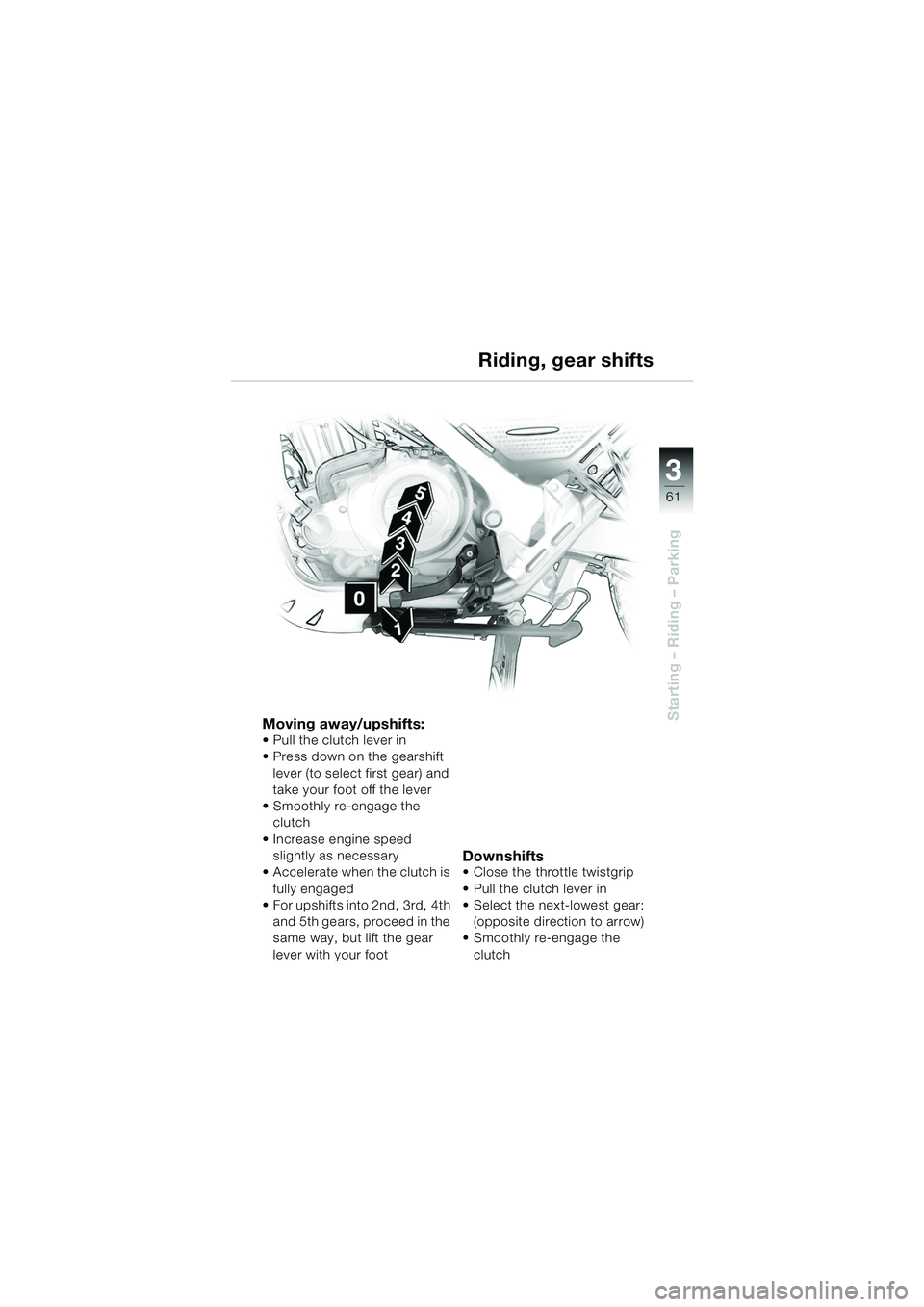

Page 63 of 88
3
61
Starting – Riding – ParkingMoving away/upshifts: Pull the clutch lever in
Press down on the gearshift lever (to select first gear) and
take your foot off the lever
Smoothly re-engage the clutch
Increase engine speed slightly as necessary
Accelerate when the clutch is
fully engaged
For upshifts into 2nd, 3rd, 4th
and 5th gears, proceed in the
same way, but lift the gear
lever with your foot
Downshifts Close the throttle twistgrip
Pull the clutch lever in
Select the next-lowest gear: (opposite direction to arrow)
Smoothly re-engage the
clutch
Riding, gear shifts
10R13bkg4.book Seite 61 Montag, 22. September 2003 4:26 16

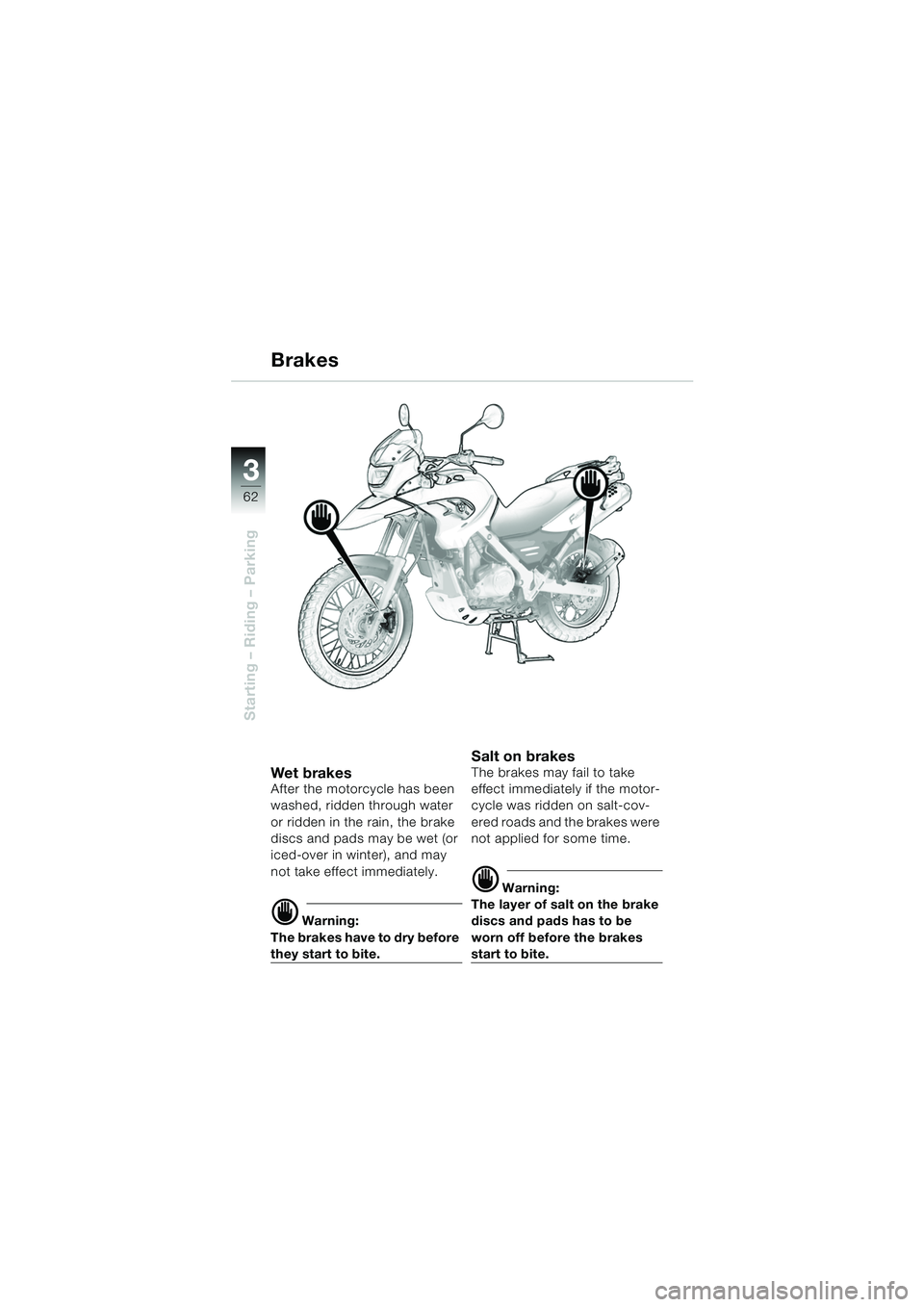

Page 64 of 88
3
62
Starting – Riding – Parking
Brakes
Wet bra kesAfter the motorcycle has been
washed, ridden through water
or ridden in the rain, the brake
discs and pads may be wet (or
iced-over in winter), and may
not take effect immediately.
d Warning:
The brakes have to dry before
they start to bite.
Salt on brakesThe brakes may fail to take
effect immediately if the motor-
cycle was ridden on salt-cov-
ered roads and the brakes were
not applied for some time.
d Warning:
The layer of salt on the brake
discs and pads has to be
worn off before the brakes
start to bite.
10R13bkg4.book Seite 62 Montag, 22. September 2003 4:26 16
