2003 BMW 325Ci CONVERTIBLE Owner's Manual

49
3. Grasp the convertible top by the lat-
eral guide section 1 and the front
convertible top frame 2. Lift out the
top and swing it forward until you
encounter a perceptible resistance –
until it stops. Position the rear con-
vertible top frame vertically and close
the convertible top compartment lid.
Fold down the rear convertible top
frame
To avoid damaging the side trim,
always fold the convertible top
forward before placing the rear convert-
ible frame into a vertical position.<
4. Use a screwdriver to lift out the cover
panel that is in the center of the front
convertible top frame
5. Insert the Allen wrench 2 – refer to
page 48 – into the recess – see arrow
6. Pull down on the front convertible
top frame as far as possible. Com-
plete the closing process by continu-
ing to turn the wrench in a clockwise
direction. Turn until the front convert-
ible top frame has locked onto the
windshield frame. The system auto-
matically presses the top's rear
frame against the convertible top
compartment lid, pretensioning it to
ensure that it seals tightly.
Always make sure the closing pro-
cedure is completed to prevent
vehicle damage or personal injury.<
Please consult your BMW center
to have the defect corrected.<
Fully-automatic convertible top*
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 49 Wednesday, July 31, 2002 9:29 AM

50
Position for cleaningTo be able to access the convertible
top compartment, lean the rear frame of
the convertible top against the cover of
the convertible top compartment.
First, use the button for activating
the convertible top to unlock the
locks of the convertible top compart-
ment. Refer to page 47.<
For additional information on vehi-
cle care, refer to the Caring for
your vehicle brochure.<
Wind deflector*With the convertible top open, the wind
deflector keeps air movement in the
passenger compartment to a minimum,
thus providing you with a pleasant
drive, even at higher speeds. The wind
deflector comes in a protective sleeve,
and because of its slim dimensions, can
be easily stored in the luggage com-
partment.Installation1. Remove wind deflector from the pro-
tective sleeve
Fully-automatic convertible top*
handbook.book Page 50 Wednesday, July 31, 2002 9:29 AM

51
2. Flip out both sides and lock into
place. It is essential for the two com-
ponents marked in the illustration –
see arrows – to mesh at this point
3. Hold the wind deflector so that the
smaller half points toward the front
and guide the mounting pin for the
side piece into the proper opening
4. Pull back on the mounting pin for the
other side piece by using a slide, so
that the mounting pin can be guided
into the opening provided
5. Unlock the convertible top compart-
ment lid via the convertible top con-
trol button, refer to page 47, and
open the convertible top compart-
ment lid
6. Flip the back half of the wind deflec-
tor backward, so that the mounts are
lying on the vehicle
7. Close the convertible top compart-
ment lid via the convertible top con-
trol button. The wind deflector is now
attached so that it is theft-proof.
Operate the convertible top com-
partment lid from above only in
order to avoid any pinching.
With the wind deflector in place: to
avoid damaging the wind deflector
never push the front seats all the way
back.<
RemovalFollow the same procedure as when
installing, just reverse the steps.
Wind deflector*
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 51 Wednesday, July 31, 2002 9:29 AM

52To adjust
Safe seating positionFor relaxed and fatigue-free driving you
should select a sitting position that
reflects your personal requirements. In
combination with the safety belts and
airbags, the correct seating position
plays an important role in enhancing
occupant safety in the event of an acci-
dent. To ensure that the vehicle's safety
systems provide you with optimal pro-
tection, we request that you direct your
careful attention to the following sec-
tion.
For supplementary information on
transporting children, refer to page 63.Sitting safely with airbags
Always maintain an adequate dis-
tance between yourself and the
airbags. Always hold the steering wheel
by the rim to keep any chance of injury
to hands or arms to an absolute mini-
mum should the airbag be deployed.
Never allow any objects, individuals or
animals to obstruct the areas between
passengers and airbags. Never use the
front airbag's cover as a storage tray or
support for objects of any kind. Never
allow front passengers to rest their feet
or legs on the airbag cover.<
For airbag locations and additional
information on airbags, refer to
page 61.Sitting safely with safety belts
Never allow more than one person
to wear a single safety belt. Never
allow infants or small children to ride in
a passenger's lap. Avoid twisting the
belt while routing it firmly across the
hips and shoulder, wear it as snugly
against your body as possible. Do not
allow the belt to rest against hard or
fragile objects. Do not route the belt
across your neck, or run it across sharp
edges. Be sure that the belt does not
become caught or jammed. Avoid
wearing bulky clothing and pull on the
lap belt periodically to retension it over
your shoulders. In the event of a frontal
impact, a loose lap belt could slide over
your hips, leading to abdominal injury.
In addition, the safety belt's restraint
effectiveness is reduced if it is worn
loosely. Expectant mothers should
always wear their safety belts, taking
care to position the lap belt against the
lower hips, where it will not exert pres-
sure against the abdominal area.<
For information on using the safety
belts, refer to page 56.
SeatsWhen adjusting your seat, always
observe the following precautions
Never try to adjust your seat while
operating the vehicle. The seat
could respond with unexpected move-
ment, and the ensuing loss of vehicle
control could lead to an accident. Never
ride with the backrest reclined to an
extreme angle. This is especially impor-
tant for the front passenger to remem-
ber. If you do so, there is a risk that you
will slide under the safety belt in an
accident, thus reducing the protection
provided by the safety belt.
With the wind deflector in place:
To avoid damaging the wind deflector
never push the front seats all the way
back.<
Seat adjustment>Power seat adjustment, refer to
page 53
>Head restraint, refer to page 54
>Entering the rear, refer to page 55.
handbook.book Page 52 Wednesday, July 31, 2002 9:29 AM

53
Adjusting electric power seatsSeat adjustment1Tilt angle
2Backward/forward adjustment
3Height
4Backrest angle
Please refer to the adjustment
instructions on page 52 to reduce
the risk of personal injury.<
With the BMW sports seat* you can
also adjust the thigh support. To do so,
pull the lever and adjust the position of
the cushion for thigh support as
desired.
Lumbar support*To adjustYou can adjust the backrest's contour
for additional support in the curvature
of your spine's lumbar region.
The upper hips and spinal column
receive supplementary support to help
you maintain a relaxed, upright posture.
>Press the front/rear of the switch:
increase/decrease curvature
>Press the upper/lower end of the
switch: increase the upper/lower cur-
vature.
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 53 Wednesday, July 31, 2002 9:29 AM

54

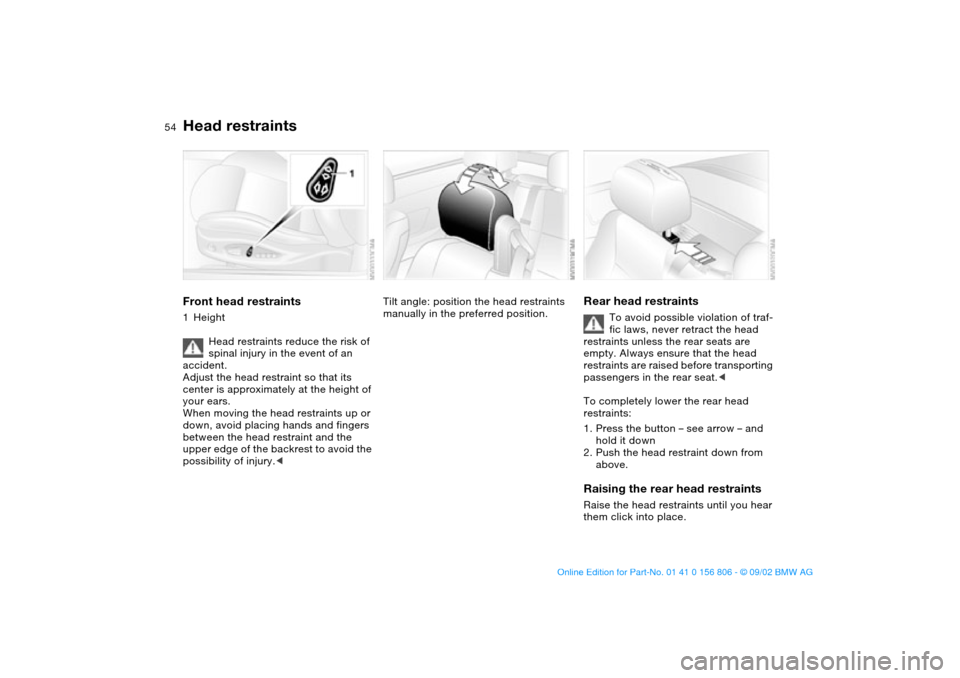

Head restraintsFront head restraints1Height
Head restraints reduce the risk of
spinal injury in the event of an
accident.
Adjust the head restraint so that its
center is approximately at the height of
your ears.
When moving the head restraints up or
down, avoid placing hands and fingers
between the head restraint and the
upper edge of the backrest to avoid the
possibility of injury.<
Tilt angle: position the head restraints
manually in the preferred position.
Rear head restraints
To avoid possible violation of traf-
fic laws, never retract the head
restraints unless the rear seats are
empty. Always ensure that the head
restraints are raised before transporting
passengers in the rear seat.<
To completely lower the rear head
restraints:
1. Press the button – see arrow – and
hold it down
2. Push the head restraint down from
above.
Raising the rear head restraintsRaise the head restraints until you hear
them click into place.
handbook.book Page 54 Wednesday, July 31, 2002 9:29 AM

55
Do not remove the rear head
restraints, as this would damage
them.<
For further information, please consult
your BMW center.
Do not use the rear head
restraints as storage shelves.
Always keep the travel path for the roll-
over protection system free and clear.
Never place protective covers or similar
items on the head restraints. See also
the labels on the head restraints.<
Entering the rearThe seat-integrated safety belt system
SGS allows for easy access to the rear.
1. Lift lever 1 up and tilt the backrest
forward
2. Press and hold button 2 in driving
direction until the seat moves to the
desired position
3. After entering the rear, fold back and
lock the backrest
4. Press button 2 opposite the direction
of travel and hold. The seat moves
back into its previous position. If the
button 2 is released beforehand, the
seat stops in the respective position.
You can lock a backrest that has
been tilted forward. This makes
sense when, for instance, someone is
climbing into the rear on an incline. To
do this, press against the backrest until
you hear it click into place. To move it
back into place, you do not need to first
unlock it by moving the lever 1.<
Lock both backrests while driving,
otherwise there is a danger of an
unexpected movement causing an
accident.<
The indicator lamp in the instrument
cluster will flash to alert you that the
backrest is not locked in place, refer to
page 18.
Head restraints
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 55 Wednesday, July 31, 2002 9:29 AM

56
Safety beltsAlways wear your safety beltAlways fasten your safety belt before
starting off. As supplemental restraint
devices, the airbags are designed to
enhance the effectiveness of the safety
belts, and not to replace them.
Always detach the rear safety
belts from their retainers before
wearing.<
To avoid undesired movement at
high speeds, always store the rear
safety belts in their retainers when they
are not in use. the belt buckle.
To release1. Press the red button in the belt
buckle
2. Hold the belt
3. Guide the belt back into its reel.Adjusting the safety belt height The front belt system automatically
adjusts to your body size when the
height of the head restraint is adjusted.
Refer to page 54.
If the safety belt system has been
subjected to the stresses involved
in an accident or otherwise damaged:
Have the entire safety belt mechanism
replaced by your BMW center, includ-
ing the safety belt tensioner. In addi-
tion, have your BMW center inspect the
safety belt anchors. If a child-restraint
system was in the vehicle during an
accident, consult the manufacturer's
instructions regarding replacement.<
handbook.book Page 56 Wednesday, July 31, 2002 9:29 AM
