2002 YAMAHA XL 700 Owners Manual

4-14
E
EJU01342
Cleaning and adjusting the
spark plugs
The spark plug is an important engine
component and is easy to inspect. The con-
dition of the spark plug can indicate some-
thing about the condition of the engine. For
example, if the center electrode porcelain is
very white, this could indicate an intake air
leak or carburetion problem in that cylinder.
Do not attempt to diagnose any problems
yourself. Have a Yamaha dealer service the
watercraft.
Remove and inspect the spark plug peri-
odically; heat and deposits will cause the
spark plug to slowly break down and erode.
If electrode erosion becomes excessive, or if
carbon and other deposits are excessive,
replace the spark plug with the specified
plug.
Measure the spark plug gap a with a
wire thickness gauge before installing the
spark plug. Adjust the gap to specification if
necessary.
To reinstall spark plug:
1. Clean the gasket surface.
2. Wipe any dirt from the threads of the
spark plug.
3. Screw the spark plug to the correct
torque. Standard spark plug: BR8HS
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Spark plug torque:
25 N·m (2.5 kgf·m, 18 ft·lb)
UF0M73.book Page 14 Thursday, August 2, 2001 5:57 PM

4-15
E
NOTE:@
Wipe off any water on the spark plug or
inside the cap before installing the spark
plug cap. Push the spark plug cap down
until it clicks.

If a torque wrench is not available when
you are fitting a new spark plug, a good
estimate of the correct torque is 1/4 turn
to 1/2 turn past finger tight. Have the
spark plug adjusted to the correct torque
with a torque wrench as soon as possible.
@
WARNING@ Be careful not to damage the insulator
when removing or installing a spark plug.
A damaged insulator could allow sparks
to escape, which could lead to explosion
or fire.
@
EJU01139
Lubrication points
To keep moving parts sliding or rotating
smoothly, coat them with water-resistant
grease.
Recommended water-resistant grease:
Yamaha Marine Grease/
Yamaha Grease A

Throttle cable (carburetor end)

Choke cable (carburetor end)
UF0M73.book Page 15 Thursday, August 2, 2001 5:57 PM

4-16
E

Throttle cable (handlebar end)
Squeeze the throttle lever and remove the
seal 1. Spray a rust inhibitor into the outer
cable. Refit the seal securely.

Steering cable (handlebar end)

Steering handle pivot shaft
If the steering pivot shaft becomes loose,
tighten the band 1 until a satisfactory feel is
obtained.

Steering cable (nozzle end)

Nozzle pivot shaft
UF0M73.book Page 16 Thursday, August 2, 2001 5:57 PM

4-17
E

Intermediate housing
Using a grease gun, fill the intermediate
housing with water resistant grease through
the grease nipple 1.
Grease capacity:
Initial 10 hours or 1 month:
33.0–35.0 cm
3 (1.11–1.18 oz)
Every 100 hours or 6 months:
6.0–8.0 cm
3 (0.20–0.27 oz)
EJU01261
Adjusting the choke cable
Check that the choke cable is properly
adjusted.
1. Pull the choke knob out until it stops, and
then release the knob. The knob should
not move.
2. If the choke knob moves back on its own,
tighten the choke knob adjusting nut 1
slightly. If the knob is difficult to move,
loosen the adjusting nut slightly.
UF0M73.book Page 17 Thursday, August 2, 2001 5:57 PM

4-18
E
EJU01108
Inspecting the battery
Check the level of the battery electrolyte
and make sure the leads are secure.
WARNING@ Battery electrolyte is poisonous and dan-
gerous, causing severe burns, etc. Elec-
trolyte contains sulfuric acid. Avoid
contact with skin, eyes or clothing.
Antidotes
External: Flush with water.
Internal: Drink large quantities of water
or milk. Follow with milk of magnesia,
beaten egg or vegetable oil. Call physi-
cian immediately.
Eyes: Flush with water for 15 minutes
and get prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes, etc., well away.
If using or charging the battery in an
enclosed space, make sure that it is well
ventilated. Always shield your eyes when
working near batteries.
KEEP OUT OF THE REACH OF CHILDREN.
@
CAUTION:@ Be careful not to place the battery on its
side.
Make sure to remove the battery from the
battery compartment when adding bat-
tery electrolyte or charging the battery.
When checking the battery, make sure
the breather hose is connected to the
battery and not obstructed.
@
UF0M73.book Page 18 Thursday, August 2, 2001 5:57 PM

4-19
E
To replenish the battery:
1. Make sure that the electrolyte level is
between the upper 1 and lower 2 level
marks.
2. Refill the battery with distilled water if
necessary.
CAUTION:@ Normal tap water contains minerals that
are harmful to a battery. Use only dis-
tilled water for replenishing the battery.
@
To recharge the battery:
CAUTION:@ Do not attempt to charge a battery hast-
ily. Battery life may be shorter.
@
Yamaha recommend charging battery by
a Yamaha dealer or a battery dealer. If you
charge the battery yourself, read the battery
charger instructions carefully before charg-
ing and follow the points below.
1. Remove all caps from the battery cell.
2. Add distilled water to the specified level if
the electrolyte level is low.
3. Set the charging rate to 1.9 ampere and
charge the battery slowly until the explo-
sive gases become coming out vigor-
ously from battery cells.
To connect the battery terminals:
1. Make sure that the connections are cor-
rect when you insert the battery in the
watercraft.
2. Make sure that the breather hose is
properly connected and that it is not
damaged or obstructed.
3. Make sure that the battery is securely
held in place.
1Positive (+): Red lead
2Negative (–): Black lead
3Breather hose
UF0M73.book Page 19 Thursday, August 2, 2001 5:57 PM

4-20
E
EJU01109
Adjusting the carburetor
The carburetor is a vital part of the engine
and requires very sophisticated adjustment.
Most adjusting should be left to a Yamaha
dealer who has the professional knowledge
and experience to perform it. However, the
operator may adjust the trolling speed as
part of the usual maintenance routine.
CAUTION:@ The carburetor was set at the Yamaha
factory after many tests. If the settings
are disturbed by someone who does not
have the necessary technical knowledge,
poor engine performance and damage
may result.
@
EJU01303
Adjusting the trolling speed
1. Put the watercraft in the water.
2. Start the engine and warm it up for 1 or
2 minutes. Using a diagnostic tachome-
ter, adjust the engine speed to specifica-
tion.
3. Turn the throttle stop screw 1 clockwise
to increase engine speed if necessary.
Turn it counterclockwise to decrease
engine speed if necessary.
Trolling speed: 1,250–1,350 r/min
UF0M73.book Page 20 Thursday, August 2, 2001 5:57 PM

4-21
E
EJU01263

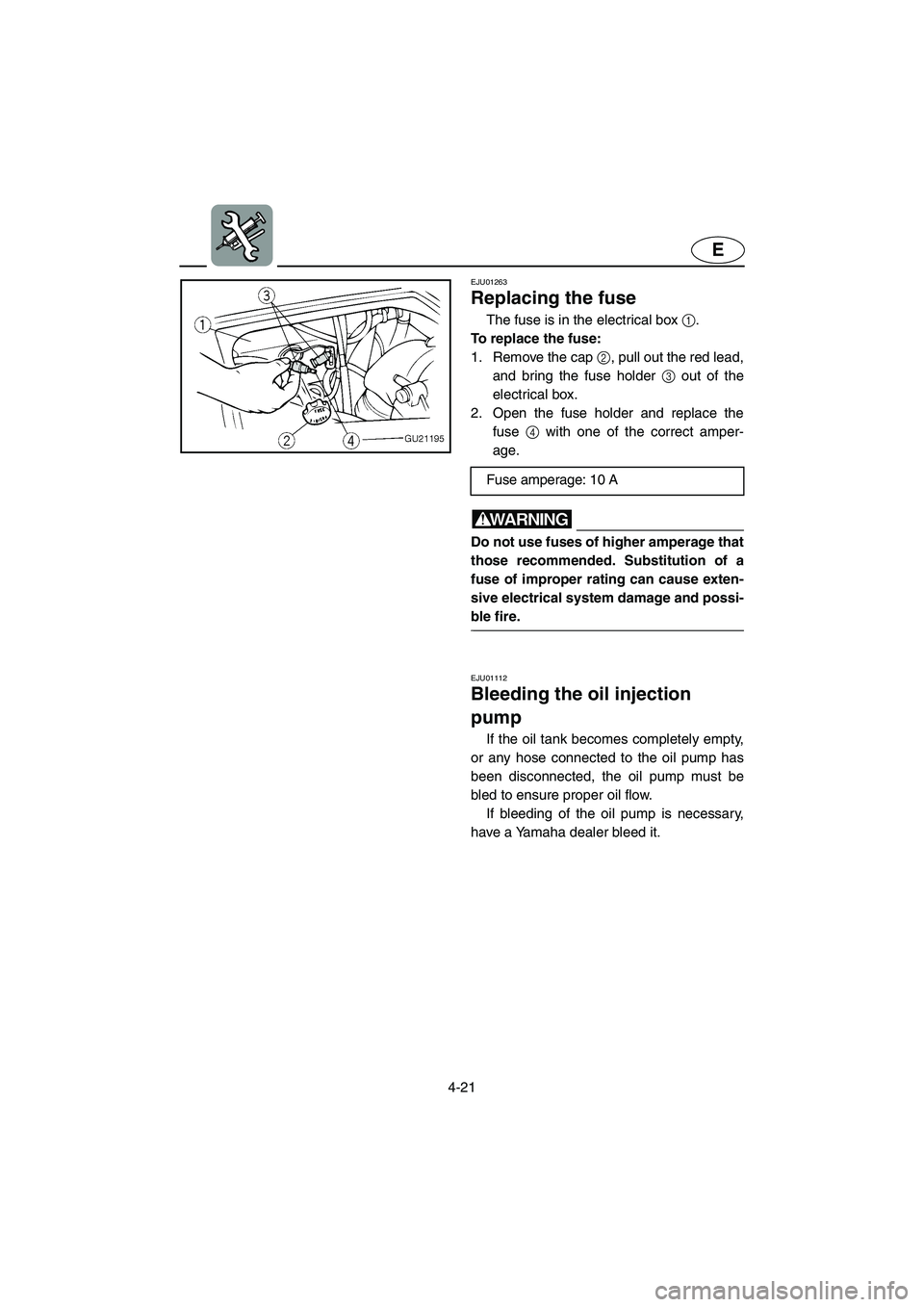

Replacing the fuse
The fuse is in the electrical box 1.
To replace the fuse:
1. Remove the cap 2, pull out the red lead,
and bring the fuse holder 3 out of the
electrical box.
2. Open the fuse holder and replace the
fuse 4 with one of the correct amper-
age.
WARNING@ Do not use fuses of higher amperage that
those recommended. Substitution of a
fuse of improper rating can cause exten-
sive electrical system damage and possi-
ble fire.
@
Fuse amperage: 10 A
EJU01112
Bleeding the oil injection
pump
If the oil tank becomes completely empty,
or any hose connected to the oil pump has
been disconnected, the oil pump must be
bled to ensure proper oil flow.
If bleeding of the oil pump is necessary,
have a Yamaha dealer bleed it.
UF0M73.book Page 21 Thursday, August 2, 2001 5:57 PM
