2002 TOYOTA SOLARA steering

’02 SOLARA_U (L/O 0108)
42002 MY SOLARA_U (OM33545U)

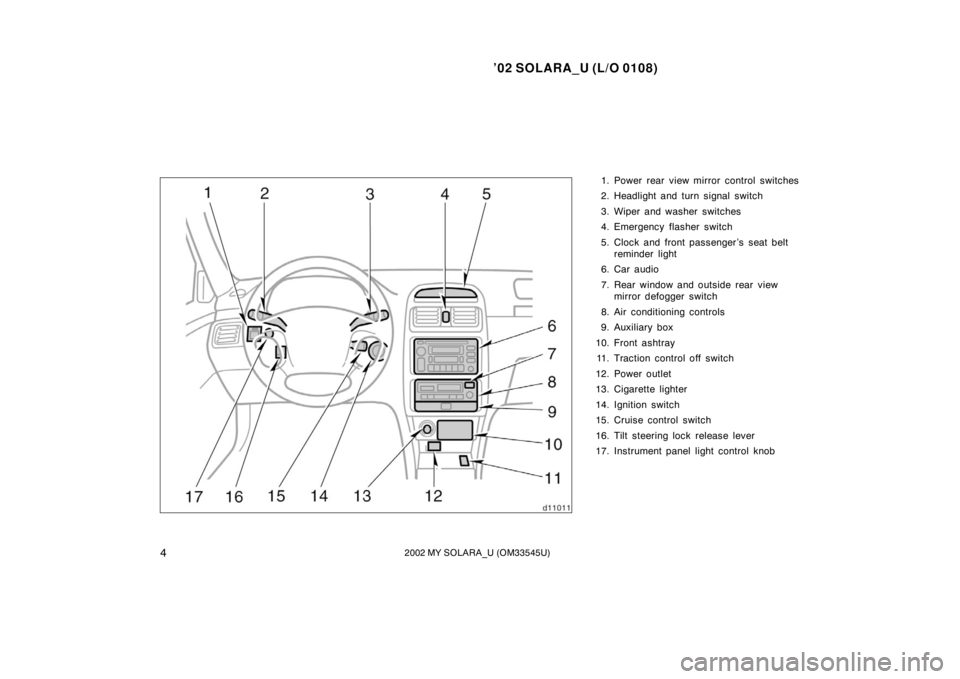

1. Power rear view mirror control switches
2. Headlight and turn signal switch
3. Wiper and washer switches
4. Emergency flasher switch
5. Clock and front passenger ’s seat belt
reminder light
6. Car audio
7. Rear window and outside rear view mirror defogger switch
8. Air conditioning controls
9. Auxiliary box
10. Front ashtray 11. Traction control off switch
12. Power outlet
13. Cigarette lighter
14. Ignition switch
15. Cruise control switch
16. Tilt steering lock release lever
17. Instrument panel light control knob

’02 SOLARA_U (L/O 0108)
392002 MY SOLARA_U (OM33545U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Seats, Seat belts, Steering wheel and Mirrors
Seats 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Front seats 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Fold −down rear seat 45
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Seat heaters 47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Head restraints 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Seat belts 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
SRS driver and front passenger airbags 57
. . . . . . . . . . . . . . . . . . . . . . . .
SRS side airbags 65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Child restraint 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Tilt steering wheel 83
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Outside rear view mirrors 83
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Anti −glare inside rear view mirror 85
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto anti −glare inside rear view mirror 85
. . . . . . . . . . . . . . . . . . . . . . . . .
Sun visors 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 3

’02 SOLARA_U (L/O 0108)
402002 MY SOLARA_U (OM33545U)
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.

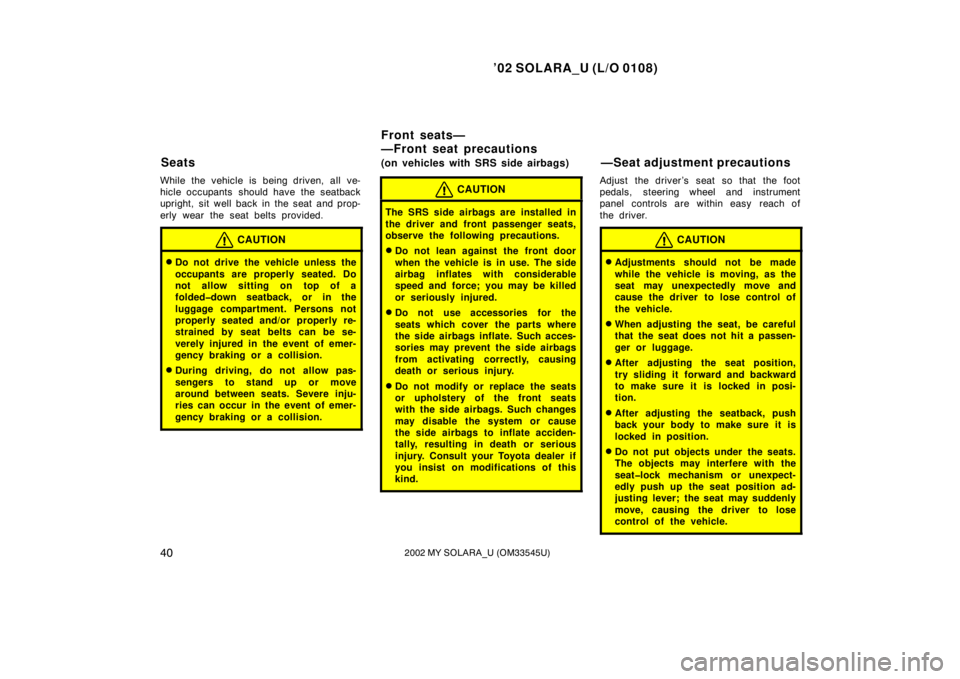

CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow sitting on top of a
foldeddown seatback, or in the
luggage compartment. Persons not
properly seated and/or properly re-
strained by seat belts can be se-
verely injured in the event of emer-
gency braking or a collision.
During driving, do not allow pas-
sengers to stand up or move
around between seats. Severe inju-
ries can occur in the event of emer-
gency braking or a collision.
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats,
observe the following precautions.
Do not lean against the front door
when the vehicle is in use. The side
airbag inflates with considerable
speed and force; you may be killed
or seriously injured.
Do not use accessories for the
seats which cover the parts where
the side airbags inflate. Such acces-
sories may prevent the side airbags
from activating correctly, causing
death or serious injury.
Do not modify or replace the seats
or upholstery of the front seats
with the side airbags. Such changes
may disable the system or cause
the side airbags to inflate acciden-
tally, resulting in death or serious
injury. Consult your Toyota dealer if
you insist on modifications of this
kind.
Adjust the driver’s seat so that the foot
pedals, steering wheel and instrument
panel controls are within easy reach of
the driver.
CAUTION
Adjustments should not be made
while the vehicle is moving, as the
seat may unexpectedly move and
cause the driver to lose control of
the vehicle.
When adjusting the seat, be careful
that the seat does not hit a passen-
ger or luggage.
After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in posi-
tion.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
Do not put objects under the seats.
The objects may interfere with the
seatlock mechanism or unexpect-
edly push up the seat position ad-
justing lever; the seat may suddenly
move, causing the driver to lose
control of the vehicle.
Seats Front seats—
—Front seat precautions (on vehicles with SRS side airbags)—Seat adjustment precautions

’02 SOLARA_U (L/O 0108)
572002 MY SOLARA_U (OM33545U)
In the following cases, contact your Toyota
dealer as soon as possible:

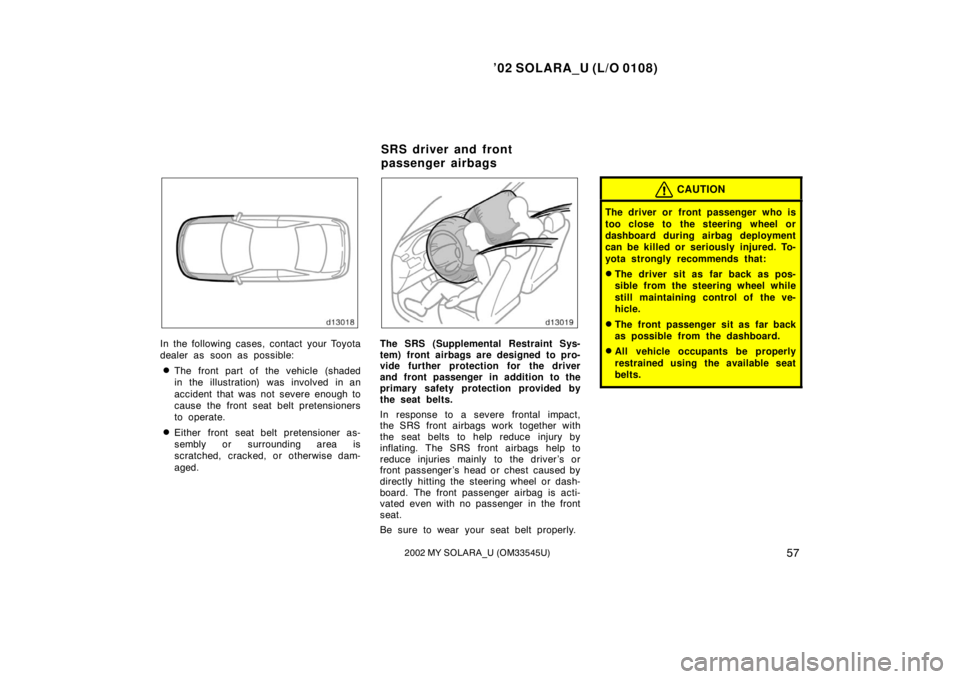

The front part of the vehicle (shaded
in the illustration) was involved in an
accident that was not severe enough to
cause the front seat belt pretensioners
to operate.
Either front seat belt pretensioner as-
sembly or surrounding area is
scratched, cracked, or otherwise dam-
aged.
The SRS (Supplemental Restraint Sys-
tem) front airbags are designed to pro-
vide further protection for the driver
and front passenger in addition to the
primary safety protection provided by
the seat belts.
In response to a severe frontal impact,
the SRS front airbags work together with
the seat belts to help reduce injury by
inflating. The SRS front airbags help to
reduce injuries mainly to the driver ’s or
front passenger ’s head or chest caused by
directly hitting the steering wheel or dash-
board. The front passenger airbag is acti-
vated even with no passenger in the front
seat.
Be sure to wear your seat belt properly.
CAUTION
The driver or front passenger who is
too close to the steering wheel or
dashboard during airbag deployment
can be killed or seriously injured. To-
yota strongly recommends that:
The driver sit as far back as pos-
sible from the steering wheel while
still maintaining control of the ve-
hicle.
The front passenger sit as far back
as possible from the dashboard.
All vehicle occupants be properly
restrained using the available seat
belts.
SRS driver and front
passenger airbags

’02 SOLARA_U (L/O 0108)
602002 MY SOLARA_U (OM33545U)
In a severe frontal impact, the sensors
detect deceleration and the system trig-
gers the airbag inflators. Then a chemical
reaction in the inflators quickly fills the
airbags with non−toxic gas to help restrain
the forward motion of the occupants.
When the airbags inflate, they produce a
fairly loud noise and release some smoke
and residue along with non −toxic gas. This
does not indicate a fire. This gas is nor-
mally harmless; however, for those who
have delicate skin, it may cause a minor
skin irritation. Be sure to wash off any
residue as soon as possible to prevent
any potential skin irritation.
Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is desi gned to reduce serious inju-
ries, it may also cause minor burns or
abrasions and swelling.
Parts of the airbag module (steering wheel
hub, dashboard) may be hot for several
minutes, but the airbags themselves will
not be hot. The airbags are designed to
inflate only once. A crash severe enough to inflate the air-
bags may break the windshield as the
vehicle buckles. In vehicles with a pas-
senger airbag the windshield may also be
damaged by absorbing some of the force
of the inflating airbag.CAUTION
The SRS airbag system is designed
only as a supplement to the prima-
ry protection of the driver side and
front passenger side seat belt sys-
tems. The front seat occupants can
be killed or seriously injured by the
inflating airbags if they do not wear
the available seat belts properly.
During sudden braking just before
a collision, an unrestrained driver
or front passenger can move for-
ward into direct contact with or
close proximity to the airbag which
may then deploy during the colli-
sion. To ensure maximum protection
in an accident, the driver and all
passengers in the vehicle must
wear their seat belts properly. Wear-
ing a seat belt properly during an
accident reduces the chances of
death or serious injury or being
thrown out of the vehicle. For in-
structions and precautions concern-
ing the seat belt system, see “Seat
belts” in this section.

’02 SOLARA_U (L/O 0108)
632002 MY SOLARA_U (OM33545U)
Do not put objects or your pets on
or in front of the dashboard or
steering wheel pad that houses the
front airbag system. They might re-
strict inflation or cause death or
serious injury as they are projected
rearward by the force of deploying
airbags. Likewise, the driver and
front passenger should not hold
things in their arms or on their
knees.
Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components such as
the steering wheel pad, steering
wheel, column cover, front passen-
ger airbag cover, front passenger
airbag or airbag sensor assembly.
Doing any of these may cause sud-
den SRS front airbag inflation or
disable the system, which could re-
sult in death or serious injury.
Failure to follow these instructions
can result in death or serious injury.NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS front airbag system in some
cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders front end structure, con-
sole, steering column, steering
wheel or dashboard near the front
passenger ’s airbag

’02 SOLARA_U (L/O 0108)
642002 MY SOLARA_U (OM33545U)
This SRS front airbag system has a
service reminder indicator to inform the
driver of operating problems. If either of
the following conditions occurs, this
indicates a malfunction of the airbags.
Contact your Toyota dealer as soon as
possible to service the vehicle.
The light does not come on when the
ignition key is turned to the “ACC” or
“ON” position, or the light remains on.
The light comes on while driving.
In the following cases, contact your Toyota
dealer as soon as possible:
The SRS front airbags have been in-
flated.
The front part of the vehicle (shaded
in the illustration) was involved in an
accident that was not severe enough to
cause the SRS front airbags to inflate.
The pad section of the steering wheel
or front passenger airbag cover
(shaded in the illustration) is scratched,
cracked, or otherwise damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.

’02 SOLARA_U (L/O 0108)
832002 MY SOLARA_U (OM33545U)
To change the steering wheel angle,
hold the steering wheel, pull up the
lock release lever, tilt the steering
wheel to the desired angle and release
the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. It may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Adjust the mirror so that you can see
the side of your vehicle in the mirror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side.
It is a convex mirror with a curved sur-
face. Any object seen in a convex mirror
will look smaller and farther away than
when seen in a flat mirror.
On some models, when you push the rear
window defogger switch, the heater panels
in the outside rear view mirrors will quick-
ly clear the mirror surface. (See “Rear
window and outside rear view mirror de-
foggers” in Section 1−4.)
Tilt steering wheel Outside rear view mirrors—
