Your Toyota is equipped with a limitedslip
center differential (transfer). If one wheel
begins to spin, the limitedslip center dif-
ferential (transfer) is designed to aid trac-
tion by automatically transmitting driving
force to the wheels on the other drive
axle. It transmits driving force to the front
wheels if a rear wheel spins, and to the
rear wheels if a front wheel spins.
On some models—
Your Toyota is also equipped with a lim-
itedslip rear differential. If one rear wheel
begins to spin, the limitedslip rear differ-
ential is designed to aid traction by auto-
matically transmitting driving force to the
other rear wheel. If you are not sure
whether your vehicle is equipped with one,
you can ask your Toyota dealer.
CAUTION
Do not start or run the engine while
your vehicle is supported by a jack.
The vehicle could be driven off the
jack and could pose a danger or re-
sult in serious injury.
NOTICE
Use only a spare tire of the same
brand, size, construction and load ca-
pacity as the original tires on your
Toyota because damage to the lim-
itedslip differential could possibly
occur with another tire type.

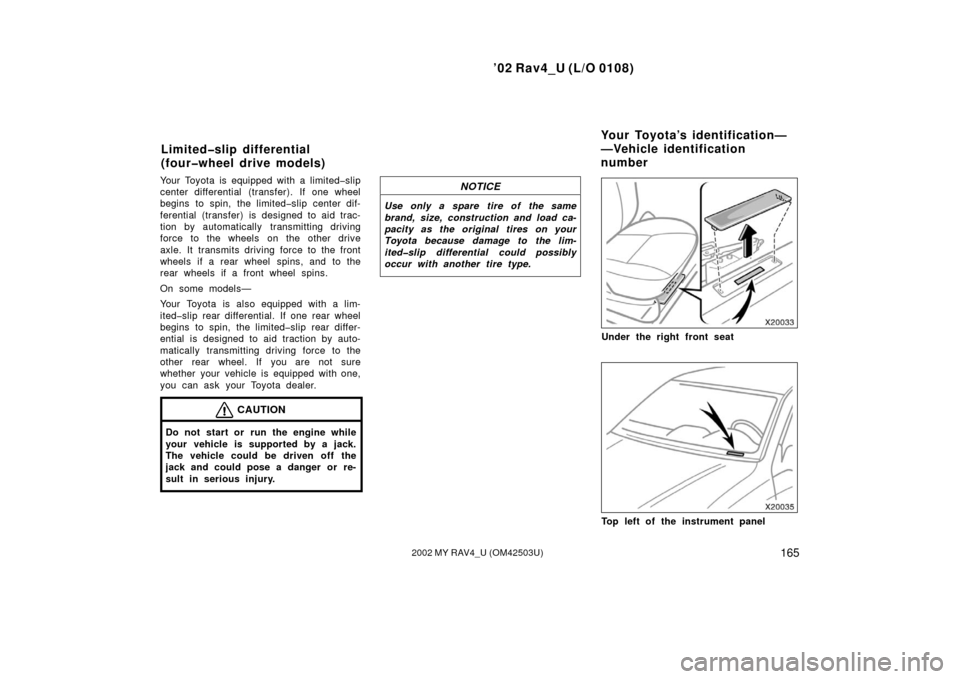

Under the right front seat
Top left of the instrument panel
Limitedslip differential
(fourwheel drive models)Your Toyota’s identification—
—Vehicle identification
number

’02 Rav4_U (L/O 0108)
1732002 MY RAV4_U (OM42503U)
In a rollover crash, an unbelted per-
son is significantly more likely to
die than a person wearing a seat
belt. Therefore, the driver and all
passengers should fasten their seat
belts whenever the vehicle is mo-
ving.
When driving offroad or in rugged
terrain, do not drive at excessive
speeds, jump, make sharp turns,
strike objects, etc. This may cause
loss of control or vehicle rollover
causing death or serious injury. You
are also risking expensive damage
to your vehicle’s suspension and
chassis.
NOTICE
If driving through water, such as
when crossing shallow streams,
first check the depth of the water
and the bottom of the river bed for
firmness. Drive slowly and avoid
deep water.
Take all necessary safety measures
to ensure that water damage to the
engine or other components does
not occur.
Water entering the engine air intake
will cause severe engine damage.
Water can wash the grease from
wheel bearings, causing rusting and
premature failure, and may also en-
ter the differentials, transmission
and transfer case, reducing the gear
oil’s lubricating qualities.
 Sand and mud that has accumulated
in brake drums and around brake
discs may affect braking efficiency
and may damage brake system com-
ponents.
 Always perform a maintenance in-
spection after each day of offroad
driving that has taken you through
rough terrain, sand, mud, or water.
For scheduled maintenance informa-
tion, refer to the “Scheduled Main-
tenance Guide” or “Owner’s Manual
Supplement”.Make sure you have a proper freeze
protection of engine coolant.
Your coolant must contain ethyleneglycol
type coolant for a proper corrosion
protection of aluminum components. Use
“TOYOTA Long Life Coolant” or equivalent.
See page 227 in Section 72 for details
about coolant type selection.
NOTICE
Do not use alcohol type antifreeze or
plain water alone.
When it is extremely cold, we recommend
to use 60% solution for your Toyota, to
provide protection down to about 50 C
(58 F). Do not use more than 70% solu-
tion for better coolant performance.
Check the condition of the battery and
cables.
Cold temperatures reduce the capacity of
any battery, so it must be in top shape
to provide enough power for winter start-
ing. Section 73 tells you how to visually
inspect the battery. Your Toyota dealer
and most service stations will be pleased
to check the level of charge.
Winter driving tips

’02 Rav4_U (L/O 0108)
2562002 MY RAV4_U (OM42503U)
BATTERY
Open voltage
∗ at 20 C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.
CLUTCH
Pedal free play, mm (in.): 5—15 (0.2—0.6)
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.): Twowheel drive models2.5 (2.6, 2.2)
Fourwheel drive models
3.4 (3.6, 3.0)
Oil type: Gear oil API GL4 or GL5
Recommended oil viscosity: SAE 75W90 AUTOMATIC TRANSAXLE
Fluid capacity (drain and ref
ill), L (qt.,
Imp. qt.):
Twowheel drive modelsUp to 3.3 (3.5, 2.9)
Fourwheel drive models Up to 3.9 (4.1, 3.4)
Fluid type: Automatic transmission fluid Type TIV
Change automatic transmission fluid only
as necessary.
Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only Toyota Genuine ATF Type TIV
(ATF JWS3309 or NWS6500) to aid in
assuring optimum transaxle performance.
Notice: Using automatic transmission
fluid other than Toyota Genuine ATF
Type TIV may cause deterioration in
shift quality, locking up of your trans-
mission accompanied by vibration, and
ultimately damage the automatic trans-
mission of your vehicle. TRANSFER
(fourwheel drive models)
Oil capacity, L (qt., Imp. qt.):
0.9 (1.0, 0.8)
Oil type: Hypoid gear oil API GL5
Recommended oil viscosity: Above 18 C (0 F)
SAE 90 or 85W90
Below 18 C (0 F)
SAE 80W or 80W90
REAR DIFFERENTIAL
(fourwheel drive models)
Oil capacity, L (qt., Imp. qt.): 0.9 (1.0, 0.8)
Oil type: Hypoid gear oil API GL5
Recommended oil viscosity: Above 18 C (0 F)
SAE 90
Below 18 C (0 F)
SAE 80W or 80W90
