Instrument panel overview
1. Side vents
2. Side defroster outlets
3. Instrument cluster
4. Center vents
5. Running mode selector lever
6. Power door lock switches
7. Power window switches
8. Glove box
9. Auxiliary boxes
10. Tilt steering lock release lever 11. Hood lock release lever
12. Parking brake pedal
13. Window lock switch
11p003b

11
Turn the ignition key from “ON” to
“START” with the running mode selector
lever in “P” position only. When the
“READY” light flashes and stays on and
a beep sounds after a few seconds, the
hybrid system starts. (If the ambient tem-
perature is low such as during winter con-
ditions, it may take time until the
“READY” light is on.) Being different from
ordinary vehicles, you cannot start your
vehicle with the running mode selector le-
ver in “N” position. (For details, see “How
to start the hybrid system—” on page 162
in Section 4.)Drive your vehicle with a smooth accel-
eration and deceleration.
When driving, energy is effectively re-
covered through the regenerative brake
as the vehicle decelerates. However,
for more efficient use, do not acceler-
ate or decelerate your vehicle more
than necessary.
By avoiding abrupt acceleration and de-
celeration, the remaining capacity of
the hybrid vehicle battery can be pre-
served and it makes it possible to run
the vehicle utilizing the gasoline engine
and the electric power from the hybrid
vehicle battery.
The remaining capacity of the hybrid
vehicle battery can be confirmed on
the energy monitor screen of the multi
−
information display. See “Information”
on 113 page in Section 2 −6 for details.
As the way in which you drive may
decrease the remaining capacity of the
hybrid vehicle battery and reduce fuel
economy, drive your vehicle without
abrupt acceleration or deceleration. Use the “A/C” mode (with the “A/C”
button only on) when you use the air
conditioning.
As the gasoline engine starts and
stops automatically in this mode, eco-
nomical driving with less emissions is
possible.
In the “MAX” mode (with the “A/C” but-
ton and “MAX” button on), the gasoline
engine is frequently used. Use this
mode only when you need to operate
the air conditioning fully such as when
you should dehumidify or when you are
under a burning sun.
When parking, be sure to put the run-
ning mode selector lever in “P” posi-
tion. While driving, use “D” position.
With the selector lever in “N” position,
the gasoline engine operates but elec-
tricity cannot be generated. The
constant electrical power remaining in
the hybrid vehicle battery becomes in-
sufficient and the battery will be dis-
charged.
Starting your vehicle For efficient use of your
vehicle

14
When you put the running mode selec-
tor lever in “B” position and release
your foot from the accelerator pedal,
engine braking will be applied. Howev-
er, during the high speed driving you
may feel that deceleration by engine
braking is less than that of ordinary
vehicle.
Drive your vehicle without hard accel-
eration if the output control warning
light
() is on.
The hybrid vehicle battery temperature is
low or high, or the hybrid vehicle battery
capacity is decreased with the selector
lever at “R” during driving. If this occurs,
the output control warning light comes on.
If the output control warning light is on,
the hybrid system output is limited. Drive
your vehicle without hard acceleration.
Vehicle performance might be reduced sig-
nificantly especially when backing up.
Be sure to put the running mode selec-
tor lever in “P” position when parking.
With the selector lever in “N” position, the
hybrid vehicle battery assembly is not
charged, even if the gasoline engine is
operating. You cannot run your vehicle if
the selector lever is left in “N” position for
a long time because the hybrid vehicle
battery assembly will be discharged. When you leave your vehicle, apply the
parking brake with the running mode
selector lever in “P” position and be
sure to remove the key and lock all the
doors.
When you leave the the ignition key in the
“ACC” or “ON” position if the hybrid sys-
tem is not operating, the hybrid system
may not start because the auxiliary bat-
tery will be discharged.
CAUTION
When you leave your vehicle, be
sure to shut off the hybrid system.
Be sure to put the running mode
selector lever in “P” position be-
cause the vehicle can start with the
“READY” light on and the engine
stopped (no engine sound and
vibration). When the “READY” light
is on, if you leave your vehicle with
the running mode selector lever in
a position other than “P” and “N”,
the vehicle will creep and start
abruptly with the accelerator pedal
being depressed by mistake. It may
cause death or serious injury.
12p008a
If the multiinformation display shows
a message, the master warning light
() comes on in the instrument clus-
ter. Read the message and follow the
instruction.
When you leave your vehicle, or stop
or park for a while, put the selector
lever in “P”.
Charging is necessary. With the selec-
tor lever in “N” position, charging will
not be applied. The electric generator
operates in “P”, “D” or “B” position. If
you continue driving, put the selector
lever in “D” or “B” position and depress
the accelerator pedal. Do not leave it
in “N” position. When driving in traffic
jam, run in “D” position.

15
12p009c
Do not put the luggage on the package
tray behind the rear seatback.
An air vent is provided on the package
tray behind the rear seatback to cool
the hybrid vehicle battery. If this vent
is covered with something, the hybrid
vehicle battery will overheat resulting in
a reduction of the output performance
of the hybrid system.
Do not apply water or put foreign ob-
jects over the air vent. Otherwise, it
may affect the hybrid vehicle battery
adversely and cause damage.
You may hear a cooling fan noise from
the air vent.For vehicle repairs or maintenance, be
sure to consult your Toyota dealer.
If your vehicle is beyond repair because
of accident or something, be sure to
consult your Toyota dealer.
As sealed Nickel
−Metal hydride batteries
are used, be sure to consult your Toyota
dealer when disposing of your vehicle.
CAUTION
If you are involved in an accident,
follow these precautions.
Move the vehicle to a safe place
and perform the followings to re-
duce the risk of high voltage elec-
tricity leakage.
 Depress the brake pedal and put the
selector lever in “P” position.
 Apply the parking brake.
 Turn the ignition switch to “LOCK”
and remove the key.
If your vehicle has experienced ma-
jor damage, you may get an electric
shock. To prevent this, never touch
the high voltage parts (hybrid ve-
hicle battery assembly, etc.) or
cables (orange color) connecting
these parts. If some exposed elec-
tric wiring is protruding inside or
outside of the vehicle, an electric
shock may also occur. Never touch
them.
If the fluid leaks or gets in some
part of the vehicle, never touch it
because it may be electrolyte
(strong alkali) from the hybrid ve-
hicle battery. If it gets on your skin
or eyes, wash off immediately with
a large amount of water, if possible,
with boric acid solution, and get
immediate medical attention in or-
der to help avoid serious injury.
If a vehicle fire occurs, extinguish
it using a fire extinguisher for the
exclusive use on electric fires. As
a small amount of water may be
dangerous, use a large amount of
water, for example from a fire hy-
drant, or wait for a firefighting
team arrival.

82
23p001a
HEADLIGHTS

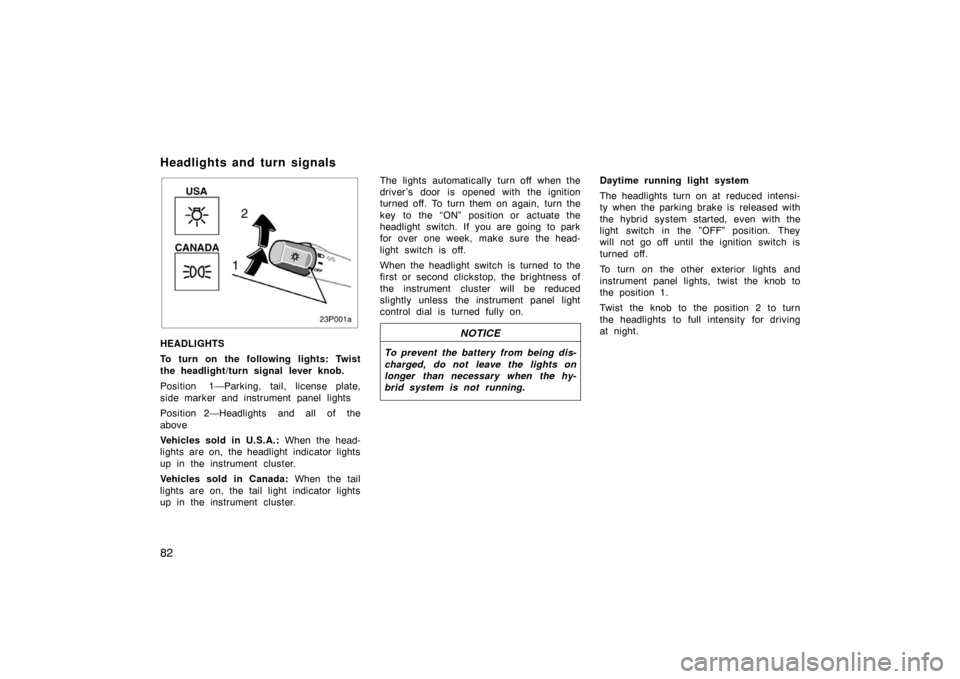

To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position
1—Parking, tail, license plate,
side marker and instrument panel lights
Position
2—Headlights and all of the
above
Vehicles sold in U.S.A.: When the head-
lights are on, the headlight indicator lights
up in the instrument cluster.
Vehicles sold in Canada: When the tail
lights are on, the tail light indicator lights
up in the instrument cluster. The lights automatically turn off when the
driver ’s door is opened with the ignition
turned off. To turn them on again, turn the
key to the “ON” position or actuate the
headlight switch. If you are going to park
for over one week, make sure the head-
light switch is off.
When the headlight switch is turned to the
first or second clickstop, the brightness of
the instrument cluster will be reduced
slightly unless the instrument panel light
control dial is turned fully on.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
longer than necessary when the hy-
brid system is not running.
Daytime running light system
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the hybrid system started, even with the
light switch in the ”OFF” position. They
will not go off until the ignition switch is
turned off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
the headlights to full intensity for driving
at night.
Headlights and turn signals

91
Switching km/h MPH button
24p005b

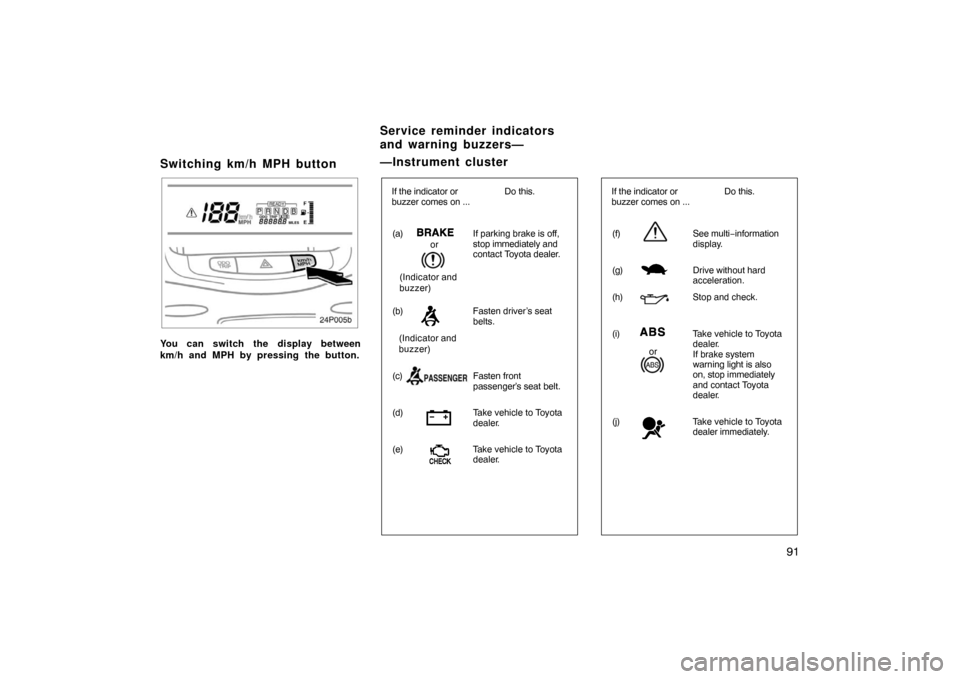

You can switch the display between
km/h and MPH by pressing the button.
(a)If parking brake is off,
stop immediately and
contact Toyota dealer.
(b) Fasten driver’s seat
belts.
(Indicator and
buzzer)
(c) Fasten front
passenger’s seat belt.
(d) Take vehicle to Toyota
dealer.
(e) Take vehicle to Toyota
dealer.
If the indicator or
buzzer comes on ... Do this.
(Indicator and
buzzer)
or(f)
See multi−information
display.
(g) Drive without hard
acceleration.
(h) Stop and check.
(i) Take vehicle to Toyota
dealer.
If brake system
warning light is also
on, stop immediately
and contact Toyota
dealer.
(j) Take vehicle to Toyota
dealer immediately.
If the indicator or
buzzer comes on ... Do this.
or
Service reminder indicators
an d warn in g bu zzers—
—Instrument cluster

92
(k)Close all doors.
(l) Fill up tank.
(m) Stop and check.
(n) Key reminder Remove key.
buzzer
(o) Shift position Put the selector lever . reminder in “P” position.
buzzer
If the indicator or
buzzer comes on ...
Do this.
(in red)

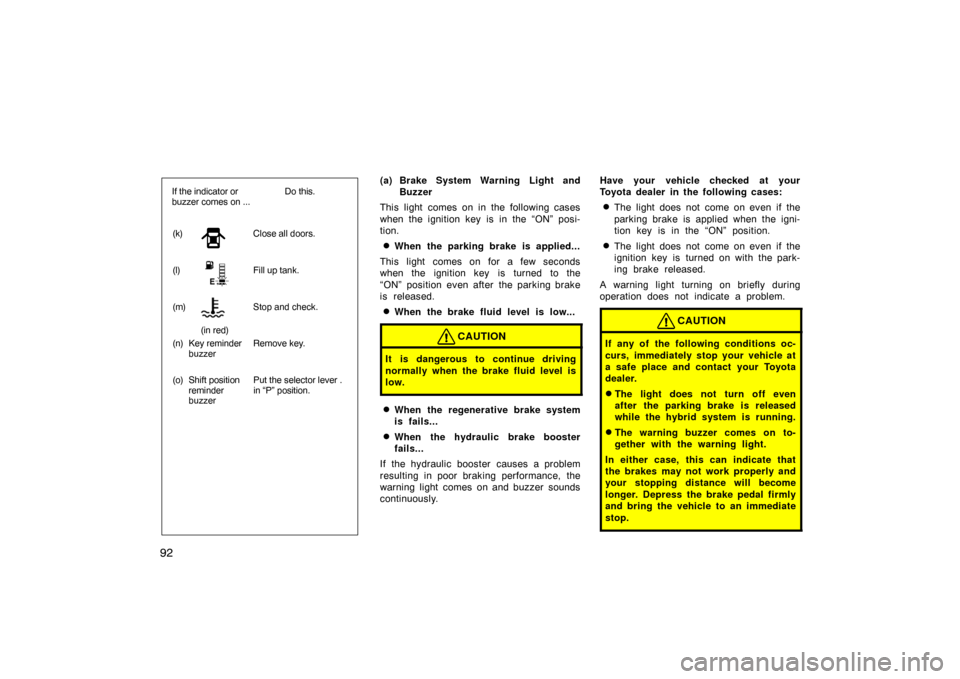

(a) Brake System Warning Light and
Buzzer
This light comes on in the following cases
when the ignition key is in the “ON” posi-
tion.
When the parking brake is applied...
This light comes on for a few seconds
when the ignition key is turned to the
“ON” position even after the parking brake
is released.
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
When the regenerative brake system
is fails...
When the hydraulic brake booster
fails...
If the hydraulic booster causes a problem
resulting in poor braking performance, the
warning light comes on and buzzer sounds
continuously. Have your vehicle checked at your
Toyota dealer in the following cases:
The light does not come on even if the
parking brake is applied when the igni-
tion key is in the “ON” position.
The light does not come on even if the
ignition key is turned on with the park-
ing brake released.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If any of the following conditions oc-
curs, immediately stop your vehicle at
a safe place and contact your Toyota
dealer.
The light does not turn off even
after the parking brake is released
while the hybrid system is running.
The warning buzzer comes on to-
gether with the warning light.
In either case, this can indicate that
the brakes may not work properly and
your stopping distance will become
longer. Depress the brake pedal firmly
and bring the vehicle to an immediate
stop.

96
(k) Open Door Warning Light
This light remains on until all the doors
are completely closed.
(l) Low Fuel Level Indicator Light
This light blinks when the fuel level in the
tank becomes nearly empty. Fill up the
tank as soon as possible.
At the first blinking of the light, the mes-
sage appears on the display to remind the
driver to fill fuel.
Contact your Toyota dealer in the fol-
lowing cases:
All the segments blink.
The “E” mark and the segments indi-
cating remaining fuel blink.
(m) High Coolant Temperature Warning Light
The light operates to warn that the hybrid
system is almost over heating.
The light will come on when the ignition
key is turned to the “ON” position. After
a few seconds, the light will go off.
If it comes on while you are driving, stop
the vehicle and check your hybrid system.
For detailed instructions, see “If your ve-
hicle overheats” on page 172 in Section
5.
NOTICE
Continued driving with the light on
could result in the overheating of hy-
brid system.
(n) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver’s door with
the ignition key in the “ACC” or “LOCK”
position.
(o) Shift position reminder buzzer
This buzzer will sound if the driver ’s door
is opened in the following conditions:
The hybrid system is on.
The parking brake is applied.
The selector lever is in a position other
than “P”. CHECKING SERVICE REMINDER INDICA-
TORS (except the low fuel level indica-
tor light)
1. Apply the parking brake.
2. Open one of the doors. The open door warning light should
come on.
3. Close the door. The open door warning light should go
off.
4. Turn the ignition key to “ACC”. The SRS warning light should come on.
It goes off after about 6 seconds.
5. Turn the ignition key to “START”. At this time, all the bulbs are checked in
self −diagnosis mode.
All the service reminder indicators ex-
cept the open door warning light and
SRS warning light should come on. The
“ABS” warning light goes off after a
few seconds.
