Page 239 of 258
226
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lense becomes wet in the rain
or in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lense, just like the
windshield fogged up in the rain. However,
if there is a large drop of water on the
inside of the lense, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulbNo.WTy p e
Headlights—60/55A
Parking lights9475C
Front turn signal
lights—21B
Rear turn signal lights744021C
Stop and tail lights744321/5C
Back −up lights92116C
License plate lights—5C
High mounted stop-
light94195C
Interior light—8D
Personal light—8B
Trunk light1943.8C
A: HB2 Halogen bulbs
B: Single end bulbs
C: Wedge base bulbs
D: Double end bulbs
—Headlights
83p010
1. Open the hood.
RIGHT HAND HEADLIGHT: Remove
the clip and take out the air cleaner
inlet.
Remove and install the clip as shown
in the following illustration.
LEFT HAND HEADLIGHT: Remove the
upper part of the washer fluid reser-
voir while pinching the lever.
Page 241 of 258
228
83p015a
4. Install the rubber cover as shown,and snuggle on the boss. Plug in the
connector.
Make sure the rubber cover fits snugly on
the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Parking lights
83p016
83p017
83p010
RIGHT HAND FRONT TURN SIGNAL
LIGHT: Remove the clip and take out
the air cleaner inlet.
Remove and install the clip as shown in
the following illustration.
LEFT HAND FRONT TURN SIGNAL: Re-
move the upper part of the washer fluid
reservoir while pinching the lever.
—Front turn signal lights
Page 242 of 258
229

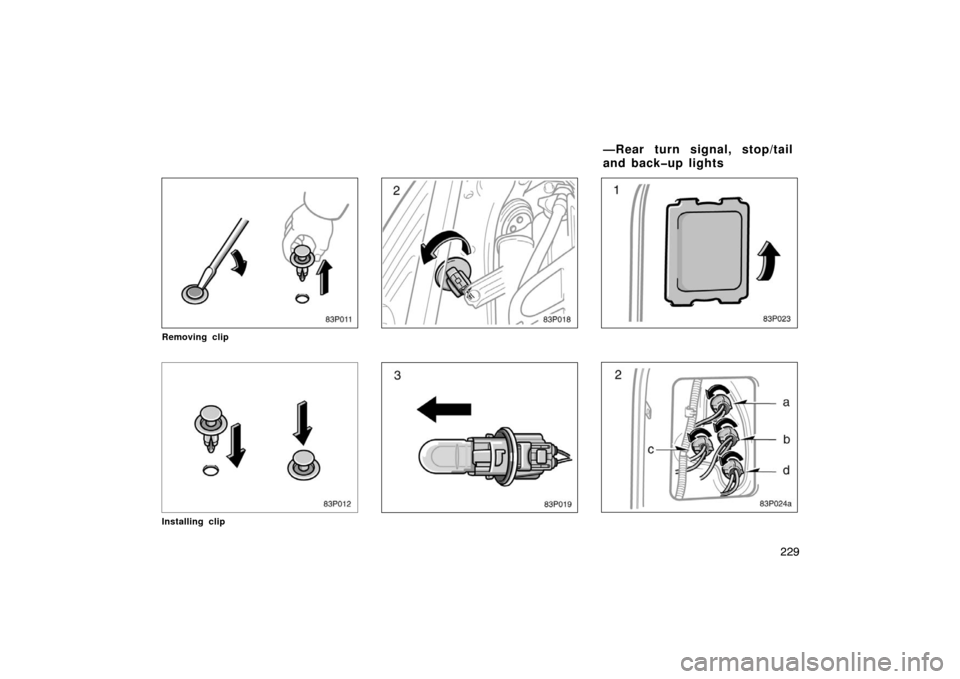

83P011
Removing clip
83p012
Installing clip
83p018
83p019
83p023
83p029
—Rear turn signal, stop/tail
and back up lights
Page 243 of 258
230

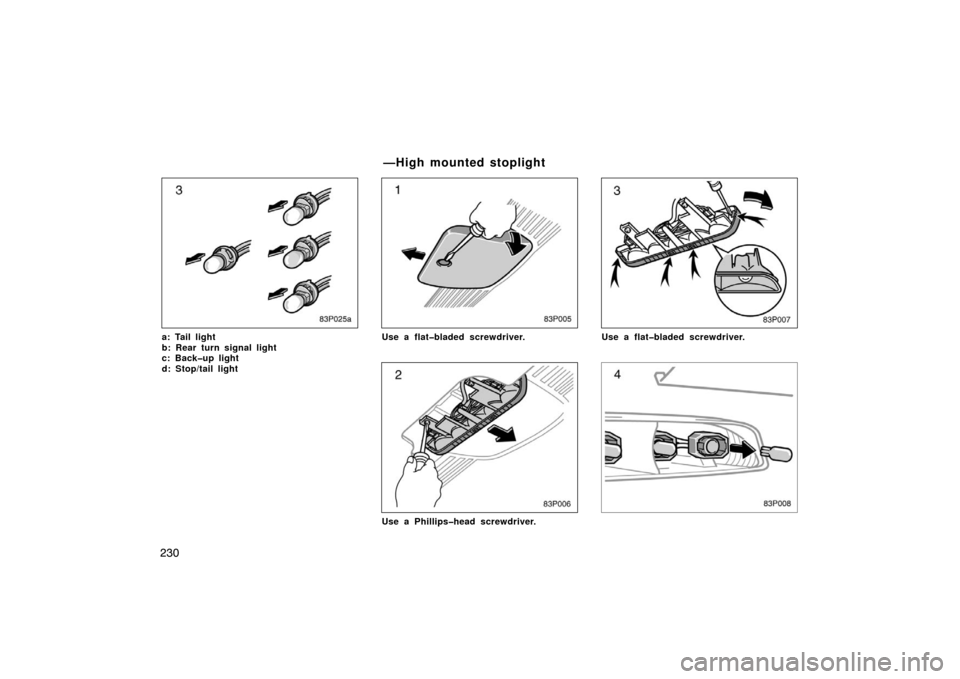

83p025
a: Tail light
b: Rear turn signal light
c: Back up light
d: Stop/tail light
83p005
Use a flat bladed screwdriver.
83p006
Use a Phillips head screwdriver.
83p007
Use a flat bladed screwdriver.
83p008
—High mounted stoplight
Page 251 of 258
238
90p006a
Engine compartment
8. AM2 15 A: Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system, hybrid ve-
hicle immobiliser system
9. THRO 15 A: Electronic throttle control
system
10. HEAD (RH) (Vehicles without DAY- TIME RUNNING LIGHT SYSTEM) or
HEAD LO (RH) (Vehicles with DAY-
TIME RUNNING LIGHT SYSTEM) 10
A: Right −hand headlight
11. HEAD HI (LH) (Vehicles without DAY- TIME RUNNING LIGHT SYSTEM) 10
A: Left −hand headlight (high beam)
90p007a
Instrument panel
12. BATT FAN 10 A: Battery cooling fan
13. ABS NO.3 20 A: Hydraulic brake
booster
14. HV 20 A: Hybrid system
15. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
16. HEAD (LH) (Vehicles without DAY- TIME RUNNING LIGHT SYSTEM) or
HEAD LO (LH) (Vehicles with DAY-
TIME RUNNING LIGHT SYSTEM) 10
A: Left −hand headlight
90p008a
Trunk
17. DOME 15 A: Audio system, mult −infor-
mation display, interior light, trunk light,
power window system, wireless remote
control system
18. TURN HAZ 10 A: Turn signal lights,
Emergency flasher
19. PANEL 5 A: Audio system, ashtray
light, headlight beam level control sys-
tem, emergency flasher
20. GAUGE 10 A: Gauge and meter, emer-
gency flasher, rear window defogger,
service reminder indicator and warning
buzzers, back− up light, power window
system, air c onditioning system
