2002 TOYOTA PRIUS service indicator

91
Switching km/h MPH button
24p005b
You can switch the display between
km/h and MPH by pressing the button.
(a)If parking brake is off,
stop immediately and
contact Toyota dealer.
(b) Fasten driver’s seat
belts.
(Indicator and
buzzer)
(c) Fasten front
passenger’s seat belt.
(d) Take vehicle to Toyota
dealer.
(e) Take vehicle to Toyota
dealer.
If the indicator or
buzzer comes on ... Do this.
(Indicator and
buzzer)
or(f)
See multi−information
display.
(g) Drive without hard
acceleration.
(h) Stop and check.
(i) Take vehicle to Toyota
dealer.
If brake system
warning light is also
on, stop immediately
and contact Toyota
dealer.
(j) Take vehicle to Toyota
dealer immediately.
If the indicator or
buzzer comes on ... Do this.
or
Service reminder indicators
an d warn in g bu zzers—
—Instrument cluster

94
(e) Malfunction Indicator Lamp
This lamp comes on when the ignition
key is turned to the “ON” position and
goes off after the engine starts. This
means that the warning light system is
operating properly.
If the lamp remains on or the lamp
comes on while driving, first check the
following:
Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.
This case is a temporary malfunction. The
malfunction indicator lamp will go off after
taking several driving trips.
If the lamp will not go off even after
several trips, contact your Toyota deal-
er as soon as possible.
There is a problem somewhere in the
hybrid system or warning light system
itself.
Contact your Toyota dealer as soon as
possible to service the vehicle. Emissions inspection and maintenance
(I/M) programs
Your vehicle may not pass a state emis-
sion inspection if the malfunction indicator
lamp remains on. Contact your Toyota
dealer to check your vehicle’s emission
control system and OBD (On
−Board Diag-
nostics) system before taking your vehicle
for the inspection.
For details, see “Emissions inspection and
maintenance (I/M) programs” on page 198
in Section 7.
(f) Master Warning Light
()
If the master warning light comes on, the
warning light for the faulty system is high-
lighted or the message such as “When
you park your car, make sure you shift to
Park P.” and “The batteries will not charge
if the shifter is in N” appears on the mul-
ti −information display. (See “Service re-
minder indicators and warning buzzers—
—Multi −information display” on page 97
in this section or “Precautions for use” on
page 12 in Section 1 −2 or “Fuel gauge”
on page 88 in Section 2− 4 for instruc-
tions.) (g) Output Control Warning Light
()
This light comes on when the ignition
switch is on. It goes off when the electric
motor is ready to run.
The warning light comes on when the hy-
brid vehicle battery temperature is low or
high, or the hybrid vehicle battery capacity
is decreased with the selector lever at “R”
during driving. If the light comes on, the
power will be limited. Drive your vehicle
without hard acceleration.
(h) Low Engine Oil Pressure Warning
Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Toyota dealer or qualified repair shop for
assistance.
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.

96
(k) Open Door Warning Light
This light remains on until all the doors
are completely closed.
(l) Low Fuel Level Indicator Light
This light blinks when the fuel level in the
tank becomes nearly empty. Fill up the
tank as soon as possible.
At the first blinking of the light, the mes-
sage appears on the display to remind the
driver to fill fuel.
Contact your Toyota dealer in the fol-
lowing cases:
All the segments blink.
The “E” mark and the segments indi-
cating remaining fuel blink.
(m) High Coolant Temperature Warning Light
The light operates to warn that the hybrid
system is almost over heating.
The light will come on when the ignition
key is turned to the “ON” position. After
a few seconds, the light will go off.
If it comes on while you are driving, stop
the vehicle and check your hybrid system.
For detailed instructions, see “If your ve-
hicle overheats” on page 172 in Section
5.
NOTICE
Continued driving with the light on
could result in the overheating of hy-
brid system.
(n) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver’s door with
the ignition key in the “ACC” or “LOCK”
position.
(o) Shift position reminder buzzer
This buzzer will sound if the driver ’s door
is opened in the following conditions:
The hybrid system is on.
The parking brake is applied.
The selector lever is in a position other
than “P”. CHECKING SERVICE REMINDER INDICA-
TORS (except the low fuel level indica-
tor light)
1. Apply the parking brake.
2. Open one of the doors. The open door warning light should
come on.
3. Close the door. The open door warning light should go
off.
4. Turn the ignition key to “ACC”. The SRS warning light should come on.
It goes off after about 6 seconds.
5. Turn the ignition key to “START”. At this time, all the bulbs are checked in
self −diagnosis mode.
All the service reminder indicators ex-
cept the open door warning light and
SRS warning light should come on. The
“ABS” warning light goes off after a
few seconds.

97
There may be the case that the “ABS”
warning light stays on for about 60 sec-
onds after the ignition key is turned to the
“ON” position. It is normal if it goes out
after a while.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Toyota
dealer as soon as possible.
24p006b

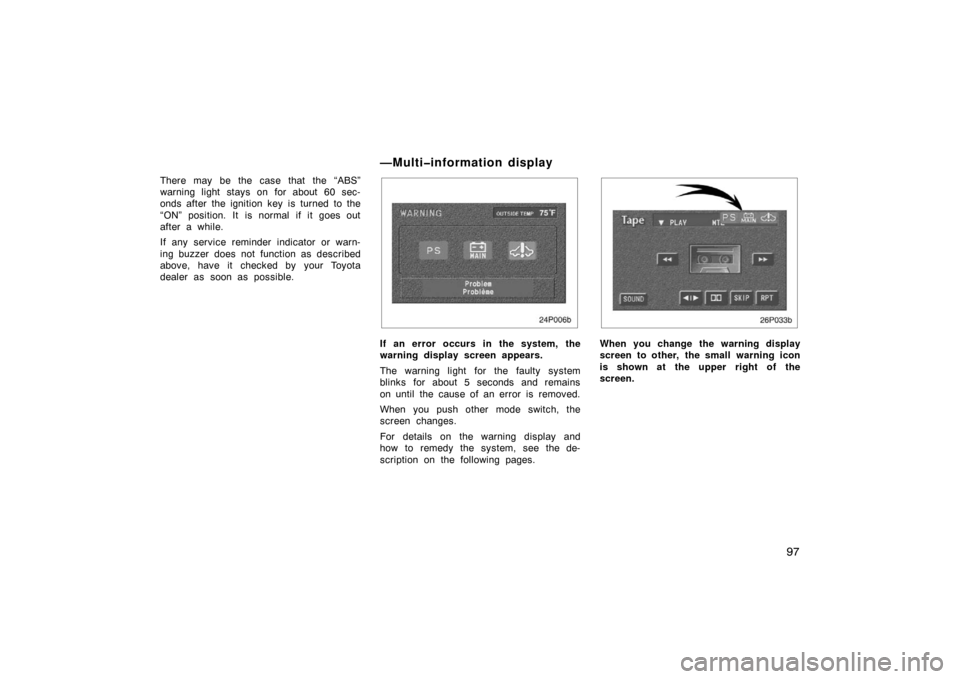

If an error occurs in the system, the
warning display screen appears.
The warning light for the faulty system
blinks for about 5 seconds and remains
on until the cause of an error is removed.
When you push other mode switch, the
screen changes.
For details on the warning display and
how to remedy the system, see the de-
scription on the following pages.
26p033b
When you change the warning display
screen to other, the small warning icon
is shown at the upper right of the
screen.
—Multiinformation display

135
3. Powerful cooling and dehumidifying
If the air conditioning does not work well
with the “A/C” button on, push the “MAX”
button. To cancel the “MAX” mode, push
the “MAX” button again. To turn off the air
conditioning, push the “A/C” button.
With the “MAX” button on, the gasoline
engine is frequently used.
The air conditioning may not turn on with
the selector lever in “N” position because
the gasoline engine cannot start.
If the “A/C” button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your ve-
hicle to your Toyota dealer for service. For economical and environmentfriend-
ly use
Usually, use the air conditioning with the
“A/C” button on (economical and environ-
ment
−friendly cooling).
In this mode the gasoline engine starts
and stops automatically and good fuel
economy driving is achieved.
To use the air conditioning in economi-
cal and environmentfriendly way, we
recommend the following setting: 1. Lower the setting temperature if you feel a little hot with the “A/C” button
on.
2. If you feel still hot with the “A/C” but- ton on, push the “MAX” button also.
After the compartment cools, turn off
the “MAX” mode only.

174
NOTICE
Do not continue driving with a de-
flated tire. Driving even a short dis-
tance can damage a tire and wheel
beyond repair.
50p007a

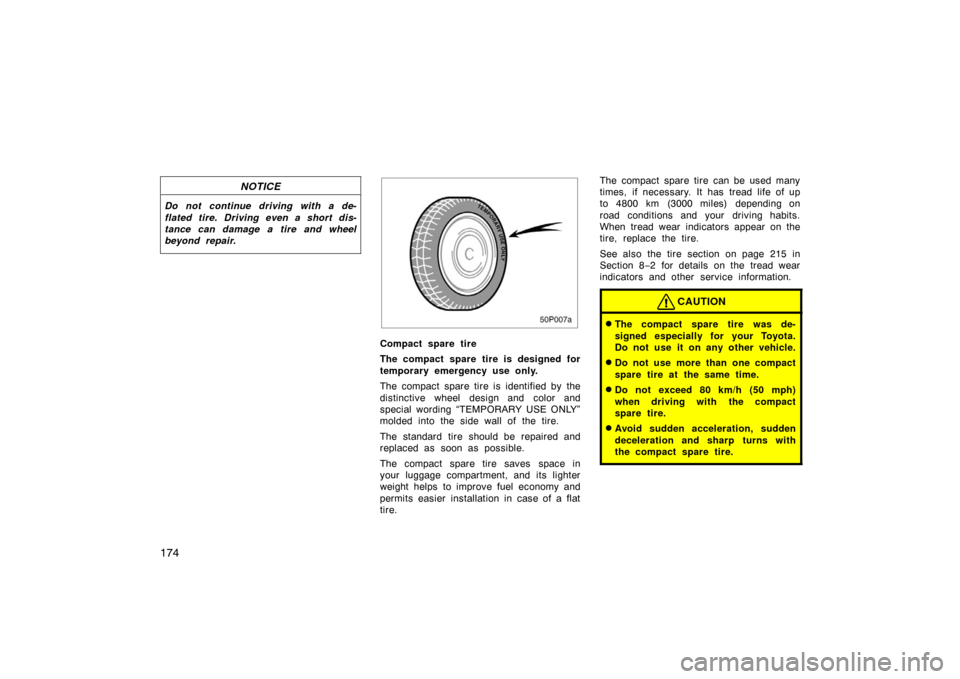

Compact spare tire
The compact spare tire is designed for
temporary emergency use only.
The compact spare tire is identified by the
distinctive wheel design and color and
special wording “TEMPORARY USE ONLY”
molded into the side wall of the tire.
The standard tire should be repaired and
replaced as soon as possible.
The compact spare tire saves space in
your luggage compartment, and its lighter
weight helps to improve fuel economy and
permits easier installation in case of a flat
tire.The compact spare tire can be used many
times, if necessary. It has tread life of up
to 4800 km (3000 miles) depending on
road conditions and your driving habits.
When tread wear indicators appear on the
tire, replace the tire.
See also the tire section on page 215 in
Section 8
−2 for details on the tread wear
indicators and other service information.
CAUTION
The compact spare tire was de-
signed especially for your Toyota.
Do not use it on any other vehicle.
Do not use more than one compact
spare tire at the same time.
Do not exceed 80 km/h (50 mph)
when driving with the compact
spare tire.
Avoid sudden acceleration, sudden
deceleration and sharp turns with
the compact spare tire.

196
INSIDE THE VEHICLE
Items listed below should be checked
regularly, e.g. while performing periodic
services, cleaning the vehicle, etc.
Lights
Make sure the headlights, stop lights, tail
lights, turn signal lights, and other lights
are all working. Check headlight aim.
Service reminder indicators and warning
buzzers
Check that all service reminder indicators
and warning buzzers function properly.
Steering wheel
Be alert for changes in steering condition,
such as hard steering or strange noise.
Seats
Check that all front seat controls such as
seat adjusters, seatback recliner, etc. op-
erate smoothly and that all latches lock
securely in any position. Check that the
head restraint move up and down smooth-
ly and that the locks hold securely in any
latched position. For folding−down rear
seatbacks, check that the latches lock se-
curely. Seat belts
Check that the seat belt system such as
buckles, retractors and anchors operate
properly and smoothly. Make sure the belt
webbing is not cut, frayed, worn or dam-
aged.
Accelerator pedal
Check the pedal for smooth operation and
uneven pedal effort or catching.
Brake pedal
Check the pedal for smooth operation and
that the pedal has the proper clearance.
Check the brake booster function.
Brakes
At a safe place, check that the brakes do
not pull to one side when applied.
Parking brake
Check that the pedal has the proper travel
and that, on a safe incline, your vehicle
is held securely with only the parking
brake applied.
Hybrid transaxle ”Park” mechanism
Check the lock release button of the se-
lector lever for proper and smooth opera-
tion. On a safe incline, check that your
vehicle is held securely with the selector
lever in ”P” position and all brakes re-
leased.
IN THE ENGINE COMPARTMENT
Items listed below should be checked
from time to time, e.g. each time when
refueling.
Washer fluid
Make sure there is sufficient fluid in the
tank. See page 225 in Section 8
−3 for
additional information.
Coolant level
Make sure the coolant level is between
the ”FULL” and ”LOW” lines on the see −
through reservoir when the hybrid system
is cold. See page 210 in Section 8 −2 for
additional information.
Radiator, condenser and hoses
Check that the front of the radiator and
condenser are clean and not blocked with
leaves, dirt, or insects. See page 211 in
Section 8 −2 for additional information.

198
Some states have vehicle emission in-
spection programs which include OBD
(On−Board Diagnostics) che cks.
The OBD system monitors the operation
of the emission control system. When the
OBD system determines that a problem
exists somewhere in the emission control
system, the malfunction indicator lamp
comes on. In this case, your vehicle may
not pass the I/M test and need to be
repaired. Contact your Toyota dealer to
service the vehicle.
Even if the malfunction indicator lamp
does not come on, your vehicle may not
pass the I/M test as readiness codes
have not been set in the OBD system.
Readiness codes are automatically set
during ordinary driving. However, when the
battery is disconnected or run down, the
codes are erased. Also, depending on
your driving habits, the codes may not be
completely set.
Also, if the malfunction indicator lamp had
come on recently due to temporary mal-
function such as a loose fuel tank cap,
your vehicle may not pass the I/M test. The malfunction indicator lamp will go off
after taking several driving trips, but the
error code in the OBD system will not be
cleared unless about 40 trips or more are
taken.
If your vehicle does not pass the I/M test
and the malfunction indicator lamp does
not come on, contact your Toyota dealer
to prepare the vehicle for re
−testing.
Emission inspection and
maintenance (I/M) programs
