177
50p014c

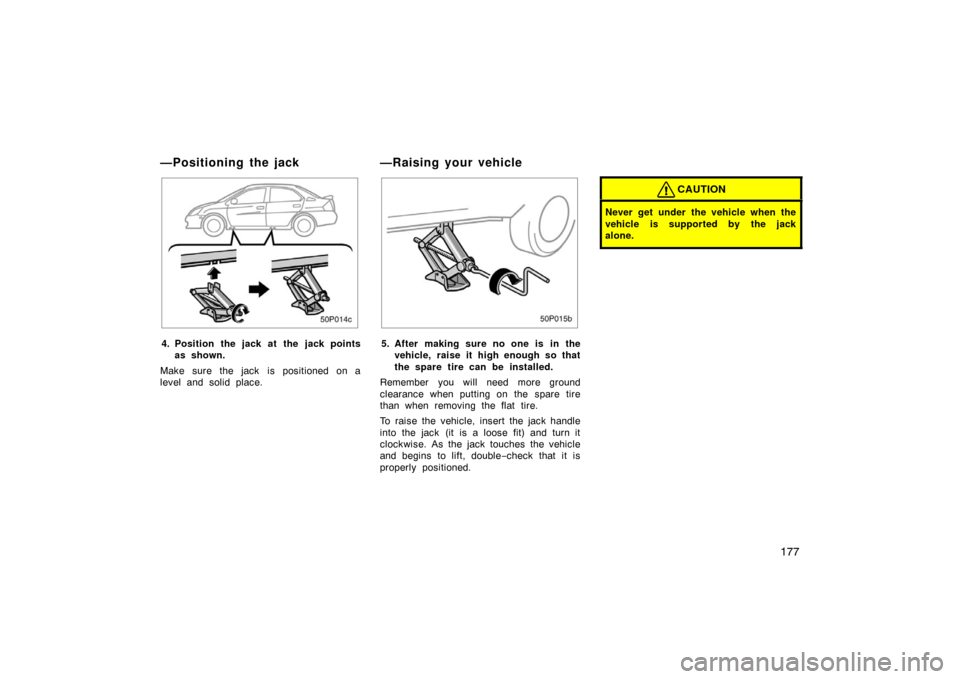

4. Position the jack at the jack pointsas shown.
Make sure the jack is positioned on a
level and solid place.
50p015b
5. After making sure no one is in the vehicle, raise it high enough so that
the spare tire can be installed.
Remember you will need more ground
clearance when putting on the spare tire
than when removing the flat tire.
To raise the vehicle, insert the jack handle
into the jack (it is a loose fit) and turn it
clockwise. As the jack touches the vehicle
and begins to lift, double −check that it is
properly positioned.
CAUTION
Never get under the vehicle when the
vehicle is supported by the jack
alone.
—Positioning the jack —Raising your vehicle
179
50p019a
8. Lower the vehicle completely andtighten the wheel nuts.
Turn the jack handle counterclockwise to
lower the vehicle.
Use only the wheel nut wrench to tighten
the nuts. Do not use other tools or any
additional leverage other than your hands,
such as a hammer, pipe or your foot.
Make sure the wrench is securely en-
gaged over the nut.
Tighten each nut a little at a time in the
order shown. Repeat the process until all
the nuts are tight.
CAUTION
When lowering the vehicle, make sure
all portions of your body and all oth-
er persons around will not be injured
as the vehicle is lowered to the
ground.
9. Check the air pressure of the re- placed tire.
Adjust the air pressure to the specification
designated on page 237 in Section 9. If
the pressure is lower than specified, drive
slowly to the nearest Toyota dealer and fill
to the correct pressure.
Do not forget to reinstall the tire inflation
valve cap as dirt and moisture could get
into the valve core and possibly cause air
leakage. If the cap is missing, have a new
one put on as soon as possible.
10. Restow all the tools, jack and flat tire securely.
As soon as possible after changing
wheels, tighten the wheel nuts to the
torque specified on page 237 in Section
9 with a torque wrench. Have a technician
repair the flat tire and replace the spare
tire with it.
CAUTION
Before driving, make sure all the
tools, jack and flat tire are securely
in place in their storage location to
reduce the possibility of personal in-
jury during a collision or s udden
braking.
—Lowering your vehicle —After changing wheels
239
21. HTR 10 A: Air conditioning system
22. TAIL 7.5 A: Parking lights, tail lights,
license plate lights, side marker lights
23. ECU IG 5 A: Air conditioning system,
anti −lock brake system, electric power
steering, daytime running light system
24. STOP 15 A: Stop lights, high mounted
stoplights, anti −lock brake system
25. ACC 10 A: Anti−lock brake system
warning light, clock, audio system, mul-
ti −information display, shift lock system
26. WIPER 30 A: Windshield wiper
27. ECU B 7.5 A: Air conditioning system,
daytime running light system, electric
power steering system, hybrid vehicle
immobiliser system
28. CIG 15 A: Power outlet
29. WASHER 15 A: Washer
30. DOOR 30 A: Power door lock system
31. SRS ACC 10 A: SRS airbags, seat
belt pretensioners
32. OBD II 7.5 A: No circuit
33. PWR1 20 A: Power window system
34. AM1 5 A: “ACC”, “CIG”, “SRS ACC”,
“WASHER”, “HTR”, “WIPER”, “ECU −IG”
and “GAUGE” fuses
35. DC/DC S 5 A: Inverter and converter 36. HTR NO.3 50 A:
Air conditioning sys-
tem
37. EMPS 50 A: Electric power steering
38. ABS NO.1 40 A: Anti−lock brake sys-
tem
39. MF HEAD 30 A: Daytime running light
system
40. HTR 50 A: Air conditioning system
41. RDI 30 A: Electric cooling fan
42. ABS NO.2 30 A: Hydraulic brake
booster
