2002 TOYOTA MR2 SPYDER glove box

02 MY MR2 SMT(U) L/O 0108
2
01 06 12
2002 MR2 (OM17493U)
Instrument panel overview
1. Side vents
2. Instrument cluster
3. Center vents
4. Interior light
5. Glove box
6. Manual transmission gear shift lever orsequential manual transmission selector
lever
7. Parking brake lever
8. Power window switches
9. Power rear view mirror control switches
10. Instrument panel light control switch 11. Power door lock switch
12. Power window lock switch
SB11025

02 MY MR2 SMT(U) L/O 0108
8
01 06 12
2002 MR2 (OM17493U)
Keys
SB12039
Your vehicle is supplied with two kinds
of keys.1. Master key (black)—This key works in every lock. Your Toyota dealer will
need it to make you a new key with
builtin transponder chip.
2. Sub key (gray)—This key will not work in the glove box and luggage space. A transponder chip for engine immobiliser
system has been filled in the head of the
master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
To protect things locked in the glove box
or luggage space when you have your
vehicle parked, leave the sub key with the
attendant.
Since the doors can be locked without a
key, you should always carry a spare
master key in case you accidentally lock
your keys inside the vehicle.
SY12001
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:

When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.

02 MY MR2 SMT(U) L/O 0108
14
01 06 12
2002 MR2 (OM17493U)

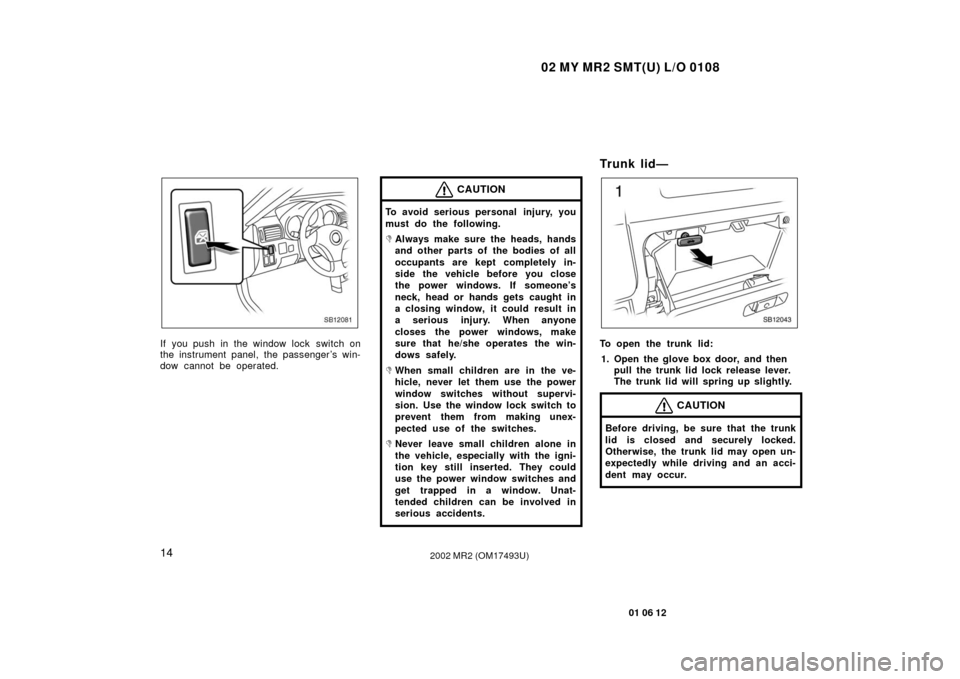

SB12081
If you push in the window lock switch on
the instrument panel, the passenger ’s win-
dow cannot be operated.
CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the heads, hands
and other parts of the bodies of all
occupants are kept completely in-
side the vehicle before you close
the power windows. If someone’s
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, make
sure that he/she operates the win-
dows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can be involved in
serious accidents.
Trunk lid—
SB12043
To open the trunk lid:1. Open the glove box door, and then pull the trunk lid lock release lever.
The trunk lid will spring up slightly.
CAUTION
Before driving, be sure that the trunk
lid is closed and securely locked.
Otherwise, the trunk lid may open un-
expectedly while driving and an acci-
dent may occur.

02 MY MR2 SMT(U) L/O 0108
16
01 06 12
2002 MR2 (OM17493U)
—Luggage security system
SB12091
If you do not want to activate the trunk
lid lock release lever, insert the master
key to the glove box, and turn it clock-
wise.
Engine hood
SB12086
To open the engine hood:1. Pull the engine hood lock release lever. The engine hood will spring up
slightly.
The engine hood lock release lever can
be locked by the key.
CAUTION
Before driving, be sure that the en-
gine hood is closed and securely
locked. Otherwise, the engine hood
may open unexpectedly while driving
and an accident may occur.
SB12044
2. In rear of the vehicle, lift the engine hood.
CAUTION
Be careful not to touch the engine
hood, the support rod, or surrounding
area which could be hot after driving,
to prevent burning yourself.

02 MY MR2 SMT(U) L/O 0108
45
01 06 12
2002 MR2 (OM17493U)
SB13106
Indicator light
This onoff switch is designed to dis-
able the passenger airbag in order to
allow usage, if necessary, of a member
of a passenger risk group identified in
TABLE 1 (on page 38) is occupying the
passenger seating position (For details,
see “SRS driver and passenger airbags”
on page 36 in this section.)
Operate onoff switch as follows:
Insert key into the keyhole and turn it in
the glove box.
To turn passenger airbag on: Turn the key
clockwise to the “ON” position.
To turn passenger airbag off: Turn the key
counterclockwise to the “OFF” position.The indicator comes on when the passen-
ger airbag system is off.
To check the airbag cutoff system status,
turn the ignition switch to the “ON” posi-
tion. The “AIRBAG” warning light and the
“OFF” indicator light should go on for
approximately 4 seconds. If the airbag
switch is turned off, the “OFF” indicator
will continue to illuminate, and if the air-
bag switch is turned on, the “OFF” indica-
tor will not illuminate.
CAUTION
Make sure that the indicator light is
off.
Do not turn off the passenger air-
bag manual onoff switch except
when a member of a passenger risk
group identified in TABLE 1 (on
page 38) is occupying the passen-
ger seating position.
When the passenger airbag manual
onoff switch is turned off, the pas-
senger airbag will not inflate in a
collision and turning off the pas-
senger airbag can reduce the occu-
pant protection which your vehicle
safety systems can provide to you
in certain accidents and increase
the likelihood of serious personal
injuries.
For details, see “SRS driver and
passenger airbags” on page 36 in this
section.
Passenger airbag manual
onoff switch

02 MY MR2 SMT(U) L/O 0108
11 5
01 06 12
2002 MR2 (OM17493U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock116
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray 116
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box 117
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Front box 117
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Auxiliary box 118
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Luggage space 119
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Cup holders 121
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Floor mat 121
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 9

02 MY MR2 SMT(U) L/O 0108
11 7
01 06 12
2002 MR2 (OM17493U)
ASHTRAY
To use the ashtray, pull out the lid.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, close the lid
completely.
To remove the ashtray, pull the lid and
pull it out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always completely close
the ashtray after use.
Glove box
SB19026
To use the glove box, do this.
To open: Compress the lock release but-
tons.
To lock: Insert the master key and turn it
clockwise.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Front box
SB41047
To use the front box in the trunk, do
this.1. Open the trunk lid, and pull the lock release lever.

02 MY MR2 SMT(U) L/O 0108
229
01 06 12
2002 MR2 (OM17493U)
E
Economical drivingSaving money on both fuel
and repairs 142 . . . . . . . . . . . . . . . . . . . .
Electrical system Battery 200,201 . . . . . . . . . . . . . . . . . . . . . .
Fuse locations 182 . . . . . . . . . . . . . . . . . . .
Fuses 202 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 63 . . . . . . . . . . . .
Emergency, In case of Blown fuse 202 . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 63 . . . . . . . . . .
Flat tire 151 . . . . . . . . . . . . . . . . . . . . . . . . .
If you cannot increase the engine speed 149 . . . . . . . . . . . . . . . . . .
If you cannot shift the sequential manual transmission
selector lever 164 . . . . . . . . . . . . . . . . . .
If you lose your keys 164 . . . . . . . . . . . . . .
If your engine stalls while driving 149 . . . . . . . . . . . . . . . . . . .
If your vehicle needs to be towed 160 . . . . . . . . . . . . . . . . . . . .
If your vehicle will not start 146 . . . . . . . .
Jump starting 147 . . . . . . . . . . . . . . . . . . . .
Overheating 150 . . . . . . . . . . . . . . . . . . . . .
Towing 160 . . . . . . . . . . . . . . . . . . . . . . . . . .
Emissions Inspection and Maintenance (I/M) programs 178 . . . . . . .
Engine Before starting the engine 138 . . . . . . . . .
Checking the coolant level 189 . . . . . . . . Emission control device 126
. . . . . . . . . . .
Engine compartment 180 . . . . . . . . . . . . . .
Exhaust gas caution 127 . . . . . . . . . . . . . .
Hood release 16 . . . . . . . . . . . . . . . . . . . . .
Oil consumption 128 . . . . . . . . . . . . . . . . . .
Oil level 188 . . . . . . . . . . . . . . . . . . . . . . . . .
Overheating 150 . . . . . . . . . . . . . . . . . . . . .
Starting procedure 137 . . . . . . . . . . . . . . .
Threeway catalytic converter 126 . . . . .
Engine coolant
Temperature gauge 68 . . . . . . . . . . . . . . . .
Winter driving tips 140 . . . . . . . . . . . . . . . .
Engine coolant temperature gauge 68 . . . .
Engine immobiliser system 10 . . . . . . . . . . .
Engine oil Winter driving tips 140 . . . . . . . . . . . . . . . .
Exhaust gas cautions 127 . . . . . . . . . . . . . . .
F
Facts about engine oil
consumption 128 . . . . . . . . . . . . . . . . . . . . .
Flasher, Headlight 62 . . . . . . . . . . . . . . . . . . .
Flat tire
After changing wheels 158 . . . . . . . . . . . .
Changing tire 157 . . . . . . . . . . . . . . . . . . . .
If you have a flat tire 151 . . . . . . . . . . . . . .
Jack point 156 . . . . . . . . . . . . . . . . . . . . . . .
Jacking precautions 151 . . . . . . . . . . . . . .
Jacking up 156 . . . . . . . . . . . . . . . . . . . . . .
Loosening wheel nuts 155 . . . . . . . . . . . . .
Lowering vehicle 158 . . . . . . . . . . . . . . . . .
Wheel block 155 . . . . . . . . . . . . . . . . . . . . . Wheel nuts 157
. . . . . . . . . . . . . . . . . . . . . .
Floor mat 121 . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid level Brake 191 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power steering 191 . . . . . . . . . . . . . . . . . . .
Washer fluid 203 . . . . . . . . . . . . . . . . . . . . .
Foreign countries, Operation in 126 . . . . . .
Front box 117 . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Filler door o pener 18. . . . . . . . . . . . . . . . .
Fuel economy 142 . . . . . . . . . . . . . . . . . . . .
Fuel pump shut off system 126 . . . . . . . . .
Gauge 68 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation in foreign countries 126 . . . . .
Tank cap 18 . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel information 124 . . . . . . . . . . . . . . . . . . . .
Fuel pump shut off system 126 . . . . . . . . . .
Fuses Fuse box 202 . . . . . . . . . . . . . . . . . . . . . . . .
Fuse locations 182 . . . . . . . . . . . . . . . . . . . . .
G
Gauge
Engine temperature 68 . . . . . . . . . . . . . . .
Fuel 68 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General maintenance 175 . . . . . . . . . . . . . . .
Glove box 117 . . . . . . . . . . . . . . . . . . . . . . . . .
Good driving practice Manual transmission 88 . . . . . . . . . . . . . .
