2002 TOYOTA MR2 SPYDER Owners Manual

02 MY MR2 SMT(U) L/O 0108
208
01 06 12
2002 MR2 (OM17493U)

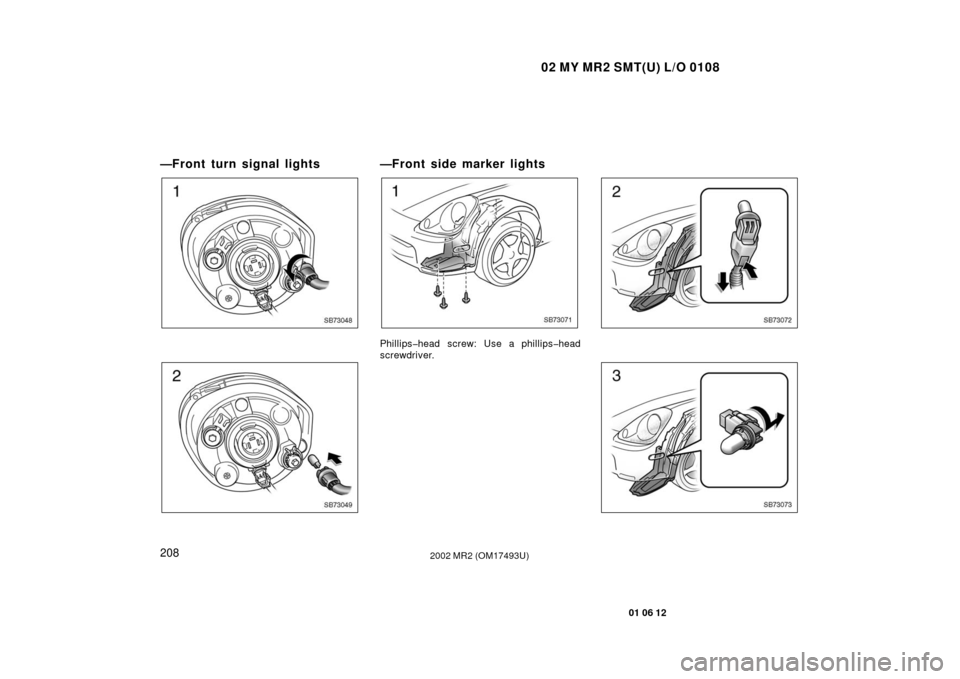

—Front turn signal lights
SB73048
SB73049
—Front side marker lights
SB73071
Phillipshead screw: Use a phillips head
screwdriver.
SB73072
SB73073

02 MY MR2 SMT(U) L/O 0108
209
01 06 12
2002 MR2 (OM17493U)
SB73074SB73019SB73065
a: Backup light
b: Rear turn signal light
c: Stop/tail light
d: Stop light
CAUTION
Be careful when you work in the area
around the engine after driving in or-
der to prevent burning yourself. The
engine hood, the support rod, or sur-
rounding area could be hot after driv-
ing.
—Rear turn signal, stop/tail,
stop and backup lights

02 MY MR2 SMT(U) L/O 0108
210
01 06 12
2002 MR2 (OM17493U)

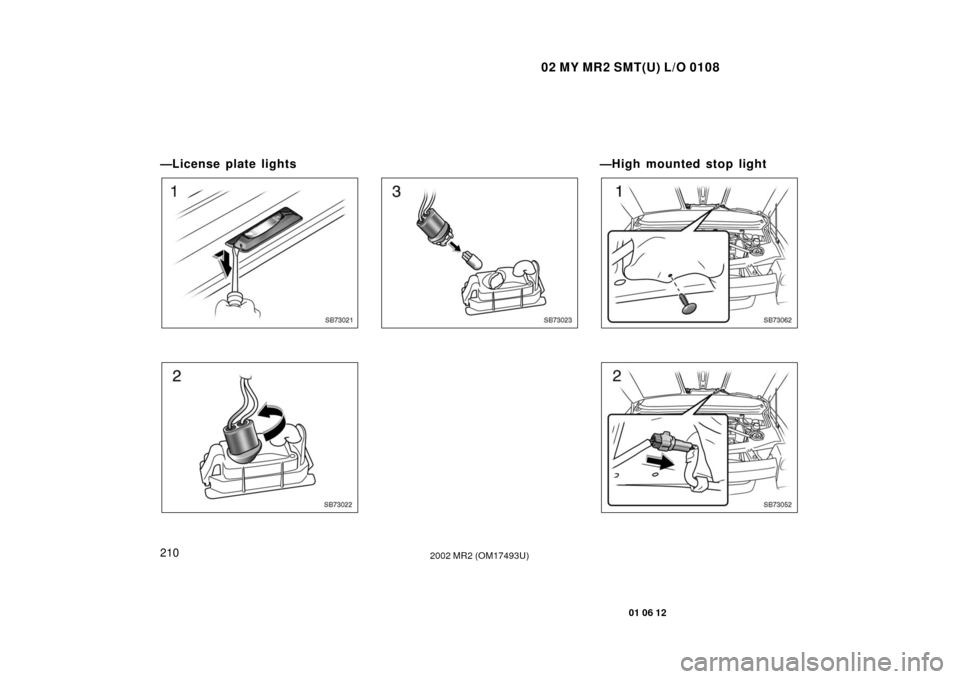

—License plate lights
SB73021
SB73022
SB73023

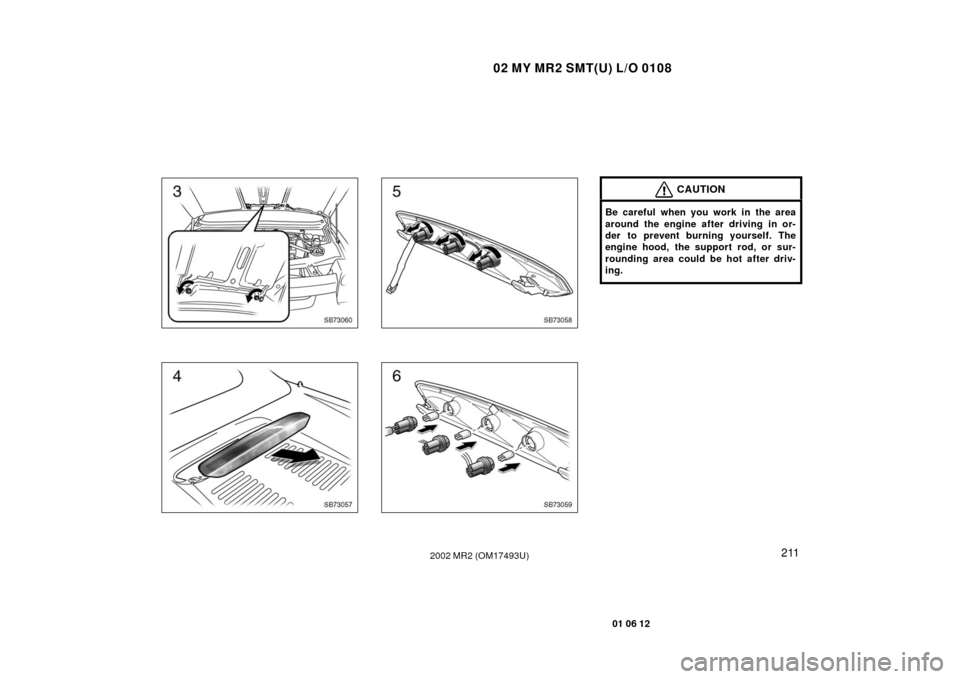

—High mounted stop light
SB73062
SB73052

02 MY MR2 SMT(U) L/O 0108
211
01 06 12
2002 MR2 (OM17493U)
SB73060
SB73057
SB73058
SB73059
CAUTION
Be careful when you work in the area
around the engine after driving in or-
der to prevent burning yourself. The
engine hood, the support rod, or sur-
rounding area could be hot after driv-
ing.

02 MY MR2 SMT(U) L/O 0108
212
01 06 12
2002 MR2 (OM17493U)

02 MY MR2 SMT(U) L/O 0108
213
01 06 12
2002 MR2 (OM17493U)
SPECIFICATIONS
Dimensions and weight214
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Engine 214
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 214
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 215
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 218
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 219
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

02 MY MR2 SMT(U) L/O 0108
214
01 06 12
2002 MR2 (OM17493U)
Dimensions and weight
Overall length mm (in.) 3885 (153.0)
Overall width mm (in.) 1695 (66.7)
Overall height mm (in.) 1240 (48.8)
∗
Wheelbase mm (in.) 2450 (96.5)
Front tread mm (in.) 1475 (58.1)
Rear tread mm (in.) 1460 (57.5)
Vehicle capacity weight
(occupants + luggage)kg (lb.) 193 (425)
∗: Unladen vehicle
Engine
Model: 1ZZFE
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 79.0  91.5 (3.11  3.60)
Displacement, cm
3 (cu. in.):
1794 (109.5)
Fuel
Fuel type:
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.): 48 (12.7, 10.6)

02 MY MR2 SMT(U) L/O 0108
215
01 06 12
2002 MR2 (OM17493U)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: DENSO SK16R11
NGK IFR5A11
Spark plug gap, mm (in.): 1.1 (0.043) ENGINE LUBRICATION
  \f\b \b \f
!
" #! $ #%
With filter 3.7 (3.9, 3.3)
Without filter 3.5 (3.7, 3.1)
Oil grade: API grade SJ “EnergyConserving”, SL
“EnergyConserving” or ILSAC multi-
grade engine oil is recommended.
Recommended oil viscosity (SAE):COOLING SYSTEM
Total capacity, L (qt., Imp. qt.): 10.4 (11.0, 9.2)
Coolant type: “TOYOTA Long Life Coolant” or equiva-
lent
With ethyleneglycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
BATTERY
Open voltage
∗ at 20 °C (68 °F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.
