2002 TOYOTA COROLLA Light

’02 Corolla U (L/O 0105)
2362002 Corolla_U (OM12743U)

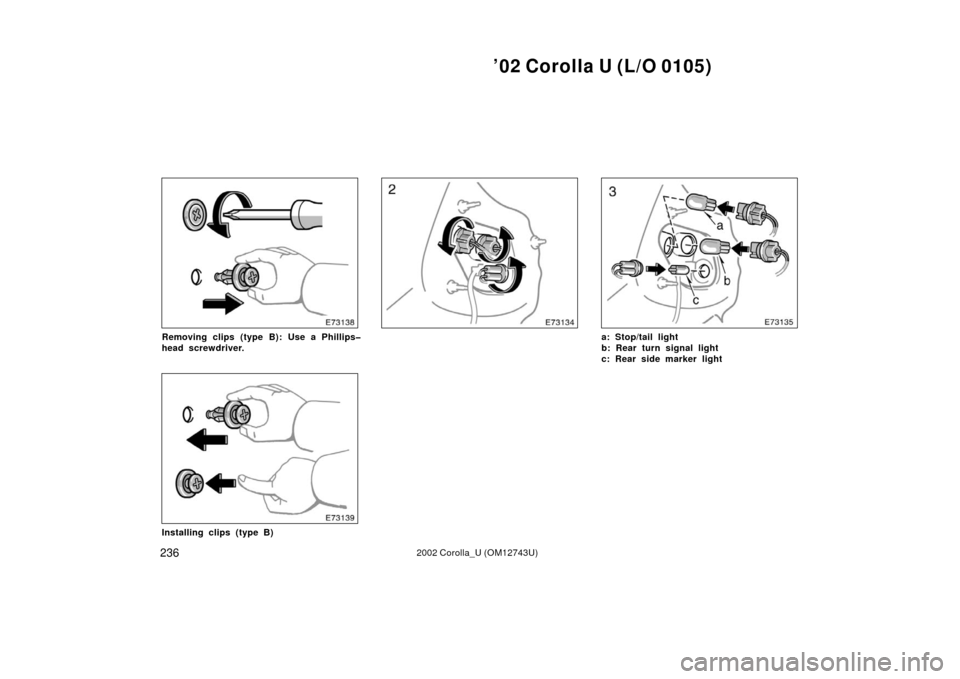

Removing clips (type B): Use a Phillips
head screwdriver.
Installing clips (type B)
a: Stop/tail light
b: Rear turn signal light
c: Rear side marker light

’02 Corolla U (L/O 0105)
2372002 Corolla_U (OM12743U)
—Backup lights—License plate lights
( lef t sid e)

’02 Corolla U (L/O 0105)
2382002 Corolla_U (OM12743U)
—License plate lights
(right side)

’02 Corolla U (L/O 0105)
2392002 Corolla_U (OM12743U)

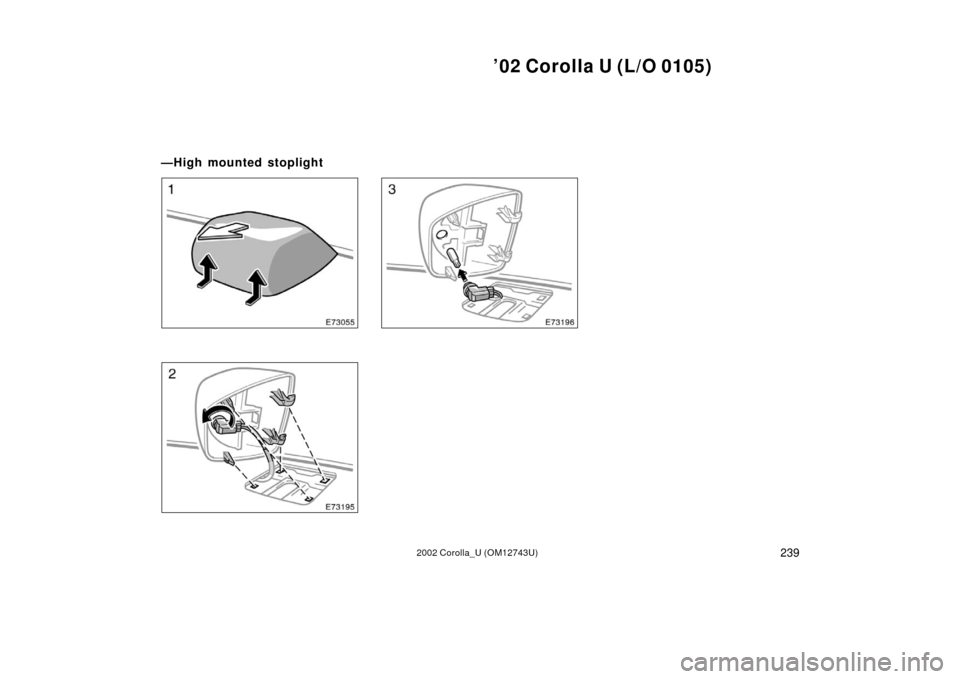

—High mounted stoplight

’02 Corolla U (L/O 0105)
2432002 Corolla_U (OM12743U)
ENGINE
Valve clearance (engine cold), mm (in.):Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: DENSO SK16R11
NGK IFR5A11
Spark plug gap, mm(in.): 1.1 (0.043) ENGINE LUBRICATION
Oil capacity (drain and ref
ill),
L (qt., Imp. qt.):
With filter 3.7 (3.9, 3.3)
Without filter 3.5 (3.7, 3.1)
Oil grade: API grade SJ, “EnergyConserving” or
ILSAC multigrade engine oil is recom-
mended.
Recommended oil viscosity (SAE):
5W-30 Preferred
Temperature range anticipated before
next oil change
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.): Manual transmission
5.8 (6.1, 5.1)
Automatic transmission 5.7 (6.0, 5.0)
Coolant type: “TOYOTA Long Life Coolant” or equiva-
lent
With ethyleneglycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
BATTERY
Open voltage
∗ at 20 C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the
lights turned off.
Charging rates: 5 A max.
Service specifications

’02 Corolla U (L/O 0105)
2452002 Corolla_U (OM12743U)
Tire size:Compact spare tireT115/70D14
T125/70D14
Except compact spare tire P175/65SR14
P185/65SR14
Tire pressure, kPa (kgf/cm
2 or bar, psi):
Compact spare tire 420 (4.2, 60)
Except compact spare tire 210 (2.1, 30)
Wheel size:
Compact spare tire14 4T
Except compact Spare tire 14 5 1/2JJ
Wheel nut torque, N·m (kgf·m, ft·lbf): 102.9 (10.5, 76)
NOTE: For a complete information on tires (e.g. replacing tires or re-
placing wheels), see “Checking
tire pressure” through “Aluminum
wheel precautions” in Section 72.
Engine compartment
Fuses (type A)
1. A/C 7.5 A: Air conditioning system,
electric cooling fans
2. SPARE 5 A: Spare fuse
3. SPARE 10 A: Spare fuse
4. SPARE 15 A: Spare fuse
5. DOME 15 A: Car audio system, interior
light, personal light, trunk light, clock,
daytime running light system
6. HAZARD 10 A: Turn signal lights,
emergency flashers
Engine compartment
7. AM2 15 A: Starter system, “ST” and
“IGN” fuses
8. HEAD (LH) or HEAD (LHUPR) 15 A: Lefthand headlight (high beam)
9. ALTS 5 A: Charging system
10. HEAD (RH) or HEAD (RHUPR) 15 A: Righthand headlight (high beam)
11. EFI or FHTR 15 A: Multiport fuel in-
jection system/sequential multiport fuel
injection system
12. HORN 10 A: Horn
Tires Fuses

’02 Corolla U (L/O 0105)
2462002 Corolla_U (OM12743U)
Engine compartment
13. DRL 7.5 A: Daytime running light sys-
tem
14. HEAD RHLWR 10 A: Righthand
headlight (low beam)
15. HEAD LHLWR 10 A: Lefthand head-
light (low beam)
16. CDS 30 A: Electric cooling fans
17. TURN 7.5 A: Turn signal lights, emer-
gency flashers
18. GAUGE 10 A: Gauge and meters,
buckup lights, air conditioning system,
power windows, rear window defogger,
power door lock system
Instrument panel
19. WIP 20 A: Windshield wipers and
washer
20. DEF IUP/MHTR 10 A: Rear window
defogger, multiport fuel injection sys-
tem/sequential multiport fuel injection
system
21. ECUIG 10 A: Starting system, electric
cooling fan, automatic transmission
shift lock system, antilock brake sys-
tem, cruise control system
22. IGN 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, charging system, SRS airbag
system, seat belt pretensi oners23. STOP 15 A:
Stop lights, high mounted
stoplight, antilock brake system, auto-
matic transmission shift lock system,
cruise control system, multiport fuel in-
jection system/sequential multiport fuel
injection system
24. TAIL 15 A: Tail lights, gauges and me-
ters, instrument panel light control, cig-
arette lighter, clock, car audio system,
rear window defogger, license plate
lights, electronically controlled automat-
ic transmission system, multiport fuel
injection system/sequential multiport
fuel injection system, air conditioning
system, emer gency flashers
25. OBD 7.5 A: Onboard diagnosis sys-
tem
26. ECUB 7.5 A: SRS airbag system,
seat belt pretensioners
27. ST 5 A: Starter system, multiport fuel
injection system/sequential multiport
fuel injection system
28. D/L 30 A: Power door lock system
29. FOG 15 A: Front fog lights
30. SHTR 15 A: No circuit

’02 Corolla U (L/O 0105)
2472002 Corolla_U (OM12743U)
31. CIG 15 A: Car audio system, clock,
cigarette lighter, power rear view mir-
rors, SRS airbag system, seat belt pre-
tensioners, automatic transmission shift
lock system
Fuses (type B)
32. HTR 50 A: Air conditioning system,
“A/C” fuse
33. MAIN 40 A: Starter system, “HEAD
(LH) or HEAD (LHUPR)”, “HEAD (RH)
or HEAD (RHUPR)”, “HEAD LHLWR”,
“HEAD RHLWR” and “DRL” fuses
34. RDI 30 A: Electric cooling fans
35. AM1 50 A: “CIG”, “TURN”, “GAUGE”,
“ECUIG” and “WIP” fuses
36. DEF 40 A: Rear window defogger,
“DEF IUP/MHTR” fuse
37. POWER 30 A: Power windows, electric
moon roof
Fuses (type C)
38. FL ABS 50 A: Antilock brake system
39. FL ALT 100 A: “RDI”, “CDS”, “AM1”,
“POWER”, “D/L”, “TAIL”, “OBD”, “FOG”,
“ECUB”, “STOP”, “DEF” and “HTR”
fuses
