2002 TOYOTA COROLLA Light

’02 Corolla U (L/O 0105)
2272002 Corolla_U (OM12743U)
NOTICE
Be sure the engine and all accesso-
ries are off before performing main-
tenance.
 When checking the battery, remove
the ground cable from the negative
terminal (“” mark) first and rein-
stall it last.
 Be careful not to cause a short cir-
cuit with tools.
 Take care no solution gets into the
battery when washing it.
Ty p e A
Ty p e B Green Dark
Clear or
light yellow
Blue White Red
CHECKING BY HYDROMETER
Check the battery condition by the
hydrometer color. Hydrometer color
ConditionTy p e ATy p e B
GreenBlueGood
DarkWhite
Charging necessary.
Have battery
checked by your
Toyota dealer.
Clear or
light
yellow
Red
Have battery
checked by your
Toyota dealer.
During recharging, the battery is pro-
ducing hydrogen gas.
Therefore, before recharging:1. If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
2. Be sure the power switch on the re- charger is off when connecting the
charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an un-
confined area. Do not charge the
battery in a garage or closed room
where there is not sufficient ventila-
tion.
Only do a slow charge (5 A or
less). Charging at a quicker rate is
dangerous. The battery may ex-
plode, causing personal injuries.
NOTICE
Never recharge the battery while the
engine is running. Also, be sure all
accessories are turned off.
—Checking battery fluid Battery recharging precautions

’02 Corolla U (L/O 0105)
2282002 Corolla_U (OM12743U)
Ty p e A
Ty p e C Ty p e BGood Blown
Good Good
Blown
Blown
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” in Section 71 for
locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull a suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
Section 8 of this manual for the functions
controlled by each circuit. Type A fuses can be pulled out by the
pullout tool. The location of the pullout
tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “A/C” or
“SHTR” fuse, which may be dispensable
for normal driving, and use it if its
amperage rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
as possible to, the rating. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.
Checking and replacing fuses

’02 Corolla U (L/O 0105)
2292002 Corolla_U (OM12743U)
If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
If any washer does not work or low
windshield washer fluid level warning
light comes on, the washer tank may be
empty. Add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
To prevent yourself from burning,
do not replace the light bulbs while
they are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
Adding washer fluidReplacing light bulbs—

’02 Corolla U (L/O 0105)
2302002 Corolla_U (OM12743U)
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogged up in the rain. However,
if there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbs
BulbNo.WTy p e
Headlights
(high beam)900560A
Headlights
(low beam)900651B
Front fog lights—55C
Parking/front side
marker/front turn
signal lights3157NA27/8E
Rear side marker
lights1943.8E
Rear turn signal
lights315627E
Stop/tail lights315727/8E
Light bulbsBulbNo.WTy p e
Backup lights92118E
License plate lights1943.8E
High mounted
stoplight92118E
Personal light
(with electric moon
roof)—10D
Personal lights
(without electric
moon roof)1924.3E
Interior light—8F
Trunk light1684.9E
A: HB3 halogen bulbs
B: HB4 halogen bulbs
C: H3 halogen bulbs
D: Single end bulbs
E: Wedge base bulbs
F: Double end bulbs
1. Open the hood.
RIGHTHAND HEADLIGHT: Remove
the bolts and take out the relay
block.
Put the relay block in the appropriate
place other than on the engine.
NOTICE
Do not place the relay block on the
engine.
—Headlights

’02 Corolla U (L/O 0105)
2312002 Corolla_U (OM12743U)

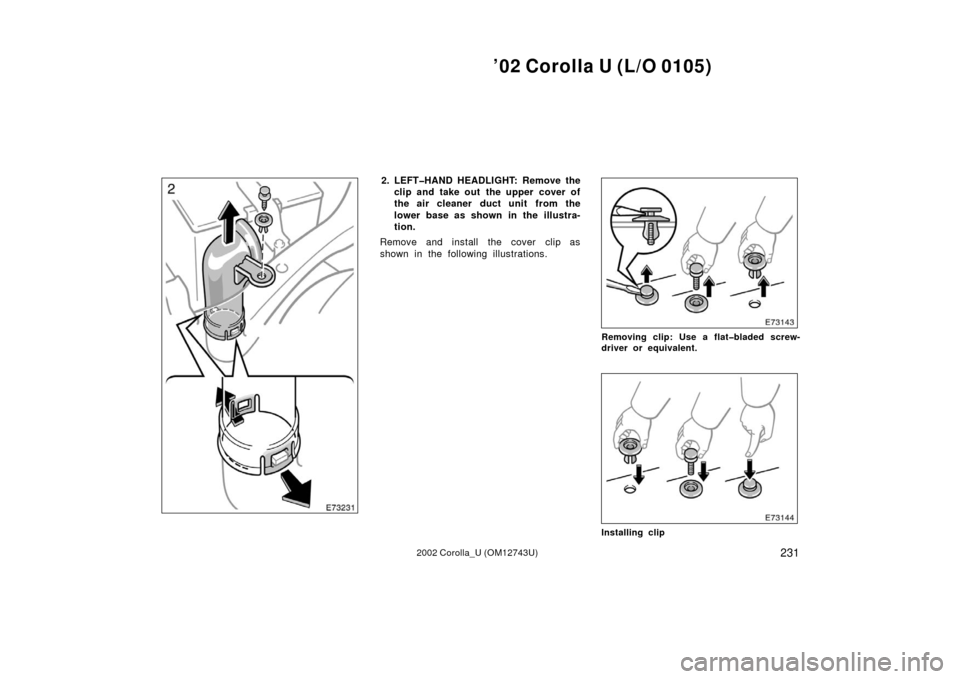

2. LEFTHAND HEADLIGHT: Remove theclip and take out the upper cover of
the air cleaner duct unit from the
lower base as shown in the illustra-
tion.
Remove and install the cover clip as
shown in the following illustrations.
Removing clip: Use a flatbladed screw-
driver or equivalent.
Installing clip

’02 Corolla U (L/O 0105)
2332002 Corolla_U (OM12743U)
1. Loosen the retainer nut and take outthe beam unit.2. Turn the cover counterclockwise andremove it.3. Disconnect the cords.
—Front fog lights

’02 Corolla U (L/O 0105)
2342002 Corolla_U (OM12743U)
4. Release the bulb retaining springand remove the bulb. Install a new
bulb and the bulb retaining spring.
To install the bulb, align the cutouts of the
bulb with the protrusions of the mounting
hole.5. Connect the cords and install the cover by turning it clockwise.
6. Install the fog light and tighten the nut.Use a Phillipshead screwdriver.
—Parking/front side
marker/front turn signal lights

’02 Corolla U (L/O 0105)
2352002 Corolla_U (OM12743U)
Remove and install the clips as shown in
the following illustrations.Removing clips (type A): Use a flatbladed
screwdriver or equivalent.
Installing clips (type A)
—Rear side maker, rear turn
signal, and stop/tail lights
