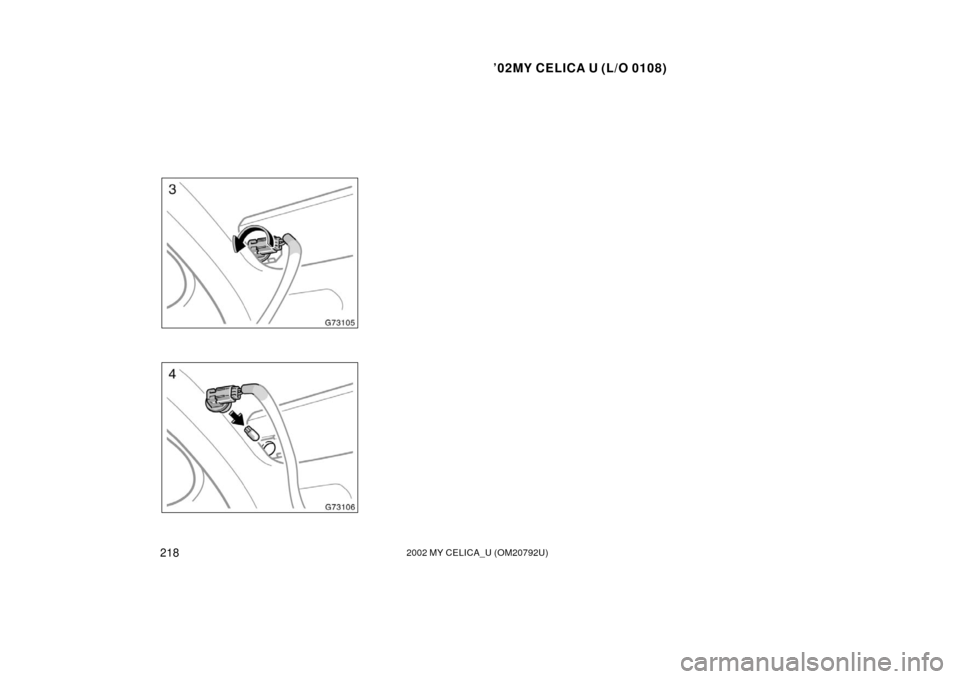

3. Pull the bulb out of the bulb baseand install a new bulb.
If the connector is tight, wiggle it.4. Insert the bulb base into the mount- ing hole by turning it clockwise.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.5. RIGHT SIDE HEADLIGHT—Install the cover.
NOTICE
Always notch the washer hose before
fastening it when installing the cover.
This prevents washer hose damage.

’02MY CELICA U (L/O 0108)
2142002 MY CELICA_U (OM20792U)
If either the left or right front fog or
front side marker lights burns out, con-
tact your Toyota dealer.
NOTICE
Do not try to replace the front fog or
front side marker light bulbs by your-
self. You may damage the vehicle.
RIGHT SIDE PARKING LIGHT—Remove
and install the clips as shown in the
following illustrations.
NOTICE
Always notch the washer hose before
fastening it when installing the cover.
This prevents washer hose damage.
—Front fog and front side
marker lights—Parking lights

’02MY CELICA U (L/O 0108)
2152002 MY CELICA_U (OM20792U)
Removing clip
Installing clip
—Front turn signal lights

’02MY CELICA U (L/O 0108)
2162002 MY CELICA_U (OM20792U)
RIGHT SIDE FRONT TURN SIGNAL
LIGHT—Remove and install the clips as
shown in the following illustrations.
NOTICE
Always notch the washer hose before
fastening it when installing the cover.
This prevents washer hose damage.
Removing clip
Installing clip

’02MY CELICA U (L/O 0108)
2172002 MY CELICA_U (OM20792U)
Remove the cover.a: Stop/tail light
b: Backup light
c: Rear turn signal lightUse a Phillipshead screwdriver.
Remove the cover.
—Rear turn signal, stop/tail,
and backup lights—License plate lights

’02MY CELICA U (L/O 0108)
2182002 MY CELICA_U (OM20792U)

’02MY CELICA U (L/O 0108)
2192002 MY CELICA_U (OM20792U)
SPECIFICATIONS
Dimensions and weight220
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Engine 220
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 220
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 221
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 223
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 224
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’02MY CELICA U (L/O 0108)
2202002 MY CELICA_U (OM20792U)
Overall length mm (in.) 4330 (170.5)
Overall width mm (in.) 1735 (68.3)
Overall height mm (in.) 1305 (51.8)
∗
Wheelbase mm (in.) 2600 (102.4)
Front tread mm (in.) 1490 (58.7)
Rear tread mm (in.) 1480 (58.3)
Vehicle capacity weight
(occupants + luggage)kg (lb.) 329 (725)
∗: Unladen vehicle Model:
1ZZFE and 2ZZGE
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 1ZZFE engine 79.0  91.5 (3.11  3.60)
2ZZGE engine 82.0  85.0 (3.23  3.35)
Displacement, cm
3 (cu. in.):
1ZZFE engine 1794 (109.5)
2ZZGE engine 1796 (109.6) Fuel type:
1ZZFE engineUnleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher
2ZZGE engine Select premium unleaded gasoline with
an Octane Rating of 91 (Research Oc-
tane Number 96) or higher for opti-
mum engine performance
Fuel tank capacity, L (gal., Imp. gal.): 55 (14.5, 12.1)
Dimensions and weight EngineFuel
