2002 TOYOTA CELICA light

’02MY CELICA U (L/O 0108)
142002 MY CELICA_U (OM20792U)
3. Put a new transmitter battery with posi-tive (+) side up.
Close the transmitter case securely.
NOTICE
 Make sure the positive side and
negative side of the transmitter bat-
tery should be faced correctly.
 Do not replace the battery with wet
hands. Water may cause unexpected
rust.
 Do not touch or move any compo-
nents inside of the transmitter, or
it may interfere with proper opera-
tion.
Be careful not to bend the electrode
of the transmitter battery insertion
and that dust or oils do not adhere
to the transmitter case.
 Close the transmitter case securely.
After replacing battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.
The windows can be operated with the
switch on the center console.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If both side doors are
closed, they work for 43 seconds even
after the ignition switch is turned off. They
stop working when either side door is
opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s side of
the center console.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.
Power windows

’02MY CELICA U (L/O 0108)
152002 MY CELICA_U (OM20792U)
Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.OPERATING THE PASSENGER’S
WINDOW
Use the switch on the passenger ’s side
of the center console.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.If you push in the window lock switch on
the instrument panel, the passenger ’s win-
dow cannot be operated.

’02MY CELICA U (L/O 0108)
172002 MY CELICA_U (OM20792U)
To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.3. Hold the hood open by inserting the support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
Hood

’02MY CELICA U (L/O 0108)
192002 MY CELICA_U (OM20792U)
2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang the
tether as shown in the illustration.
It is not unusual to hear a slight swoosh
when the cap is opened. When insta lling,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel sp illage in
case of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It has a built
in check valve to reduce fuel tank
pressure.
Tilting operation
Sliding operation
Electric moon roof

’02MY CELICA U (L/O 0108)
202002 MY CELICA_U (OM20792U)
To operate the moon roof, use the
switch beside the interior light.
The moon roof works when the ignition
switch is in the “ON” position.
Key off operation: If both side doors are
closed, it works for 43 seconds even after
the ignition switch is turned off. It stops
working when either side door is opened.
Tilting operation—
To tilt up: Push the switch briefly on the
“OPEN” side. The roof will tilt up com-
pletely.
To stop the roof partway, push the switch
either the “OPEN” or “CLOSE” side briefly.
The sun shade will open lightly with the
moon roof. To open the sun shade com-
pletely, pull it back by hand.
To lower: Push the switch briefly on the
“CLOSE” side. The roof will lower com-
pletely.
Sliding operation—
To open (with the roof tilting up): Push the
switch on the “OPEN” side briefly. The
roof will open completely.
To open (with the roof tilting down): Push
the switch on the “OPEN” side for more
than 2 seconds. The roof will open com-
pletely after tilting up. To stop the roof partway, push the switch
either the “OPEN” or “CLOSE” side briefly.
The sun shade will be opened together
with the roof.
To close: Push the switch briefly on the
“CLOSE” side. The roof will close com-
pletely.
Sun shade operation—
The sun shade can be closed by hand.
Jam protection function:
During closing
operation, the moon roof stops and opens
half way if something gets caught between
the moon roof and frame.
If the moon roof receives a strong impact,
this function may work even if nothing is
caught.
When the battery is disconnected, the
moon roof cannot operate automatically
and the jam protection function will not
function correctly. Therefore, you need to
normalize the moon roof as follows.
To normalize: Close the moon roof, and
continue to hold the switch up briefly after
the moon roof reaches the completely
closed position and the motor is blocked.
If the moon roof cannot be operated prop-
erly, have it checked by your Toyota deal-
er. There are cases where malfunctions may
activate the jam protection function, which
will prevent the roof from closing com-
pletely. In this case, pushing and holding
the switch on the “CLOSE” side will close
the roof completely.
CAUTION
To avoid serious personal injury, you
must do the following.
While the vehicle is moving, always
keep the heads, hands and other
parts of the bodies of all occupants
away from the roof opening. Other-
wise, they could be seriously in-
jured if the vehicle stops suddenly
or if the vehicle is involved in an
accident.
Always make sure nobody places
his/her head, hands and other parts
of the body in the roof opening be-
fore you close the roof. If some-
one’s neck, head or hands gets
caught in the closing roof, it could
result in a serious injury. When
anyone closes the roof, first make
sure it is safe to do so.

’02MY CELICA U (L/O 0108)
252002 MY CELICA_U (OM20792U)

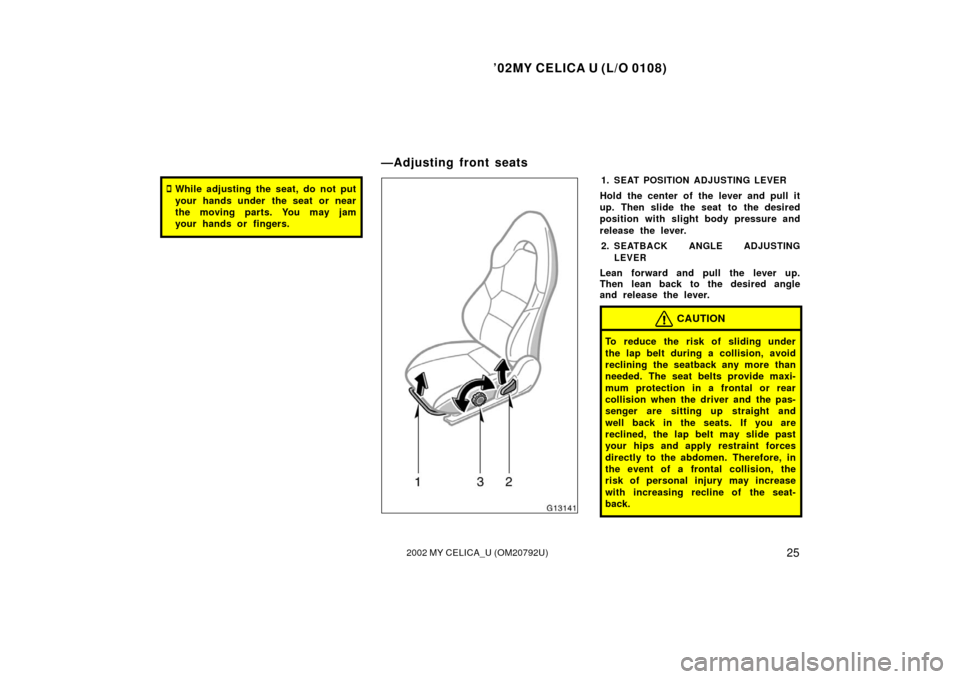

While adjusting the seat, do not put
your hands under the seat or near
the moving parts. You may jam
your hands or fingers.1.SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.2.
SEATBACK ANGLE ADJUSTING
LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. Therefore, in
the event of a frontal collision, the
risk of personal injury may increase
with increasing recline of the seat-
back.
—Adjusting front seats

’02MY CELICA U (L/O 0108)
292002 MY CELICA_U (OM20792U)
Adjust the seat as needed (front seats
only) and sit up straight and well back
in the seat. To fasten your belt, pull it
out of the retractor and insert the tab
into the buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.
When a passenger ’s shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see “Child
restraint” in this section.) To free the belt
again, fully retract the belt and then pull
the belt out once more.CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
Ta k e u p
slack
To o h i g h
Keep as low on
hips as possible
Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hips—not on your waist, then ad-
just it to a snug fit by pulling the s houlder
portion upward through the latch plate.
—Seat belts

’02MY CELICA U (L/O 0108)
322002 MY CELICA_U (OM20792U)
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the seat belt extender is not
twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
The driver and front passenger ’s seat
belt pretensioners are designed to be
activated in response to a severe fron-
tal impact.
When the airbag sensor detects the shock
of a severe frontal impact, the front seat
belts are quickly drawn back in by the
retractors so that the belts snugly restrain
the front seat occupants.
The front seat belt pretensioners are acti-
vated even with no passenger in the front
seat.
Collisions occurring at certain speeds and
angles may cause the front seat belt pre-
tensioners and SRS airbags not to operate
all together.This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the front seat belt pretensioners
are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side airbag sensors, door side air-
bag sensors, front seat belt pretensioner
assemblies, inflators, warning light, inter-
connecting wiring and power sources. (For
details, see “Service reminder indicators
and warning buzzers” in Section 15.)
—Front seat belt
pretensioners
