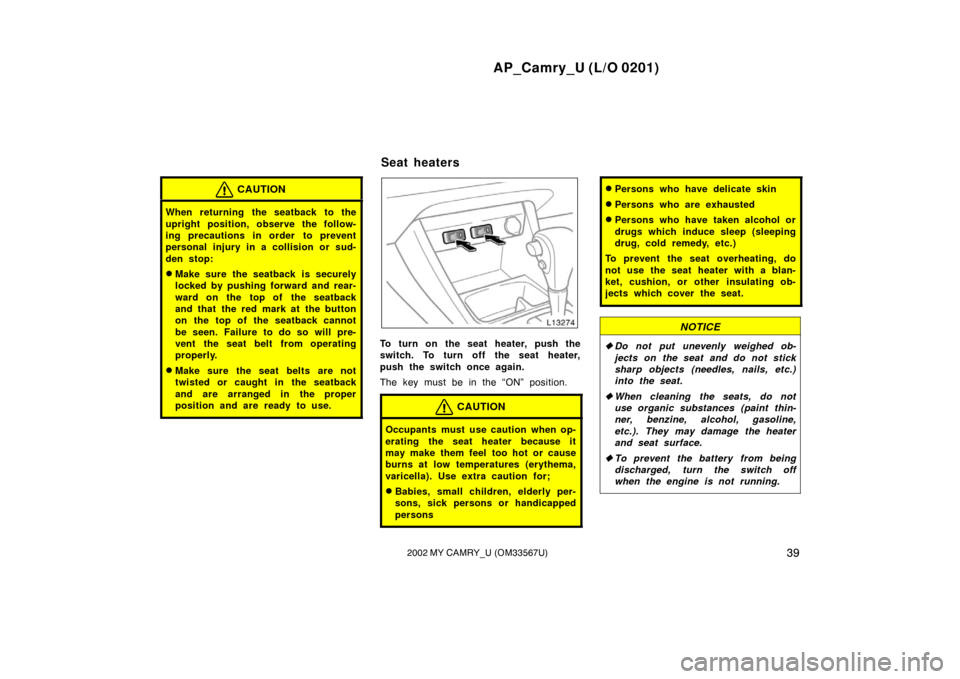

CAUTION
When returning the seatback to the
upright position, observe the follow-
ing precautions in order to prevent
personal injury in a collision or sud-
den stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback
and that the red mark at the button
on the top of the seatback cannot
be seen. Failure to do so will pre-
vent the seat belt from operating
properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in the proper
position and are ready to use.
To turn on the seat heater, push the
switch. To turn off the seat heater,
push the switch once again.
The key must be in the “ON” position.
CAUTION
Occupants must use caution when op-
erating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;
Babies, small children, elderly per-
sons, sick persons or handicapped
persons
Persons who have delicate skin
Persons who are exhausted
Persons who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat overheating, do
not use the seat heater with a blan-
ket, cushion, or other insulating ob-
jects which cover the seat.
NOTICE
 Do not put unevenly weighed ob-
jects on the seat and do not stick
sharp objects (needles, nails, etc.)
into the seat.
 When cleaning the seats, do not
use organic substances (paint thin-
ner, benzine, alcohol, gasoline,
etc.). They may damage the heater
and seat surface.
 To prevent the battery from being
discharged, turn the switch off
when the engine is not running.
Seat heaters

AP_Camry_U (L/O 0201)
482002 MY CAMRY_U (OM33567U)
The driver and front passenger ’s seat
belt pretensioners are designed to be
activated in response to a severe fron-
tal impact.
When the airbag sensor detects the shock
of a severe frontal impact, the front seat
belts are quickly drawn back in by the
retractors so that the belts snugly restrain
the front seat occupants.
The front seat belt pretensioners are acti-
vated even with no passenger in the front
seat.This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the front seat belt pretensioners
are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front seat belt pretensioner
assemblies, inflators, warning light, inter-
connecting wiring and power sources. (For
details, see “Service reminder indicators
and warning buzzers” on page 99 in Sec-
tion 1−5.)The front seat belt pretensioner system
mainly consists of the following compo-
nents and their locations are shown in the
illustration.
1. Front airbag sensors
2. SRS warning light
3. Front seat belt pretensioner assemblies
4. Airbag sensor assembly
The front seat belt pretensioners are con-
trolled by the airbag sensor assembly. The
airbag sensor assembly consists of a saf-
ing sensor and airbag sensor.
—Front seat belt
pretensioners

AP_Camry_U (L/O 0201)
492002 MY CAMRY_U (OM33567U)
When the front seat belt pretensioners are
activated, an operating noise may be
heard and a small amount of smoke−like
gas may be released. This gas is harm-
less and does not indicate that a fire is
occurring.
Once the front seat belt pretensioners
have been activated, the seat belt retrac-
tors remain locked.
CAUTION
Do not modify, remove, strike or open
the front seat belt pretensioner as-
semblies, airbag sensor or surround-
ing area or wiring. Doing so may
cause sudden operation of the front
seat belt pretensioners or disable the
system, which could result in death
or serious injury.
Failure to follow these instructions
can result in death or serious inju-
ries.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
front seat belt pretensioners in some
cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Repairs on or near the front seat
belt retractor assemblies
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure or con-
sole
This front seat belt pretensioner system
has a service reminder indicator to inform
the driver of operating problems. If any of
the following conditions occurs, this
indicates a malfunction of the airbags or
pretensioners. Contact your Toyota dealer
as soon as possible to service the
vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion, or the light remains on.
The light comes on or flashes while
driving.
If either front seat belt does not retract
or can not be pulled out due to a
malfunction or activation of the relevant
front seat belt pretensioner.

AP_Camry_U (L/O 0201)
512002 MY CAMRY_U (OM33567U)
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS front airbags are oper-
ating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front seat belt pretensioner
assemblies, inflators, warning light, inter-
connecting wiring and power sources. (For
details, see “Service reminder indicators
and warning buzzers” on page 99 in Sec-
tion 1−5.)The SRS front airbag system is de-
signed to activate in response to a se-
vere frontal impact within the shaded
area between the arrows in the illustra-
tion.
The SRS front airbags will deploy if the
severity of the impact is above the de-
signed threshold level, comparable to an
approximate 25 km/h (15 mph) collision
when impacting straight into a fixed barrier
that does not move or deform.
If the severity of the impact is below the
above threshold level, the SRS front air-
bags may not deploy. However, this threshold velocity will be
considerably higher if the vehicle strikes
an object, such as a parked vehicle or
sign pole, which can move or deform on
impact, or if it is involved in an underride
collision (e.g. a collision in which the nose
of the vehicle “underrides”, or goes under,
the bed of a truck, etc.).
It is possible that in some collisions at the
lower zone of airbag sensor detection and
activation the SRS airbags and seat belt
pretensioners will not operate all together.
For the safety of all occupants, always
wear your seat belts properly.

AP_Camry_U (L/O 0201)
572002 MY CAMRY_U (OM33567U)
This SRS front airbag system has a
service reminder indicator to inform the
driver of operating problems. If either of
the following conditions occurs, this
indicates a malfunction of the airbags.
Contact your Toyota dealer as soon as
possible to service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion, or the light remains on.
The light comes on while driving.
In the following cases, contact your Toyota
dealer as soon as possible:
The SRS front airbags have been in-
flated.
The front of the vehicle (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS front airbags to inflate.
The pad section of the steering wheel
or front passenger airbag cover
(shaded in the illustration) is scratched,
cracked, or otherwise damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.

AP_Camry_U (L/O 0201)
592002 MY CAMRY_U (OM33567U)
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS side airbags and curtain
shield airbags are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front seat belt pretensioner
assemblies, inflators, warning light, inter-
connecting wiring and power sources. (For
details, see “Service reminder indicators
and warning buzzers” on page 99 in Sec-
tion 1−5.)The SRS side airbag and curtain shield
airbag system may not inflate if the
vehicle is subjected to a collision from
the side at certain angles, or a collision
to the side of the vehicle body other
than the passenger compartment as
shown in the illustration.
The SRS side airbags and curtain shield
airbags are designed to inflate when the
passenger compartment area suffers a se-
vere impact from the side.
For the safety of all occupants, always
wear your seat belts properly.
Collision from the rear
Collision from the front Vehicle rollover
The SRS side airbags and curtain shield
airbags are not designed to inflate if
the vehicle is involved in a front or
rear collision, if it rolls over, or if it is
involved in a lowspeed side collision.

AP_Camry_U (L/O 0201)
642002 MY CAMRY_U (OM33567U)
Modification of the side structure of
the passenger compartment
 Repairs made on or near the con-
sole
This SRS side airbag and curtain shield
airbag system has a service reminder
indicator to inform the driver of operating
problems. If either of the following
conditions occurs, this indicates a
malfunction of the airbags. Contact your
Toyota dealer as soon as possible to
service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion, or the light remains on.
The light comes on or flashes while
driving.

AP_Camry_U (L/O 0201)
832002 MY CAMRY_U (OM33567U)
To adjust a mirror, use the switches.1. Master switch—To select the mirror to be adjusted
Push the “L” (left) or “R” (right) side
of the switch.
2. Control switch—To move the mir- ror
P ush the switch in the desired
direction.
Mirrors can be adjusted when the key is
in the “ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
—Power rear view mirror
control Antiglare inside rear view
mirror
