2002 SUBARU OUTBACK window

2
Keys and doors Keys2-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door locks 2-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power door locking switches (if equipped) 2-6 . . . . . . . . . . . . . . . . . . . . . . . . .
Keyless entry system (if equipped) 2-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Security system (if equipped) 2-13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Child safety locks 2-20
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windows 2-21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows 2-21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid (Sedan) 2-24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Internal trunk lid release handle 2-26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear gate (Station wagon) 2-29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Moonroof (if equipped) 2-30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tilting/sliding moonroof (Sedan) 2-30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dual moonroofs (Station wagon) 2-32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-14
and alarm. In warning mode, the alarm detects lower level vibrations
and triggers 2 warning chirps on the horn and two flashes on the
lights as a deterrent to would be vandals. In alarm mode, higher lev-
els of shock are detected and the system will go into full alarm.Ignition switch being turned on while in armed state.
NOTE
With the valet mode selected, the security system does not oper-
ate and the parking lights do not flash when the remote transmit-ter is used for locking and unlocking.The security system indicator light in the combination meter
flashes twice per second to show that the valet mode is selected.For details, refer to “Valet mode ” in this section.
Arming the system
n To arm the system using remote transmitter
HB2033BB
Press to Arm the system. Press to Disarm the system.
HB1000EB
1. Close all windows and moonroofs (if so equipped).
2. Remove the key from the ignition switch.
3. Open the doors and get out of the vehicle.
4. Make sure that the engine hood (and the trunk lid) are locked.
5. Close all doors (and the rear gate on the station wagon).
6. Briefly press the “LOCK/ARM” button (for less than two seconds).
All doors (and the rear gate on the station wagon) will lock, the hornwill sound one time, the parking lights will flash one time and the indi-
cator light starts flashing slowly (approximately once every two

Keys and doors2-15
–
CONTINUED –
seconds).
If any of the doors, (rear gate or trunk lid) is not fully closed, the horn
sounds three times, the parking lights flash three times and the indi-
cator light flashes rapidly to alert you that the doors (or the rear gate)
are not properly closed. When you close the door, the system will au-
tomatically arm and doors will automatically lock. nTo arm the system using power door locking switches
HB2024CC
1. Close all windows and moonroofs (if so equipped).
2. Remove the key from the ignition switch.
3. Open the doors and get out of the vehicle.
4. Make sure that the engine hood (and the trunk lid) are locked.
5. Close the doors (and the rear gate on the station wagon) but leaveonly the driver ’s door or the front passenger ’s door open.
6. Push the power door locking switch forward ( “LOCK” side) to set
the door locks.
7. Close the door. The horn will sound one time, the parking lights will
flash one time and the indicator light will start flashing slowly (approxi-
mately once every two seconds) to inform you that the system has
armed. NOTE The system can be armed even if the engine hood, the windows and/or moonroofs are opened. Always make sure that they arefully closed before arming the system.

Keys and doors2-21
–
CONTINUED –

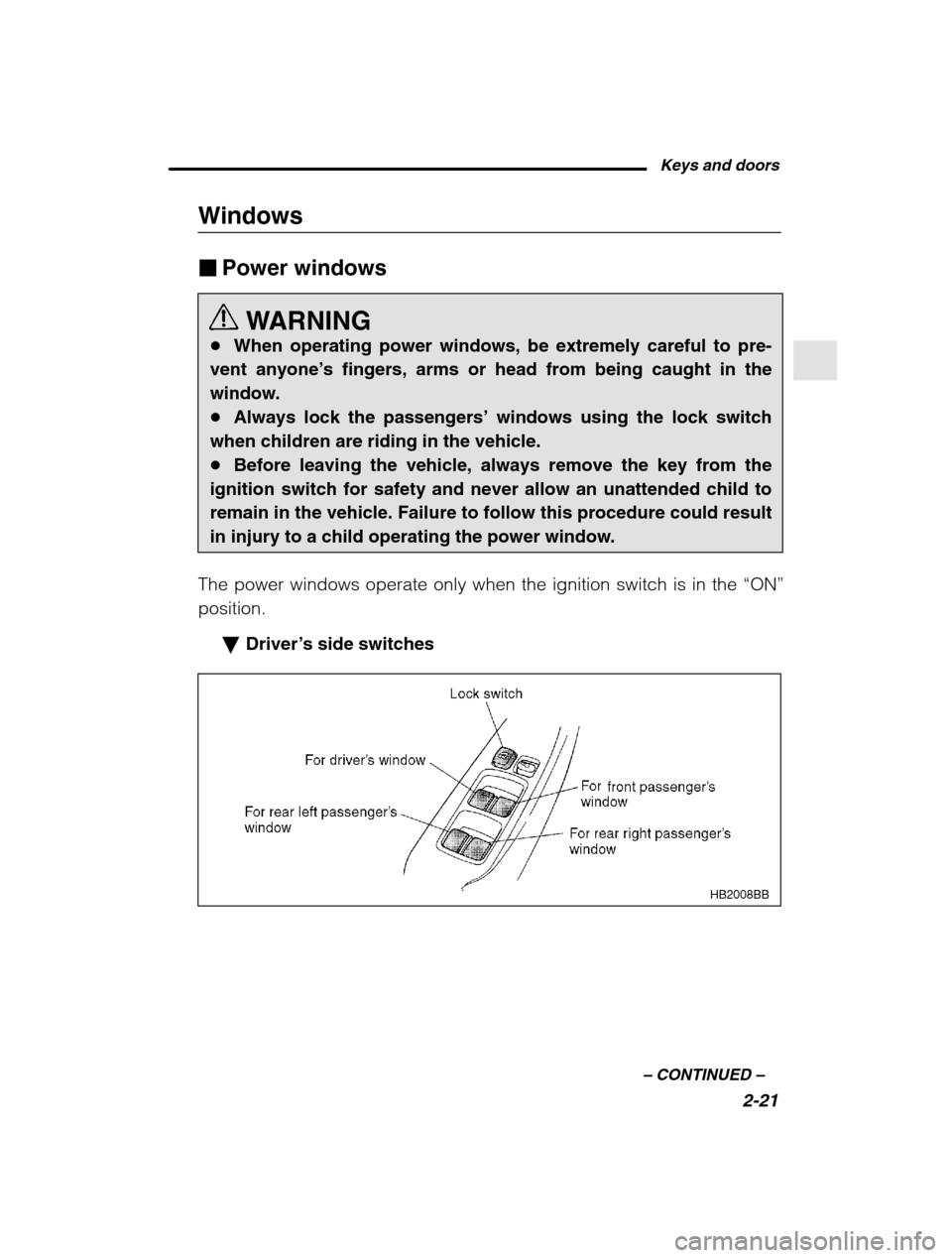

Windows Power windows
WARNING
When operating power windows, be extremely careful to pre-
vent anyone ’s fingers, arms or head from being caught in the
window. Always lock the passengers ’ windows using the lock switch
when children are riding in the vehicle. Before leaving the vehicle, always remove the key from the
ignition switch for safety and never allow an unattended child toremain in the vehicle. Failure to follow this procedure could result
in injury to a child operating the power window.
The power windows operate only when the ignition switch is in the “ON”
position.
Driver’ s side switches
HB2008BB

2-22

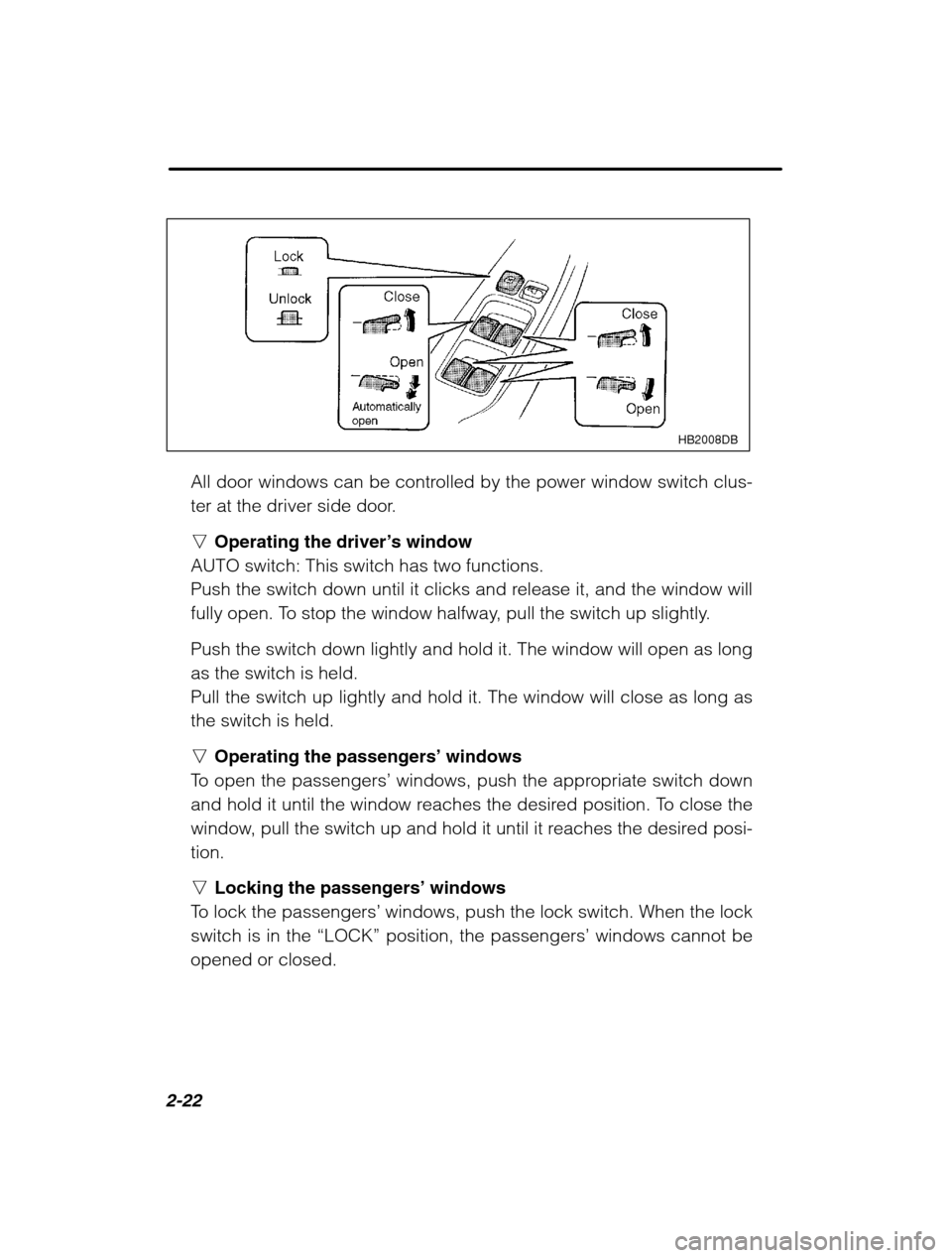

HB2008DB
All door windows can be controlled by the power window switch clus-
ter at the driver side door. nOperating the driver ’s window
AUTO switch: This switch has two functions.
Push the switch down until it clicks and release it, and the window will
fully open. To stop the window halfway, pull the switch up slightly. Push the switch down lightly and hold it. The window will open as long as the switch is held.Pull the switch up lightly and hold it. The window will close as long asthe switch is held. n Operating the passengers ’ windows
To open the passengers ’ windows, push the appropriate switch down
and hold it until the window reaches the desired position. To close the
window, pull the switch up and hold it until it reaches the desired posi-tion. n Locking the passengers ’ windows
To lock the passengers ’ windows, push the lock switch. When the lock
switch is in the “LOCK” position, the passengers ’ windows cannot be
opened or closed.

Keys and doors2-23
–
CONTINUED –

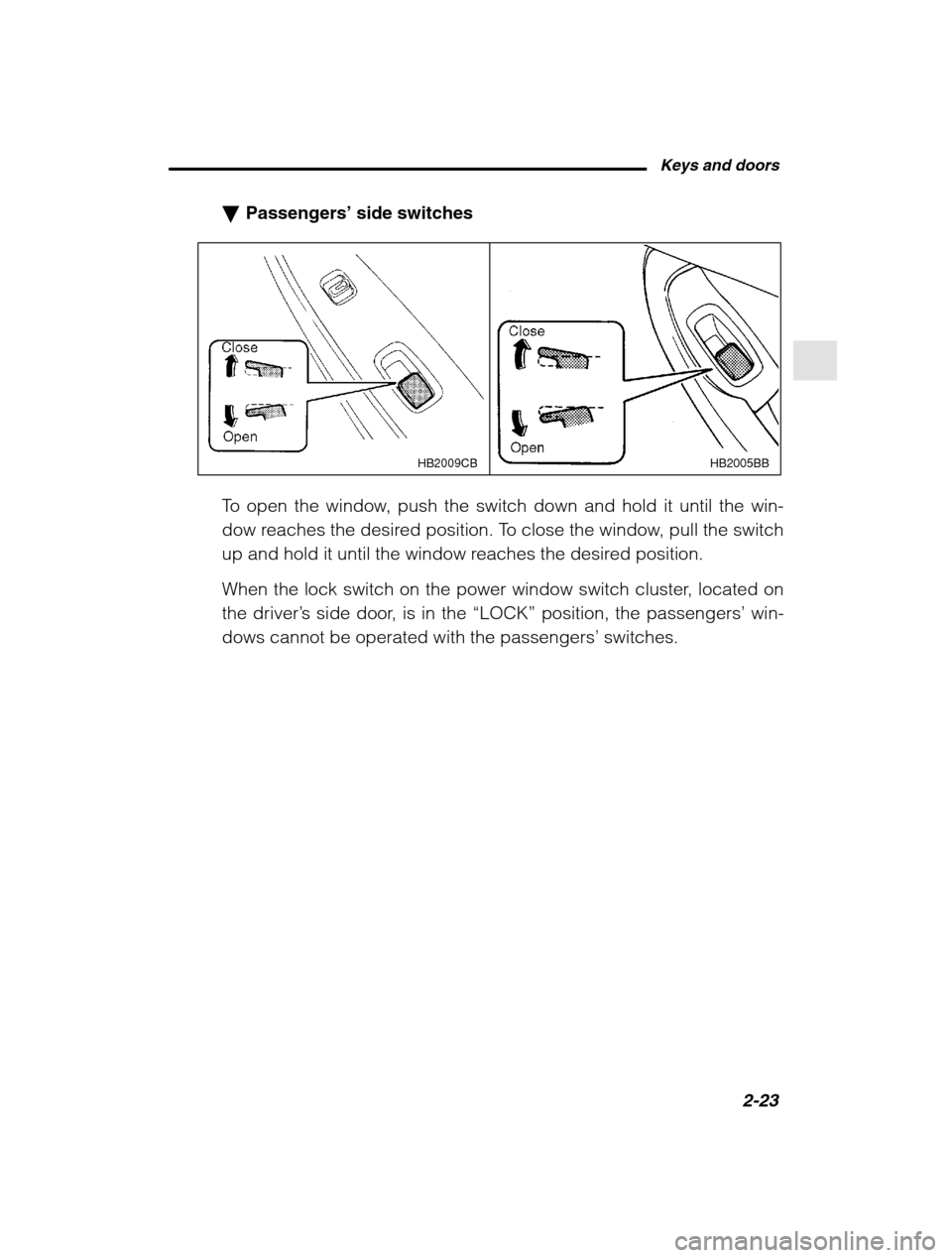

Passengers’ side switches
HB2005BB
HB2009CB
To open the window, push the switch down and hold it until the win-
dow reaches the desired position. To close the window, pull the switch
up and hold it until the window reaches the desired position.
When the lock switch on the power window switch cluster, located on the driver ’s side door, is in the “LOCK” position, the passengers ’ win-
dows cannot be operated with the passengers ’ switches.

2-24

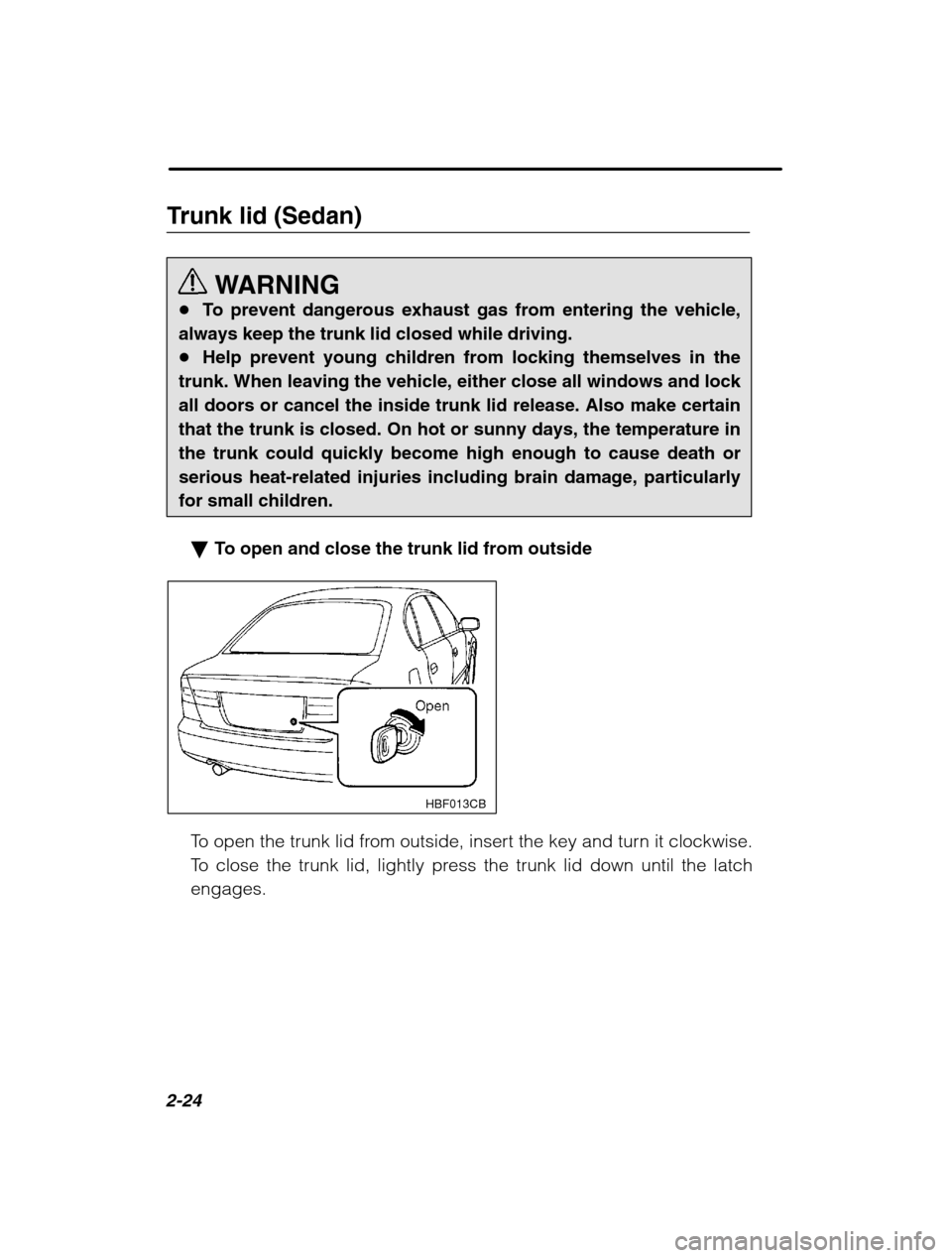

Trunk lid (Sedan)WARNING
To prevent dangerous exhaust gas from entering the vehicle,
always keep the trunk lid closed while driving. Help prevent young children from locking themselves in the
trunk. When leaving the vehicle, either close all windows and lockall doors or cancel the inside trunk lid release. Also make certainthat the trunk is closed. On hot or sunny days, the temperature inthe trunk could quickly become high enough to cause death orserious heat-related injuries including brain damage, particularlyfor small children.
To open and close the trunk lid from outside
HBF013CB
To open the trunk lid from outside, insert the key and turn it clockwise.
To close the trunk lid, lightly press the trunk lid down until the latchengages.

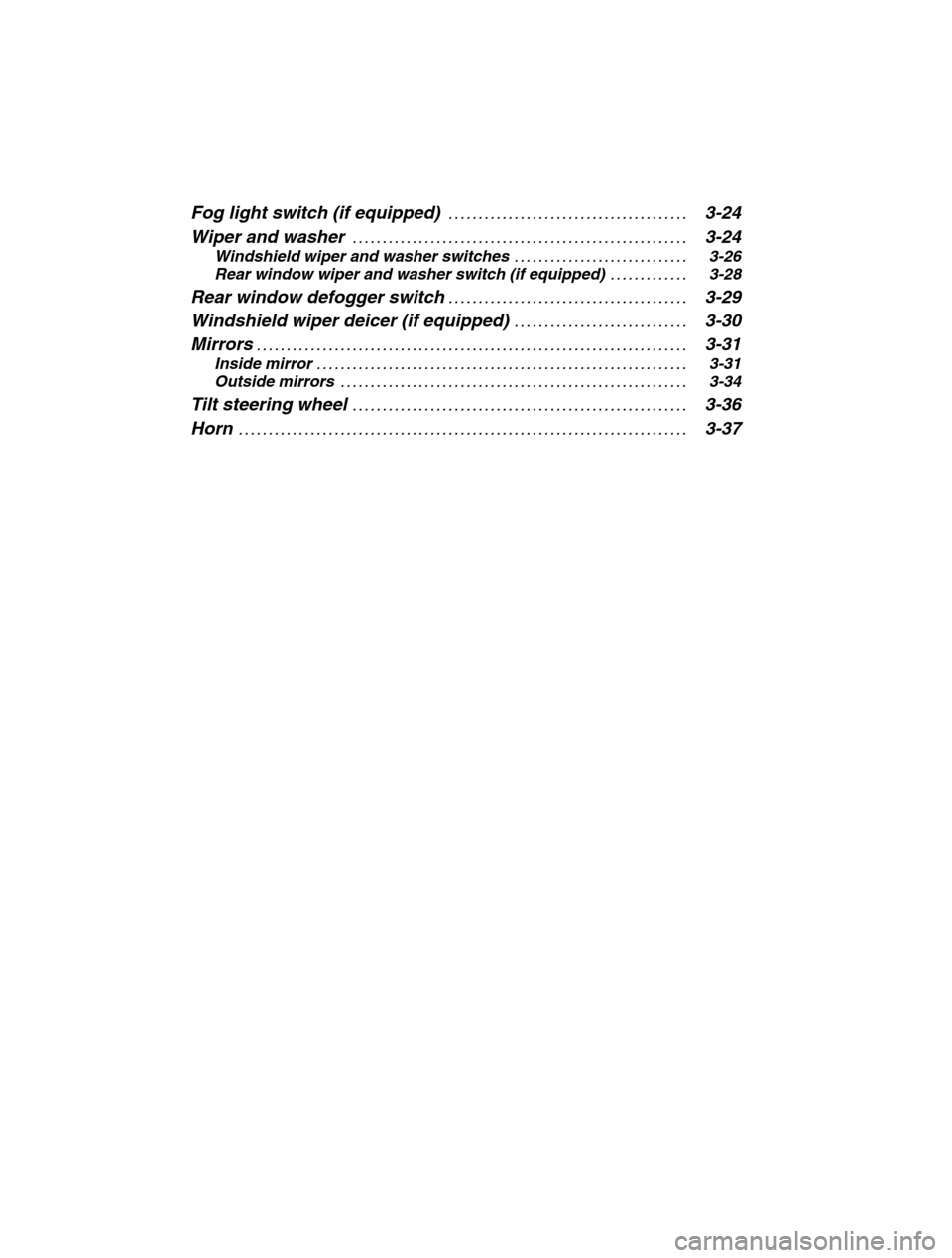

3-2Fog light switch (if equipped) 3-24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiper and washer 3-24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper and washer switches 3-26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer switch (if equipped) 3-28 . . . . . . . . . . . . .
Rear window defogger switch 3-29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper deicer (if equipped) 3-30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mirrors 3-31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inside mirror 3-31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside mirrors 3-34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tilt steering wheel 3-36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horn 3-37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
