2002 SUBARU OUTBACK wheel alignment

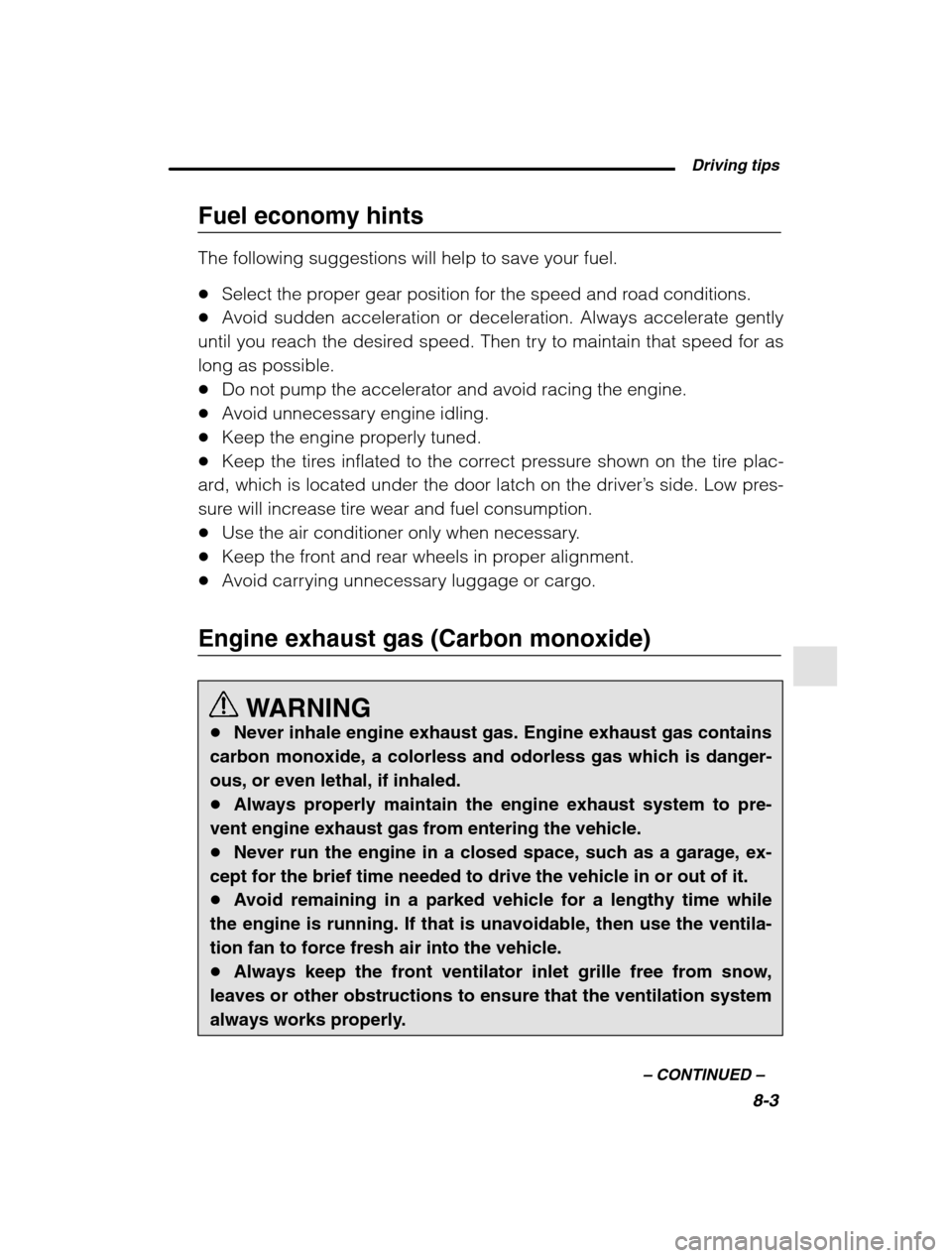

Driving tips8-3
–
CONTINUED –
Fuel economy hints The following suggestions will help to save your fuel. Select the proper gear position for the speed and road conditions.
Avoid sudden acceleration or deceleration. Always accelerate gently
until you reach the desired speed. Then try to maintain that speed for as long as possible. Do not pump the accelerator and avoid racing the engine.
Avoid unnecessary engine idling.
Keep the engine properly tuned.
Keep the tires inflated to the correct pressure shown on the tire plac-
ard, which is located under the door latch on the driver ’s side. Low pres-
sure will increase tire wear and fuel consumption. Use the air conditioner only when necessary.
Keep the front and rear wheels in proper alignment.
Avoid carrying unnecessary luggage or cargo.
Engine exhaust gas (Carbon monoxide)
WARNING
Never inhale engine exhaust gas. Engine exhaust gas contains
carbon monoxide, a colorless and odorless gas which is danger-ous, or even lethal, if inhaled. Always properly maintain the engine exhaust system to pre-
vent engine exhaust gas from entering the vehicle. Never run the engine in a closed space, such as a garage, ex-
cept for the brief time needed to drive the vehicle in or out of it. Avoid remaining in a parked vehicle for a lengthy time while
the engine is running. If that is unavoidable, then use the ventila-tion fan to force fresh air into the vehicle. Always keep the front ventilator inlet grille free from snow,
leaves or other obstructions to ensure that the ventilation system
always works properly.

Maintenance and service11-43
–
CONTINUED –
NOTE Loss of correct wheel alignment* causes the tires to wear on one side and reduces the vehicle ’s running stability. Contact your
SUBARU dealer if you notice abnormal tire wear.
* : The suspension system is designed to hold each wheel at a certain alignment
(relative to the other wheels and to the road) for optimum straight-line stability and
cornering performance. Wear indicators
Each tire incorporates a tread wear indicator, which becomes visible
when the depth of the tread grooves decreases to 0.063 in. (1.6 mm). A
tire must be replaced when the tread wear indicator appears as a solid
band across the tread.
OM-H0231
WARNING
When a tire ’s tread wear indicator becomes visible, the tire is
worn beyond the acceptable limit and must be replaced immedi-
ately. With a tire in this condition, driving at high speeds in wetweather can cause the vehicle to hydroplane. The resulting lossof vehicle control can lead to an accident.
NOTE
For safety, inspect the tire tread regularly and replace the tires be- fore their tread wear indicators become visible. A) New tread
B) Worn tread
1) Tread wear indicator

12
Specifications Specifications12-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions 12-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine 12-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical system 12-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Capacities 12-4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tires 12-4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheel alignment 12-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuses and circuits 12-6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse panel located behind the coin tray 12-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse panel located in the engine compartment 12-10 . . . . . . . . . . . . . . . . . . .
Bulb chart 12-14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle identification 12-15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

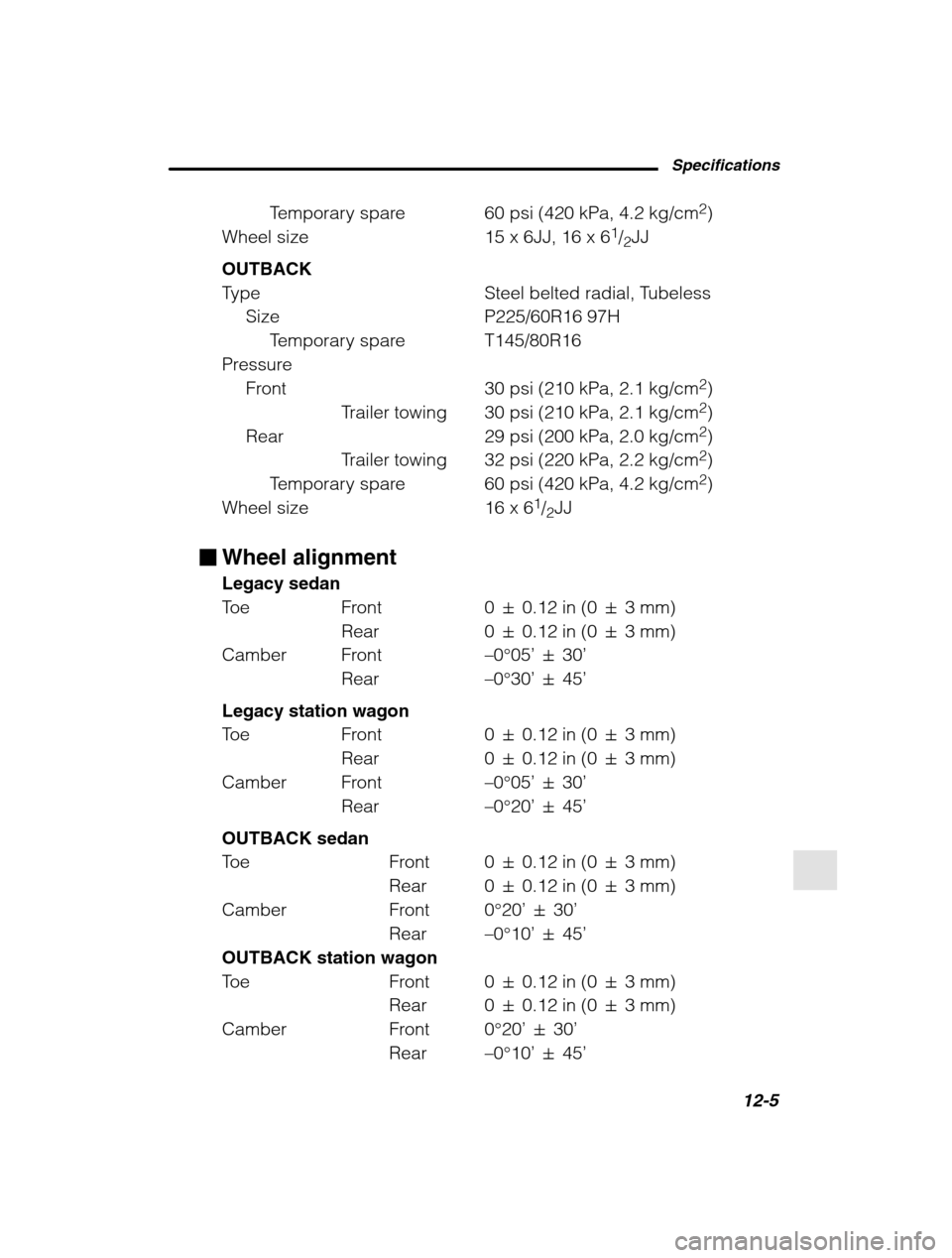

Specifications12-5
–
CONTINUED –
Temporary spare 60 psi (420 kPa, 4.2 kg/cm 2
)
Wheel size 15 x 6JJ, 16 x 6 1
/2 JJ
OUTBACK
Type Steel belted radial, Tubeless Size P225/60R16 97H Temporary spare T145/80R16
Pressure Front 30 psi (210 kPa, 2.1 kg/cm 2
)
Trailer towing 30 psi (210 kPa, 2.1 kg/cm 2
)
Rear 29 psi (200 kPa, 2.0 kg/cm 2
)
Trailer towing 32 psi (220 kPa, 2.2 kg/cm 2
)
Temporary spare 60 psi (420 kPa, 4.2 kg/cm 2
)
Wheel size 16 x 6 1
/2 JJ
Wheel alignment
Legacy sedan
Toe Front 0 0.12 in (0 3 mm)
Rear 0 0.12 in (0 3 mm)
Camber Front –0°05’ 30 ’
Rear –0 °30’ 45 ’
Legacy station wagon
Toe Front 0 0.12 in (0 3 mm)
Rear 0 0.12 in (0 3 mm)
Camber Front –0°05’ 30 ’
Rear –0 °20’ 45 ’
OUTBACK sedan
Toe Front 0 0.12 in (0 3 mm)
Rear 0 0.12 in (0 3 mm)
Camber Front 0 °20’ 30 ’
Rear –0 °10’ 45 ’
OUTBACK station wagon
Toe Front 0 0.12 in (0 3 mm)
Rear 0 0.12 in (0 3 mm)
Camber Front 0 °20’ 30 ’
Rear –0 °10’ 45 ’

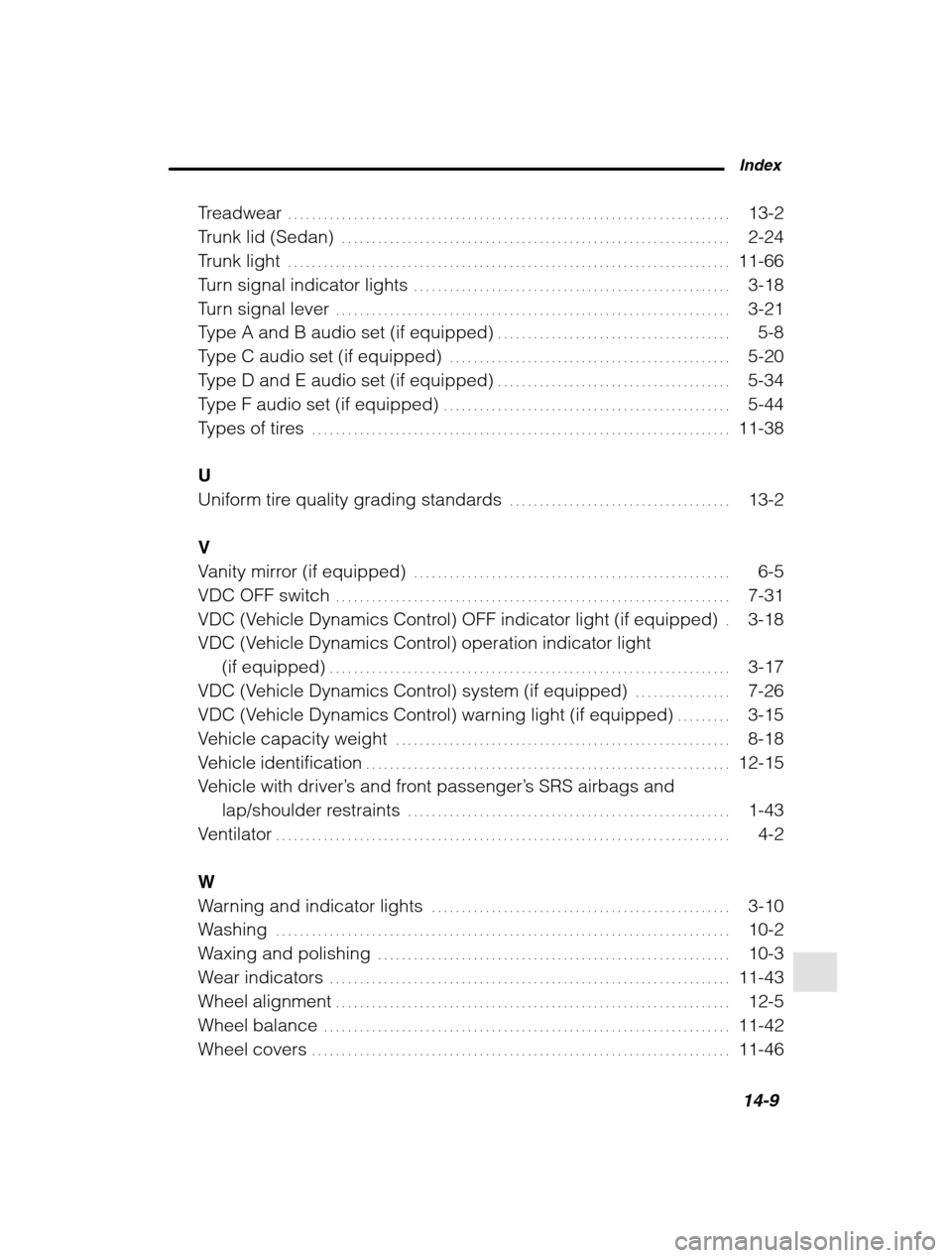

Index14-9
Treadwear 13-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid (Sedan) 2-24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk light 11-66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turn signal indicator lights 3-18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turn signal lever 3-21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Type A and B audio set (if equipped) 5-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Type C audio set (if equipped) 5-20
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Type D and E audio set (if equipped) 5-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Type F audio set (if equipped) 5-44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Types of tires 11-38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
U
Uniform tire quality grading standards 13-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
V
Vanity mirror (if equipped) 6-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VDC OFF switch 7-31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VDC (Vehicle Dynamics Control) OFF indicator light (if equipped) 3-18 .
VDC (Vehicle Dynamics Control) operation indicator light (if equipped) 3-17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VDC (Vehicle Dynamics Control) system (if equipped) 7-26 . . . . . . . . . . . . . . . .
VDC (Vehicle Dynamics Control) warning light (if equipped) 3-15 . . . . . . . . .
Vehicle capacity weight 8-18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle identification 12-15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle with driver ’s and front passenger ’s SRS airbags and
lap/shoulder restraints 1-43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ventilator 4-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
W
Warning and indicator lights 3-10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Washing 10-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Waxing and polishing 10-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wear indicators 11-43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheel alignment 12-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheel balance 11-42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheel covers 11-46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
