2002 SUBARU FORESTER tow bar

8-34
All vehicles except OUTBACK wagon
SUBARU does not offer accessory trailer hitches. Consult with a pro-
fessional hitch supplier to assist you in choosing an appropriate hitch
for your vehicle. Be sure to follow all of the hitch manufacturer ’s
instructions for installation and use.
Never use a hitch that mounts only to the rear bumper. The bumper isnot designed to handle that type of load.
Regularly check that the hitch mounting bolts and nuts are tight. Connecting a trailer
n Trailer brakes
WARNING
Adequate size trailer brakes are required when the trailer and
its cargo exceed 1,000 lbs (453 kg) total weight. Do not directly connect your trailer ’s hydraulic brake system
to the hydraulic brake system in your vehicle. Direct connectionwould cause the vehicle ’s brake performance to deteriorate and
could lead to an accident.
If your trailer ’s total weight (trailer weight plus its cargo weight)
exceeds 1,000 lbs (453 kg), the trailer is required to be equipped with
its own brake system. Electric brakes or surge brakes are recom-
mended, and must be installed properly. Check that your trailer ’s
brakes conform with Federal, state/province and/or other applicable
regulations. Your SUBARU ’s brake system is not designed to be
tapped into the trailer ’s hydraulic brake system. Please ask your
SUBARU dealer and professional trailer supplier for more information
about the trailer ’s brake system.
n Trailer safety chains
WARNING
Always use safety chains between your vehicle and the trailer.
Towing trailer without safety chains could create a traffic safetyhazard if the trailer separates from the hitch due to coupling dam-age or hitch ball damage.

8-36
Connection of trailer lights to your vehicle’s electrical system requires
modifications to the vehicle ’s lighting circuit to increase its capacity
and accommodate wiring changes. To ensure the trailer lights are
connected properly, please consult your SUBARU dealer. Check for
proper operation of the turn signals, the brake lights and parkinglights each time you hitch up. n Tires
WARNING
Never tow a trailer when the temporary spare tire is used. The temporary spare tire is not designed to sustain the towing load.
Use of the temporary spare tire when towing can result in failureof the spare tire and/or less stability of the vehicle.
Make sure that all the tires on your vehicle are properly inflated. OUTBACK: The recommended cold tire pressure under trailer
towing conditions is indicated on the tire placard located under thedoor striker on the driver ’s side. Adjust the rear tire pressure to the
recommended pressure shown on the tire placard when the tires
are cold. Normal pressure should be maintained in the front tires.Other models: It is recommended to inflate the rear tires to 3 psi
(20 kPa, 0.2 kg/cm 2
) above their normal operating pressure when
the tires are cold. Normal pressure should be maintained in the
front tires.
Trailer tire condition, size, load rating and proper inflation pressure
should be in accordance with the trailer manufacturer ’s specifications.
In the event your vehicle gets a flat tire when towing a trailer, ask a
commercial road service to repair the flat tire.
If you carry a regular size spare tire in your vehicle or trailer as a pre-
caution against getting a flat tire, be sure that the spare tire is firmly
secured.

Driving tips8-39
–
CONTINUED –
nearest SUBARU dealer. nDriving on grades
Before going down a steep hill, slow down and shift into lower gear
(if necessary, use 1st gear) in order to utilize the engine braking effect
and prevent overheating of your vehicle ’s brakes. Do not make sud-
den downshifts. When driving uphill in hot weather, the air conditioner may turn off
automatically to protect the engine from overheating. When driving uphill in hot weather, pay attention to the water tem-
perature gauge pointer (for all vehicles) and AT OIL TEMP warning
light (for AT vehicles) since the engine and transmission are relatively
prone to overheating under these conditions. If the water temperature
gauge pointer approaches the OVERHEAT zone or the AT OIL TEMP
warning light illuminates, immediately switch off the air conditioner
and stop the vehicle at the nearest safe place. Refer to the “Engine
overheat” section in chapter 9, and “Warning and indicator lights ”
section in chapter 3. If your vehicle has a automatic transmission, avoid using the accel-
erator pedal to stay stationary on an uphill slope instead of using theparking brake or foot brake. That may cause the transmission fluid to
overheat. Also, if your vehicle is equipped with an automatic transmis-sion, avoid driving with the gear selector lever in “D” when towing a
heavy trailer to prevent fluid overheating. n Parking on a grade
Always block the wheels under both vehicle and trailer when parking.
Apply the parking brake firmly. You should not park on a hill or slope.But if parking on a hill or slope cannot be avoided, you should takethe following steps:
1. Apply the brakes and hold the pedal down.
2. Have someone place wheel blocks under both the vehicle and
trailer wheels.
3. When the wheel blocks are in place, release the regular brakes
slowly until the blocks absorb the load.
4. Apply the regular brakes and then apply the parking brake; slowly
release the regular brakes.

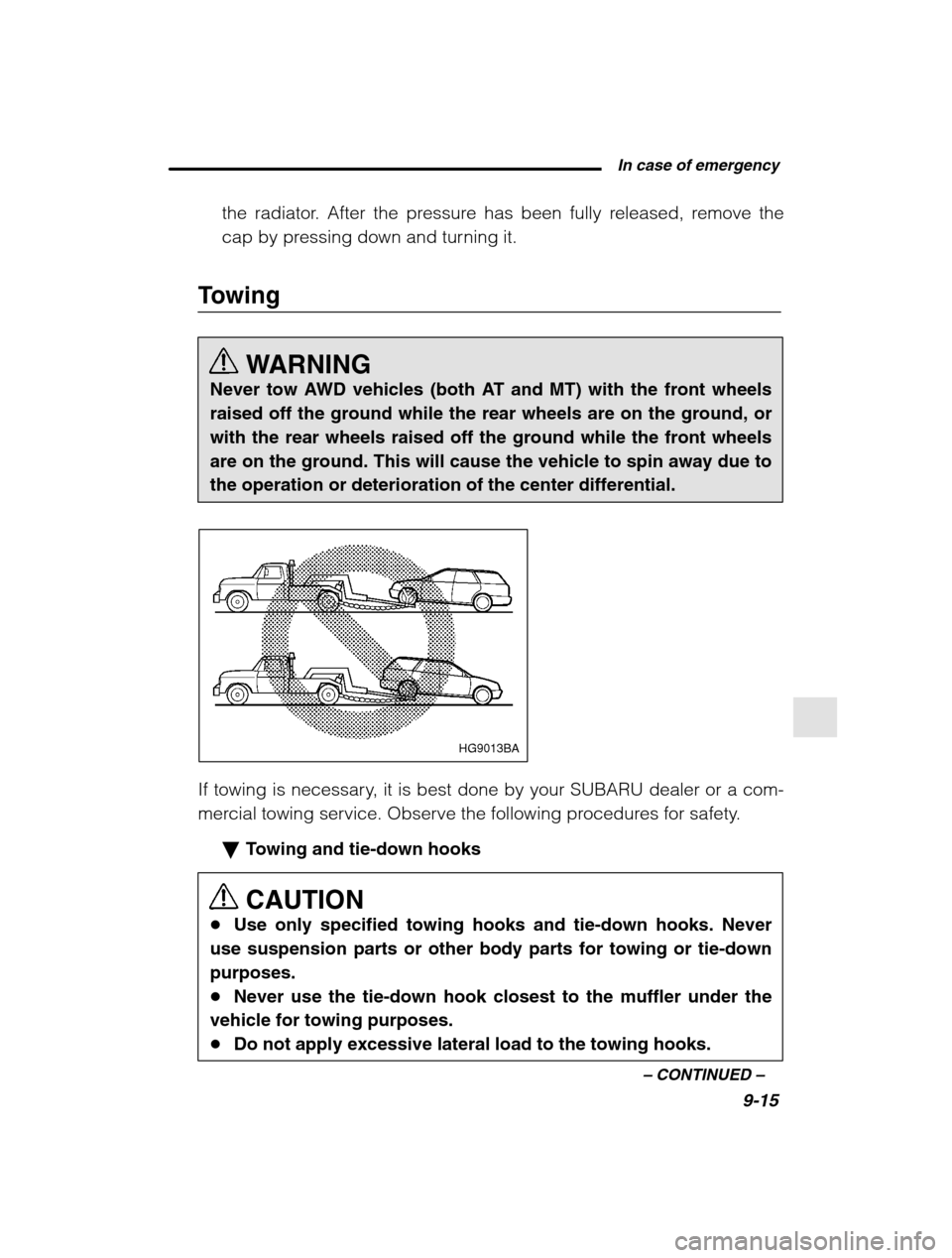

In case of emergency9-15
–
CONTINUED –
the radiator. After the pressure has been fully released, remove the
cap by pressing down and turning it.
Towing
WARNING
Never tow AWD vehicles (both AT and MT) with the front wheelsraised off the ground while the rear wheels are on the ground, orwith the rear wheels raised off the ground while the front wheelsare on the ground. This will cause the vehicle to spin away due tothe operation or deterioration of the center differential.
HG9013BA
If towing is necessary, it is best done by your SUBARU dealer or a com-
mercial towing service. Observe the following procedures for safety.
Towing and tie-down hooks
CAUTION
Use only specified towing hooks and tie-down hooks. Never
use suspension parts or other body parts for towing or tie-downpurposes. Never use the tie-down hook closest to the muffler under the
vehicle for towing purposes. Do not apply excessive lateral load to the towing hooks.

Maintenance and service11-13
–
CONTINUED –
In choosing an oil, you want the proper quality and viscosity, as well
as one that will add to fuel economy. The following table lists the rec-
ommended viscosities and applicable temperatures.
When adding oil, different brands may be used together as long as
they are the same API classification and SAE viscosity as those rec-
ommended by SUBARU.
Engine oil viscosity (thickness) affects fuel economy. Oils of lower vis-
cosity provide better fuel economy. However, in hot weather, oil of
higher viscosity is required to properly lubricate the engine.
OM-H2756
SAE viscosity numbr and applicable temperature
Recommended grade and viscosity under severe driving conditions
If the vehicle is used in desert areas, in areas with very high tempera-
tures, or used for heavy-duty applications such as a towing a trailer,
use of oil with the following grade and viscosities is recommended.
API classification SL or SJ: SAE viscosity No.: 30, 40, 10W-50,
20W-40, 20W-50

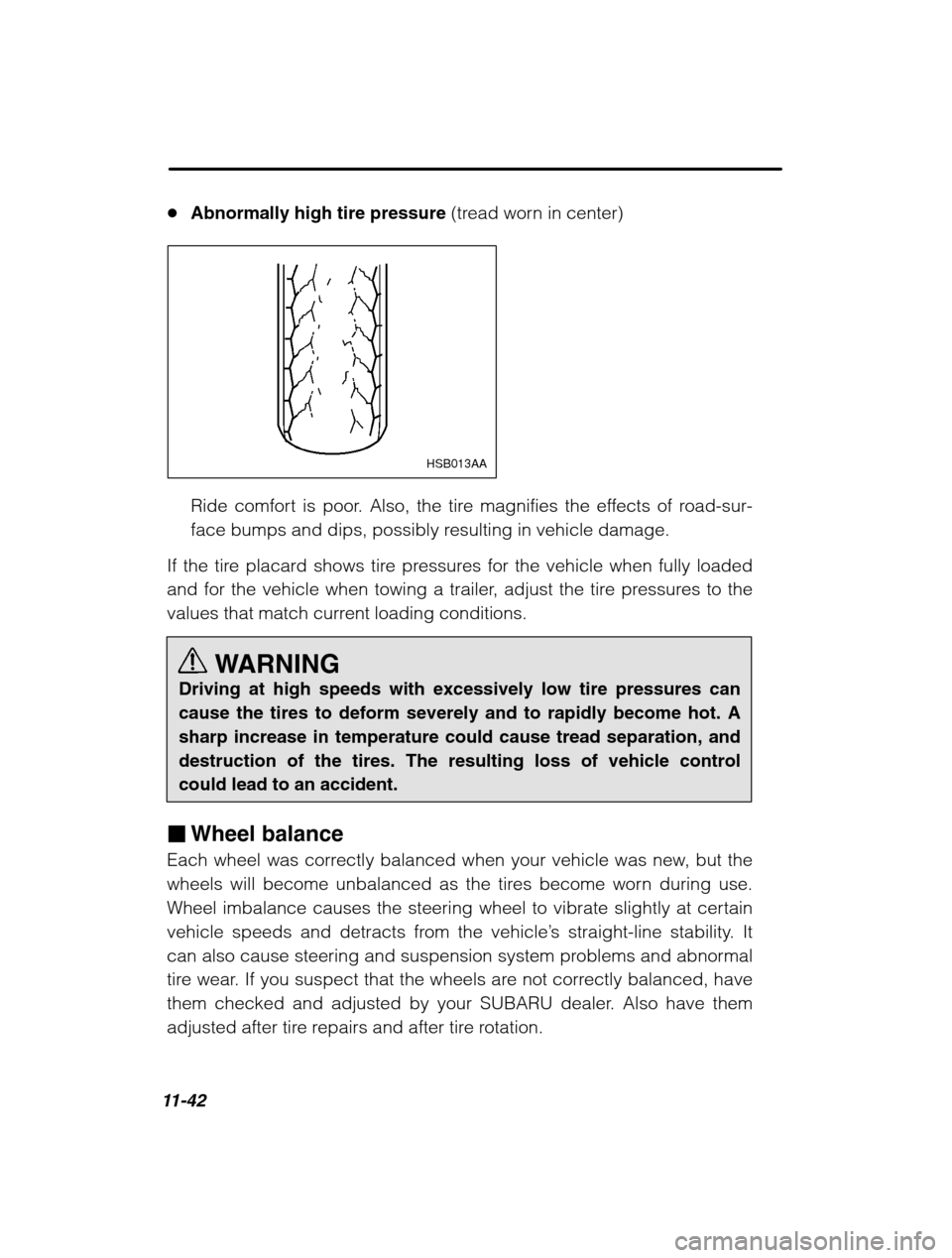

11-42
Abnormally high tire pressure (tread worn in center)
HSB013AA
Ride comfort is poor. Also, the tire magnifies the effects of road-sur-
face bumps and dips, possibly resulting in vehicle damage.
If the tire placard shows tire pressures for the vehicle when fully loaded
and for the vehicle when towing a trailer, adjust the tire pressures to the
values that match current loading conditions.
WARNING
Driving at high speeds with excessively low tire pressures can
cause the tires to deform severely and to rapidly become hot. Asharp increase in temperature could cause tread separation, and
destruction of the tires. The resulting loss of vehicle controlcould lead to an accident.
Wheel balance
Each wheel was correctly balanced when your vehicle was new, but the
wheels will become unbalanced as the tires become worn during use.
Wheel imbalance causes the steering wheel to vibrate slightly at certain
vehicle speeds and detracts from the vehicle ’s straight-line stability. It
can also cause steering and suspension system problems and abnormal
tire wear. If you suspect that the wheels are not correctly balanced, have
them checked and adjusted by your SUBARU dealer. Also have them
adjusted after tire repairs and after tire rotation.
