2002 SUBARU FORESTER tire type

11-38
HB4001CB
Tires and wheels Types of tires
You should be familiar with type of tires present on your vehicle.
All season tires
The factory-installed tires on your new vehicle are all season tires.
All season tires are designed to provide an adequate measure of trac-
tion, handling and braking performance in year-round driving includ-
ing snowy and icy road conditions. However all season tires do not
offer as much traction performance as winter (snow) tires in heavy or
loose snow or on icy roads.
All season tires are identified by “ALL SEASON ” and/or “M+S” (Mud &
Snow) on the tire sidewall. Summer tires
Summer tires are high-speed capability tires best suited for highway
driving under dry conditions.
Summer tires are inadequate for driving on slippery roads such as on
snow-covered or icy roads.
If you drive your vehicle on snow-covered or icy roads, we strongly
recommend the use of winter (snow) tires.
When installing winter tires, be sure to replace all four tires.

Maintenance and service11-39
–
CONTINUED –

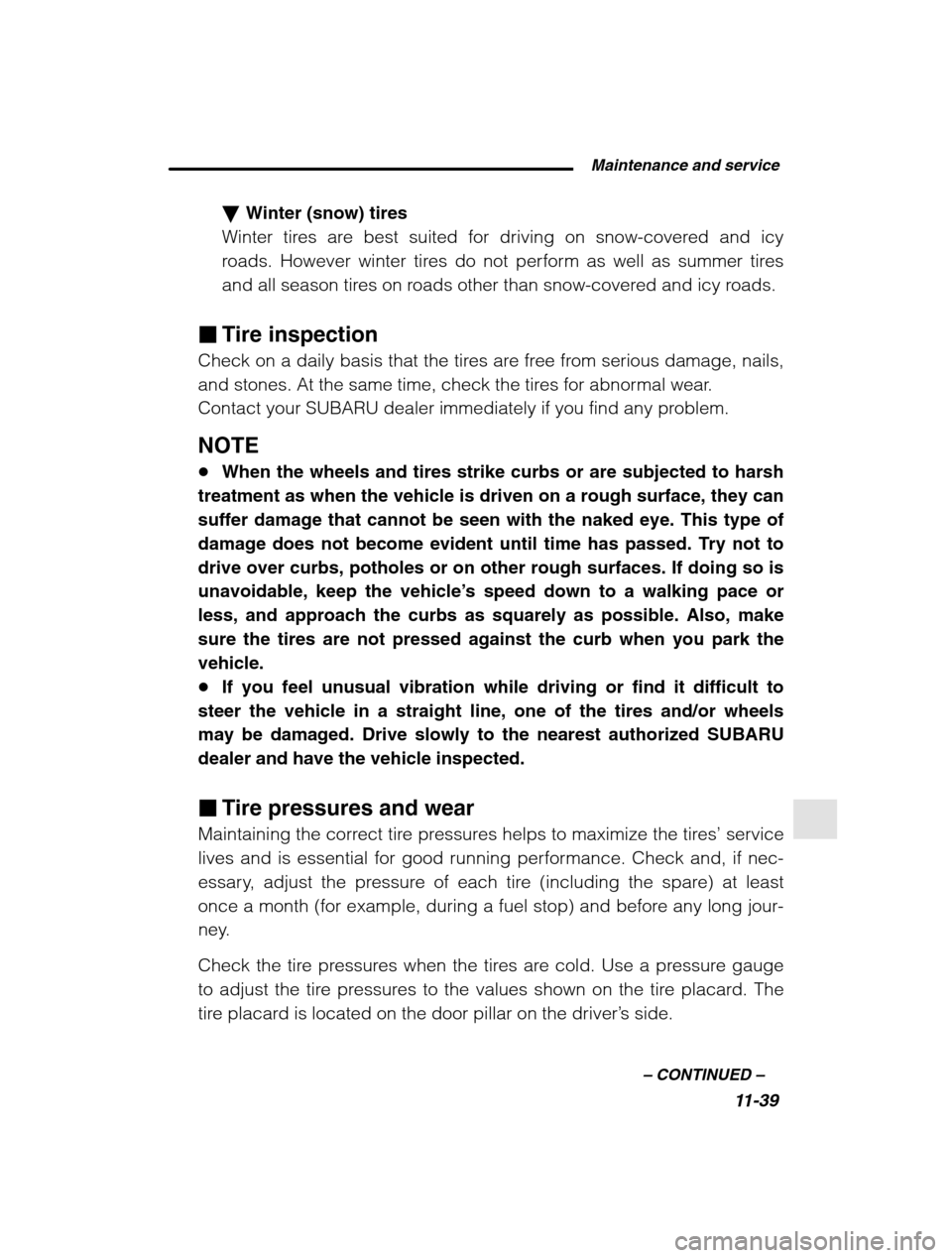

Winter (snow) tires
Winter tires are best suited for driving on snow-covered and icy
roads. However winter tires do not perform as well as summer tires
and all season tires on roads other than snow-covered and icy roads.
Tire inspection
Check on a daily basis that the tires are free from serious damage, nails,
and stones. At the same time, check the tires for abnormal wear.
Contact your SUBARU dealer immediately if you find any problem. NOTE When the wheels and tires strike curbs or are subjected to harsh
treatment as when the vehicle is driven on a rough surface, they can suffer damage that cannot be seen with the naked eye. This type of
damage does not become evident until time has passed. Try not todrive over curbs, potholes or on other rough surfaces. If doing so is
unavoidable, keep the vehicle ’s speed down to a walking pace or
less, and approach the curbs as squarely as possible. Also, makesure the tires are not pressed against the curb when you park thevehicle. If you feel unusual vibration while driving or find it difficult to
steer the vehicle in a straight line, one of the tires and/or wheelsmay be damaged. Drive slowly to the nearest authorized SUBARUdealer and have the vehicle inspected. Tire pressures and wear
Maintaining the correct tire pressures helps to maximize the tires ’ service
lives and is essential for good running performance. Check and, if nec-
essary, adjust the pressure of each tire (including the spare) at least
once a month (for example, during a fuel stop) and before any long jour-
ney.
Check the tire pressures when the tires are cold. Use a pressure gauge
to adjust the tire pressures to the values shown on the tire placard. The
tire placard is located on the door pillar on the driver ’s side.

Maintenance and service11-45
–
CONTINUED –
racy. It also creates incorrect body-to-tire clearances and inappropriately changes the vehicle ’s ground clearance.
All four tires must be the same in terms of manufacturer, brand (tread
pattern), construction, and size. You are advised to replace the tires with
new ones that are identical to those fitted as standard equipment.
For safe vehicle operation, SUBARU recommends replacing all four tires at the same time.
WARNING
All four tires must be the same in terms of manufacturer, brand
(tread pattern), construction, degree of wear, speed symbol, loadindex and size. Mixing tires of different types, sizes or degrees ofwear can result in damage to the vehicle ’s power train. Use of dif-
ferent types or sizes of tires can also dangerously reduce con-trollability and braking performance and can lead to an accident. Use only radial tires. Do not use radial tires together with
belted bias tires and/or bias-ply tires. Doing so can dangerously
reduce controllability, resulting in an accident.
Wheel replacement
When replacing wheels due, for example, to damage, make sure the re-
placement wheels match the specifications of the wheels that are fitted
as standard equipment. Replacement wheels are available from
SUBARU dealers.
WARNING
Use only those wheels that are specified for your vehicle. Wheelsnot meeting specifications could interfere with brake caliper op-eration and may cause the tires to rub against the wheel wellhousing during turns. The resulting loss of vehicle control couldlead to an accident.

Maintenance and service11-47
–
CONTINUED –
tighten it to the specified torque.
Aluminum wheels (If equipped)
Aluminum wheels can be scratched and damaged easily. Handle them
carefully to maintain their appearance, performance, and safety. When any of the wheels is removed and replaced for tire rotation or to
change a flat, always check the tightness of the wheel nuts after driving
approximatly 600 miles (1,000 km). If any nut is loose, tighten it to the
specified torque. Never apply oil to the threaded parts, wheel nuts, or tapered surface
of the wheel. Never let the wheel rub against sharp protrusions or curbs.
Be sure to fit tire chains on uniformly and completely around the tire,
otherwise the chains may scratch the wheel. When wheel nuts, balance weights, or the center cap is replaced, be
sure to replace them with genuine SUBARU parts designed for aluminumwheels.
Windshield washer fluid
CAUTION
Never use engine coolant as washer fluid because it could cause paint damage.
Check the level of the washer fluid at each fuel stop. If the level is low, fill
the fluid up to the neck of the reservoir.Use windshield washer fluid. If windshield washer fluid is unavailable use
clean water.
In areas where water freezes in winter, use an anti-freeze type windshield
washer fluid. SUBARU Windshield Washer Fluid contains 58.5% methyl
alcohol and 41.5% surfactant, by volume. Its freezing temperature varies
according to how much it is diluted, as indicated below.

12-4
Spark plugs type RC10YC4 (Champion)BKR6E-11 (NGK) BKR5E-11 (NGK)
3.0 liter
Battery type and capacity 75D23L
Alternator 12V-100A
Spark plugs type PLFR6A-11 (NGK)
Capacities
Fuel tank 16.9 US gal (64 liters, 14.1 Imp gal)
Engine oil 2.5 liter 4.2 US qt (4.0 liters, 3.5 Imp qt)
3.0 liter 6.0 US qt (5.7 liters, 5.0 Imp qt)
Transmission oil (MT) 3.7 US qt (3.5 liters, 3.1 Imp qt)
Transmission fluid (AT) 9.8 US qt (9.3 liters, 8.2 Imp qt)
AT differential gear oil 1.3 US qt (1.2 liters, 1.1 Imp qt)
Rear differential gear oil Brighton, L (AT) 0.9 US qt (0.9 liter, 0.8 Imp qt)
Others 0.8 US qt (0.8 liter, 0.7 Imp qt)
Power steering gear fluid 0.7 US qt (0.7 liter, 0.6 Imp qt)
Engine coolant 2.5 liter MT 7.2 US qt (6.8 liters, 6.0 Imp qt) AT 7.1 US qt (6.7 liters, 5.9 Imp qt)
3.0 liter 8.4 US qt (7.9 liters, 7.0 Imp qt)
Tires Legacy
Type Steel belted radial, Tubeless
Size Brighton P195/60R15 87H L P205/60R15 90H
GT P205/55R16 89H
Temporary spare T135/70D16
Pressure Front Brighton 33 psi (230 kPa, 2.3 kg/cm 2
)
GT, L 32 psi (220 kPa, 2.2 kg/cm 2
)
Rear Brighton 32 psi (220 kPa, 2.2 kg/cm 2
)
GT, L 30 psi (210 kPa, 2.1 kg/cm 2
)

13-2
For U.S.A.
The following information has been compiled according to Code of Fed-eral Regulations “Title 49, Part 575 ”.
Uniform tire quality grading standards
This information indicates the relative performance of passenger car tires
in the area of treadwear, traction, and temperature resistance. This is to
aid the consumer in making an informed choice in the purchase of tires.
Quality grades can be found where applicable on the tire sidewall be-
tween tread shoulder and maximum section width. For example:
Treadwear 200 Traction AA Temperature A
The quality grades apply to new pneumatic tires for use on passenger
cars. However, they do not apply to deep tread, winter type snow tires,
space-saver or temporary use spare tires, tires with nominal rim diame-
ters of 12 inches or less, or to some limited production tires.
All passenger car tires must confirm to Federal Safety Requirements in
addition to these grades. Treadwear
The treadwear grade is a comparative rating based on the wear rate of
the tire when tested under controlled conditions on a specified govern-
ment test course.
For example, a tire graded 150 would wear one and one-half (1-1/2)
times as well on the government course as a tire graded 100. The rela-
tive performance of tires depends upon the actual conditions of their
use, however, and may depart significantly from the norm due to varia-
tions in driving habits, service practices and differences in road charac-teristics and climate. Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C. Those
grades represent the tire ’s ability to stop on wet pavement as measured
under controlled conditions on specified government test surfaces of as-
