2002 SUBARU FORESTER tire type

1-16
Seatbelts Seatbelt safety tips
WARNING
All persons in the vehicle should fasten their seatbelts BE-
FORE the vehicle starts to move. Otherwise, the possibility of se-
rious injury becomes greater in the event of a sudden stop or ac-cident. All belts should fit snugly in order to provide full restraint.
Loose fitting belts are not as effective in preventing or reducing
injury. Each seatbelt is designed to support only one person. Never
use a single belt for two or more persons — even children. Other-
wise, in an accident, serious injury or death could result. Replace all seatbelt assemblies including retractors and at-
taching hardware worn by occupants of a vehicle that has been ina serious accident. The entire assembly should be replaced evenif damage is not obvious. Put children aged 12 and under in the rear seat properly re-
strained at all times. The SRS airbag deploys with considerablespeed and force and can injure or even kill children, especially ifthey are 12 years of age and under and are not restrained or im-properly restrained. Because children are lighter and weaker than
adults, their risk of being injured from deployment is greater. Forthat reason, we strongly recommend that ALL children (includingthose in child seats and those that have outgrown child restraint
devices) sit in the REAR seat properly restrained at all times in achild restraint device or in a seatbelt, whichever is appropriate forthe child ’s height and weight.
Secure ALL types of child restraint devices (including forwardfacing child seats) in the REAR seats at all times.
NEVER INSTALL A REARWARD FACING CHILD SEAT IN THE
FRONT SEAT. DOING SO RISKS SERIOUS INJURY OR DEATH TOTHE CHILD BY PLACING THE CHILD ’S HEAD TOO CLOSE TO
THE SRS AIRBAG.

7-26
VDC (Vehicle Dynamics Control) system (if equipped)WARNING
Always use the utmost care in driving — overconfidence because
you are driving with a VDC system equipped vehicle could easily lead to a serious accident.
CAUTION
Even if your vehicle is equipped with VDC, winter tires should
be used when driving on snow-covered or icy roads; in addition,
vehicle speed should be reduced considerably. Simply having a
VDC system does not guarantee that the vehicle will be able toavoid accidents in any situation. Activation of the VDC system is an indication that the road
being travelled on has a slippery surface; since having VDC is no
guarantee that full vehicle control will be maintained at all timesand under all conditions, its activation should be seen as a sign
that the speed of the vehicle should be reduced considerably. Whenever suspension components, steering components, or
an axle are removed from a vehicle equipped with VDC, have anauthorized SUBARU dealer perform an inspection of that system. The following precautions should be observed in order to
ensure that the VDC system is operating properly:
–All four wheels should be fitted with tires of the same size,
type, and brand. Furthermore, the amount of wear should bethe same for all four tires.– Keep the tire pressure at the proper level as shown on the
label attached to the vehicle ’s door pillar.
– Use only the special temporary spare tire to replace a flat
tire. With a temporary spare tire, the effectiveness of the VDC
system is reduced and this should be taken into account whendriving with vehicle.

7-28
It is always important to reduce speed when approaching a cor-
ner, even if the vehicle is equipped with VDC. All four wheels should be fitted with tires of the same size, type,
and brand; furthermore, the amount of wear should be the same for
all four tires. If these precautions are not observed and non-match-ing tires are used, it is quite possible that the VDC system will beunable to operate correctly as intended. Always turn off the engine before replacing a tire as failure to do
so may render the VDC system unable to operate correctly.
VDC system monitor
HB4010FB
nVDC OFF indicator light
The VDC OFF indicator light turns on initially when the ignition key
is turned to the ON position; it subsequently turns off 6 seconds after
the engine is started. This light turns on to indicate that the VDC system is in non-opera-
tion mode. This does not constitute failure of the VDC system. NOTE The VDC OFF indicator light may stay on for a while after the
engine has been started, especially in cold weather. This occurs
because the engine has not yet warmed up and is completely nor-
mal. The light will turn off when the engine has reached a suitableoperating temperature. When an engine problem occurs and the CHECK ENGINE

8-14
Snow tires All models except Outback
WARNING
When replacing original tires with winter (snow) tires, make
sure you use only the same size, construction and load range as the original tires listed on the tire placard. Using other sizes andconstruction may affect speedometer/odometer calibration and
clearance between the body and tires. It also may be dangerousand lead to loss of vehicle control. You must install four winter tires that are of the same size, cir-
cumferences, construction, brand, and load range. Mixing othersizes, circumferences or constructions may result in severe me-
chanical damage to the drive train of your vehicle and may affect
ride, handling, braking and speedometer/odometer calibration. Italso may be dangerous and lead to loss of vehicle control. Do not use a combination of radial, belted bias or bias tires
since it may cause dangerous handling characteristics and leadto an accident.
Your vehicle is equipped with “all season tires ” which are designed to
provide an adequate measure of traction, handling and braking per-
formance in year-round driving. In winter, it may be possible to en-
hance performance through use of tires designed specifically for win-ter driving conditions.
If you choose to install winter tires on your vehicle, be sure to use the
correct tire size and type. You must install four winter tires that are ofthe same size, construction, brand and load range and you should
never mix radial, belted bias or bias tires since this may result in dan-
gerous handling characteristics. When you choose a tire, make sure
that there is enough clearance between the tire and vehicle body.
Remember to drive with care at all times regardless of the type of tires on your vehicle.

Driving tips8-15
–
CONTINUED –
Outback models only
WARNING
When replacing original tires with winter (snow) tires, make
sure you use only the same size and construction as recom- mended. Using other sizes or construction may affect speedome-ter/odometer calibration and clearance between the body and
tires. It also may be dangerous and lead to loss of vehicle con-trol. You must install four winter tires that are of the same size, cir-
cumferences, construction, brand, and load range. Mixing othersizes, circumferences or constructions may result in severe me-
chanical damage to the drive train of your vehicle and may affect
ride, handling, braking and speedometer/odometer calibration. Italso may be dangerous and lead to loss of vehicle control. Do not use a combination of radial, belted bias or bias tires
since it may cause dangerous handling characteristics and leadto an accident.
Your vehicle is equipped with “all season tires ” which are designed to
provide an adequate measure of traction, handling and braking per-
formance in year-round driving. In winter, it may be possible to en-
hance performance through use of tires designed specifically for win-ter driving conditions.
If you choose to install winter tires on your vehicle, be sure to use the
correct tire size and type. You must install four winter tires that are ofthe same size, construction, brand and load range and you should
never mix radial, belted bias or bias tires since this may result in dan-
gerous handling characteristics. When you choose a tire, make sure
that there is enough clearance between the tire and vehicle body.
Remember to drive with care at all times regardless of the type of tires on your vehicle.
Your Outback comes with P225/60R16 “all season tires ” as origi-
nal equipment. You should be aware that some winter tires with that same size designation may actually be too large for the

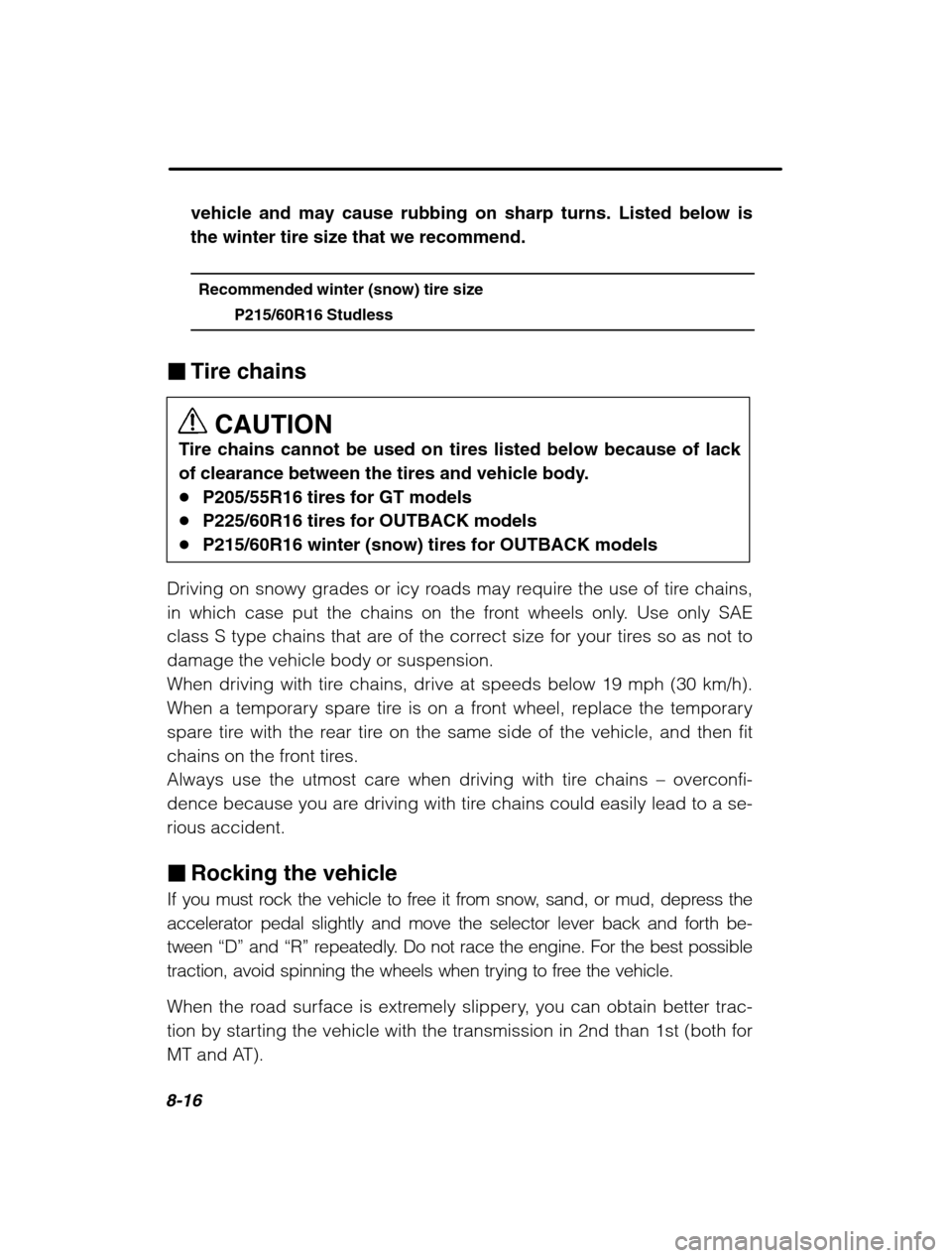

8-16
vehicle and may cause rubbing on sharp turns. Listed below is the winter tire size that we recommend.Recommended winter (snow) tire size P215/60R16 Studless
Tire chains
CAUTION
Tire chains cannot be used on tires listed below because of lack
of clearance between the tires and vehicle body. P205/55R16 tires for GT models
P225/60R16 tires for OUTBACK models
P215/60R16 winter (snow) tires for OUTBACK models
Driving on snowy grades or icy roads may require the use of tire chains,
in which case put the chains on the front wheels only. Use only SAE
class S type chains that are of the correct size for your tires so as not to
damage the vehicle body or suspension.
When driving with tire chains, drive at speeds below 19 mph (30 km/h).
When a temporary spare tire is on a front wheel, replace the temporary
spare tire with the rear tire on the same side of the vehicle, and then fit
chains on the front tires.
Always use the utmost care when driving with tire chains – overconfi-
dence because you are driving with tire chains could easily lead to a se-rious accident. Rocking the vehicle
If you must rock the vehicle to free it from snow, sand, or mud, depress the
accelerator pedal slightly and move the selector lever back and forth be-
tween “D” and “R” repeatedly. Do not race the engine. For the best possible
traction, avoid spinning the wheels when trying to free the vehicle.
When the road surface is extremely slippery, you can obtain better trac-
tion by starting the vehicle with the transmission in 2nd than 1st (both for
MT and AT).

Driving tips8-33
–
CONTINUED –
Trailer hitches
WARNING
Never drill the frame or under-body of your vehicle to install a
commercial trailer hitch. If you do, dangerous exhaust gas, wateror mud may enter the passenger compartment through the drilledhole. Exhaust gas contains carbon monoxide, a colorless andodorless gas which is dangerous, or even lethal, if inhaled. Also,drilling the frame or under-body of your vehicle could cause dete-rioration of strength of your vehicle and cause corrosion aroundthe drilled hole.
CAUTION
Do not modify the vehicle exhaust system, brake system, or
other systems when installing a hitch or other trailer towingequipment. Do not use axle-mounted hitches as they can cause damage to
the axle housing, wheel bearings, wheels or tires.
Choose a proper hitch for your vehicle and trailer. OUTBACK wagon
The use of a genuine SUBARU trailer hitch is recommended. A genu-
ine SUBARU hitch is available from your SUBARU dealer.
If use of a non-genuine hitch is unavoidable, be sure the hitch is
suited to your vehicle and trailer. Consult with a professional hitch
supplier to assist you in choosing an appropriate hitch for your
vehicle. Be sure to follow all of the hitch manufacturer ’s instructions for
installation and use.
Never use a hitch that mounts only to the rear bumper. The bumper isnot designed to handle that type of load.
For all types of hitches, regularly check that the hitch mounting bolts
and nuts are tight.

11
Maintenance and service
Maintenance schedule11-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance precautions 11-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine hood 11-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine compartment overview 11-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine oil 11-9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cooling system 11-14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine coolant 11-15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air cleaner element 11-18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Spark plugs 11-20
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drive belts 11-22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manual transmission oil 11-23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission fluid 11-24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front differential gear oil (AT vehicles) 11-26 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear differential gear oil 11-27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power steering fluid 11-29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake fluid 11-30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clutch fluid (MT vehicles) 11-32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake booster 11-33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake pedal 11-34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clutch pedal (Manual transmission vehicles) 11-35 . . . . . . . . . . . . . . . . . . .
Replacement of brake pad and lining 11-36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking brake stroke 11-37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tires and wheels 11-38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Types of tires 11-38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire inspection 11-39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire pressures and wear 11-39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheel balance 11-42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wear indicators 11-43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire rotation 11-44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire replacement 11-44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheel replacement 11-45
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheel covers 11-46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Aluminum wheels (If equipped) 11-47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield washer fluid 11-47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacement of windshield wiper blades 11-48 . . . . . . . . . . . . . . . . . . . . . . . .
