2002 SUBARU FORESTER warning

11-14
Cooling systemWARNING
Never attempt to remove the radiator cap until the engine has
been shut off and has cooled down completely. Since the coolantis under pressure, you may suffer serious burns from a spray ofboiling hot coolant when the cap is removed.
CAUTION
The cooling system has been filled at the factory with a high
quality, corrosion-inhibiting, year-around coolant which providesprotection against freezing down to –33°F ( –36 °C). For adding,
use genuine SUBARU coolant or an equivalent: a mixture of 50%
soft water and 50% ethylene-glycol basis coolant. Use of improp-er coolants may result in corrosion in the cooling system. It is im-portant to maintain protection against freezing and corrosion,even if freezing temperatures are not expected. Never mix differ-ent kinds of coolant. Do not splash the engine coolant over painted parts. The alco-
hol contained in the engine coolant may damage the paint sur-face.
Hose and connections
Your vehicle employs an electric cooling fan which is thermostatically
controlled to operate when the engine coolant reaches a specific tem-
perature.If the radiator cooling fan does not operate even when the engine
coolant temperature gauge exceeds the normal operating range, the
cooling fan circuit may be defective. Check the fuse and replace it if
necessary. If the fuse is not blown, have the cooling system checked
by your SUBARU dealer.
If frequent addition of coolant is necessary, there may be a leak in the
engine cooling system. It is recommended that the cooling systemand connections be checked for leaks, damage, or looseness.

11-16
Changing the coolant
WARNING
Never attempt to remove the radiator cap until the engine has
been shut off and has cooled down completely. Since the coolantis under pressure, you may suffer serious burns from a spray ofboiling hot coolant when the cap is removed.
Change the engine coolant using the following procedures according
to the maintenance schedule in the “Warranty and Maintenance Book-
let”. 1. Remove the under cover.
2. Place a proper container under the drain plug and loosen the drainplug.
HBB059BB
HBB006BB
3. Loosen the radiator cap to drain the coolant from the radiator. Then
drain the coolant from the reserve tank. Tighten the drain plug secure-
ly.

11-18
7. Stop the engine and wait until the coolant cools down (122 to 140°F [50 to 60 °C]). If there is any loss of coolant, add coolant to the
radiator’ s filler neck and to the reserve tank ’s “FULL” level.
8. Put the radiator cap and reservoir cap back on and tighten firmly.
Air cleaner element
WARNING
Do not operate the engine with the air cleaner element removed.The air cleaner element not only filters intake air but also stops
flames if the engine backfires. If the air cleaner element is not
installed when the engine backfires, you could be burned.
The air cleaner element functions as a filter screen. When the element is
perforated or removed, engine wear will be excessive and engine life
shortened.
The air cleaner element is a viscous type. It is unnecessary to clean or wash the element. Replacing the air cleaner element
Replace the air cleaner element according to the maintenance sched-ule in the “Warranty and Maintenance Booklet ”. Under extremely
dusty conditions, replace it more frequently. It is recommended that
you always use genuine SUBARU parts.

Maintenance and service11-29
–
CONTINUED –
SAE viscosity No. and Applicable Temperature
OM-H0205
Power steering fluid
Checking the fluid level
WARNING
Be careful not to burn yourself because the fluid may be hot.
CAUTION
When power steering fluid is being added, use only clean fluid,
and be careful not to allow any dirt into the tank. And never use
different brands together. Avoid spilling fluid when adding it in the tank.
The power steering fluid expands greatly as its temperature rises; the
fluid level differs according to fluid temperature. Therefore, the reser-
voir tank has two different checking ranges for hot and cold fluids.
Check the power steering fluid level monthly.
1. Park the vehicle on a level surface, and stop the engine.
2. Check the fluid level of the reservoir tank.
When the fluid is hot after the vehicle has been run: Check that the oillevel is between “HOT MIN ” and “HOT MAX ” on the surface of the
reservoir tank.

11-30
When the fluid is cool before the vehicle is run: Check that the oil level is between “COLD MIN ” and “COLD MAX ” on the surface of the res-
ervoir tank.
3. If the fluid level is lower than the applicable “MIN” line, add the
recommended fluid as necessary to bring the level between the
“MIN” and “MAX” line.
HBB031BB
HBB030BB
Specified range SpecifiedrangeReservoir tank
If the fluid level is extreme low, it may indicate possible leakage. Con- sult your SUBARU dealer for inspection. Recommended fluid
“ Dexron III ” Type Automatic Transmission Fluid
Brake fluid
Checking the fluid level
WARNING
Never let brake fluid contact your eyes because brake fluid can
be harmful to your eyes. If brake fluid gets in your eyes, immedi-
ately flush them thoroughly with clean water. For safety, whenperforming this work, wearing eye protection is advisable. Brake fluid absorbs moisture from the air. Any absorbed mois-
ture can cause a dangerous loss of braking performance.

11-32
Clutch fluid (MT vehicles)Checking the fluid level
WARNING
Never let clutch fluid contact your eyes because clutch fluid can
be harmful to your eyes. If clutch fluid gets in your eyes, immedi-
ately flush them thoroughly with clean water. For safety, whenperforming this work, wearing eye protection is advisable.
CAUTION
Clutch fluid absorbs moisture from the air. Any absorbed
moisture can cause improper clutch operation. If the vehicle requires frequent refilling, there may be a leak. If
you suspect a problem, have the vehicle checked at your
SUBARU dealer. Never use different brands of clutch fluid together.
When clutch fluid is added, be careful not to allow any dirt into
the tank.
Check the fluid level on the outside of the reservoir. If the level is below “MIN ” level mark, add the recommended clutch fluid to “MAX ” level
mark.
Use only clutch fluid from a sealed container.
“ MIN ” level mark
“MAX ” level mark
HBB004HB

Maintenance and service11-37
–
CONTINUED –
nParking brake lining
WARNING
A safe location and situation should be selected for break-in driv- ing.
CAUTION
Pulling the parking brake lever too forcefully may cause the rear
wheels to lock. To avoid this, be certain to pull the lever up slowly
and gently.
1. Drive the vehicle at a speed of about 22 mph (35 km/h).
2. With the parking brake release button pushed in, pull the parking
brake lever SLOWLY and GENTLY. (Pulling with a force of approxi-mately 33 lb [147 N, 15 kg].)
3. Drive the vehicle for about 220 yards (200 meters) in this condition.
4. Wait 5 to 10 minutes for the parking brake to cool down. Repeat
this procedure.
5. Check the parking brake stroke. If the parking brake stroke is out
of the specified range, adjust it by turning the adjusting nut located
on the parking brake lever.Parking brake stroke: 7 — 8 notches / 44 lb (196 N, 20 kg)
Parking brake stroke
Check the parking brake stroke according to the maintenance schedule in the “Warranty and Maintenance Booklet ”. When the parking brake is
properly adjusted, braking power is fully applied by pulling the lever up
seven to eight notches gently but firmly (about 44 lb, 196 N, 20 kg). If the
parking brake lever stroke is not within the specified range, have the
brake system checked and adjusted at your SUBARU dealer.

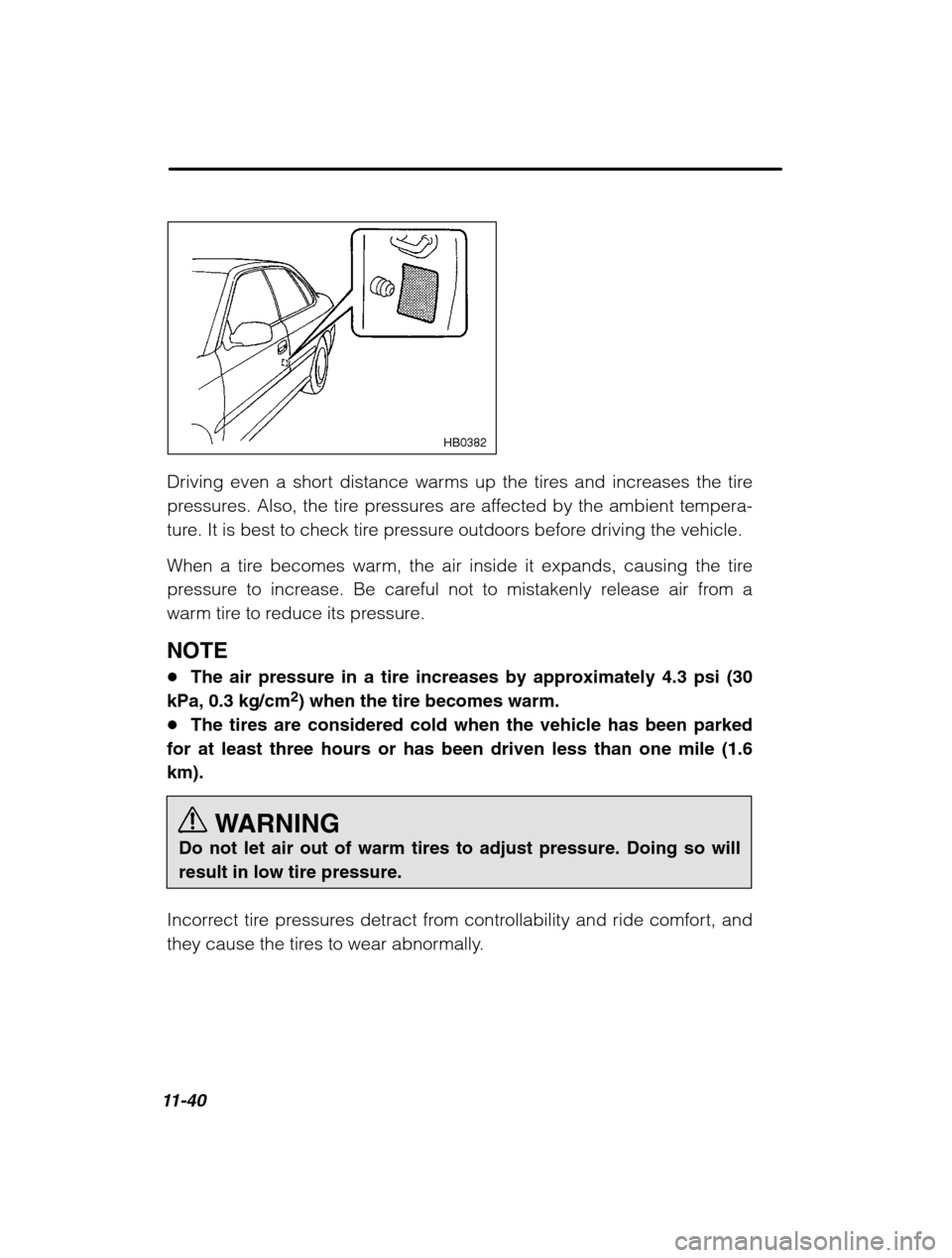

11-40
HB0382
Driving even a short distance warms up the tires and increases the tire
pressures. Also, the tire pressures are affected by the ambient tempera-
ture. It is best to check tire pressure outdoors before driving the vehicle.
When a tire becomes warm, the air inside it expands, causing the tire
pressure to increase. Be careful not to mistakenly release air from a
warm tire to reduce its pressure. NOTE The air pressure in a tire increases by approximately 4.3 psi (30
kPa, 0.3 kg/cm 2
) when the tire becomes warm.
The tires are considered cold when the vehicle has been parked
for at least three hours or has been driven less than one mile (1.6 km).
WARNING
Do not let air out of warm tires to adjust pressure. Doing so willresult in low tire pressure.
Incorrect tire pressures detract from controllability and ride comfort, and
they cause the tires to wear abnormally.
