2002 SUBARU FORESTER airbag off

iv
Safety symbol
HS0008
You will find a circle with a slash through it in this manual. This symbol means “Do not ”, “Do not do this ”, or “Do not let this happen ”, depending
upon the context.
Safety precautions when driving
SEATBELT AND SRS AIRBAG
WARNING
All persons in the vehicle should fasten their seatbelts BE-
FORE the vehicle starts to move. Otherwise, the possibility of se-
rious injury becomes greater in the event of a sudden stop or ac-cident. To obtain maximum protection in the event of an accident, the
driver and all passengers in the vehicle should always wear seat-
belts when the vehicle is moving. The SRS (SupplementalRestraint System) airbag does not do away with the need to fas-ten seatbelts. In combination with the seatbelts, it offers the bestcombined protection in case of a serious accident.Not wearing a seatbelt increases the chance of severe injury ordeath in a crash even when the car has the SRS airbag. The SRS airbags deploy with considerable speed and force.
Occupants who are out of proper position when the SRS airbag

Seat, seatbelt and SRS airbags1-9
–
CONTINUED –

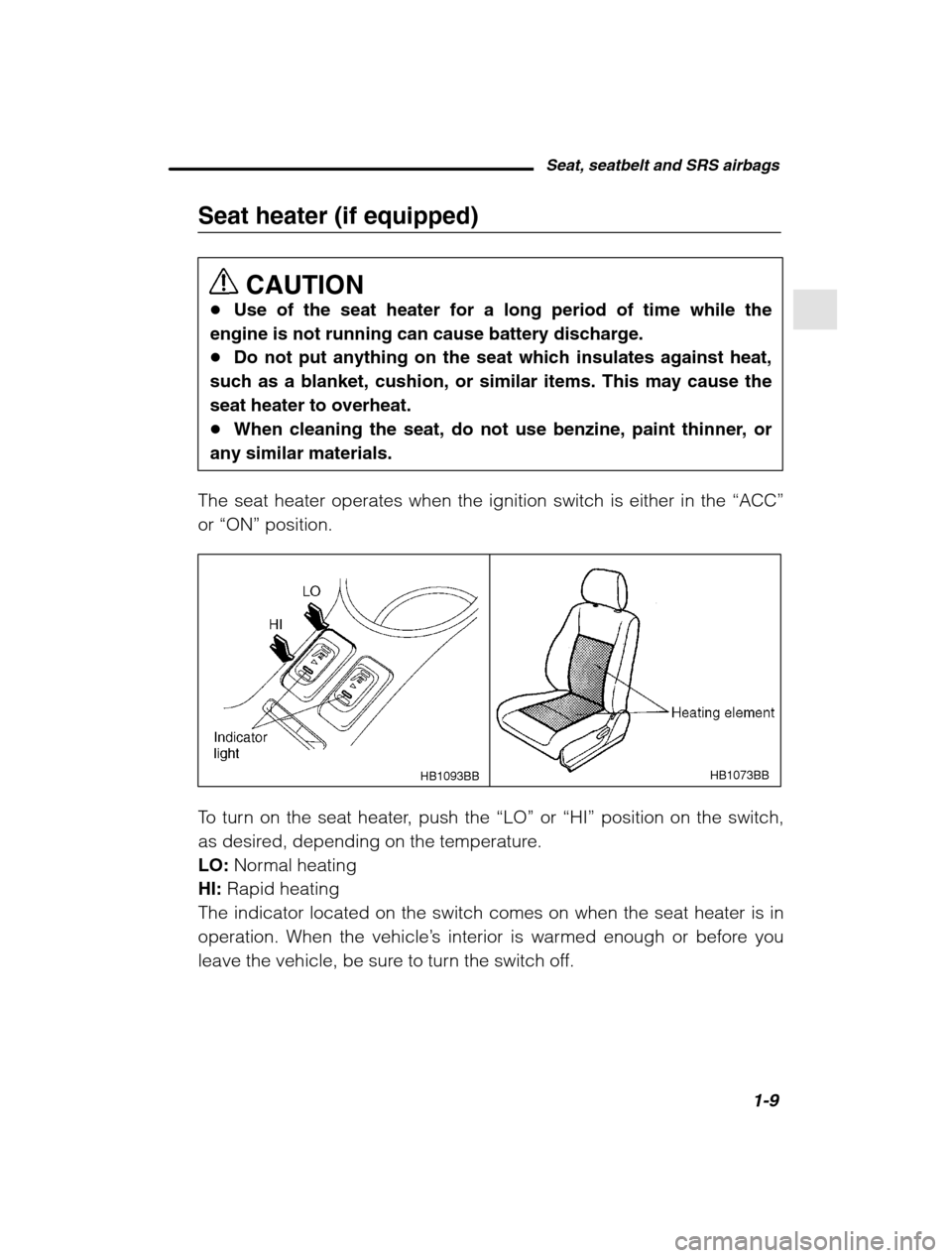

Seat heater (if equipped)
CAUTION
Use of the seat heater for a long period of time while the
engine is not running can cause battery discharge. Do not put anything on the seat which insulates against heat,
such as a blanket, cushion, or similar items. This may cause theseat heater to overheat. When cleaning the seat, do not use benzine, paint thinner, or
any similar materials.
The seat heater operates when the ignition switch is either in the “ACC”
or “ON” position.
HB1073BB
HB1093BB
To turn on the seat heater, push the “LO” or “HI” position on the switch,
as desired, depending on the temperature. LO: Normal heating
HI: Rapid heating
The indicator located on the switch comes on when the seat heater is in
operation. When the vehicle ’s interior is warmed enough or before you
leave the vehicle, be sure to turn the switch off.

Seat, seatbelt and SRS airbags1-43
–
CONTINUED –

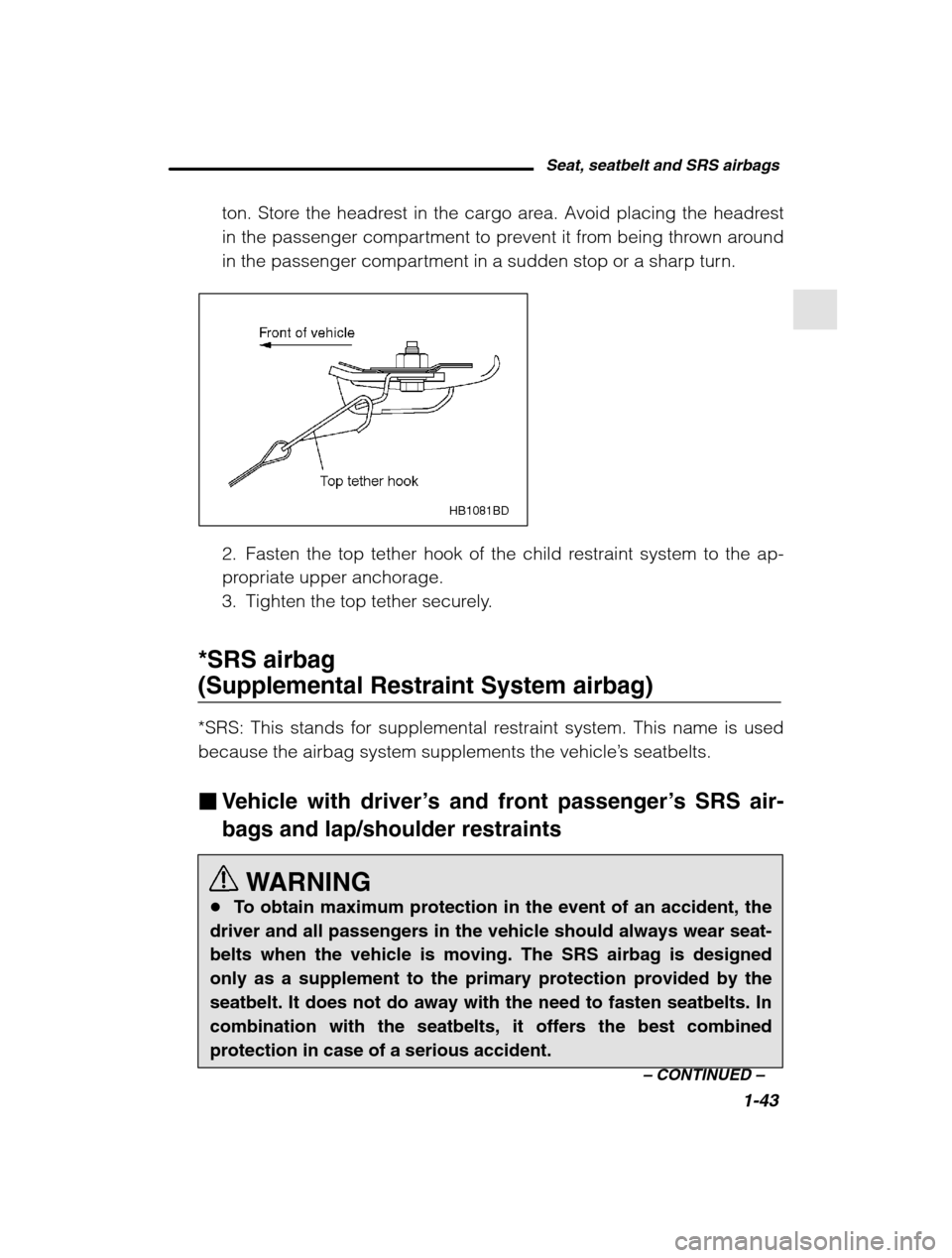

ton. Store the headrest in the cargo area. Avoid placing the headrest
in the passenger compartment to prevent it from being thrown around
in the passenger compartment in a sudden stop or a sharp turn.
HB1081BD
2. Fasten the top tether hook of the child restraint system to the ap-
propriate upper anchorage.
3. Tighten the top tether securely.
*SRS airbag (Supplemental Restraint System airbag)
*SRS: This stands for supplemental restraint system. This name is used because the airbag system supplements the vehicle ’s seatbelts.
Vehicle with driver ’s and front passenger ’s SRS air-
bags and lap/shoulder restraints
WARNING
To obtain maximum protection in the event of an accident, the
driver and all passengers in the vehicle should always wear seat-belts when the vehicle is moving. The SRS airbag is designed
only as a supplement to the primary protection provided by the
seatbelt. It does not do away with the need to fasten seatbelts. In
combination with the seatbelts, it offers the best combinedprotection in case of a serious accident.

Seat, seatbelt and SRS airbags1-53
–
CONTINUED –

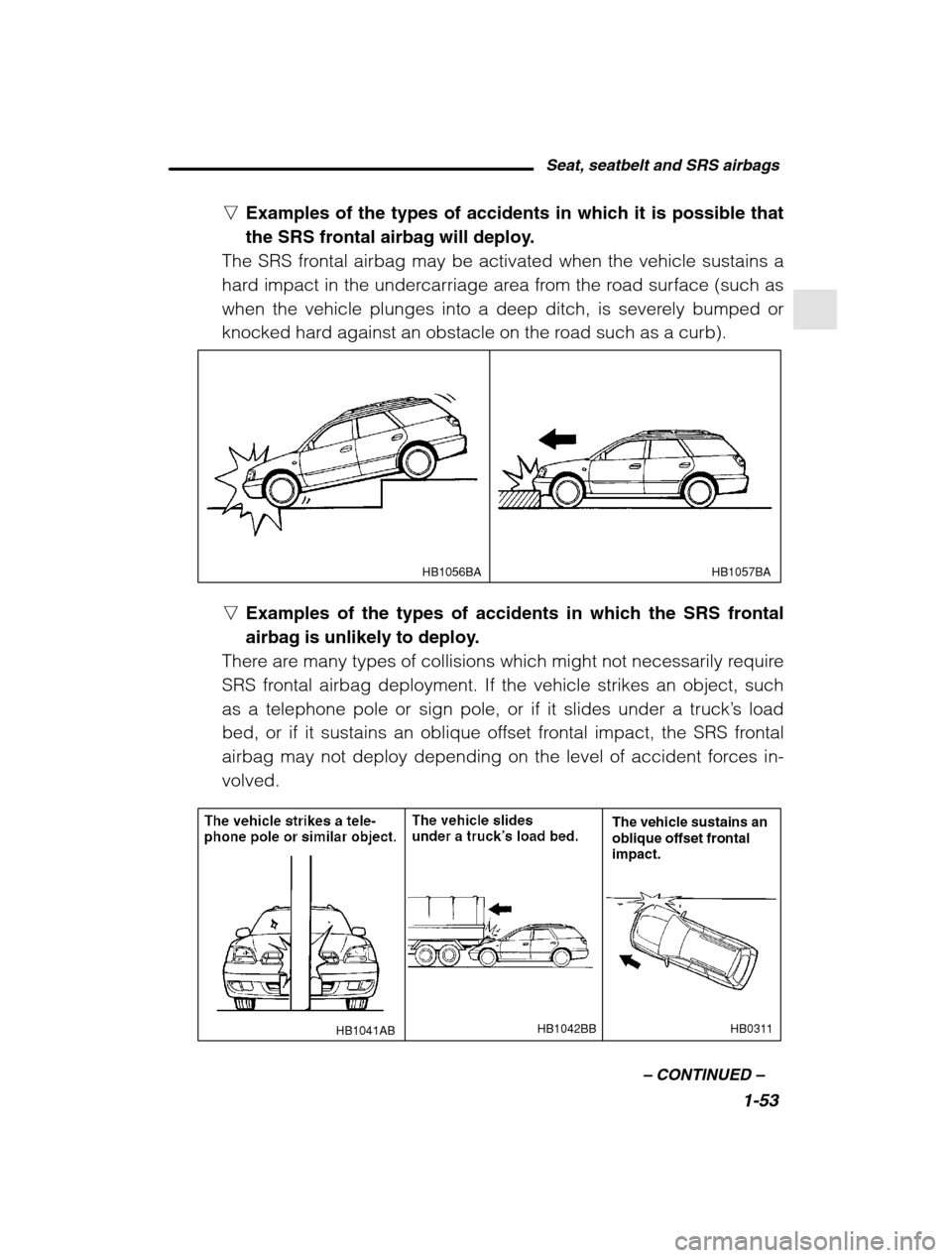

nExamples of the types of accidents in which it is possible that
the SRS frontal airbag will deploy.
The SRS frontal airbag may be activated when the vehicle sustains a
hard impact in the undercarriage area from the road surface (such as
when the vehicle plunges into a deep ditch, is severely bumped or
knocked hard against an obstacle on the road such as a curb).
HB1057BA
HB1056BA
n Examples of the types of accidents in which the SRS frontal
airbag is unlikely to deploy.
There are many types of collisions which might not necessarily require
SRS frontal airbag deployment. If the vehicle strikes an object, suchas a telephone pole or sign pole, or if it slides under a truck ’s load
bed, or if it sustains an oblique offset frontal impact, the SRS frontal
airbag may not deploy depending on the level of accident forces in-volved.
HB0311
HB1042BB
HB1041AB The vehicle sustains an oblique offset frontal impact.

3
Instruments and controls Ignition switch3-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key reminder chime 3-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light 3-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key interlock release (AT vehicles only) 3-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hazard warning flasher 3-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Meters and gauges 3-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speedometer 3-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer/Trip meter 3-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 3-9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside temperature indicator (if equipped) 3-9 . . . . . . . . . . . . . . . . . . . . . . .
Fuel gauge 3-9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Temperature gauge 3-10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warning and indicator lights 3-10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seatbelt warning light and chime 3-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS airbag system warning light 3-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHECK ENGINE warning light/Malfunction indicator lamp 3-12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Charge warning light 3-13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil pressure warning light 3-13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AT OIL TEMPerature warning light (for AT vehicles) 3-14 . . . . . . . . . . . . . .
ABS warning light 3-14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VDC (Vehicle Dynamics Control) warning light (if equipped) 3-15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system warning light 3-16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door open warning lights 3-17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Low fuel warning light 3-17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front-wheel drive warning light (for AT vehicles) 3-17 . . . . . . . . . . . . . . . . .
VDC (Vehicle Dynamics Control) operation indicator light (if equipped) 3-17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VDC (Vehicle Dynamics Control) OFF indicator light (if equipped) 3-18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Security system status indicator light (if equipped) 3-18 . . . . . . . . . . . . . .
Shift position indicator (for AT vehicles) 3-18 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turn signal indicator lights 3-18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High beam indicator light 3-19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock 3-19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Light control switch 3-19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Daytime running light system 3-21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turn signal lever 3-21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Illumination brightness control 3-22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking light switch 3-23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instruments and controls3-11
–
CONTINUED –
Seatbelt warning light
SRS airbag system warning light
CHECK ENGINE warning light / Malfunction indicator lamp
Charge warning light
Oil pressure warning light
AT OIL temperature warning light (AT vehicles)
ABS warning light
VDC warning light (if equipped)VDC operation indicator light (if equipped)VDC OFF indicator light (if equipped)
Brake system warning light
If any lights fail to come on, it indicates a burned-out bulb or a malfunc-
tion of the corresponding system.
Consult your authorized SUBARU dealer for repair. Seatbelt warning light and chime
When the ignition switch is turned to the “ON” position, the seatbelt
warning light will come on and the reminder chime will sound for about
six seconds to remind the driver to fasten the seatbelt.
The seatbelt warning light remains on for about six seconds and turns off
automatically after six seconds.
The seatbelt reminder chime will turn off when the driver ’s side seatbelt is
buckled or it will turn off automatically after six seconds. SRS airbag system warning light AIRBAG
When the ignition switch is turned to the “ON” position, the SRS airbag
system warning light will come on for about six seconds and go out. This
shows the SRS frontal airbag and SRS side airbag (if equipped) and
seatbelt pretensioners are in normal operation.
If this light comes on while driving or remains illuminated even after a
period of about 6 seconds from when the ignition has been turned on, it
may indicate that the SRS frontal airbag system or SRS side airbag sys-
tem (if equipped) or seatbelt pretensioner system is not working proper-
ly. Contact your nearest SUBARU dealer immediately.

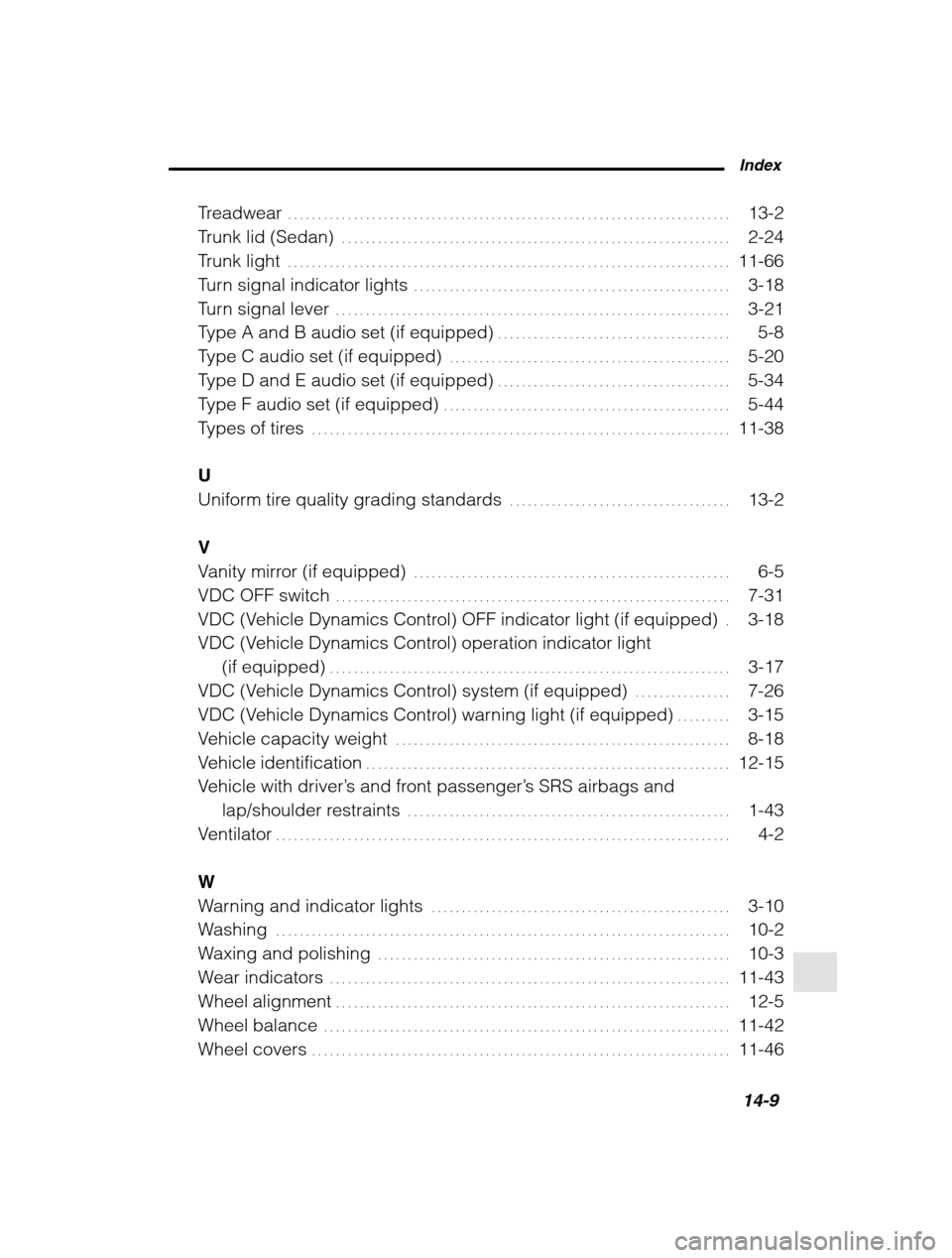

Index14-9
Treadwear 13-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid (Sedan) 2-24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk light 11-66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turn signal indicator lights 3-18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turn signal lever 3-21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Type A and B audio set (if equipped) 5-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Type C audio set (if equipped) 5-20
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Type D and E audio set (if equipped) 5-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Type F audio set (if equipped) 5-44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Types of tires 11-38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
U
Uniform tire quality grading standards 13-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
V
Vanity mirror (if equipped) 6-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VDC OFF switch 7-31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VDC (Vehicle Dynamics Control) OFF indicator light (if equipped) 3-18 .
VDC (Vehicle Dynamics Control) operation indicator light (if equipped) 3-17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VDC (Vehicle Dynamics Control) system (if equipped) 7-26 . . . . . . . . . . . . . . . .
VDC (Vehicle Dynamics Control) warning light (if equipped) 3-15 . . . . . . . . .
Vehicle capacity weight 8-18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle identification 12-15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle with driver ’s and front passenger ’s SRS airbags and
lap/shoulder restraints 1-43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ventilator 4-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
W
Warning and indicator lights 3-10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Washing 10-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Waxing and polishing 10-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wear indicators 11-43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheel alignment 12-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheel balance 11-42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheel covers 11-46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
