Page 6 of 256
6Engine bayWarning labels ___________ 7
V.I.N. number __________ 243
Engine number _________ 243
Gearbox number ________ 243
Color coding ___________ 243Ignition system _________ 240
Drive belt ______________ 197
Alternator _____________ 197
Spark plugs ____________ 240
Catalytic converter ______ 150
Simple fault tracing
(A/C, ACC) ____________ 226Turbo-compressor ________ 67
Pressure gauge __________ 67
Important considerations
for driving _____________ 148
Technical data: engine ___ 237Manual transmission __________ 191
Automatic transmission ________ 191
Transmission oil ______________ 191
Gearbox: technical data ________ 240
Battery _____________________ 195
Battery charge _______________ 195
Jump starting ________________ 181IB1624
Engine: description ____________ 188
Engine oil, level control
and topping up _______________ 190
Engine oil: changing ___________ 190
Oil grade_____________________ 237
Washer fluid ___________ 199
Topping up with fluid _____ 199
Washer jets ___________ 199
Wiper/washer control stalk _ 78
Steering servo _______________ 195
Fluid checking
and topping up ______________ 195
Coolant, checking
and topping up ________ 192
Coolant _______________ 192
Temperature gauge ______ 67
Driving in hot weather ____ 173
Driving in cold weather ___ 171Fuse panels ___________ 206
Changing a fuse ________ 206
Table of fuses __________ 208
Relays _______________ 210
Brake system ________________ 241
Brake fluid __________________ 194
Brake pads __________________ 194
ABS brakes _________________ 164
ProCarManuals.com
Page 61 of 256
61 Instruments and controls
Warning charging
This light comes on together with if the
battery is not charging. If it comes on while
you are driving, stop the car as soon as pos-
sible and switch off the engine.
Check the alternator drive belt (see page
197). If the belt has broken, the engine may
overheat (cooling system will not function
properly), the battery will not be charged,
the A/C compressor will not run and power
assistance for the steeering will be lost.
Brake warning light
This light should come on briefly when you
turn the ignition key to ON. If it doesn´t come
on, have it fixed so it will be ready to warn
you if there is a problem.
The brake warning light will come on
together with if there is insufficient
brake fluid in the reservoir, see page 194.
If the ABS warning light is on at the same
time, the ABS system may be inoperative
because of a fault (see Anti-lock brake
warning, see page 62).
Parking brake warning
light
The light will show when the parking brake
is on (see page 168.)
If the car driven with the parking brake on,
will also come on and a chime will
sound.
The parking brake is mechanical and oper-
ates on the rear wheels.
WARNING
Never drive the car when these warning
lights are on. Danger of brake failure!
Have the brake system checked at once
by an authorized Saab dealer.
WARNING
Always apply the parking brake when
parking, see page 168.
Always apply the parking brake before
removing the ignition key.
Do not apply the parking brake while
the car is moving.
ProCarManuals.com
Page 63 of 256
63 Instruments and controls
Central warning light
This light comes on and a chime will sound
if a fault has been detected in any system
that is critical to safety. Any of the following
can activate the central warning light and
alarm:
Airbag system.
Low oil pressure in engine.
Parking brake is on (when car is moving).
Brake fluid level low.
Fault detected in ABS system.
Electronic brake force distribution (distri-
bution of brake pressure between front
and rear wheels).
Engine overheating.
Alternator not charging properly.
Cruise Control
indicator light
The symbol is lit when cruise control is
active.
Engine malfunction
(CHECK ENGINE)
This light indicates a malfunction in the
fuel-injection or ignition system. The car
may still be driven with care and with some-
what diminished performance.
SPORT Mode Indicator
(automatic transmission)
On cars with automatic transmission the
indicator light comes on when you press the
SPORT button on the gear-lever knob.
In SPORT mode, the transmission remains
longer in the (D, 3, 2, 1) gears before
upshifting.
Cancel Sport mode by again depressing the
SPORT button; see also page 162.
WARNING
An illuminated CHECK ENGINE indicator
light indicates a serious engine-related
problem. While your car may be able to be
driven with the CHECK ENGINE indicator
light illuminated (limp-home mode), you
are advised to have your car serviced at
an authorized Saab dealer as soon as
possible.
Continued driving without this problem
being corrected might cause serious fur-
ther damage to your car and create
unsafe driving conditions. The operator
should be prepared to take action if such
unsafe conditions arise (e.g., apply the
brakes, disengage transmission, turn off
the ignition etc.).
NOTEThe car should be checked immediately
at an authorized Saab dealer to prevent
more serious faults from arising.
ProCarManuals.com
Page 197 of 256
197 Car care

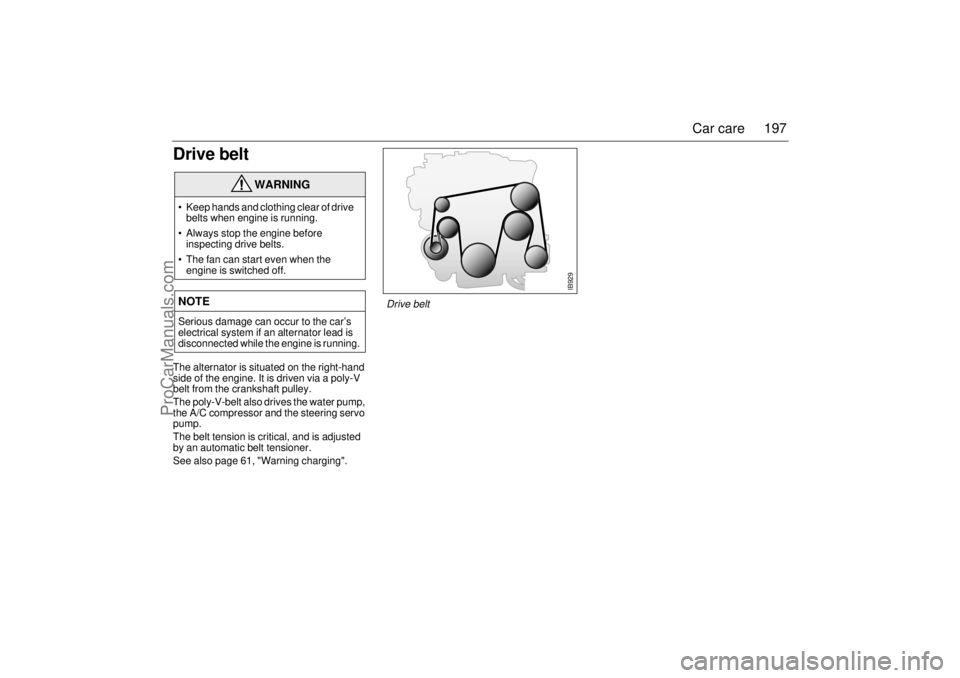

Drive beltThe alternator is situated on the right-hand
side of the engine. It is driven via a poly-V
belt from the crankshaft pulley.
The poly-V-belt also drives the water pump,
the A/C compressor and the steering servo
pump.
The belt tension is critical, and is adjusted
by an automatic belt tensioner.
See also page 61, "Warning charging".
WARNING
Keep hands and clothing clear of drive
belts when engine is running.
Always stop the engine before
inspecting drive belts.
The fan can start even when the
engine is switched off.NOTESerious damage can occur to the car’s
electrical system if an alternator lead is
disconnected while the engine is running.
IB929
Drive belt
ProCarManuals.com
Page 240 of 256
240 Technical dataElectrical system
Drive belts
Manual transmission
Automatic transmission
Voltage ___________________________ 12 V
Battery capacity ____________________ 60 Ah
Starter motor ______________________ 1.4 kW
Alternator rating ____________________ 130 A/14 V
Firing order ________________________ 1-3-4-2
Spark plugs:
2.0 Turbo 185 bhp__________________ NGK PFR 6H-10
2.0 Turbo 205 bhp __________________ NGK PFR 6H-10
Viggen __________________________ NGK PFR 6H-10
Electrode gap ______________________ 0.95 mm
(0.03740”)
Outside lengthCars with A/C compressor ____________ 2345 mm
Cars without A/C compressor __________ 1805 mmDrive belt
IB929
Type _____________________________ 5-speed, fully
synchronized with
final-drive gear and
differential
Oil type (for topping-up) ______________ Saab synthetic man-
ual gearbox oil
Oil capacity _______________________ 1.8 qts. (1.8 l)
Speed (mph/km/h) at 1000 rpm in 5th gear 26/42
Type _____________________________ Electronically con-
trolled 4-speed with
torque converter
and differential
Gear selector positions ______________ P R N D 3 2 1
Oil quantity, total ___________________ 7.4 qts. (7.2 litres)
Oil volume (on changing) _____________ 3.4 qts. (3.25 litres)
Oil type ___________________________ Texaco Texamatic
Dextron III, mineral
oil based
Clutch type ________________________ Hydraulically-oper-
ated plate clutches,
brake bands and
one-way clutches
Speed (mph/km/h) at 1000 rpm in 4th gear 25/40
