Operating checkWith the ignition switched on (2nd notch), illumina-tion of this warning lightindicates that the
passenger air bag is disarmed(slot in the "OFF" position).
The warning light remains onthroughout the disarming process. Side air bags* Side air bags are incorporated into the front seat back frame, on thedoor side. They are deployed independently
of each other, on whichever sidethe collision occurs.
* According to destination.
7YOUR BOXER AT A GLANCE

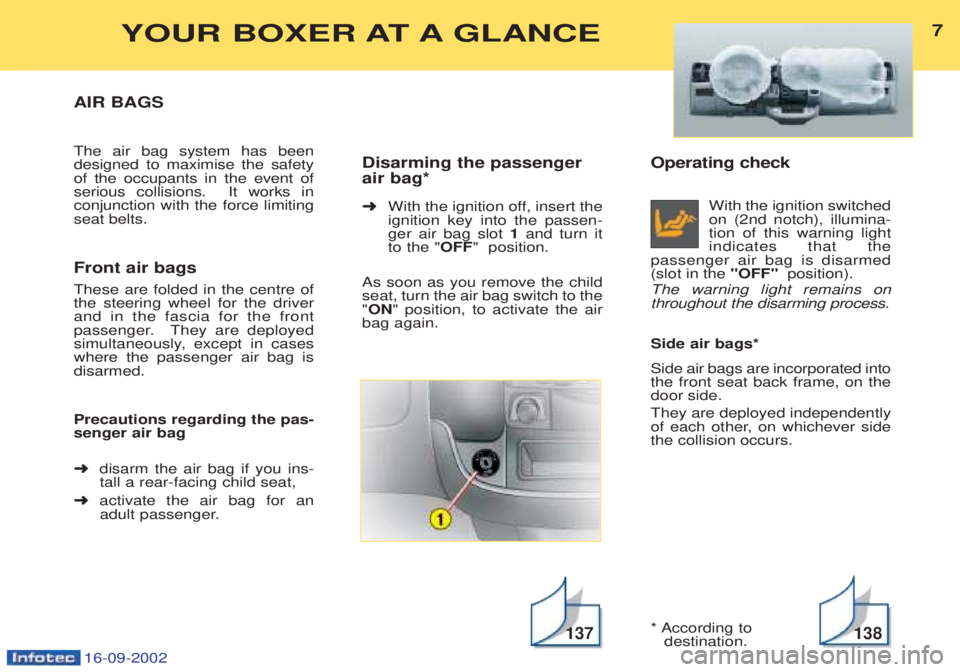

AIR BAGS The air bag system has been designed to maximise the safetyof the occupants in the event ofserious collisions. It works inconjunction with the force limitingseat belts. Front air bags These are folded in the centre of the steering wheel for the driverand in the fascia for the front
passenger. They are deployed
simultaneously, except in caseswhere the passenger air bag isdisarmed. Precautions regarding the pas- senger air bag ➜ disarm the air bag if you ins-
tall a rear-facing child seat,
➜ activate the air bag for an
adult passenger. Disarming the passenger air bag* ➜
With the ignition off, insert the
ignition key into the passen- ger air bag slot 1and turn it
to the " OFF" position.
As soon as you remove the childseat, turn the air bag switch to the" ON " position, to activate the air
bag again.
137138

OPENING THE BONNET Inside the vehicle: Push the
control on the right-hand side, under the instrument panel. Outside the vehicle: lift the control, raise thebonnet and secure thestrut to keep the bonnetopen.

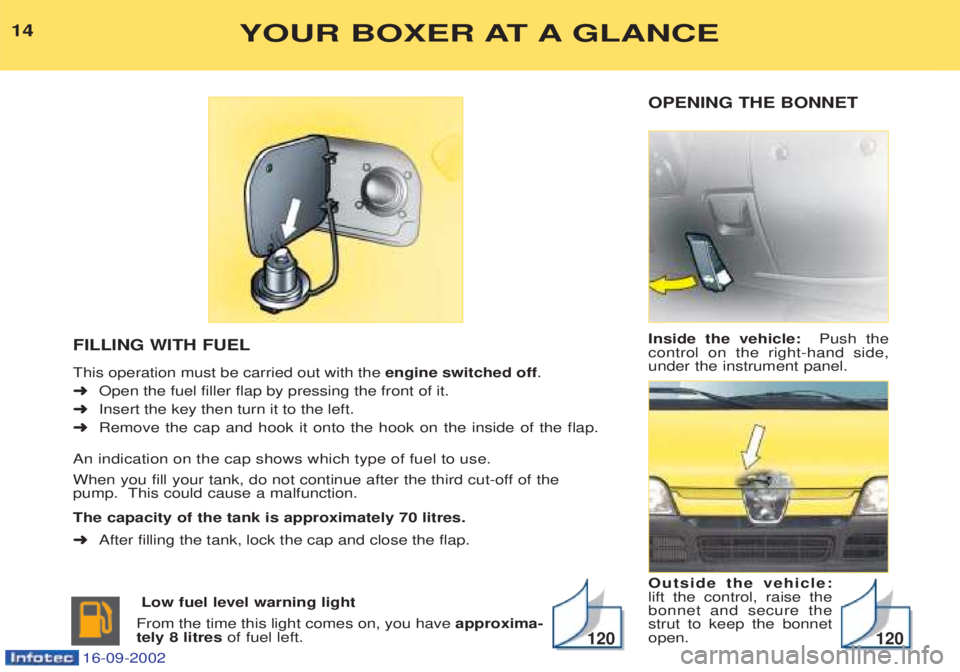

FILLING WITH FUEL This operation must be carried out with the
engine switched off.
➜ Open the fuel filler flap by pressing the front of it.
➜ Insert the key then turn it to the left.
➜ Remove the cap and hook it onto the hook on the inside of the flap.
An indication on the cap shows which type of fuel to use.
When you fill your tank, do not continue after the third cut-off of the
pump. This could cause a malfunction. The capacity of the tank is approximately 70 litres. ➜ After filling the tank, lock the cap and close the flap.
Low fuel level warning light
From the time this light comes on, you have approxima-
tely 8 litres of fuel left.
YOUR BOXER AT A GLANCE14
120120
16-09-2002

16-09-2002
1 -Coolant temperature gauge.
2 - Coolant temperature warning light.
3 - Door open warning light.
4 - Speedometer.
5 - Left direction indicator.
6 - Side lights and dippedheadlamps warning light.
7 - Main beam headlamps warning light.
8 - Right direction indicator. 9 -
Rev counter.
10 - Low fuel level warning light.
11 - Fuel gauge.
12 - Brake fluid level warning light.
13 - Traction control (ASR) warning
light.
14 - Passenger air bag disarmed warning light.
15 - Trip distance recorder display
control and zero reset button. 16 -
Front air bags warning light.
17 - Anti-lock braking system (ABS) warning light.
18 - Automatic gearbox temperatureor fault warning light.
19 - Low coolant level warning light.
20 - Service indicator, oil levelgauge, automatic gearbox
display, clock and distance
recorder.
21 - Diesel engine pre-heatingwarning light.
22 - Engine oil pressure warninglight.
23 - Battery charge warning light.
24 - Clock setting button.
25 - Engine autodiagnostics warninglight.
26 - Front brake pads wear warninglight.
27 - Handbrake warning light.
28 - Water in diesel filter warning
light.
29 - Electronic immobiliser keywarning light.
LE CONTRÔLE DE MARCHE
30
PETROL-DIESEL MANUAL AND AUTOMATIC GEARBOX
INSTRUMENT PANELS

16-09-2002
Low coolant level warning light
Lighting of this warning light indicates that the coolant level is too low.
Stop immediately.
W arning: allow the engine to cool before topping up.
The cooling circuit is pressurised.Any avoid any risk of scalding, unscrew the cap by two turns to allow the pres- sure to drop. When the pressure has dropped, remove the cap and top up.
Contact a PEUGEOT dealer.
INSTRUMENTS AND CONTROLS 31

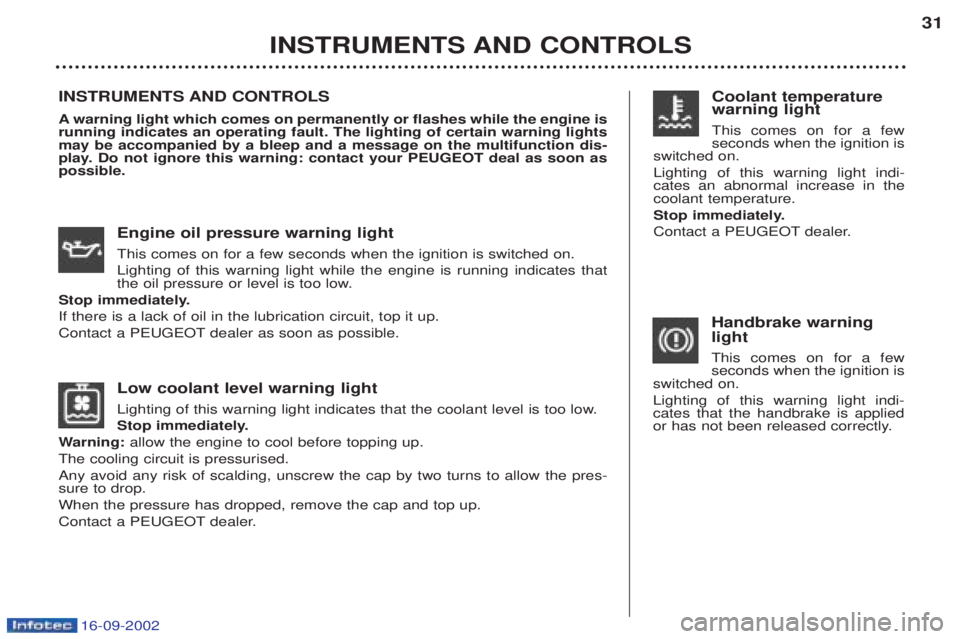

Engine oil pressure warning light This comes on for a few seconds when the ignition is switched on. Lighting of this warning light while the engine is running indicates that
the oil pressure or level is too low.
Stop immediately. If there is a lack of oil in the lubrication circuit, top it up.
Contact a PEUGEOT dealer as soon as possible.
INSTRUMENTS AND CONTROLS A warning light which comes on permanently or flashes while the engine is
running indicates an operating fault. The lighting of certain warning lights may be accompanied by a bleep and a message on the multifunction dis-
play. Do not ignore this warning: contact your PEUGEOT deal as soon aspossible.
Handbrake warning light This comes on for a few seconds when the ignition is
switched on. Lighting of this warning light indi- cates that the handbrake is applied
or has not been released correctly.Coolant temperature warning light This comes on for a few seconds when the ignition is
switched on. Lighting of this warning light indi- cates an abnormal increase in thecoolant temperature.
Stop immediately.
Contact a PEUGEOT dealer.

16-09-2002
Battery charge warning light This comes on when the ignition is switched on.
Lighting while the engine is runningmay indicate: - faulty operation of the charging cir- cuit,
- slack battery or starter terminals,
-a cut or slack alternator belt,
- an alternator failure.
Contact a PEUGEOT dealer. Anti-lock braking system (ABS) warning light If the warning light remains on or comes on above 12 km/h, this indi-
cates an ABS system fault. Nevertheless, the vehicle retains conventional assisted braking.
Contact a PEUGEOT dealer.
Traction control (ASR) warning light
If the warning light remains on or comes on while the engine is running
and the vehicle is moving, contact a PEUGEOT dealer. It flashes when the system comes into operation and comes on perma-
nently when the system is disarmed.
Diesel engine pre-heating warning light This comes on when the ignition is switched on. Wait until it goes out before operating the starter.
Engine autodiagnostics warning light This comes on when the ignition is switched on. Lighting while the engine is running indicates:
- an emission control system fault,
or
-a particle emission filter fault.
If it flashes while the engine is running, this indicates an injection or ignition sys-
tem fault. There is a risk of destruction of the catalytic converter (petrol engineonly).
Contact a PEUGEOT dealer as soon as possible.
INSTRUMENTS AND CONTROLS
32

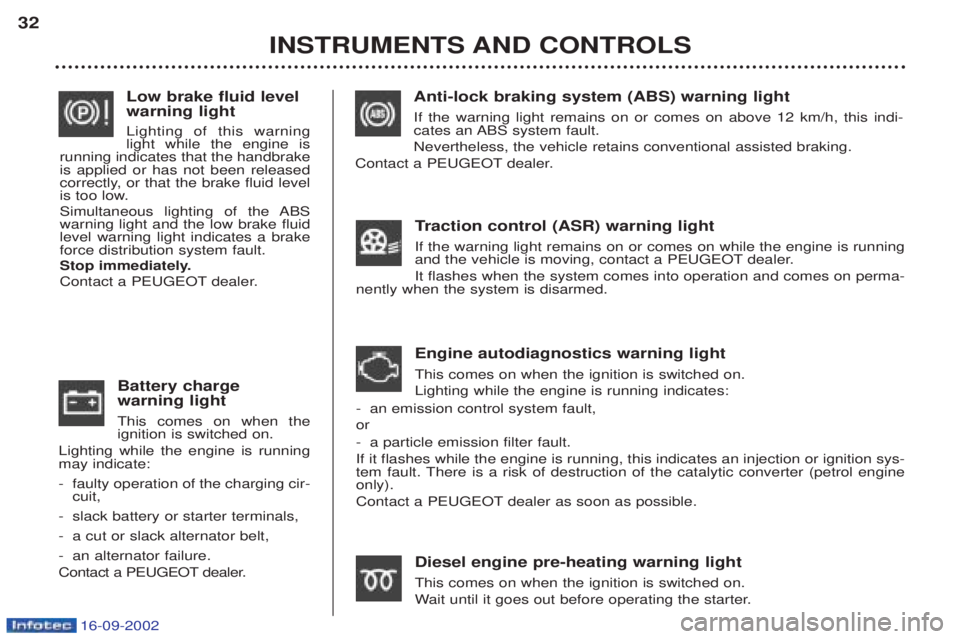

Low brake fluid level warning light Lighting of this warning light while the engine is
running indicates that the handbrakeis applied or has not been released
correctly, or that the brake fluid level
is too low.
Simultaneous lighting of the ABS warning light and the low brake fluidlevel warning light indicates a brakeforce distribution system fault.
Stop immediately.
Contact a PEUGEOT dealer.

16-09-2002

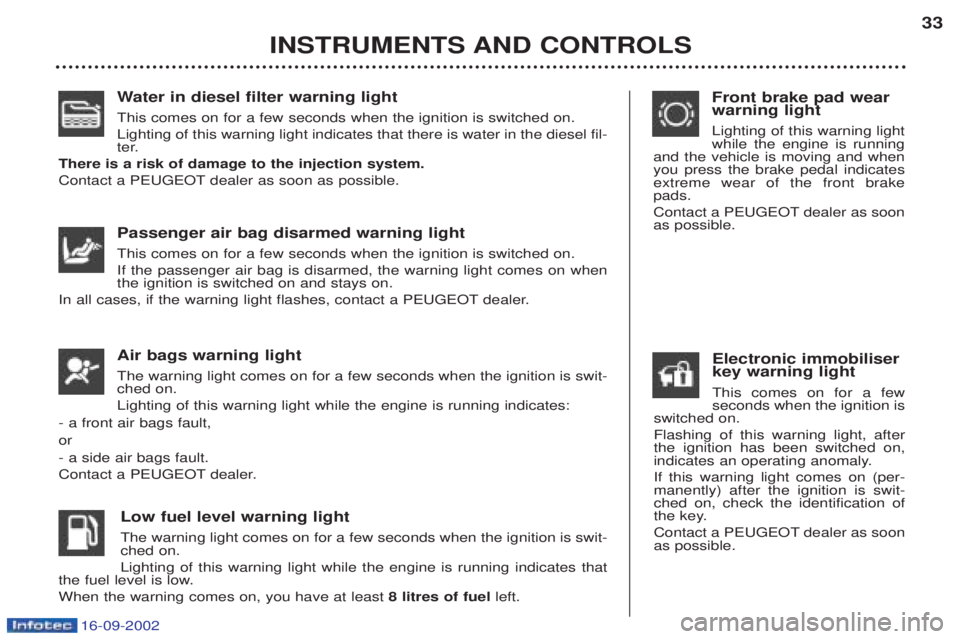

Water in diesel filter warning light
This comes on for a few seconds when the ignition is switched on. Lighting of this warning light indicates that there is water in the diesel fil-
ter.
There is a risk of damage to the injection system.
Contact a PEUGEOT dealer as soon as possible.
INSTRUMENTS AND CONTROLS 33
Passenger air bag disarmed warning light This comes on for a few seconds when the ignition is switched on. If the passenger air bag is disarmed, the warning light comes on when the ignition is switched on and stays on.
In all cases, if the warning light flashes, contact a PEUGEOT dealer.
Low fuel level warning light The warning light comes on for a few seconds when the ignition is swit- ched on. Lighting of this warning light while the engine is running indicates that
the fuel level is low.When the warning comes on, you have at least 8 litres of fuelleft.
Air bags warning light The warning light comes on for a few seconds when the ignition is swit- ched on. Lighting of this warning light while the engine is running indicates:
- a front air bags fault, or- a side air bags fault.
Contact a PEUGEOT dealer.
Front brake pad wear warning light Lighting of this warning light while the engine is running
and the vehicle is moving and whenyou press the brake pedal indicatesextreme wear of the front brakepads.
Contact a PEUGEOT dealer as soon as possible.
Electronic immobiliser key warning light This comes on for a few seconds when the ignition is
switched on. Flashing of this warning light, after the ignition has been switched on,
indicates an operating anomaly. If this warning light comes on (per- manently) after the ignition is swit-ched on, check the identification of
the key.
Contact a PEUGEOT dealer as soon as possible.

16-09-2002
Automatic gearbox temperature or fault warning light This comes on for a few seconds when the ignition is switched on. Lighting or flashing of this warning light while the engine is running and the vehicle is moving indicates an automatic gearbox fault or an exces-
sive automatic gearbox temperature.
Stop immediately.Allow the engine to run at idle (lever in position Nor P) until the warning light
switches off.
Contact a PEUGEOT dealer as soon as possible. Coolant temperature gauge When the needle is in zone
A, the
temperature is correct. When the needle is in zone B, the
temperature is too high.
Stop immediately.W arning: allow the engine to cool
before topping up.The cooling circuit is pressurised.Any avoid any risk of scalding, uns- crew the cap by two turns to allowthe pressure to drop. When the pressure has dropped, remove the cap and top up.
Contact a PEUGEOT dealer.
INSTRUMENTS AND CONTROLS
34

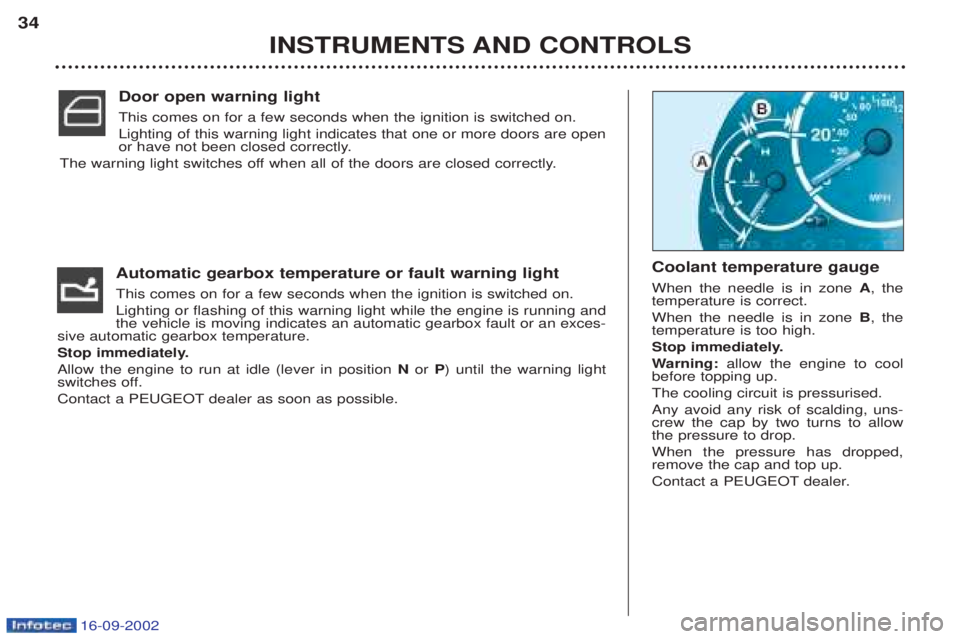

Door open warning light This comes on for a few seconds when the ignition is switched on. Lighting of this warning light indicates that one or more doors are open
or have not been closed correctly.
The warning light switches off when all of the doors are closed correctly.

16-09-2002
Automatic gearbox temperature or fault warning light This comes on for a few seconds when the ignition is switched on. Lighting or flashing of this warning light while the engine is running and the vehicle is moving indicates an automatic gearbox fault or an exces-
sive automatic gearbox temperature.
Stop immediately.Allow the engine to run at idle (lever in position Nor P) until the warning light
switches off.
Contact a PEUGEOT dealer as soon as possible. Coolant temperature gauge When the needle is in zone
