Page 100 of 182
16-09-2002
3. Seat back angle adjustmentTurn the knob to obtain the cor-
rect seat back angle.
4. Seat height adjustment (dri- ver's seat) The height can be adjusted at the front and at the rear:
- Front height adjustment: lift the
lever at the front of the seat,
- Rear height adjustment: lift the lever at the rear of the seat.
5. Forwards-backwards adjust- ment Lift the control and slide the seat forwards or backwards.
6. Armrest (driver's seat) This can be folded down and isremovable.
To adjust it, turn the knob under
the end of the armrest. Heated seatsThe temperature is regulated auto- matically in relation to the passengercompartment temperature.
YOUR BOXER IN DETAIL
107
Page 101 of 182
16-09-2002
REAR SEATS (Minibus) Side seats Adjusting the angle of the seat back Turn knob Aand adjust the angle as
required. Folding the side seat on the sliding side door side access to the third row:Place the head restraint in the low position. Push control B.
T ilt the seat back towards the front Centre seats (2nd and 3rd row) Adjusting the angle of the seat back Pull control
Cand adjust the angle
as required. Folding the seat back Place the head restraint in the low position. Pull control Cand fold the seat back
towards the front.
YOUR BOXER IN DETAIL
108
You now have a table with four can
holders.
Page 103 of 182
16-09-2002

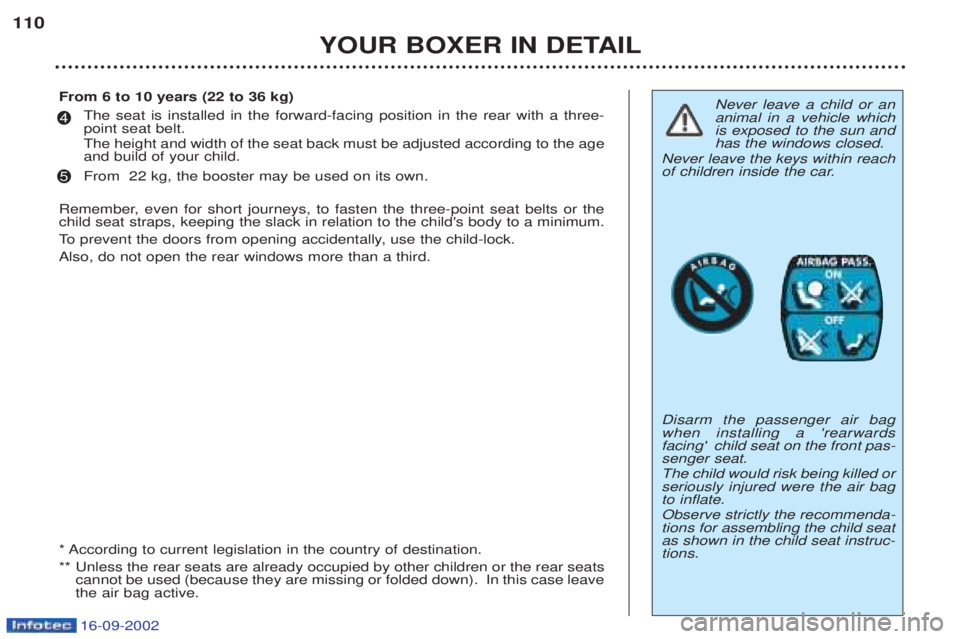

YOUR BOXER IN DETAIL
110
Never leave a child or an animal in a vehicle whichis exposed to the sun andhas the windows closed.
Never leave the keys within reach
of children inside the car. Disarm the passenger air bag when installing a 'rearwardsfacing' child seat on the front pas-senger seat. The child would risk being killed or seriously injured were the air bagto inflate. Observe strictly the recommenda- tions for assembling the child seatas shown in the child seat instruc-tions.From 6 to 10 years (22 to 36 kg)
The seat is installed in the forward-facing position in the rear with a three- point seat belt. The height and width of the seat back must be adjusted according to the age and build of your child. From 22 kg, the booster may be used on its own.
Remember, even for short journeys, to fasten the three-point seat belts or the child seat straps, keeping the slack in relation to the child's body to a minimum.
To prevent the doors from opening accidentally, use the child-lock.
Also, do not open the rear windows more than a third.
* According to current legislation in the country of destination.
** Unless the rear seats are already occupied by other children or the rear seats cannot be used (because they are missing or folded down). In this case leave the air bag active.
4
5
Page 136 of 182
16-09-2002

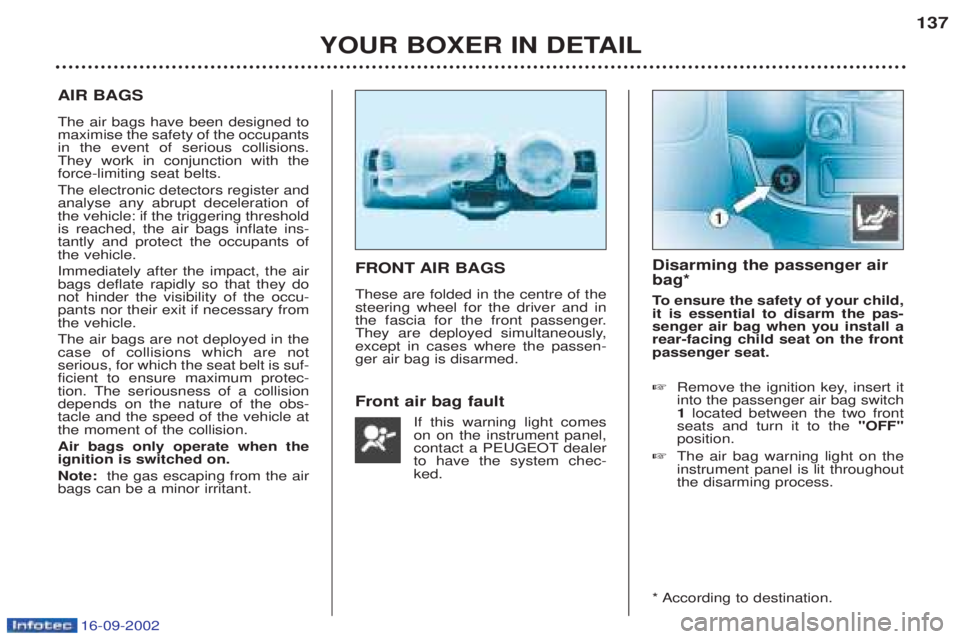

YOUR BOXER IN DETAIL137
AIR BAGS The air bags have been designed to maximise the safety of the occupantsin the event of serious collisions.They work in conjunction with theforce-limiting seat belts. The electronic detectors register and analyse any abrupt deceleration ofthe vehicle: if the triggering thresholdis reached, the air bags inflate ins-tantly and protect the occupants ofthe vehicle. Immediately after the impact, the air bags deflate rapidly so that they donot hinder the visibility of the occu-pants nor their exit if necessary fromthe vehicle. The air bags are not deployed in the case of collisions which are notserious, for which the seat belt is suf-ficient to ensure maximum protec-
tion. The seriousness of a collisiondepends on the nature of the obs-tacle and the speed of the vehicle atthe moment of the collision. Air bags only operate when the ignition is switched on. Note:
the gas escaping from the air
bags can be a minor irritant. FRONT AIR BAGS These are folded in the centre of the steering wheel for the driver and in
the fascia for the front passenger.
They are deployed simultaneously,except in cases where the passen-ger air bag is disarmed. Front air bag fault
If this warning light comes on on the instrument panel,
contact a PEUGEOT dealerto have the system chec-ked. Disarming the passenger air bag*
To
ensure the safety of your child,
it is essential to disarm the pas- senger air bag when you install arear-facing child seat on the frontpassenger seat. ☞ Remove the ignition key, insert it into the passenger air bag switch1located between the two front
seats and turn it to the "OFF"
position.
☞ The air bag warning light on theinstrument panel is lit throughoutthe disarming process.
* According to destination.
