2002 PEUGEOT BOXER set clock

16-09-2002
1 -Coolant temperature gauge.
2 - Coolant temperature warning light.
3 - Door open warning light.
4 - Speedometer.
5 - Left direction indicator.
6 - Side lights and dippedheadlamps warning light.
7 - Main beam headlamps warning light.
8 - Right direction indicator. 9 -
Rev counter.
10 - Low fuel level warning light.
11 - Fuel gauge.
12 - Brake fluid level warning light.
13 - Traction control (ASR) warning
light.
14 - Passenger air bag disarmed warning light.
15 - Trip distance recorder display
control and zero reset button. 16 -
Front air bags warning light.
17 - Anti-lock braking system (ABS) warning light.
18 - Automatic gearbox temperatureor fault warning light.
19 - Low coolant level warning light.
20 - Service indicator, oil levelgauge, automatic gearbox
display, clock and distance
recorder.
21 - Diesel engine pre-heatingwarning light.
22 - Engine oil pressure warninglight.
23 - Battery charge warning light.
24 - Clock setting button.
25 - Engine autodiagnostics warninglight.
26 - Front brake pads wear warninglight.
27 - Handbrake warning light.
28 - Water in diesel filter warning
light.
29 - Electronic immobiliser keywarning light.
LE CONTRÔLE DE MARCHE
30
PETROL-DIESEL MANUAL AND AUTOMATIC GEARBOX
INSTRUMENT PANELS

16-09-2002
YOUR BOXER IN DETAIL
60
GENERAL FUNCTIONS On / Off With the ignition key in the "ON"position, the audio/telephone/GPS comes on automatically.
Switching off is also automatic when the key is turned to the "STOP"position.
Y ou can also switch the audio/telephone/GPS on or off manually by pressing knob B.
In this case, the audio/telephone/GPS can operate for 20 minutes without the ignition being switched on. Notes:- the SIM card must only be removed or inserted after switching off the audio/telephone/GPS,
- when the audio-telephone/GPS is switched off after 20 minutes, communication is possible by pressing button O.
- after the ignition has been swiched off, the audio/telephone/GPS can be switched on again by pressing button Lor Oor
by inserting a CD in the player.
Anti-theft system The audio/telephone/GPS is coded so that it can only operate in your vehicle. If it is installed in another vehicle, contact yo ur
PEUGEOT dealer to have the system configured. The anti-theft system is automatic and does not require any intervention on your part. VOLUME ADJUSTMENT T urn knob Bclockwise to increase the volume of the audio-telephone/GPS or anti-clockwise to decrease the volume.
Note: the volume setting is specific to each source. It is posible to have a different setting for the radio, CD, CD changer,
telephone or voice messages.
SOUND CUT-OFF/ RESTORATION
To gradually restore or cut off the volume of an audio source, press the "AUDIO OFF"button.
To gradually restore or cut off the volume of the navigation source voice messages, press the "NAV MUTE"button for more
than one second. Note: during telephone calls, the volume of the other sources is cut off automatically.

16-09-2002
YOUR BOXER IN DETAIL101

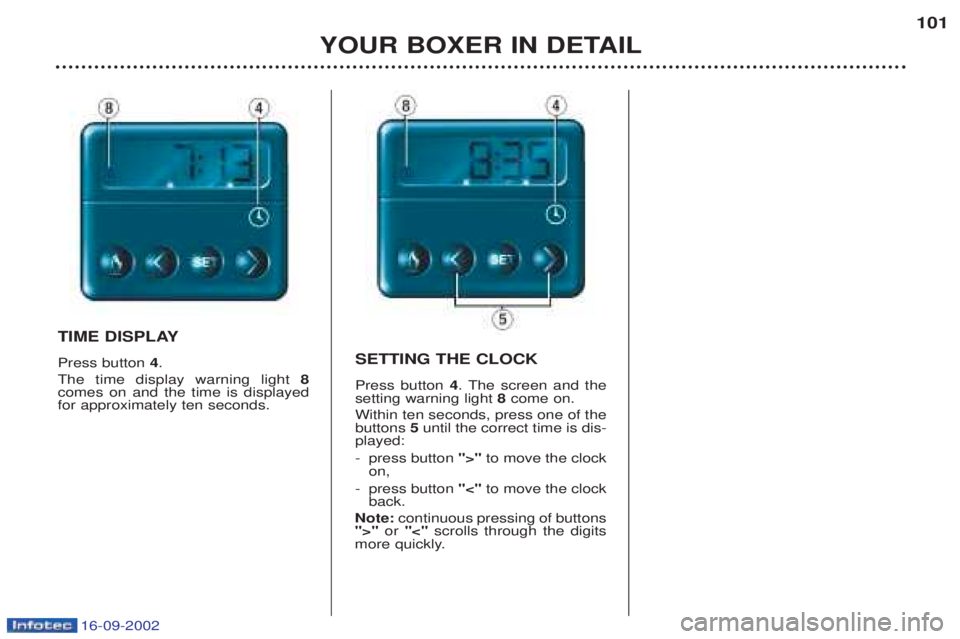

TIME DISPLAY Press button
4.
The time display warning light 8
comes on and the time is displayed for approximately ten seconds. SETTING THE CLOCK Press button
4. The screen and the
setting warning light 8come on.
Within ten seconds, press one of the buttons 5until the correct time is dis-
played:
- press button ">"to move the clock
on,
- press button "<"to move the clock
back.
Note: continuous pressing of buttons
">" or "<" scrolls through the digits
more quickly.

16-09-2002
YOUR BOXER IN DETAIL103

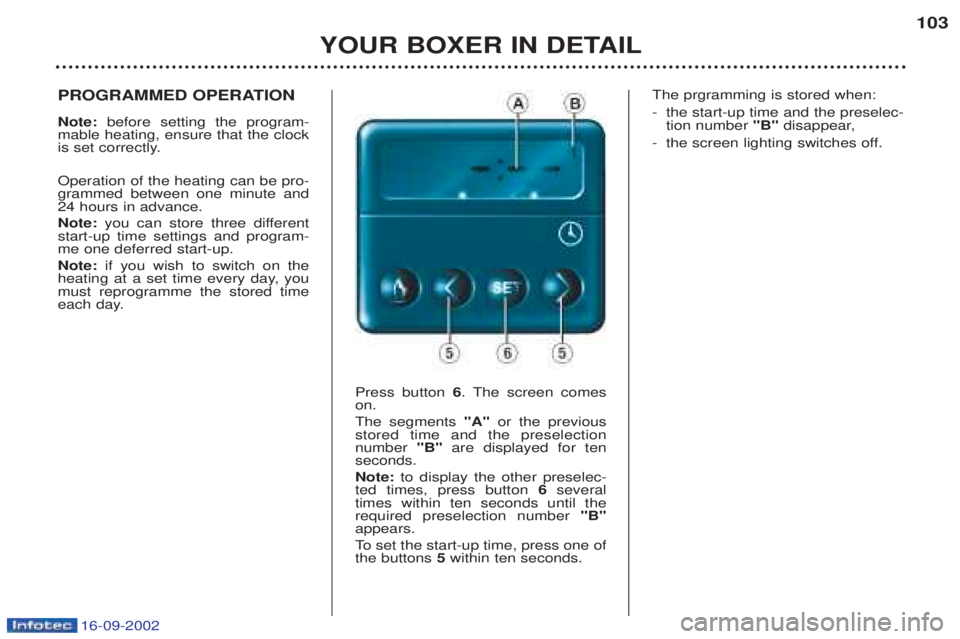

PROGRAMMED OPERATION Note:
before setting the program-
mable heating, ensure that the clock
is set correctly. Operation of the heating can be pro- grammed between one minute and24 hours in advance. Note: you can store three different
start-up time settings and program- me one deferred start-up. Note: if you wish to switch on the
heating at a set time every day, you must reprogramme the stored time
each day.
Press button 6. The screen comes
on. The segments "A"or the previous
stored time and the preselection number "B"are displayed for ten
seconds. Note: to display the other preselec-
ted times, press button 6several
times within ten seconds until the required preselection number "B"
appears. To set the start-up time, press one of
the buttons 5within ten seconds. The prgramming is stored when: -
the start-up time and the preselec- tion number "B" disappear,
- the screen lighting switches off.
