2002 PEUGEOT BOXER cruise control

16-09-2002
REAR PARKING
ASSISTANCE This system, installed in the rear
bumper, detects any obstacle
(person, vehicle, tree, barrier,kerb etc) behind the vehicle. Activation With the engine running, the sys- tem is activated when reversegear is engaged; a bleep indi-cates that it is active. The proximity information is given by an audible signal, consisting ofbleeps which become faster asthe vehicle approaches the obs-tacle. When the distance between the rear of vehicle and the obstacle isless than approximately twenty-five centimetres, theaudible signal becomescontinuous. When you switch to neu- tral, the system becomesinactive again.
Activation ➜
Press control A(ON posi-
tion).
A speed can now be memorised.
➜ Press control D(in the OFF
position) to deactivate the system.
Memorising a speed When you reach the required speed, press control Bor C. The
speed is memorised and will be
maintained automatically. Deactivating the memorised speed If you wish to deactivate the memorised speed: ➜ press button Dor the brake
or clutch pedal.
Recalling the memorised speed After deactivation, press button E.
Y our vehicle reverts to the last
memorised speed. Cancelling the stored speed ➜ Place control D(OFF posi-
tion) or switch off the ignition.
9YOUR BOXER AT A GLANCE
CRUISE CONTROL The cruise control makes it pos- sible to maintain a constantvehicle speed, programmed by
the driver, irrespective of the pro-file of the road and without anyaction on the accelerator or thebrake pedals. In order for the vehicle speed to be memorised, it must be greaterthan approximately 40 km/h
135134

16-09-2002

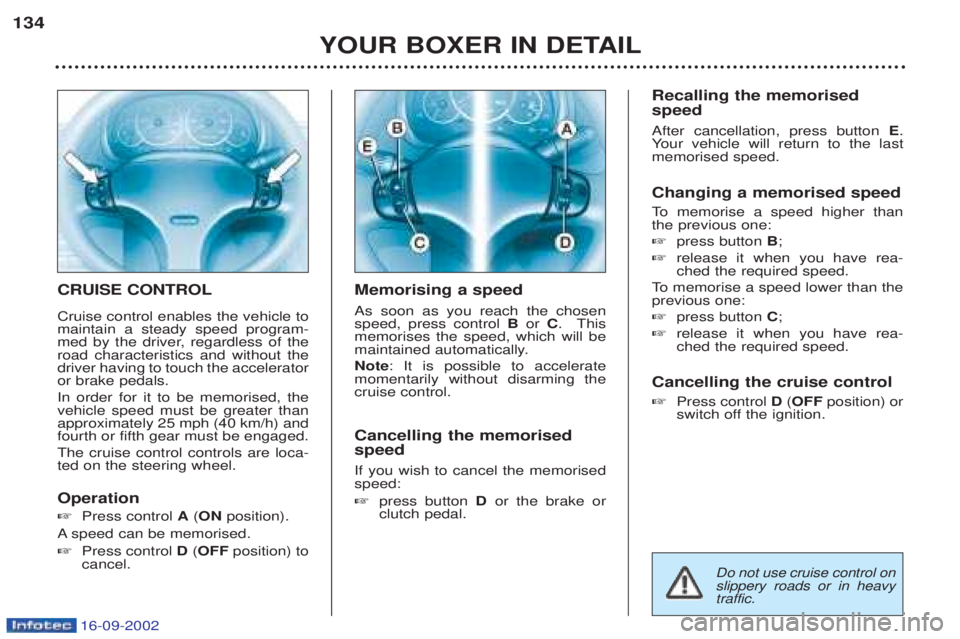

CRUISE CONTROL Cruise control enables the vehicle to maintain a steady speed program-
med by the driver, regardless of theroad characteristics and without thedriver having to touch the acceleratoror brake pedals. In order for it to be memorised, the vehicle speed must be greater thanapproximately 25 mph (40 km/h) andfourth or fifth gear must be engaged. The cruise control controls are loca- ted on the steering wheel. Operation ☞Press control A(ON position).
A speed can be memorised.
☞ Press control D(OFF position) to
cancel. Memorising a speed As soon as you reach the chosen speed, press control
Bor C. This
memorises the speed, which will be
maintained automatically. Note : It is possible to accelerate
momentarily without disarming the cruise control. Cancelling the memorised speed If you wish to cancel the memorised speed: ☞ press button Dor the brake or
clutch pedal. Recalling the memorised speed After cancellation, press button
E.
Y our vehicle will return to the last
memorised speed. Changing a memorised speed
To memorise a speed higher than
the previous one: ☞ press button B;
☞ release it when you have rea- ched the required speed.
To memorise a speed lower than the
previous one: ☞ press button C;
☞ release it when you have rea- ched the required speed.
Cancelling the cruise control ☞ Press control D (OFF position) or
switch off the ignition.
YOUR BOXER IN DETAIL
134
Do not use cruise control on slippery roads or in heavytraffic.

16-09-2002
PRACTICAL INFORMATION151
Fuse no. Rating
Functions
12 5 A Front and rear right side lights.
13 5 A Front and rear left side lights.
24 5 A Number plate and trailer lights - Side lights warning light - Lights stalk.
25 7,5 A Audio equipment.
26 7,5 A Brake lights.
27 7,5 A Electric mirrors - Cruise control - Telephone - Chronotachograph -
Remote control - Alarm.
31 10 A Reversing lights - Front fog lamps relay - Air conditioning relay - Heated mirrors relay -Heated rear screen relay - 12 volt socket.
32 15 A Audio equipment.
33 7,5 A Rear fog lamp.
35 7,5 A ABI - Electric window controls.
36 - Not used.
37 10 A Instrument panel.
39 10 A Interior lighting - EOBD diagnostic socket.
42 7,5 A ABS.
43 20 A Wash-wipe pump.
44 15 A Lighter.
46 - Not used.
49 20 A Headlamp wash pump.
50 7,5 A Air bags.
51 10 A PCS (Minibus).
52 20 A Front power socket.
53 10 A Direction indicators- Hazard lights - Instrument panel.
55 30 A Passenger compartment electric ventilator - Webasto unit - Heating/air conditioning ventila-
tion - Webasto heating ventilation - Webasto supply.
62 - Not used.
Left-hand fuse box
