2002 PEUGEOT BOXER light

16-09-2002
Parameter configuration Configuration menu The"Configuration" menu provides
access to the following general para- meters: - "Configuration-Connect": choice of day/night brightness, displaycolours, voice/text message lan-guage and distance unit,
- "Fleet Management": configurationof the automatic vehicle locationSMS messages,
- "Speed Alarm": setting, activationand displaying of exceeding of thepermitted speed threshold,
- "Modem": activation/deactivationof the communication between thesystem's modem and the laptop.
YOUR BOXER IN DETAIL
38
Configuration-Connect The "Day brightness" and "Night
brightness" functions enable you to
set day and night brightness values
independently. The "Colours" function controls dis-
playing on the day or night setting or changes the setting automatically inrelation to the light in the passengercompartment or switching on of thelights. The "Voice mess. language" and
"Text mess. language" functions
enable you to choose the language for voice recognition and SMS messages(Italian, German, English, Spanish,French, Portuguese, Dutch). The "Distance unit" function enables
you to choose the distance unit for the trip computer calculations (km ormiles). Note: to choose the language and
the distance unit, insert the configu- ration CD-ROM. Fleet Management The
"Fleet Management" function
permits locating of the vehicle by means of the automatic transmissionof SMS messages to a controlcentre.
To have the SMS messages sent,
you must: - activate the "Send position" func- tion,
- select a type of interval in the"Cycle type" function,
- set the duration of the interval in
the "Transmission interval" func-tion,
- enter the registration number in the
"Vehicle Ident." function,
- enter the telephone number of the
control centre in the "TelephoneNumber" function,
- insert the SIM card.

16-09-2002
YOUR BOXER IN DETAIL69
TELEPHONE SOURCE This function is provided by a dual band GSM telephone (900 and 1800 MHz) incorporated in the audio/telephone/GPS. It is a "hands free" telephone. This function is provided by a microphone located next to the front courtesy light, the spea-
kers and a steering wheel control which permits access to most of the functions (the buttons on the audio/telephone/GPS control panel provide access to all of the functions). Displaying of the main "mobile telephone"type functions as well as consultation of the directories is via the multifunction
display.This function is active, irrespective of the position of the key.
Note: with the key in the accessories position (1 st
notch) or with the ignition on (2 nd
notch), this function will be cut off after
thirty minutes (Ecomony mode active).If a communication is under way at this time, it may be completed. Using the menus Press button Eto display the main menuand gain access to the main "Telephone functions", then to the various sub-
menus to reach that required.
This menu enables you to gain access to the following functions:- Other menus: permits access to the second page of the menu.
- Frequently used nos: permits listing of the 9 telephone numbers most frequently
used.
- Diary: permits listing of the names and telephone numbers recorded in your direc-
tory.
- Latest incoming calls: permits listing of the last 10 telephone numbers received.
- Latest outgoing calls: permits listing of the last 10 telephone numbers called.
- Messages: permits access to the text messages (SMS) menu.

16-09-2002
YOUR BOXER IN DETAIL
98
HEATING / AIR CONDITIONING
1. Air conditioning control The air conditioning is designed to
operate in all seasons. In summer, itenables the temperature to be lowe-
red and in winter, above 0 ¡C, it
increases the effectiveness of thedemisting. Press the switch, the indi-cator light comes on. The air conditioning does not ope-rate while the air flow adjustmentcontrol is in the minimum position. Note:
It is quite normal that the
condensation created by the air condi- tioning results in a flow of water under
the vehicle when it is stationary. This permits recirculation of the insi-
de air. Recirculation permits isolation of the passenger compartment from exter-nal odours and smoke. Used simultaneously with the air conditioning, recirculation permitsimprovement of the air conditioningperformance at cold settings. When the recirculation is used in a humid climate, there is a risk of mis-ting of the windows.
2. Air intake
"Recirculated inside air"position.

16-09-2002
YOUR BOXER IN DETAIL
100
PROGRAMMABLE HEATING
(WEBASTO)* The programmable heating is provi-
ded to operate with the engine off. Itpermits heating of the passengercompartment, de-icing of the win-dows and pre-heating of the coolantcircuit to provide an optimum opera-ting temperature when the engine isswitched on.
* According to destination. Control panel / digital programmer The programmable heating system's control panel is located to the right of the instrument panel. 1.
Heating cycle warning light.
2. Screen lighting.
3. Display of the number of the selected programme.
4. Time display button.
5. Time setting buttons.
6. Selection of the stored prgramme.
7. Heating immediate start-up button.
8. Time setting and display warning light.

16-09-2002
YOUR BOXER IN DETAIL101
TIME DISPLAY Press button
4.
The time display warning light 8
comes on and the time is displayed for approximately ten seconds. SETTING THE CLOCK Press button
4. The screen and the
setting warning light 8come on.
Within ten seconds, press one of the buttons 5until the correct time is dis-
played:
- press button ">"to move the clock
on,
- press button "<"to move the clock
back.
Note: continuous pressing of buttons
">" or "<" scrolls through the digits
more quickly.

16-09-2002
YOUR BOXER IN DETAIL
102
IMMEDIATE OPERATION Before switching on the programmable heating, on the vehicle's heating/ventilation
assembly, check that: -
the temperature adjustment control is in the "Hot air" position,
- the air flow adjustment control is in position 2. IMMEDIATE OPERATION Press button
7.
The screen and the heating cycle warning light 1come on and remain
on throughout the period of opera-tion.
To switch the heating off, press but-
ton 7.
The screen and the heating cycle warning light 1switch off.

16-09-2002
YOUR BOXER IN DETAIL103
PROGRAMMED OPERATION Note:
before setting the program-
mable heating, ensure that the clock
is set correctly. Operation of the heating can be pro- grammed between one minute and24 hours in advance. Note: you can store three different
start-up time settings and program- me one deferred start-up. Note: if you wish to switch on the
heating at a set time every day, you must reprogramme the stored time
each day.
Press button 6. The screen comes
on. The segments "A"or the previous
stored time and the preselection number "B"are displayed for ten
seconds. Note: to display the other preselec-
ted times, press button 6several
times within ten seconds until the required preselection number "B"
appears. To set the start-up time, press one of
the buttons 5within ten seconds. The prgramming is stored when: -
the start-up time and the preselec- tion number "B" disappear,
- the screen lighting switches off.

16-09-2002
YOUR BOXER IN DETAIL
104

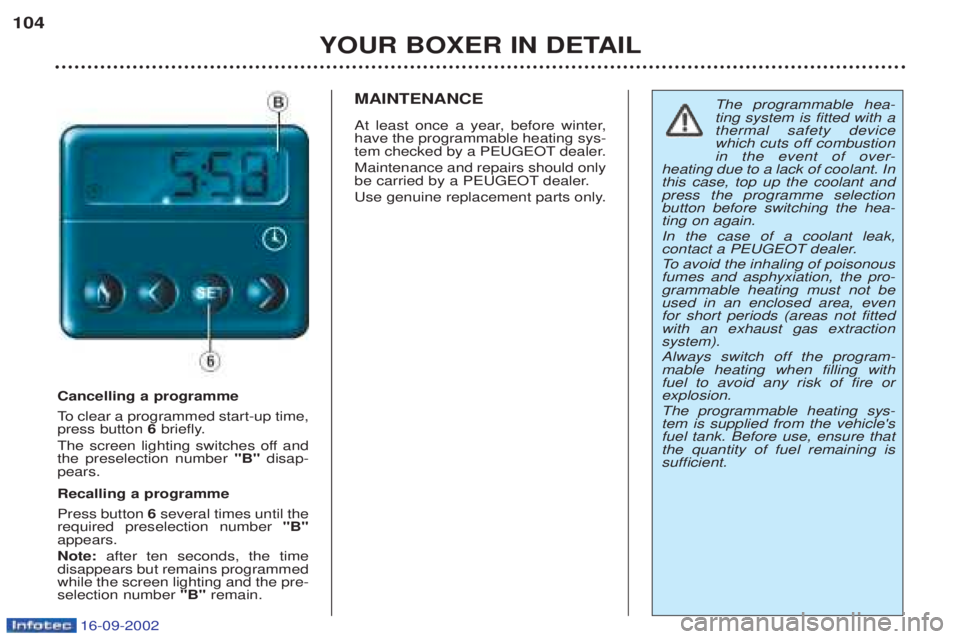

Cancelling a programme
To
clear a programmed start-up time,
press button 6briefly.
The screen lighting switches off and the preselection number "B" disap-
pears. Recalling a programme Press button 6several times until the
required preselection number "B"
appears. Note: after ten seconds, the time
disappears but remains programmed while the screen lighting and the pre-selection number "B" remain. MAINTENANCE
At least once a year, before winter, have the programmable heating sys-
tem checked by a PEUGEOT dealer. Maintenance and repairs should only
be carried by a PEUGEOT dealer.
Use genuine replacement parts only.
The programmable hea- ting system is fitted with athermal safety devicewhich cuts off combustion
in the event of over-
heating due to a lack of coolant. Inthis case, top up the coolant andpress the programme selectionbutton before switching the hea-ting on again. In the case of a coolant leak,
contact a PEUGEOT dealer. To avoid the inhaling of poisonous
fumes and asphyxiation, the pro- grammable heating must not beused in an enclosed area, evenfor short periods (areas not fittedwith an exhaust gas extractionsystem). Always switch off the program- mable heating when filling withfuel to avoid any risk of fire orexplosion. The programmable heating sys- tem is supplied from the vehicle'sfuel tank. Before use, ensure thatthe quantity of fuel remaining issufficient.
