Horn
Press one of the spokes or
the centre of the steering
wheel.
YOUR 807 IN DETAIL
122

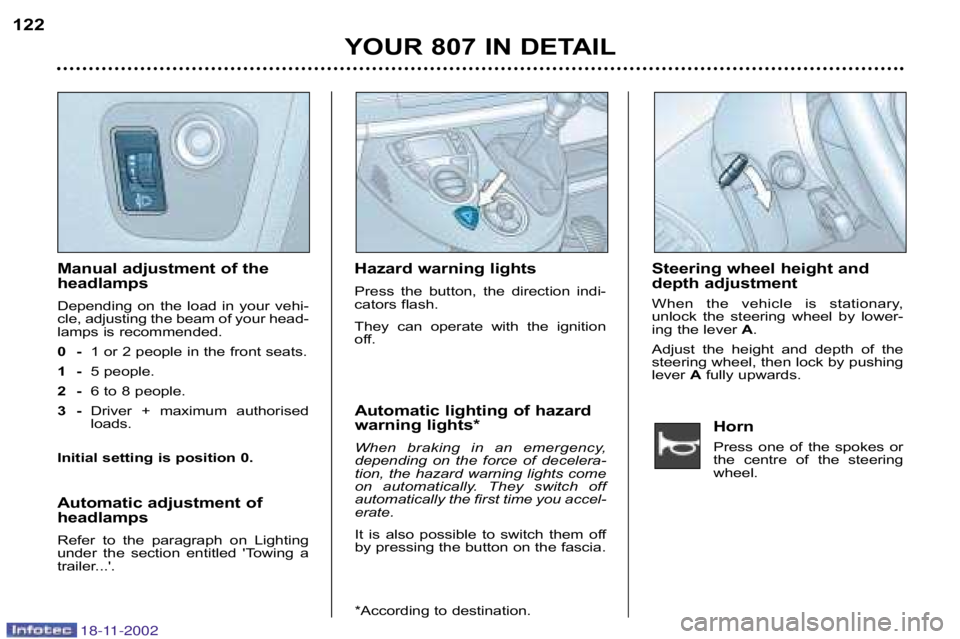

Manual adjustment of the
headlamps
Depending on the load in your vehi
cle, adjusting the beam of your head
lamps is recommended.
0 1 or 2 people in the front seats.
1 5 people.
2 6 to 8 people.
3 Driver + maximum authorised
loads.
Initial setting is position 0.
Automatic adjustment of
headlamps
Refer to the paragraph on Lighting
under the section entitled 'Towing a
trailer...'. Hazard warning lights
Press the button, the direction indi
cators flash.
They can operate with the ignition
off.
Steering wheel height and
depth adjustment
When the vehicle is stationary,
unlock the steering wheel by lower
ing the lever
A.
Adjust the height and depth of the
steering wheel, then lock by pushing
lever Afully upwards.
Automatic lighting of hazard
warning lights*
When braking in an emergency,
depending on the force of decelera
tion, the hazard warning lights come
on automatically. They switch off
automatically the first time you accel
erate.
It is also possible to switch them off
by pressing the button on the fascia.
*According to destination.
18-11-2002

2 LITRE AND 2.2 LITRE 16V
PETROL ENGINES
1 Windscreen/headlamp wash
reservoir.
2 Fuse box.
3 Power steering reservoir. 4
Coolant reservoir.
5 Engine oil filler cap.
6 Dipstick.
7 Air filter. 8
Brake and clutch fluid reservoir.
9 Removable towing eye.
10 Wheelbrace.
11 Jack.
PRACTICAL INFORMATION
137
18-11-2002

PRACTICAL INFORMATION
138
2 LITRE AND 2.2 LITRE 16V
HDI DIESEL ENGINES
1
Windscreen/headlamp wash
reservoir.
2 Fuse box.
3 Power steering reservoir. 4
Coolant reservoir.
5 Engine oil filler cap.
6 Dipstick ( a:2.2 litre HDI;
b: 2 litre HDI).
7 Air filter. 8
Brake and clutch fluid reservoir.
9 Removable towing eye.
10 Wheelbrace.
11 Jack.
18-11-2002

PRACTICAL INFORMATION139
CHECKING THE LEVELS
Oil level
Check the level regularly and top
up between changes (maximum
consumption is 0.5 l per 600 miles
(1000 km).
Checking is carried out with the
vehicle level, engine cold, using
the oil level gauge on the check
module or the dipstick.
Dipstick There are two marks
on the dipstick:
A= maximum
Never fill past this
mark.
B = minimum
To maintain the reliabil
ity of engines and
emission control sys
tems, the use of addi
tives in engine oil is
prohibited.
Oil change
According to the information given in
"PEUGEOT SERVICING".
NOTE: Prevent used oil from coming
into prolonged contact with the skin. Viscosity selection
In all cases, the oil selected must
meet the manufacturer's require
ments.
Brake and clutch fluid level:
The level must always be between
the DANGER and MAXIMUM
marks in the reservoir.
If the level drops substantially, con tact a PEUGEOT dealer immedi
ately.
Fluid change:
must be carried out according to the manufacturer's schedule
use fluids approved by the manu facturer, which fulfil DOT4 stan
dards.
WARNING: brake and clutch fluid is
harmful to health and very corrosive.
Coolant level
Use fluid recommended by the man
ufacturer.
When the engine is warm, the tem
perature of the coolant is controlled
by the engine fan. As this fan can
operate with the ignition off and
because the cooling system is pres
surised, wait for at least one hour
after the engine has stopped before
carrying out any work. Unscrew the cap two turns to allow
the pressure to drop to prevent any
risk of scalding. When the pressure
has dropped, remove the cap and
top up the level.
Note:
The coolant does not need to
be changed.
Used oil
Do not dispose of used oil, brake
fluid or coolant into drains or onto the
ground.
Power steering reservoir  Open the reservoir, with the
engine at ambient temperature.
The level should always be above
the MINI mark and close to the
MAXI mark.
Windscreen and headlamp
wash reservoir
For best quality cleaning and for your
safety, we recommend that you use
products approved by PEUGEOT
(reservoir capacity 4.5 litres or
6.5 litres with headlamp wash).
Measure the fluid level using the dip
stick incorporated in the reservoir
cap.
Close the air hole on the cap and
remove it, then check the level.
18-11-2002

PRACTICAL INFORMATION
144
CHANGING A BULB
Front lights
Note:
handle the bulbs with a dry cloth.
1 Dipped beam headlamps: H755W or xenon bulb.
2 Main beam headlamps: H755W or xenon bulb.
3 Fog lamps: H155W.
Note : make access on the righthand side easier by remo
ving the fuse box cover.
Turn the protective cover corresponding to the faul
ty bulb a quarter of a turn and remove it.
 Disconnect the connector.
 Press the end of the securing clip to free it. Change
the bulb. When fitting the new bulb, ensure that the
direction notches are positioned correctly and the
securing clip is fixed properly.
 Reconnect the connector.
 Refit the protective cover, then turn it a quarter of a
turn to the right. The headlamps are fitted with polycarbonate glass with a
protective coating.
Do not clean them with a dry or abra
sive cloth, nor with a detergent or solvent product. Use
a sponge and soapy water.
4 Side lights: W 5 W.
 Push the light from the inside towards the outside of
the bumper.
 Pull the light forwards.
 Turn the bulb holder a quarter turn to the left and
remove it.
 Turn the bulb a quarter turn to the left, remove it and
change it.
When refitting, engage the light towards the outsi
de and move it towards the inside of the bumper.
5 Direction indicators: PY 21 W (amber).F
 Turn the bulb holder a quarter of a turn to the left
and remove it.
 Change the bulb.
Note: In certain climatic conditions (low temperature,
humidity), condensation inside the headlamp glass is
normal ; it disappears a few minutes after the lights are
switched on.
WARNING: RISK OF ELECTROCUTION
Xenon bulbs must be changed by a PEUGEOT dealer.
18-11-2002

PRACTICAL INFORMATION151
Fuse N° Rating
Functions
1 10 A Manual gearbox reversing lights switch Xenon headlamps Fan uni t relay control
Engine coolant level Oil heater or preheat unit (Diesel) V ehicle speed sensor or air flow
sensor (Diesel).
2 15 A Fuel pump Exhaust gas recirculation and Turbo pressure regulation solenoid valves
(Diesel).
3 10 A ABS or ESP control unit.
4 10 A Engine wiring housing ignition positive supply
5 10 A Not used or particle emission filter injector (Diesel) Particle emi ssion filter control unit (Diesel).
6 15 A Front fog lamps.
7 20 A Headlamp wash pump.
8 20 A Supply via the engine wiring housing relay Fan unit relay co ntrol (Diesel) –
Diesel high pressure regulation and exhaust gas recirculation sol enoid valves
(Diesel).
9 15 A Left dipped beam Headlamp height adjuster.
10 15 A Right dipped beam.
11 10 A Left main beam.
12 10 A Right main beam.
13 15 A Horn.
14 10 A Front and rear washwipe pump.
15 30 A Oxygen sensor Injectors Ignition coil Canister, timing and exhaust gas recriculation
solenoid valves (Petrol) Injection pump solenoid valve (Diesel).
16 30 A Not used or air pump (Petrol).
17 30 A Front wiper.
18 40 A Additional blowers.
18-11-2002

TOWING A TRAILER,
CARAVAN, BOAT ETC...
Only use original PEUGEOT tow
bars which have been tested and
approved from the design stage of
your vehicle.
The tow bar must be fitted by a
PEUGEOT dealer.
Driving advice
Distribution of loads: distribute the
load in the trailer so that the heaviest
loads are as close as possible to the
axle and the nose weight is close to
the maximum authorised without,
however, exceeding it.
Cooling: towing a trailer on a slope
increases the coolant temperature.
As the fan is electronically con
trolled, its cooling capacity is not
dependent on the engine speed.
On the contrary, use a high gear to
lower the engine speed, and reduce
your speed.
In all cases, pay attention to the
coolant temperature. Note:
in certain cases of particularly
arduous use (towing the maximum
load up a steep slope in high tem
peratures), the engine automatically
limits its power. In this case, cutting
off the air conditioning allows the
engine power to be recovered, and
therefore the towing speed to be sig
nificantly increased (approximately
12mph [20 km/h] more).
If the coolant temperature warning
light comes on, stop the vehicle and
switch off the engine as soon as pos
sible.
Tyres: check the tyre pressures
of the towing vehicle and of the trail
er, observing the recommended
pressure.
Brakes: towing increases the brak
ing distance. Drive at a moderate
speed, change down early and brake
gradually.
Side wind: sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed. Lighting
Manual adjustment
Adjust your headlamps so as not to
dazzle other road users (see section
on ''Manual adjustment of head
lamps''). Check the electrical sig
nalling of the trailer.
Automatic beam correction
For vehicles with Xenon bulbs, this
system automatically corrects the
height of the beam, whatever the
load of the vehicle. The driver is then
assured of having optimum lighting
and not causing a nuisance to other
road users.
PRACTICAL INFORMATION
155
