10 -Passenger air bag.
11 - Glove box.
12 - Side adjustable heating/ ven- tilation vents and air flow reg-ulation.
13 - Window demisting vent.
14 - Speaker (tweeter) location.
15 - Multi-function display.
16 - Heating/ventilation controls.
17 - Radio.
18 - Gear lever.
19 - Front ashtray.
20 - Rear footwell heating vent.
21 - Lighter. 22 -
Heated seat switches. Coin storage. Passenger air bag disarming switch.
23 - Handbrake.
24 - Cup-holder.
25 - Rear ashtray.
26 - Steering lock and ignition.
27 - Steering wheel adjustment.
28 - Fuse box.
29 - Electronic stability programme (ASR/ESP)
30 - Headlamp height adjustment.
31 - Cruise control.
YOUR 406 COUPE AT A GLANCE
3
1 - Electric mirror controls. Window controls.
2 - Lights and direction indicators stalk.
3 - Driver's air bag.Horn.
4 - Instrument dials.
5 - Radio remote control stalk.
6 - Windscreen wash-wipe stalk.
Trip computer stalk.
7 - Hazard warning lights switch.
8 - Central adjustable heating/ventilation vents and air flowregulation.
9 - Windscreen demistingvents.
01-07-2002

Automatic wipe In the AUTO position, the wipers
operate automatically and adjust
their speed to the intensity of the rainfall .

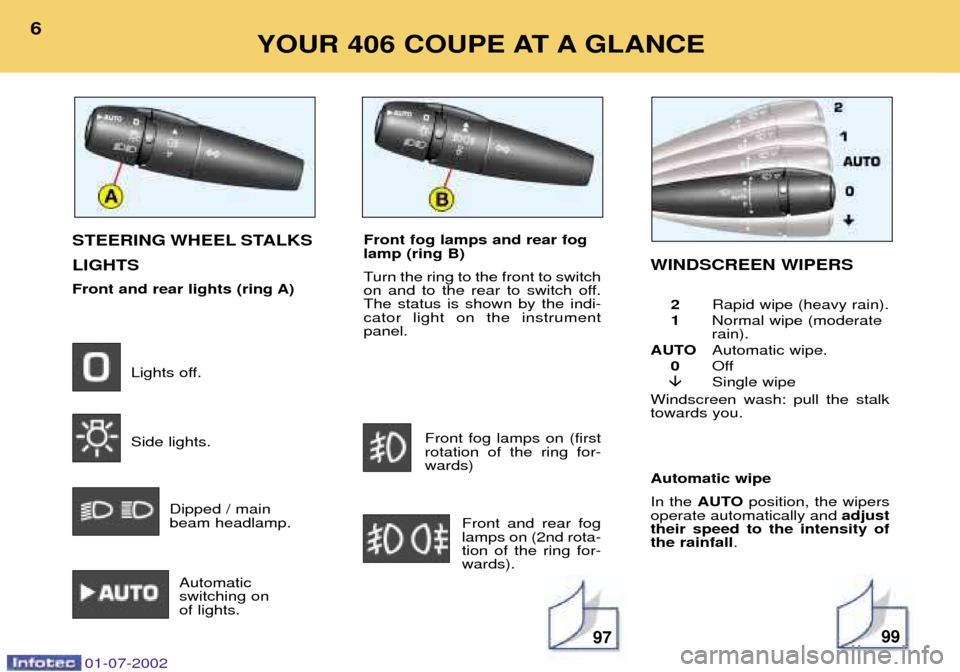

STEERING WHEEL STALKS LIGHTS
Front and rear lights (ring A)
Lights off. Side lights.Dipped / main beam headlamp.Automatic switching on of lights. YOUR 406 COUPE AT A GLANCE
6
Front fog lamps and rear foglamp (ring B)
Turn the ring to the front to switch
on and to the rear to switch off.The status is shown by the indi-cator light on the instrumentpanel.Front fog lamps on (firstrotation of the ring for-wards)Front and rear foglamps on (2nd rota-tion of the ring for-wards). WINDSCREEN WIPERS
2 Rapid wipe (heavy rain).
1 Normal wipe (moderaterain).
AUTO Automatic wipe.
0 Off
Single wipe
Windscreen wash: pull the stalk towards you.
01-07-2002
9799

MAINTENANCE OF YOUR 406 COUPE23

All driving conditions. oArduous conditions.
A AND C SERVICES AND THE INTERMEDIATE VISIT
- Oil filter- Fuel filter(Petrol)- Fuel filter element (diesel only).- Air filter element- Spark plugs (petrol only)
- Engine oil- Bleed fuel filter (diesel only)
- Engine oil (check + top-up)- Gearbox oil (check + top-up)- Battery (check + top-up)- Front/rear screen wash (check + top-up )- Coolant (check + top-up)- Brake fluid (check + top-up)- Power steering fluid (check + top-up according to specification)- Operation of lights and indicators- Condition of glass, headlamp & light lenses and mirrors- Horn- Windscreen washer jets- Condition of wiper blades- Condition and tension of the ancillary drive belts- Handbrake- Condition of hydraulic circuits (hoses and covers)- Condition of rubber boots and gaiters- Brake pads o- Play in hubs, link rods, ball joints, flexible mountings- Shock absorbers- Rear drum brake lining wear- Condition and pressure of tyres (including spare wheel)- Emission control check according to current legislation (petrol only)- Smoke opacity (diesel only) - Pollen filter (according to specification)o- Visual check of the whole vehicle by a Peugeot technician
DRAIN and REFILL
REPLACE
LEVELS
CHECK

ROAD TEST
- Courtesy vehicle
SERVICE
LevelOperation Description of Operation First Service
A C Intermediate
01-07-2002

1 -Fuel filler cap warning light.
2 - Door open warning light.
3 - Dipped beam headlamps indicator light.
4 - Main beam headlamps indicator light.
5 - Rev. counter.
6 - Left-hand direction indicator.
7 - Central (STOP) warning light.
8 - Low fuel level warning light.
9 - Fuel gauge. 10 -
Service indicator, oil level indica-
tor and total distance recorder.
11 - Right-hand direction indicator.
12 - Speedometer.
13 - Clogging of the particulateemission filter warning light(Diesel).
14 - Front fog lamps indicator light.
15 - Rear fog lamp indicator light.
16 - Dynamic stability control(ASR/ESP) warning light (petrolversions only). 17 -
Low coolant level warning light.
18 - Coolant temperature indicator.
19 - Trip recorder zero reset button.
20 - Handbrake and low brake fluid level warning light.
21 - Seat belt not fastened warninglight.
22 - Air bags warning light.
23 - ABS system warning light.
24 - Engine diagnostics warninglight.
25 - Battery charge warning light.
26 - Diesel engine preheating indicator light.
27 - Passenger air bag disarmingwarning light.
28 - Water in diesel filter warninglight.
29 - Front brake pad wear warninglight.
30 - Engine oil pressure warninglight.
31 - Electronic immobiliser warninglight.
32 - Lighting rheostat.
33 - Engine oil temperature indicator.
YOUR 406 COUPE IN DETAIL
102
INSTRUMENT PANEL DIALS: PETROL / DIESEL
01-07-2002

YOUR 406 COUPE IN DETAIL103
1 -
Fuel filler cap warning light.
2 - Door open warning light.
3 - Dipped beam headlamps indi- cator light.
4 - Main beam headlamps indicatorlight.
5 - Rev. counter.
6 - Left-hand direction indicator.
7 - Central (STOP) warning light.
8 - Low fuel level warning light.
9 - Fuel gauge. 10 -
Service indicator, oil level indicator and total distance
recorder.
11 - Right-hand direction indicator.
12 - Speedometer.
13 - Front fog lamps indicator light.
14 - Rear fog lamp indicator light.
15 - Dynamic Stability Control(ASR/ESP) warning light.
16 - Low coolant level warning light. 17 -
Coolant temperature indicator.
18 - Trip recorder zero reset button.
19 - Handbrake and low brake fluid level warning light.
20 - Seat belt not fastened warninglight.
21 - Air bags warning light.
22 - ABS system warning light.
23 - Engine diagnostics warninglight.
24 - Battery charge warning light.
25 - Passenger air bag disarmingwarning light.
26 - Front brake pad wear warninglight.
27 - Engine oil pressure warninglight.
28 - Operating programmes.
29 - Gear lever position indicator.
30 - Electronic immobiliser warninglight.
31 - Lighting rheostat.
32 - Engine oil temperature indicator.
INSTRUMENT PANEL DIALS: AUTOMATIC GEARBOX
01-07-2002

Front and rear fog lamps (2nd rotation ofthe ring forwards)
These operate with the side lightsand the dipped/main beam head-lamps. Note: to switch off the rear fog lamp
and the front fog lamps, turn the ring backwards twice in succession.
THE LIGHTS STALK Front and rear lightsSelection is by turning ring A.
Lights off Side lights Dipped / main beam headlamps Automatic switching on of lights Dipped/main beam change Pull the stalk fully towards you. Note:
with the ignition off, if the dri-
ver's door is left open, a buzzer sounds if you have left your lights on.
Front fog lamps and rear fog lamp(ring B) Rotate the ring forwards to switch on
and backwards to switch off. The sta-tus is confirmed by the indicator lighton the instrument panel. Front fog lamps (first rota-tion of the ring forwards)
These operate with the side lightsand the dipped/main beam head-lamps. Direction indicators(flashers)
Left: downwards.
Right: upwards.
YOUR 406 COUPE IN DETAIL 99
In good or rainy weather, both day and night, therear fog lamp is dazzlingand is prohibited.
Do not forget to switch the foglamp off when it is no longerneeded.
01-07-2002

AUTOMATIC SWITCHING ON OF THE LIGHTS Side lights and dipped beam head- lamps switch on automatically if the
light is poor, or during continuousoperation of the windscreen wipers.
They switch off as soon as the lightbecomes bright enough or the wind-screen wipers stop. This function is active when the vehi-
cle is supplied to the customer.
To disarm or activate the function: Place the key in the accessories position (1st notch),
 Press the end of the lights stalkfor more than two seconds.
Note: In foggy weather, the bright-
ness sensor can detect sufficientlight. Because of this, the lights do
not come on automatically. Do not cover the brightness sen-
sor connected to the rain sensor,located in the windscreen behind
the mirror. It is used for automaticswitching on of the lights. Operating check Activation Activation of this function is accom- panied by an audible signal and themessage
"Automatic lighting of
the headlamps activated" on the
multi-function display. Note: Always operate the lighting
controls manually where this is pos- sible. Disarming Disarming of the function is accom- panied by an audible signal. When driving, if this function is
switched off when the headlampswould switch on in automatic mode,the lights remain on. It is however possible to disarm this
function and switch off the lights by:
- manually switching off the lights using the lights stalk,
- switching off the engine. If the brightness sensor does not
function correctly,
the system acti-
vates the function (the lights comeon). The driver is alerted by the flashingof the ''dipped beam'' warning lighton the instrument panel.
Contact a PEUGEOT dealer to have the system checked. Follow me Home When there is a low level of bright- ness or at night, if you leave yourvehicle, the side lights and thedipped beam lights may remain onfor approximately one minute.
To do this: place the lights stalk in the AUTO
position,
 place the key in the accessories position (first notch),
 press the end of the lights stalk formore than two seconds,
 place the lights stalk in the 0posi-
tion,
 flash the headlamps,
 get out of the car and lock it.
YOUR 406 COUPE IN DETAIL
100
01-07-2002

THE WIPER STALK
Windscreen wipers2 Fast wipe (heavy rain).
1 . Normal wipe (moderate
rain).
AUTO Automatic wipe.
0 .Off.


. Single wipe (press the stalk
downwards). Operation In position 1 or 2, when the vehicle stops, the windscreen wiper changesto a lower wiping speed, thenresumes its initial speed when thevehicle starts again. When the ignition has been switched off for more than a
minute with the stalk in the AUTOposition, it is necesary to reacti-vate this function.
To do this, move
the stalk to any position, then move itback to the AUTOposition.
YOUR 406 COUPE IN DETAIL 101
Do not cover the rain detector located on thewindscreen behind the
interior mirror.
When using an automatic carwash, switch off the ignition orcheck that the wiper stalk is not inthe automatic position.
In winter, it is advisable to wait for the windscreen to completelyclear of ice before operating theautomatic wipe.
Windscreen and headlamp wash Pull the windscreen wiper stalk towards you. The windscreen wash then the wind- screen wipers operate for a fixed
period. The windscreen wash andheadlamp wash operate simultane-ously for a few seconds, only if the
dipped beam or main beam head-lamps are on.
Automatic wipe In the
AUTOposition, the wiper
operates automatically and adjusts
its speed to the intensity of the rainfall. Operating check ActivationActivation of the function is accom- panied by the message "Automatic
wiper activated" on the multiÐfunc-
tion display. In the event of malfunction in the
AUTO position, the windscreen
wiper will operate in down-grade mode. Have the system checked by a
PEUGEOT dealer.
