PRACTICAL INFORMATION117
Fuse N¡ Rating
Functions
1 10 A Automatic gearbox reversing lights switch - Automatic gearbox starting inhibitor relay
control - Manual gearbox reversing lights switch - Vehicle speed sensor - Water in diesel
sensor.
2 15 A Canister solenoid valve - Fuel pump.
3 10 A Power steering control unit - ABS or ESP control unit.
4 10 A Injection control unit - Fan unit relay control - Additional heating relay control -
Automatic gearbox control unit - Automatic gearbox sequential control -
Automatic gearbox shiftlock relay.
5 15 A Particulate emission filter control unit.
6 15 A Front fog lamps.
7 20 A Not used.
8 20 A Fan unit relay control - Engine control unit supply - Injection pump (Diesel).
9 15 A Left dipped beam.
10 15 A Right dipped beam.
11 10 A Right main beam.
12 10 A Left main beam.
13 15 A Horn.
14 10 A Front and rear headlamps wash pump.
15 30 A Oxygen sensors - Exhaust gas recirculation solenoid valve - Ignition coil - Diesel high
pressure regulator - Injectors supply (petrol) - Pre-heat unit - Air flow sensor (Diesel) -
Engine control unit (Diesel) - Injection pump (Diesel) - Diesel heater.
16 40 A Petrol engine air pump with automatic gearbox.
17 30 A Low/high speed front wiper.
18 40 A Air conditioning blower.
PRACTICAL INFORMATION115

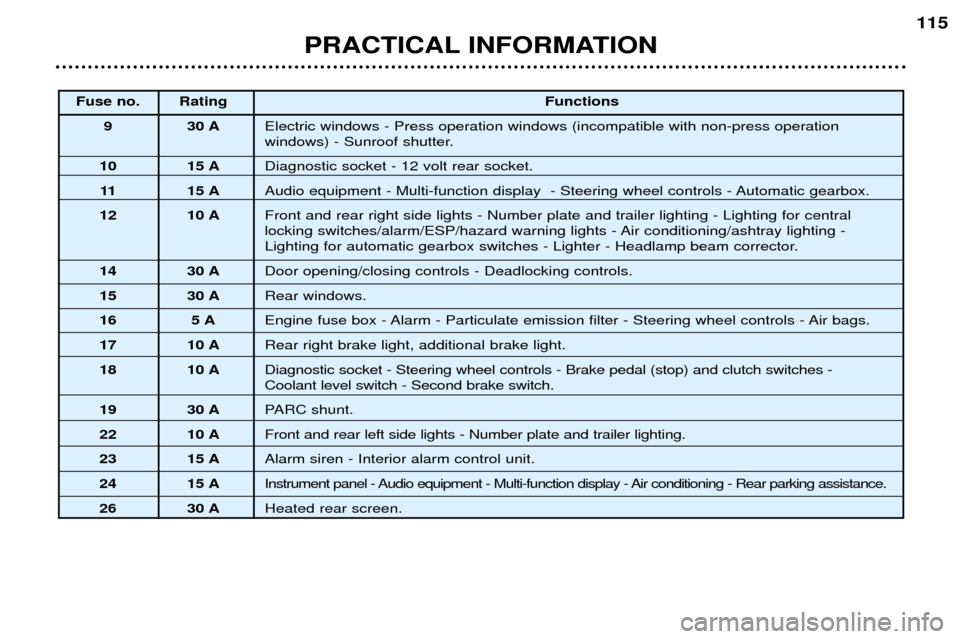

Fuse no. Rating
Functions
9 30 A Electric windows - Press operation windows (incompatible with non-press operation
windows) - Sunroof shutter.
10 15 A Diagnostic socket - 12 volt rear socket.
11 15 A Audio equipment - Multi-function display - Steering wheel controls - Automatic gearbox.
12 10 A Front and rear right side lights - Number plate and trailer lighting - Lighting for central
locking switches/alarm/ESP/hazard warning lights - Air conditioning/ashtray lighting -
Lighting for automatic gearbox switches - Lighter - Headlamp beam corrector.
14 30 A Door opening/closing controls - Deadlocking controls.
15 30 A Rear windows.
16 5 A Engine fuse box - Alarm - Particulate emission filter - Steering wheel controls - Air bags.
17 10 A Rear right brake light, additional brake light.
18 10 A Diagnostic socket - Steering wheel controls - Brake pedal (stop) and clutch switches - Coolant level switch - Second brake switch.
19 30 A PARC shunt.
22 10 A Front and rear left side lights - Number plate and trailer lighting.
23 15 A Alarm siren - Interior alarm control unit.
24 15 A Instrument panel - Audio equipment - Multi-function display - Air conditioning - Rear parking assistance.
26 30 A Heated rear screen.
TOWING A TRAILER,
CARAVAN, BOAT ETC.
Only use original PEUGEOT tow bars that have been tested andapproved from the design stage of
your vehicle. The tow bar must be fit-
ted by a PEUGEOT dealer.
Your vehicle is basically designed for transporting people and luggage butit may also be used for towing a trai-
ler. Driving with a trailer subjects the towing vehicle to more significantstress and its driver must be particu-larly careful. Air density decreases with altitude, thus reducing engine performance.Above 1000 metres, the maximumtowing load must be reduced by 10%and so on for every 1000 metres ofaltitude.Driving advice Distribution of loads Distribute the load in the trailer so that the heaviest items are as closeas possible to the axle and the noseweight approaches the maximumpermitted without exceeding it. Cooling
Towing a trailer on a slope increases the temperature of the coolant. As the fan is electrically controlled, its cooling capacity is not dependenton the engine speed.
On the contrary, use a high gear to lower the engine speed, and reduceyour speed. The maximum towing load on a long slope depends on the gradient andthe outside temperature. In all cases, pay attention to the coolant temperature. If the warning light comes on, stop
the vehicle and switch off the engineas soon as possible.Tyres Check the tyre pressures of the
towing vehicle and of the trailer,observing the recommended pres-sures. Braking
Towing increases the braking distance. Lights Adjust your headlamps so that they do not dazzle other road users.Check the electrical signalling on the
trailer. Side wind
Take into acount the increased sen- sitivity to side wind.
