MANUAL HEATING AND AIR CONDITIONING SYSTEM
Fan speed control
Controls the volume of air circulated
in the vehicle.
Temperature control knob
Controls the temperature of the
airflow inside the vehicle.
Mode Selector Control
Controls the direction of the airflow
to the inside of the vehicle.
A/C Control
A/C
This control is used to manually enable or disable the operation of the
air conditioning in all modes. In all modes, the air conditioning will only
function if the outside temperature is about 4°C (40°F) or higher.
When
A/Cis selected (ON) the indicator will be lit. WhenA/Cis selected
again (OFF) the indicator will not be lit.
1
MAX
A/C
A/C OFF2
3
4
CLIMATE CONTROL SYSTEM
12
3
4
MAX
A/COFF
Climate Controls
58

The air condition operates in MAX A/C and when the A/C control is
depressed. However, the air conditioning will only function if the outside
temperature is about 4°C (40°F) or higher.
Since the air conditioner removes considerable moisture from the air
during operation, it is normal if clear water drips on the ground under
the air conditioner drain while the system is working and even after you
have stopped the vehicle.
•MAX A/C–Uses recirculated air to cool the vehicle. MAX A/C is
noisier than A/C modes but more economical and will cool the inside
of the vehicle faster. In this mode, the air conditioning will
automatically engage if the outside temperature is about 4°C (40°F) or
higher and the
A/Cindicator will automatically light. Airflow will be
from the instrument panel registers. This mode can also be used to
prevent undesirable odors from entering the vehicle.
•
(Panel)–Distributes outside air through the instrument panel
registers. Heating and air conditioning capabilities are provided in this
mode. Push
A/Cto cool the vehicle below the outside temperature.
•OFF–Outside air is shut out and the fan will not operate. For short
periods of time only, use this mode to reduce undesirable odors from
entering the vehicle.
•
(Panel and floor)–Distributes outside air through the
instrument panel registers and the front and rear floor ducts. Heating
and air conditioning capabilities are provided in this mode. Push
A/C
in order to cool the vehicle below the outside temperature. For added
customer comfort, when the temperature control knob is anywhere in
between the full hot and full cold positions, the air distributed through
the front and rear floor ducts will be slightly warmer than the air sent
to the instrument panel registers.
•
(Floor)–Distributes outside air through the front and rear floor
ducts. Heating and air conditioning capabilities are provided in this
mode. Push
A/Cin order to cool the vehicle below the outside
temperature.
Operating tips
•In humid weather conditions, place the climate control system in
Defrost mode before driving. This will reduce fogging on your
windshield. Once the windshield has been cleared, operate the climate
control system as desired.
•To reduce humidity buildup inside the vehicle in cold weather
conditions, don’t drive with the climate control system in the OFF or
MAX A/C position.
Climate Controls
59

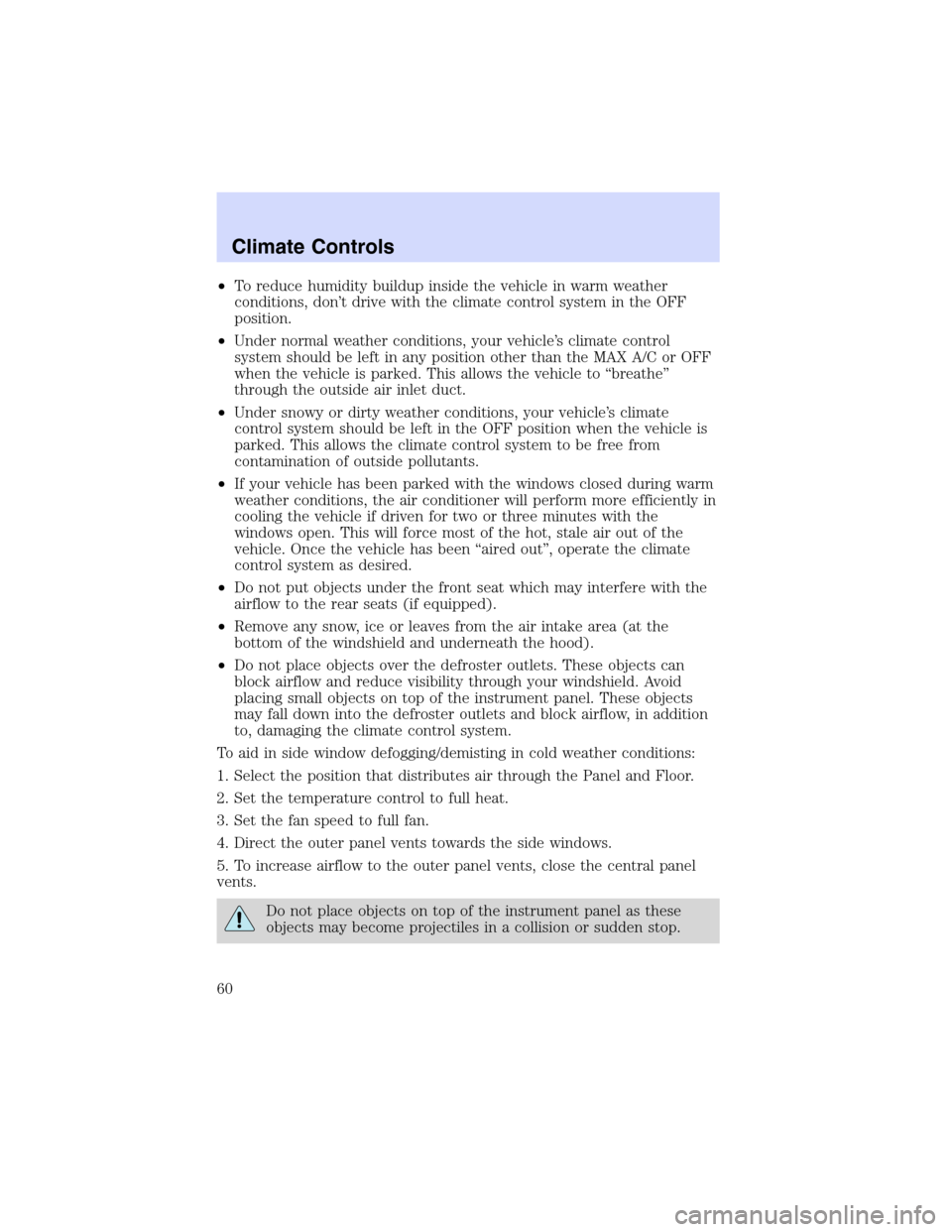

•To reduce humidity buildup inside the vehicle in warm weather
conditions, don’t drive with the climate control system in the OFF
position.
•Under normal weather conditions, your vehicle’s climate control
system should be left in any position other than the MAX A/C or OFF
when the vehicle is parked. This allows the vehicle to“breathe”
through the outside air inlet duct.
•Under snowy or dirty weather conditions, your vehicle’s climate
control system should be left in the OFF position when the vehicle is
parked. This allows the climate control system to be free from
contamination of outside pollutants.
•If your vehicle has been parked with the windows closed during warm
weather conditions, the air conditioner will perform more efficiently in
cooling the vehicle if driven for two or three minutes with the
windows open. This will force most of the hot, stale air out of the
vehicle. Once the vehicle has been“aired out”, operate the climate
control system as desired.
•Do not put objects under the front seat which may interfere with the
airflow to the rear seats (if equipped).
•Remove any snow, ice or leaves from the air intake area (at the
bottom of the windshield and underneath the hood).
•Do not place objects over the defroster outlets. These objects can
block airflow and reduce visibility through your windshield. Avoid
placing small objects on top of the instrument panel. These objects
may fall down into the defroster outlets and block airflow, in addition
to, damaging the climate control system.
To aid in side window defogging/demisting in cold weather conditions:
1. Select the position that distributes air through the Panel and Floor.
2. Set the temperature control to full heat.
3. Set the fan speed to full fan.
4. Direct the outer panel vents towards the side windows.
5. To increase airflow to the outer panel vents, close the central panel
vents.
Do not place objects on top of the instrument panel as these
objects may become projectiles in a collision or sudden stop.
Climate Controls
60

REAR PASSENGER AIR CONDITIONING SYSTEM (IF EQUIPPED)
This system allows the rear seat occupants to adjust their air
conditioning comfort level.
The rear A/C fan speed control allows the rear passengers to control the
volume of air that is distributed from the rear registers.
The rear seat A/C system is controlled from the main climate control
system on the instrument panel. Ensure that the control is set to REAR
A/C to engage the rear passenger compartment air conditioning system.
0
1
2
3
4REAR
A/C
OFF REAR A/C 1 2 3 4
1
MAX
A/COFF2
3
4
A/C
Climate Controls
61

Turning the Rear A/C on
1. Set the main climate control rear fan control to Rear A/C; set the
mode selector to any position (other than OFF), and depress the A/C
control.
2. Set the fan speed on the Rear A/C fan control to a number between
1–4 to regulate the airflow to the rear seat section.
The Rear A/C fan speed may be adjusted by the front seat passengers.
For example, if the Rear A/C fan speed is set at 4, the Rear A/C control
on the main climate control system may be adjusted to a lower setting
and will override that of the rear seat setting.
Turning the Rear A/C off:
There are two ways to turn the rear air conditioning system off. The first
way is to set the Rear Fan Control on the main climate control system to
OFF.
OFF REAR A/C 1 2 3 4
1
MAX
A/COFF2
3
4
A/C
10
2
3
4
REAR
A/C
OFF REAR A/C 1 2 3 4
A/C
Climate Controls
62

You can also set the Rear Fan Control on the main climate control
system to Rear A/C and turn the Rear A/C Fan Control to 0.
For maximum cooling for the front seat passengers, set the rear fan
switch to the OFF (0) position.
Please note that the rear passenger air conditioning system is
designed for air conditioning purposes only, and does not heat the
rear compartment. Rear compartment heating is provided by the
underseat floor ducts. Refer to Rear Seat Heating.
ELECTRONIC AUTOMATIC TEMPERATURE CONTROL (EATC)
SYSTEM (IF EQUIPPED)
The EATC system will maintain a selected temperature and automatically
control airflow. You can override automatic operation with any of the
override controls or the fan speed control.
0
1
2
3
4REAR
A/C
TEMP
AUTOMATICOFF REAR 1 2 3 4
OFFA/C
A/CMAXHI
LO
Climate Controls
63

Turning the EATC system on
Press AUTOMATIC, any of the override controls or the fan speed control.
The EATC system will only operate when the vehicle is running.
Turning the EATC system off
Press OFF.
Automatic operation
Press AUTOMATIC and select the desired temperature. The selected
temperature and the word AUTO will appear in the display window. The
EATC system will either heat or cool to achieve the selected
temperature. The system will automatically determine fan speed, airflow
location and if outside air or recirculated air is required. Fan speed
remains automatic unless the fan speed thumbwheel is turned or the
steering wheel fan speed control (if equipped) is pressed.
When in AUTOMATIC and weather conditions require heat, air will be
sent to the floor. However, if the engine is not warm enough to provide
heat, the fan will be at a low speed and the air will be directed to the
windshield. In approximately 3
1⁄2minutes or less, the fan speed will start
to increase and the airflow location will change to the floor area.
TEMP
AUTOMATICOFF REAR 1 2 3 4
OFFA/C
A/CMAXHI
LO
TEMP
AUTOMATICOFF REAR 1
OFF
A/C
