2002 MERCEDES-BENZ CL600 Owner's Manual

126 Multifunction steering wheel, multifunction display
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Audio systems
Radio1Audio system is switched off.
2The radio is switched on.
3Wave band setting and memory location number,
where appropriate.
4Station name setting or station frequency.
5This only appears when “MEMORY” rather than
“FREQUENCY” has been selected in the
“SETTINGS” – “VEHICLE” – “STATION SEARCH
USING” menu. See page 147.
Switch on the radio, see COMAND operator’s manual.
Press theè or ÿbutton repeatedly until
display (2) appears.
Press buttonj ork repeatedly until the required
station or frequency is displayed.
Use thej of kbutton to select a stored station or
station frequency. This depends on the selection made
in the “STATION SEARCH USING” setting menu. See
page 140.
Pressing theè or ÿbutton displays the next or
previous system.
P54.30-2936-27
J_OM_215.book Seite 126 Mittwoch, 30. Mai 2001 2:01 14

127 Multifunction steering wheel, multifunction display
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index CD player1Audio system is switched off.
2The CD player is switched on.
3The number of the CD currently playing is displayed
if you are using a CD changer.
4Track number.
Switch on the CD player, see COMAND operator’s
manual.
Press theè or ÿbutton repeatedly until
display (2) appears.
Press thej or kbutton repeatedly until the
required track number (4) is displayed.
Pressing theè or ÿbutton displays the next or
previous system.
Note:
To select a CD from the magazine (only vehicles with CD
changer), press a number on the COMAND system key
pad located in the center dashboard.
J_OM_215.book Seite 127 Mittwoch, 30. Mai 2001 2:01 14

128 Multifunction steering wheel, multifunction display
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Cassette player1Audio system is switched off.
2The cassette player is switched on.
3Side being played.
Switch on the cassette player, see COMAND operator’s
manual.
Press theè or ÿbutton repeatedly until
display (2) appears.
Pressing the jbutton fast forwards on to the next
track.
Pressing the kbutton rewinds the cassette to the
beginning of the current track.
Pressing theè or ÿbutton displays the next or
previous system.
Notes:
To select the reverse side of the tape, enter request on
the COMAND system located in the center dashboard.
To eject the inserted tape, press “EJT” on the COMAND
system located in the center dashboard.
J_OM_215.book Seite 128 Mittwoch, 30. Mai 2001 2:01 14

129 Multifunction steering wheel, multifunction display
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Te l e p h o n e

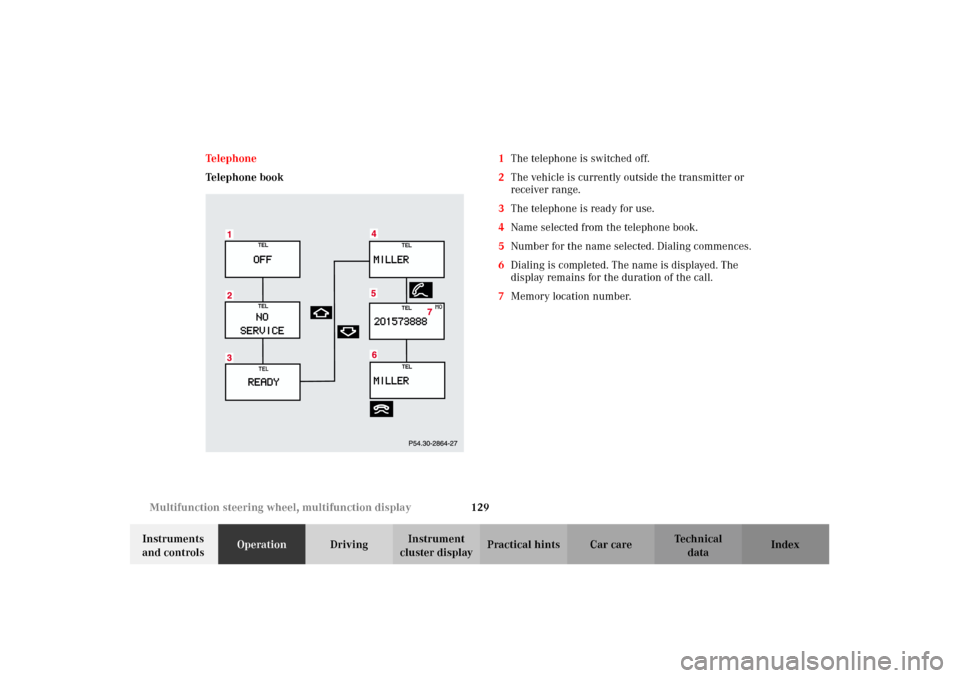

Telephone book1The telephone is switched off.
2The vehicle is currently outside the transmitter or
receiver range.
3The telephone is ready for use.
4Name selected from the telephone book.
5Number for the name selected. Dialing commences.
6Dialing is completed. The name is displayed. The
display remains for the duration of the call.
7Memory location number.
J_OM_215.book Seite 129 Mittwoch, 30. Mai 2001 2:01 14

130 Multifunction steering wheel, multifunction display
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
The telephone and COMAND system must be switched
on.
Press theè or ÿbutton repeatedly until the
display (3) appears. See the separate telephone
instructions manual.
If display (2) appears, no service is available.
Pressingj ork “browses” alphabetically
forwards or backwards through the telephone book,
providing it was previously downloaded. See telephone
operator’s manual for details concerning downloading.
Pressing buttonj ork for longer than a second
“browses” rapidly through the telephone book. The
name selected appears in the display.
Note:
Press the ìbutton if you do not wish to make a call.
The procedure is cancelled and display (3) appears.Press the íbutton when the name you require
appears in the display (4). The telephone number (5) is
dialed.
The name will be displayed when dialing is completed.
Display (6) remains for the duration of the call.
Pressing the ìbutton hangs up and display (3)
appears.
Pressing theè or ÿbutton displays the next or
previous system.
J_OM_215.book Seite 130 Mittwoch, 30. Mai 2001 2:01 14

131 Multifunction steering wheel, multifunction display
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument

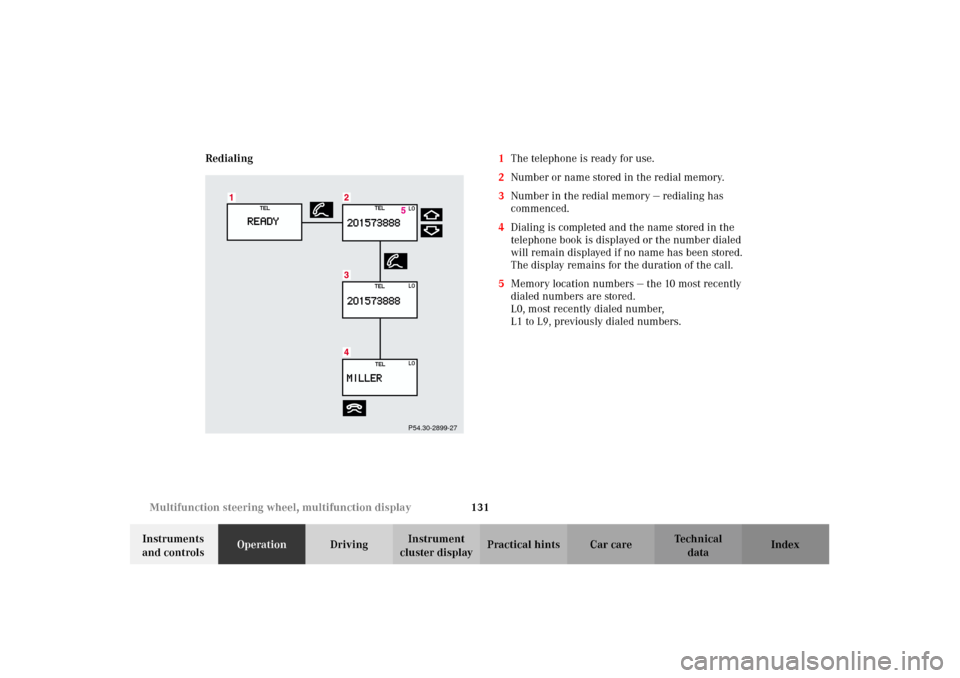

cluster displayPractical hints Car care Index Redialing1The telephone is ready for use.
2Number or name stored in the redial memory.
3Number in the redial memory — redialing has
commenced.
4Dialing is completed and the name stored in the
telephone book is displayed or the number dialed
will remain displayed if no name has been stored.
The display remains for the duration of the call.
5Memory location numbers — the 10 most recently
dialed numbers are stored.
L0, most recently dialed number,
L1 to L9, previously dialed numbers.
P54.30-2899-27
J_OM_215.book Seite 131 Mittwoch, 30. Mai 2001 2:01 14

132 Multifunction steering wheel, multifunction display
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
The telephone and COMAND system must be switched
on.
Press theè or ÿbutton repeatedly until the
display (1) appears.
Pressing the íbutton activates the redial memory
and the most recently dialed number is displayed.
Pressing thej or kbutton “browses” forward or
backwards through the redial memory. The number or
name selected appears in the display.
Note:
Press the ìbutton if you do not wish to make a call.
The procedure is cancelled and display (1) appears.Press the íbutton when the required number or
name appears in the display (2).
The telephone number (3) is dialed.
Once dialing is completed the name (4) is displayed if
the name is stored in the telephone book; failing that
the number dialed will remain displayed. The display
remains for the duration of the call.
Pressing the ìbutton hangs up and display (1)
appears.
Pressing theè or ÿbutton displays the next or
previous system.
J_OM_215.book Seite 132 Mittwoch, 30. Mai 2001 2:01 14

133 Multifunction steering wheel, multifunction display
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument

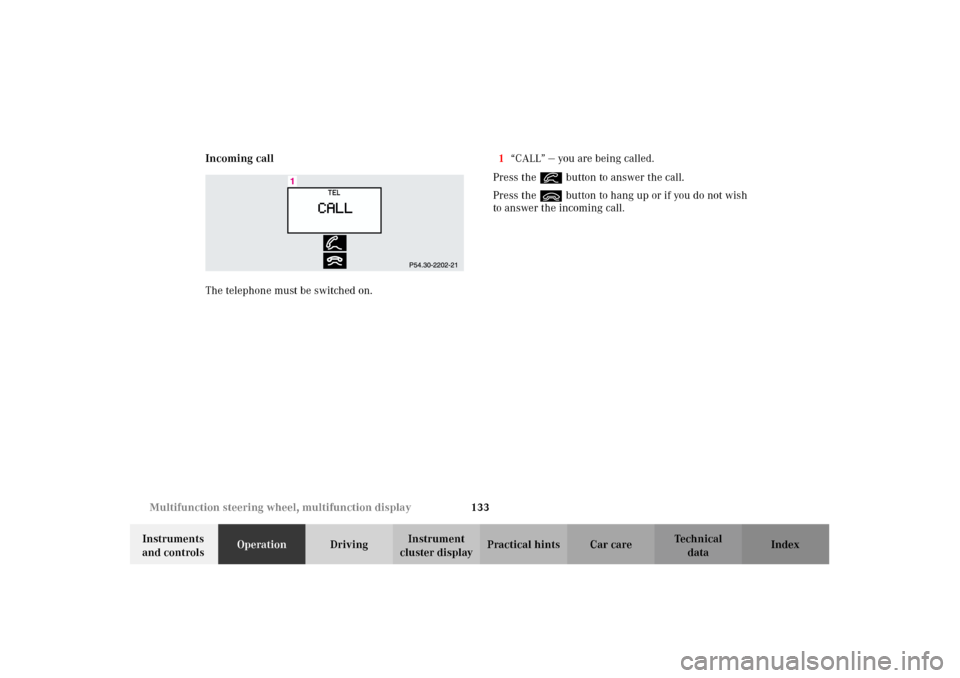

cluster displayPractical hints Car care Index Incoming call
The telephone must be switched on.1“CALL” — you are being called.
Press the íbutton to answer the call.
Press the ìbutton to hang up or if you do not wish
to answer the incoming call.
J_OM_215.book Seite 133 Mittwoch, 30. Mai 2001 2:01 14
