2002 MERCEDES-BENZ CL55AMG Owner's Manual

390 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Spare parts service
All authorized Mercedes-Benz Centers maintain a stock
of original spare parts required for maintenance and
repair work. In addition, strategically located parts
distribution centers provide quick and reliable parts
service.
More than 300 000 different spare parts, for
Mercedes-Benz models, are available.
Mercedes-Benz original spare parts are subjected to
stringent quality inspections. Each part has been
specifically developed, manufactured or selected for and
adapted to Mercedes-Benz vehicles.
Therefore, Mercedes-Benz original spare parts should
be installed.
Important!
The use of non-genuine parts and accessories not
authorized by Mercedes-Benz could damage the vehicle
which damage is not covered by the Mercedes-Benz
Limited Warranty or compromise its durability or safety.Wa r r a n t y c o v e r a g e
Your vehicle is covered under the terms of the
“warranties” printed in the Service and Warranty
Information booklet and your authorized
Mercedes-Benz Center will exchange or repair any
defective parts originally installed on the vehicle in
accordance with the terms of the following warranties:
1. New vehicle limited warranty
2. Emission system warranty
3. Emission performance warranty
4. California, Massachusetts, and Vermont emission
control systems warranty
Replacement parts and accessories are covered by the
Mercedes-Benz Spare Parts and Accessories warranties,
copies of which are available at any Mercedes-Benz
Center.
Loss of Service and Warranty Information Booklet
Should you lose your Service and Warranty Information
booklet, have your authorized Mercedes-Benz Center
arrange for a replacement. It will be mailed to you.
J_OM_215.book Seite 390 Mittwoch, 30. Mai 2001 2:01 14

391 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index Identification labels
1Certification label
(on driver’s B pillar)2Vehicle Identification Number (VIN)
(below right rear passenger seat)
J_OM_215.book Seite 391 Mittwoch, 30. Mai 2001 2:01 14

392 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index

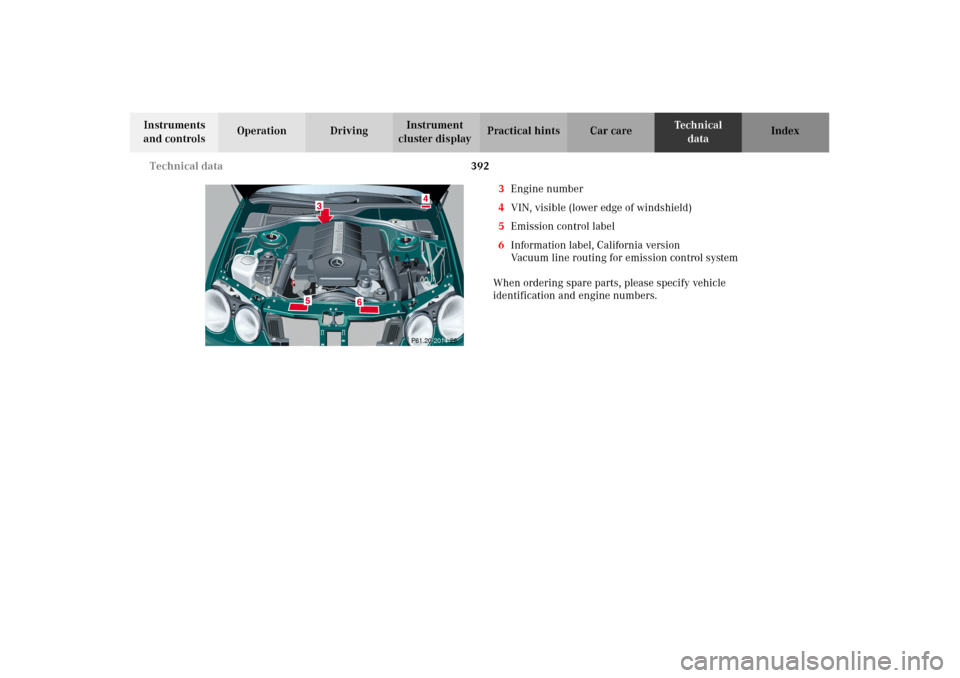

3Engine number
4VIN, visible (lower edge of windshield)
5Emission control label
6Information label, California version
Vacuum line routing for emission control system
When ordering spare parts, please specify vehicle
identification and engine numbers.
P61.20-2014-26
J_OM_215.book Seite 392 Mittwoch, 30. Mai 2001 2:01 14

393 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument

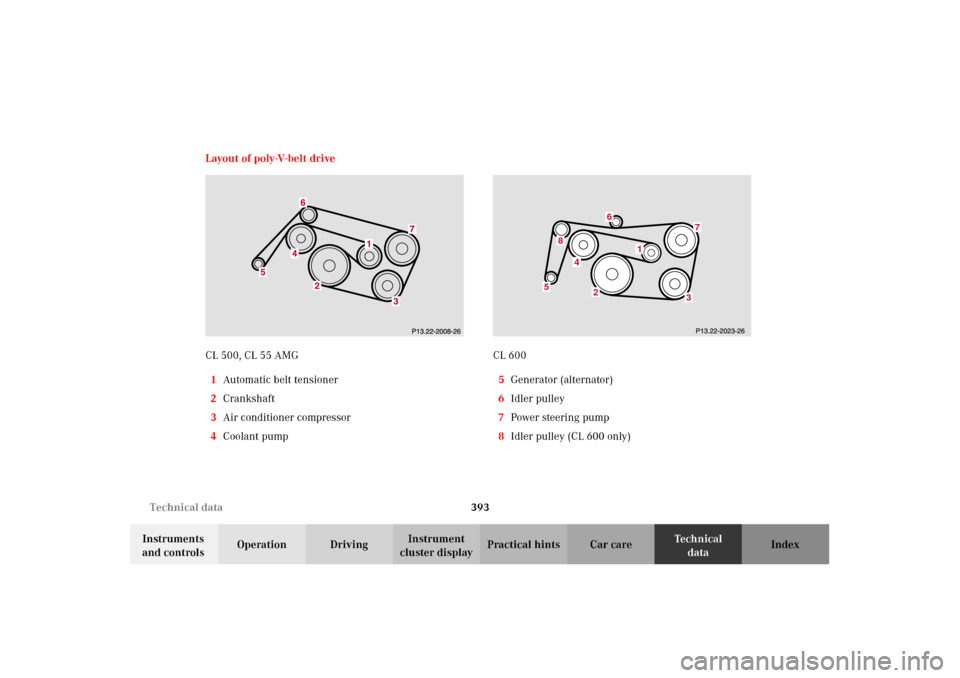

cluster displayPractical hints Car care Index Layout of poly-V-belt drive
CL 500, CL 55 AMG
1Automatic belt tensioner
2Crankshaft
3Air conditioner compressor
4Coolant pumpCL 600
5Generator (alternator)
6Idler pulley
7Power steering pump
8Idler pulley (CL 600 only)
8
5
1
2
3
6
7
4
J_OM_215.book Seite 393 Mittwoch, 30. Mai 2001 2:01 14

394 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Te ch n i c a l d a t a
Model CL 500 (215.375
1)CL 55 AMG (215.373
1)CL 600 (215.378
1)
Engine 113 113 137
Mode of operation 4-stroke engine,
gasoline injection4-stroke engine,
gasoline injection4-stroke engine,
gasoline injection
No. of cylinders8812
Bore 3.82 in (97.00 mm) 3.82 in (97.00 mm) 3.31 in (84.00 mm)
Stroke 3.31 in (84.00 mm) 3.60 in (92.00 mm) 3.43 in (87.00 mm)
Total piston displacement 303.5 cu.in. (4966 cm
3) 332.0 cu.in. (5439 cm
3) 353.6 cu.in. (5786 cm
3)
Compression ratio 10:1 10.5:1 10:1
Output acc.
to SAE J 1349302 hp/5500 rpm
(225 kW/5500 rpm)355 hp/5500 rpm
(265 kW/5500 rpm)362 hp/5500 rpm
(270 kW/5500 rpm)
Maximum torque acc.
to SAE J 1349339 ft-lb/2700 rpm
(460 Nm/2700 rpm)390 ft.lb/3150 rpm
(530 Nm/3150 rpm)391 ft-lb/4100 rpm
(530 Nm/4100 rpm)
Maximum engine speed 6000 rpm 6000 rpm 6000 rpm
Firing order 1-5-4-2-6-3-7-8 1-5-4-2-6-3-7-8 1-12-5-8-3-10-6-7-2-11-4-9
Poly-V-belt 2390 mm 2390 mm 2335 mm
1 The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the
corresponding data of all special bodies and special equipment.
J_OM_215.book Seite 394 Mittwoch, 30. Mai 2001 2:01 14

395 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index Rims – Tires
1 Also permissible 245/45 ZR18 96 Y
2 Also permissible 275/40 ZR18 96 Y M0
3
3 Must not be used with snow chains.
Model CL 500, CL 600
(except Sport Package)
Rims (light alloy)
Wheel offset:7
1/2Jx17H2
1. 81 i n ( 4 6 m m )
All season tires:
Radial-ply tires 225/55 R17 97H
Winter tires:
Radial-ply tires 225/55 R17 97H M+S
Spare wheel
Rim (light alloy)
Wheel offset:7
1/2Jx17H2
2.0 in (51 mm)
All season tire:
Radial-ply tire 225/55 R17 97HModel CL 500, CL 600
(Sport Package)
Rims front axle
AMG light alloy rims
Wheel offset:8
1/2Jx18H2
1.73 in (44 mm)
Rims rear axle
AMG light alloy rims
Wheel offset:9
1/2Jx18H2
1. 81 i n ( 4 6 m m )
Radial-ply tires
front axle
rear axle245/45 R18 96Y
1
275/40 R18 99Y M0
2, 3
Spare wheel
Rim (light alloy)
Wheel offset:7
1/2Jx17H2
1. 81 i n ( 4 6 m m )
All season tire:
Radial-ply tire 225/55 R17 97H
J_OM_215.book Seite 395 Mittwoch, 30. Mai 2001 2:01 14

396 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
1 Also permissible 245/45 ZR18 96
2 Also permissible 275/40 ZR18 96 MO
3
3 Must not be used with snow chains.
Rims – Winter tires
Model CL 55 AMG
Rims front axle
AMG light alloy rims
Wheel offset:8
1/2Jx18H2
1.73 in (44 mm)
Rims rear axle
AMG light alloy rims
Wheel offset:9
1/2Jx18H2
1. 81 i n ( 4 6 m m )
Radial-ply tires
front axle
rear axle245/45 R18 96Y
1
275/40 R18 99Y M0
2, 3
Spare wheel
Rim (light alloy)
Wheel offset:7
1/2Jx17H2
1. 81 i n ( 4 6 m m )
All season tire:
Radial-ply tire 225/55 R17 97HModel CL 55 AMG
Rim (light alloy)
Wheel offset7
1/2 J x 17 H 2
1. 81 i n ( 4 6 m m )
Winter tires:
Radial-ply tires 225/55 R17 97H M+S
J_OM_215.book Seite 396 Mittwoch, 30. Mai 2001 2:01 14

397 Technical data
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index Electrical system
Model CL 500 CL 55 AMG CL 600
Generator (alternator) 14 V/150 A 14 V/150 A 14 V/150 A
Starter motor 12V/1.7 kW 12V/1.7 kW 12V/2.2 kW
B a t t e r y 12 V / 10 0 A h 12 V / 10 0 A h 12 V / 10 0 A h
Spark plugs
Electrode gap
Tightening torqueBosch F 8 DPER
Beru 14 FGH 8 DPUR X 2
NGK PFR 5 R-11
0.039 in (1.0 mm)
15 – 22 ft.lb (20 – 30 Nm)NGK PFR 5-11
0.039 in (1.0 mm)
15 – 22 ft.lb (20 – 30 Nm)Beru 14 F 7-DPUR X 2
0.041 in (1.05 mm)
15 – 22 ft.lb (20 – 30 Nm)
