2002 MAZDA MODEL PROTÉGÉ CD player

6-28
Interior Comfort
Au di o S ys t em
Form No. 8Q36-EA-01F

Operating the Compact Disc (CD) Player
Inserting the CD
Insert the CD into the slot, label-side up.
The auto-loading mechanism will set the
CD and begin play. There will be a short
lapse before play begins while the player
reads the digital signals on the CD.
The disc-in indicator will illuminate and
the track number will be displayed.
Playing
Press the CD play button ( ) to start
playing when a CD is in the unit.
Ejecting the CD
Press the CD eject button ( ) to eject the
CD.Fast-forward/Reverse
Press and hold the fast-forward button
( ) to advance through a track at high
speed.
Press and hold the reverse button ( )
to reverse through a track at high speed.
Tr a c k s e a r c h
Press the track up button ( ) once to
skip forward to the beginning of the next
track.
Press the track down button ( ) once to
skip back to the beginning of the current
track.
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
Display CD slot
Disc-in indicator
CD eject
button CD play button
Random button
Repeat buttonScan
button Fast-forward button
Reverse
button Track up
button
Track down
button
J39L(02MY).book Page 28 Thursday, November 1, 2001 10:49 AM

6-29
Interior Comfort
Au di o S ys t em
Form No. 8Q36-EA-01F

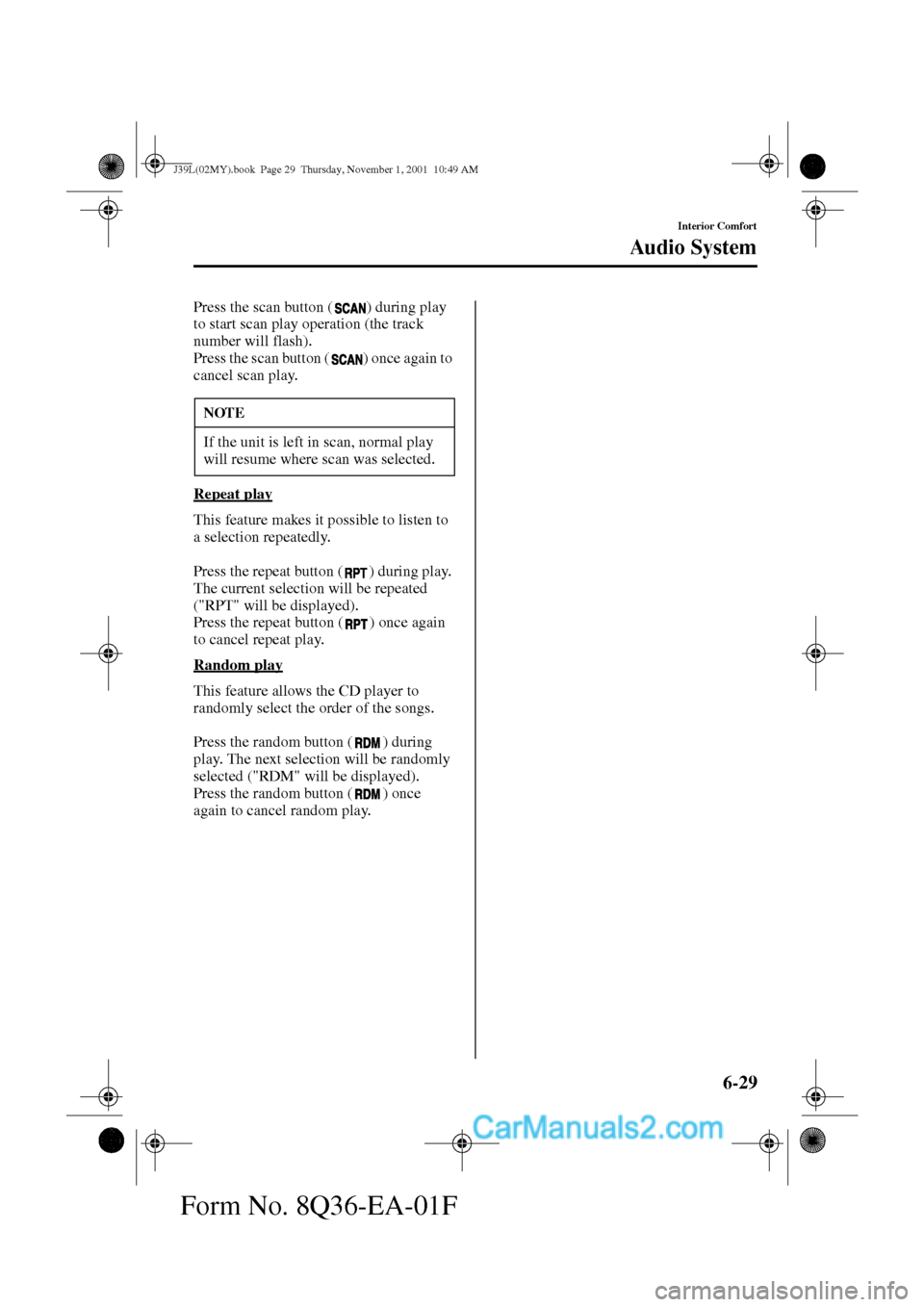

Press the scan button ( ) during play
to start scan play operation (the track
number will flash).
Press the scan button ( ) once again to
cancel scan play.
Repeat play
This feature makes it possible to listen to
a selection repeatedly.
Press the repeat button ( ) during play.
The current selection will be repeated
("RPT" will be displayed).
Press the repeat button ( ) once again
to cancel repeat play.
Random play
This feature allows the CD player to
randomly select the order of the songs.
Press the random button ( ) during
play. The next selection will be randomly
selected ("RDM" will be displayed).
Press the random button ( ) once
again to cancel random play.
NOTE
If the unit is left in scan, normal play
will resume where scan was selected.
J39L(02MY).book Page 29 Thursday, November 1, 2001 10:49 AM

6-30
Interior Comfort
Au di o S ys t em
Form No. 8Q36-EA-01F

Operating the In-Dash CD Changer
Inserting the CD
The CD must be label-side up when
inserting. The auto-loading mechanism
will set the CD and begin play. There will
be a short lapse before play begins while
the player reads the digital signals on the
CD.
The disc number and the track number
will be displayed.Normal insertion
1. Press the load button ( ).
2. When "In" is displayed, insert the CD.
Inserting CDs into desired tray number
1. Press and hold the load button ( )
for about 2 seconds until a beep is
heard.
2. Press the channel preset button for the
desired tray number within 5 seconds
after the beep is heard.
3. When "In" is displayed, insert the CD.
Display CD slot
Disc-in indicator
CD eject
button CD play button
Random button
Repeat button Disc up buttonScan
button Fast-forward button
Reverse
button Track up
button
Track down
button
Disc down
button
Load button
Power/Volume knob
NOTE
A CD cannot be inserted while the
display reads "WAIT". A beeping
sound can be heard during this waiting
time. Simultaneously pressing the
power/volume knob and the load
button ( ) for about 2 seconds will
turn this beeping sound ON or OFF.
NOTE
The CD cannot be inserted to the
desired tray number if the number is
already occupied.
J39L(02MY).book Page 30 Thursday, November 1, 2001 10:49 AM

6-32
Interior Comfort
Au di o S ys t em
Form No. 8Q36-EA-01F
Disc search
Press the disc up button ( ) to skip
forward to the beginning of the next CD.
Press the disc down button ( ) to
skip back to the beginning of the previous
CD.
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
Press the scan button ( ) during play
to start scan play operation (the track
number will flash).
Press the scan button ( ) once again
to cancel scan play.
Repeat play
This feature makes it possible to listen to
a selection repeatedly.
Press the repeat button ( ) during play.
The current selection will be repeated
("RPT" will be displayed).
Press the repeat button ( ) once again
to cancel repeat play.
Random play
This feature allows the CD player to
randomly select the order of the songs.
Press the random button ( ) during
play. The next selection will be randomly
selected ("RDM" will be displayed).
Press the random button ( ) once
again to cancel random play.
NOTE
If the unit is left in scan, normal play
will resume where scan was selected.
J39L(02MY).book Page 32 Thursday, November 1, 2001 10:49 AM

6-34
Interior Comfort
Au di o S ys t em
Form No. 8Q36-EA-01F
This CD player is made and tested to meet exacting safety standards. It meets FCC
requirements and complies with safety performance standards of the U.S. Department of
Health and Human Services.
Safety Certification
•This CD player should not be adjusted or repaired by anyone except qualified service
personnel.
If servicing is required, contact an Authorized Mazda dealer.
•Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure. Never operate the CD
player with the top case of the unit removed.
•Changes or modifications not expressly approved by Mazda may void the user’s
authority to operate this equipment.
NOTE
For CD player section:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
CAUTION
