Speedometer
The speedometer indicates the speed of
the vehicle.

Odometer and Trip Meter
The ignition switch must be in the ON
position.
The display mode can be changed
between trip meter A and trip meter B by
pressing the selector. The selected mode
will be displayed.Odometer
The odometer records the total distance
the vehicle has been driven.
Tr i p m e t e r
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to "0.0" by holding
the selector depressed for more than 1
second. Use this meter to measure trip
distances and to compute fuel
consumption.
A
Selector
B
A
Odometer
Odometer Trip meter A
Press the selector
Press the selector Trip meter B
NOTE
•Only the trip meters record tenths of
kilometers (miles).
•The trip record will be erased when;
The power supply is interrupted
(blown fuse or the battery is
disconnected).
The vehicle is driven over 999.9
km (mile).
J76Y.book Page 19 Wednesday, March 27, 2002 5:04 PM

6-6
Interior Comfort
Climate Control System
Form No. 8Q47-EA-01F
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
This dial controls temperature.Turn it
clockwise for hot and counterclockwise
for cold.
Fan switch
The fan has four speeds. The selected
speed will be displayed.Mode selector switch
The desired airflow mode can be selected
(page 6-4).
A/C switch
With the AUTO or fan switch ON, press
the A/C switch to select the air
conditioning (cooling/dehumidifying
functions) on or off. Successively pressing
the switch will display the following:
A/C
→A/C ECON
→off (not displayed)
AUTO
ColdHot
NOTE
With the airflow mode set to
position and the temperature control
dial set at a medium temperature,
heated air is directed to the feet and a
comparably lower air temperature will
flow through the central, left and right
vents.
J76Y.book Page 6 Wednesday, March 27, 2002 5:04 PM

6-7
Interior Comfort
Climate Control System
Form No. 8Q47-EA-01F
Air intake selector switch
Outside or recirculated air positions can
be selected. Press the switch to select
outside/recirculated air positions.
Recirculated air position ( )
Use this position when going through
tunnels, driving in congested traffic (high
engine exhaust areas) or when quick
cooling is desired.
Outside air position ( )
Use this position for normal conditions
and defogging.AMB (Ambient Temperature) switch
Press the AMB switch. The outside
temperature will be displayed and the
indicator light will illuminate. Press the
switch again, the outside temperature will
disappear and the indicator light will go
off.
NOTE
•Although air conditioning and
defogging ability is reduced, the
A/C ECON function is designed to
economize use of the air
conditioning system.
•The air conditioner may not
function when the outside
temperature approaches 0 °C
(32 °F). (Indicator remains on even
when system is off.) The Recirculated Air Position:
Using the position in cold or
rainy weather will cause the glass to
fog up. Your vision will be hampered,
which could lead to a serious
accident. Do not use the
position in cold or rainy weather.
NOTE
When the air conditioner is operating
and the temperature control is
operated, the display will change to air
conditioner setting temperature.
WARNING
AMB
J76Y.book Page 7 Wednesday, March 27, 2002 5:04 PM

6-18
Interior Comfort
Au di o S ys t em
Form No. 8Q47-EA-01F

Power/Volume/Sound Controls
Power ON/OFF
Turn the ignition switch to the ACC or
ON position.
Press the power/volume knob to turn the
audio system on.
Press the power/volume knob again to
turn the audio system off.Volume adjustmentTo adjust the volume, turn the power/
volume knob.
Turn the power/volume knob to the right
to increase volume, to the left to decrease
it.
Display
Audio control knob Power/Volume knob
NOTE
To prevent the battery from being
discharged, do not leave the audio
system on for a long period when the
engine is not running.
J76Y.book Page 18 Wednesday, March 27, 2002 5:04 PM

6-19
Interior Comfort
Au di o S ys t em
Form No. 8Q47-EA-01F
Audio sound adjustment
1. Press the audio control knob to select
bass, mid-range, treble, fade or balance
control. The selected function will be
indicated.
*Depending on the model, this function,
may not be available.
2. Turn the audio control knob to adjust
the selected functions as follows:
Indication Turn Left Turn Right
Decrease bass Increase bass
Decrease
mid-rangeIncrease
mid-range
Decrease
trebleIncrease
treble
Shift the
sound
to the frontShift the
sound
to the rear
Shift the
sound
to the leftShift the
sound
to the right
NOTE
About 5 seconds after selecting any
mode, the volume function will be
automatically selected. To reset bass,
mid-range, treble, fade, and balance,
press the audio control knob for 2
seconds. The unit will beep and "CL"
will be displayed.
J76Y.book Page 19 Wednesday, March 27, 2002 5:04 PM

6-20
Interior Comfort
Au di o S ys t em
Form No. 8Q47-EA-01F

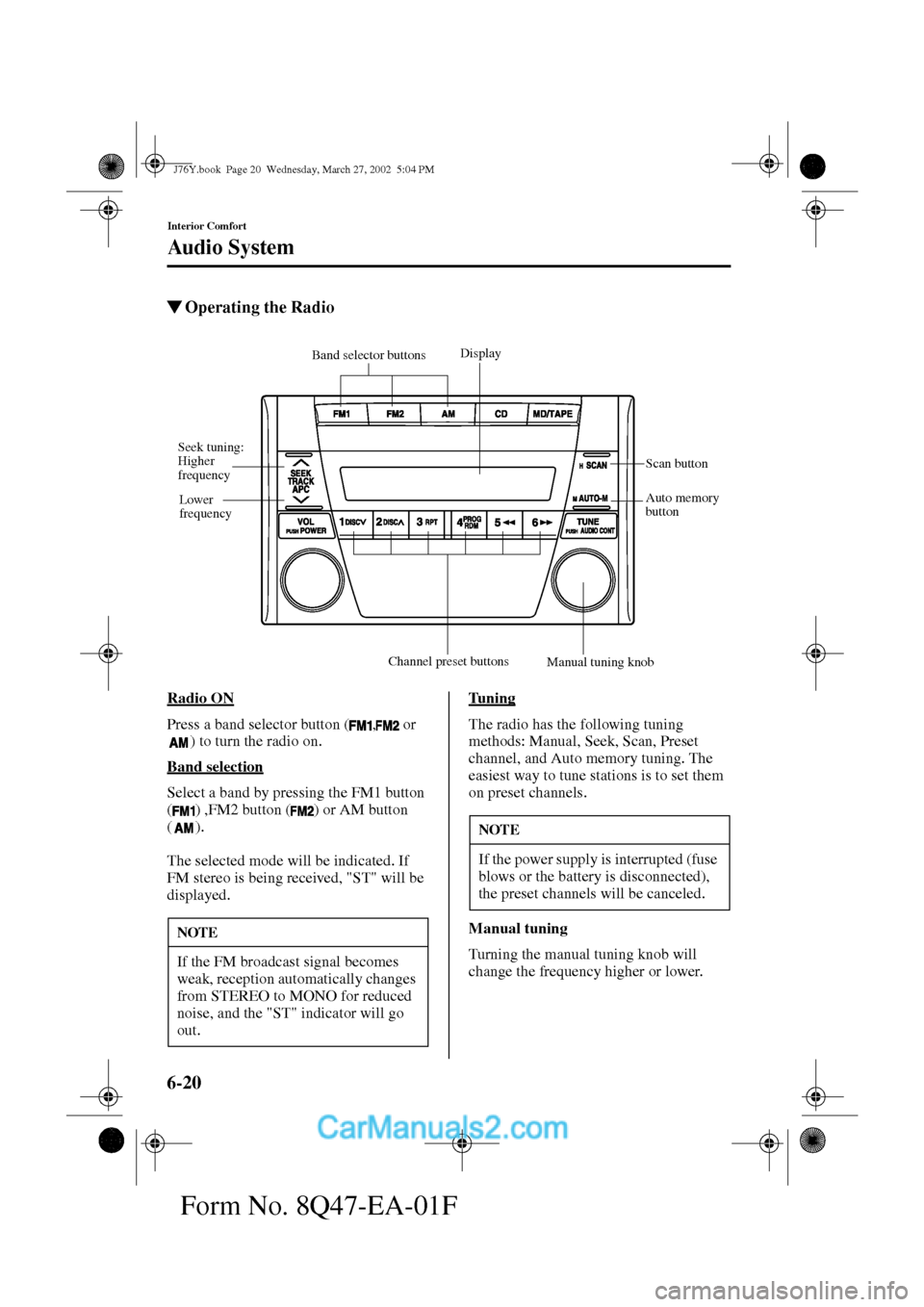

Operating the Radio
Radio ON
Press a band selector button ( , or
) to turn the radio on.
Band selection
Select a band by pressing the FM1 button
( ) ,FM2 button ( ) or AM button
().
The selected mode will be indicated. If
FM stereo is being received, "ST" will be
displayed.Tu n i n g
The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.
Manual tuning
Turning the manual tuning knob will
change the frequency higher or lower.
Band selector buttonsDisplay
Channel preset buttonsScan button
Auto memory
button
Manual tunin
g knob Seek tuning:
Higher
frequency
Lower
frequency
NOTE
If the FM broadcast signal becomes
weak, reception automatically changes
from STEREO to MONO for reduced
noise, and the "ST" indicator will go
out.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.
J76Y.book Page 20 Wednesday, March 27, 2002 5:04 PM

6-21
Interior Comfort
Au di o S ys t em
Form No. 8Q47-EA-01F
Seek tuning
Pressing the seek tuning button
( , ) will cause the tuner to seek a
higher or lower frequency automatically.
Scan tuning
Press the scan button ( ) to
automatically sample strong stations.
Scanning stops at each station for about 5
seconds. To hold a station, merely press
the scan button ( ) again during this
interval.
Preset channel tuning
The six preset channels can be used to
store 6 AM and 12 FM stations.
1. To set a channel first select AM, FM1,
or FM2. Tune to the station you want.
2. Depress a channel preset button for
about 2 seconds until a beep is heard.
The preset channel number and station
frequency will be displayed. The
station is now held in the memory.
3. Repeat this operation for the other
stations and bands you want to store.
To tune one in the memory, select AM,
FM1, or FM2 and then press its
channel preset button. The station
frequency and the channel number will
be displayed.Auto memory tuning
This is especially useful when driving in
an area where the local stations are not
known. Additional AM/FM stations can
be stored without disturbing the
previously set channels.
Press and hold the auto memory button
( ) for about 2 seconds until a beep
is heard; the system will automatically
scan and temporarily store up to 6 stations
with the strongest frequencies in each
selected band in that area.
After scanning is completed, the station
with the strongest frequency will be tuned
and its frequency displayed.
Press and release the auto memory button
( ) to recall stations from the auto-
stored stations. One stored station will be
selected each time; its frequency and
channel number will be displayed.
NOTE
If you continue to press and hold the
button, the frequency will continue
changing without stopping.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.
NOTE
If no stations can be tuned after
scanning operations, "A" will be
displayed.
J76Y.book Page 21 Wednesday, March 27, 2002 5:04 PM

6-22
Interior Comfort
Au di o S ys t em
Form No. 8Q47-EA-01F

Operating the Cassette Tape Player
Cassette tape insert
Insert the cassette tape into the slot, open
edge to the right and cassette tape will
begin play and "TAPE" will be displayed.
At the end of the cassette tape, the unit
automatically reverses cassette tape play.
When is lit, the cassette tape’s top side
is playing. When is lit, the bottom side
is on.PlayingPress the cassette tape play button
( ) to start playing when a
cassette tape is in the unit. If there isn’t a
cassette tape in the unit when the cassette
tape play button ( ) is pressed,
"NO TAPE" will flash on and off in
sequence.
Dolby noise reduction
When using a tape with Dolby NR*, push
the Dolby NR button ( ). The
symbol will be displayed. To play a tape
without Dolby NR, push the button once
again.
Display
APC button:
(next program)
(one being
played)Cassette tape play button
Cassette tape eject button
Program button
Dolby NR button
Repeat buttonRewind
button
Fast-
forward
button
NOTE
When a metal tape is inserted, the
player will automatically compensate
for it and "MTL" will be displayed.
J76Y.book Page 22 Wednesday, March 27, 2002 5:04 PM
