KEYS AND DOORS
13
WIRELESS REMOTE CONTROL*
SV11008

Sedan
1Locking the doors and sounding an alarm
2Unlocking the doors
3Indicator light
4Unlocking the trunk lid
SV11012

SportCross
1Locking the doors
2Unlocking the doors
3Indicator light
4Sounding an alarm
NOTE: *This feature can be set inoperative as vehicle theftdeterrent measure in case of the loss of the wireless remote
control key. Ask your Lexus dealer for details.
When you operate any button on the key, push it slowly and
surely. At this time, the indicator light on the key grip flashes
once.
The operational range of the wireless remote control is
approximately 1 meter (3 ft.). The effective range may vary
with different conditions. To activate the wireless remote
control w ithout fail, do it approximately 1 meter (3 ft.) from your
Lexus.

KEYS AND DOORS
14In the following cases, the battery in the key may be
discharged. If this is a case, replace it using a special
screwdriver.

The remote control does not work.
 The operational range of wireless remote control becomes
extremely short.
 The indicator light on the key is dimmed or does not come
on.
For the replacement of the battery, see ºReplacing the batteryº
on page 18. You can also have the battery of the key replaced
by your Lexus dealer.
If you lose the wireless key, contact your Lexus dealer as soon
as possible to avoid the possibility of theft, or an accident.
You can use up to 4 wireless remote control keys for the same
vehicle. Contact your Lexus dealer for detailed information.
The wireless remote control key is an electronic
component. Observe the following instructions in order
not to cause damage to the key.
 Do not leave the wireless remote control key on places
where the temperature becomes high such as on the
dashboard.
 Do not disassemble it.
 Avoid knocking it hard against other objects or dropping it.
 Avoid putting it in water.
Locking/Unlocking the doors
When you push the ºLOCKº button on the key briefly, all
the doors can be locked from outside the vehicle.
At this time, one beep sounds* and the emergency flashers
flash once.** However, when you push the ºLOCKº button with
any door not closed securely, the buzzer sounds for 10
seconds.*** To stop the buzzer, close all the doors securely or
push the ºUNLOCKº button. If the key is in the ignition switch,
locking cannot be done.
Make sure all the doors are locked when you leave the vehicle.
Push the ºLOCKº button once again. If they were already
locked, one beep sounds and the emergency flashers will
flash.
NOTE: *The beep sound can be set not to sound. **The emergency flasher can be set not to flash. ***The buzzercan be set not to sound if a door is not closed securely. Askyour Lexus dealer for details.
NOTICE
Sedan only: Do not push the ºLOCKº button any longerthan 2 to 3 seconds. Pushing the button longeractivates an alarm. For details, see page 16.
When you push the ºUNLOCKº button, the driver's door
is unlocked. Pushing that button once again within 3
seconds from the first push, all other doors are also
unlocked.*
NOTE: *The 2±step unlocking function can be changed.Ask your Lexus dealer for details.

KEYS AND DOORS
15
At this time, two beeps sound* and the emergency flashers
flash twice.** Together with the activation of unlocking, the
interior
light comes on for 15 seconds if the interior light switch
is in ºDOORº position.*** However, this function does not
work when the ignition key is in the ºONº position. For further
information, see ºInterior lightsº on page 55.
You have 30 seconds to open a door after using the wireless
remote unlock feature.**** If a door is not opened by then, all
the doors will be automatically locked again.
Even if the ºLOCKº or ºUNLOCKº switch is kept pressed in, the
locking or unlocking operation is not repeated. Release the
button and then push again.
NOTE: *The beep sound can be set not to sound. **The emergency flashers can be set not to flash. ***The interiorlight can be set not to come on or the duration of lighting can
be changed. ****The time before automatic re±locking can be changed. Ask your Lexus dealer for details.
Unlocking the trunk lid
SV11009
When you keep the button pushed for about 1 second, you
can unlock the trunk lid.* One beep sounds.
This function does not work when the key is in the ignition
switch.
NOTE: *The operation method can be changed. Ask your Lexus dealer for details.

KEYS AND DOORS
16

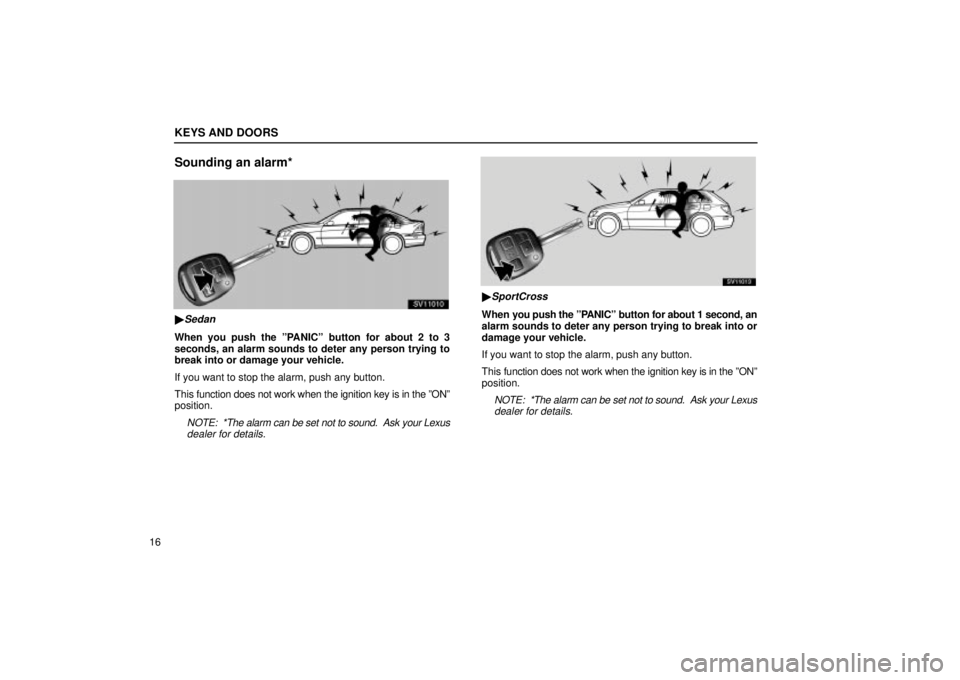

Sounding an alarm*
SV11010

Sedan
When you push the ºPANICº button for about 2 to 3
seconds, an alarm sounds to deter any person trying to
break into or damage your vehicle.
If you want to stop the alarm, push any button.
This function does not work when the ignition key is in the ºONº
position.
NOTE: *The alarm can be set not to sound. Ask your Lexus
dealer for details.
SV11013

SportCross
When you push the ºPANICº button for about 1 second, an
alarm sounds to deter any person trying to break into or
damage your vehicle.
If you want to stop the alarm, push any button.
This function does not work when the ignition key is in the ºONº
position.
NOTE: *The alarm can be set not to sound. Ask your Lexus dealer for details.

KEYS AND DOORS
17
For vehicles sold in U.S.A.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
NOTICE:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off
and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment
and receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
 Consult the dealer or an experienced radio / TV
technician for help.
FCC WARNING:
Changes or modifications not expressly approved
by the party responsible for compliance could void
the user's authority to operate the equipment.
For vehicles sold in Canada
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation of
the device.

KEYS AND DOORS
18
Replacing the battery
When you replace the battery, prepare a lithium battery
CR1616 and a special screwdriver.
CAUTION
Special care should be taken that small children do not
swallow the removed battery or components.
NOTICE
When replacing the battery, be careful not to lose thecomponents, screws and O±ring.
11L028±1
1. Remove the screw, and then the cover while pushing it in
the arrow direction.
11L029±1
2. Remove the module from the key frame.
11L030±1
3. Remove the 2 screws to take out the lid of the module.
4. Take out the discharged battery and put a new battery with
the positive side up.

KEYS AND DOORS
19
NOTICE
Make sure the positive side and negative side of thebattery should be faced correctly.
Do not replace the battery with wet hands. Water may
cause unexpected rust.
Do not touch or move any components inside of the transmitter, or it may interfere with proper operation.
Be careful not to bend the electrode of the batteryinsertion and that dust or oils do not adhere to theinside of the module.
Take care not to lose the screws and O±ring.
5. Install the lid with the 2 screws.
NOTICE
Take care not to damage or bend the O±ring wheninstalling.
6. Install the module into the key frame and secure the cover
with the screw.
7. When pushing any switch on the wireless key, make sure
the indicator light comes on.
DOORS
Locking with key
SS11007a

1Lock 2Unlock
Turn the key towards the front of the vehicle to lock and
towards the back to unlock.
Locking (or unlocking) the driver's door will lock (or unlock) all
the other doors simultaneously. In the driver's door lock,
turning the key once will unlock the driver's door and twice in
succession will unlock all doors simultaneously.*
Together with the activation of unlocking, the interior light will
turn on for 15 seconds if the interior light switch is in the
ºDOORº position.** However, this function does not work
when the ignition key is in the ºONº position. For further
information, see ºInterior lightº on page 55.

KEYS AND DOORS
20
NOTE: *The 2±step unlocking function can be changed.**The interior light can be set not to come on or the duration
of lighting can be changed. Ask your Lexus dealer for details.
Locking with inside lock button
SV11004

1Lock 2Unlock
Push in the lock button to lock and unlock the door.
When locked, the door cannot be opened with either the
outside or inside door handle.
Closing the door with the lock button pushed in will also lock
the door. Be careful not to lock your keys in the vehicle. The
door will not lock if the key is left in the ignition switch when
closing the front doors.
CAUTION
Before driving, make sure the doors are closed and
locked, especially when small children are in the
vehicle. Along with the proper use of seat belts, locking
the doors helps prevent the driver and passengers from
being thrown out from the vehicle during an accident.
It also helps prevent the doors from being opened
unintentionally.
