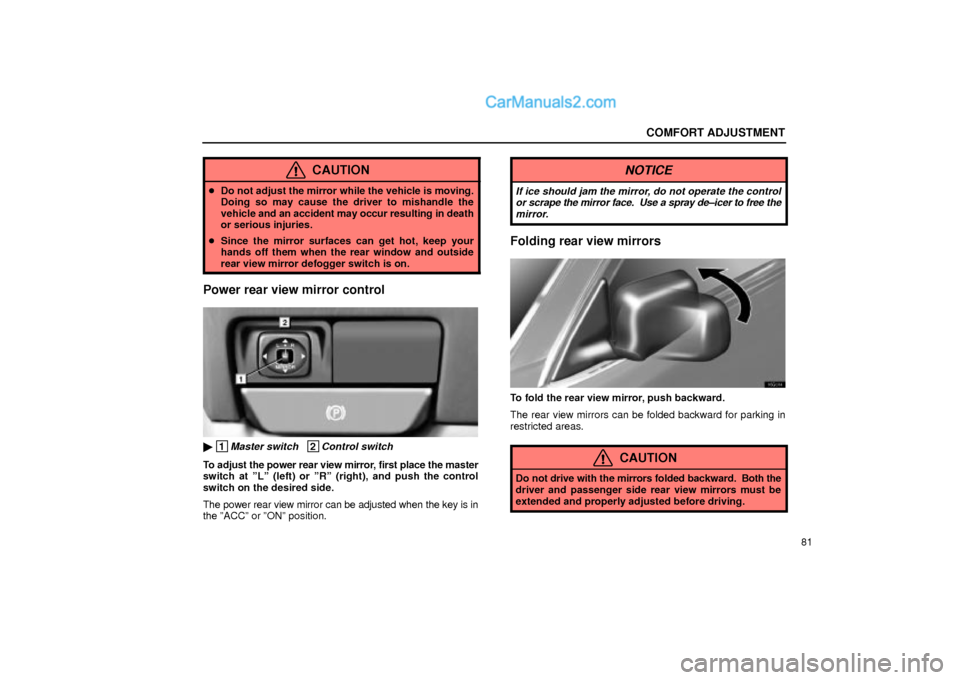

Page 9 of 56
COMFORT ADJUSTMENT
81
CAUTION
Do not adjust the mirror while the vehicle is moving.
Doing so may cause the driver to mishandle the
vehicle and an accident may occur resulting in death
or serious injuries.
Since the mirror surfaces can get hot, keep your
hands off them when the rear window and outside
rear view mirror defogger switch is on.
Power rear view mirror control
16L017-1
1Master switch 2Control switch
To adjust the power rear view mirror, first place the master
switch at ºLº (left) or ºRº (right), and push the control
switch on the desired side.
The power rear view mirror can be adjusted when the key is in
the ºACCº or ºONº position.
NOTICE
If ice should jam the mirror, do not operate the control
or scrape the mirror face. Use a spray de±icer to free the
mirror.
Folding rear view mirrors
16G014
To fold the rear view mirror, push backward.
The rear view mirrors can be folded backward for parking in
restricted areas.
CAUTION
Do not drive with the mirrors folded backward. Both the
driver and passenger side rear view mirrors must be
extended and properly adjusted before driving.
Page 10 of 56
COMFORT ADJUSTMENT
82
INSIDE REAR VIEW MIRROR
16G015a
Adjust the mirror so that you can just see the rear of your
vehicle in the mirror.
Pushing the switch changes the mode between ºAUTOº
and ºDAYº.
The indicator comes on when the ºAUTOº mode is selected.
ºDAYº mode: The mirror surface is normal.
ºAUTOº mode: If the mirror detects light from the
headlights of the vehicle behind you, the mirror surface
darkens slightly to reduce the reflected light.
When the inside rear view mirror surface changes, the outside
rear view mirror surfaces will also become darker.
When the ignition key is inserted and turned on, the inside rear
view mirror always turns on in the ºAUTOº mode.When the outside air temperature is low, it may take a little
longer for the mirror to darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the vehicle is moving.
Doing so may cause the driver to mishandle the vehicle
and an accident may occur resulting in death or serious
injuries.
Page 11 of 56
COMFORT ADJUSTMENT
83
Compass (Some models)
16g220
The compass indicates the direction in which the vehicle
is heading. The illustration shown above indicates the
vehicle is heading north.
Displays
Directions
N
NE
E
SE
S
SW
W
NWNorth
Northeast
East
Southeast
South
Southwest
West
Northwest
Pushing the button for longer than 3 seconds turns on or
off the compass display.
The compass may not show the correct direction in the
following conditions:
The vehicle is stopped immediately after turning.
The compass does not adjust while the vehicle is stopped.
The ignition switch is turned off immediately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the earth's magnetic field is
subject to interference by artificial magnetic fields
(underground parking, under a steel tower, between
buildings, roof parking, near a crossing, near a large
vehicle, etc.).
The vehicle is magnetized. (There is a magnet or a metal
object near the inside rear view mirror.)
The battery has been disconnected.
Any door is open.
The compass works to calibrate the direction automatically
while the vehicle in in motion, if deviation is small.
For obtaining additional precision or for complete calibrating,
see ªCALIBRATING THE COMPASSº below.

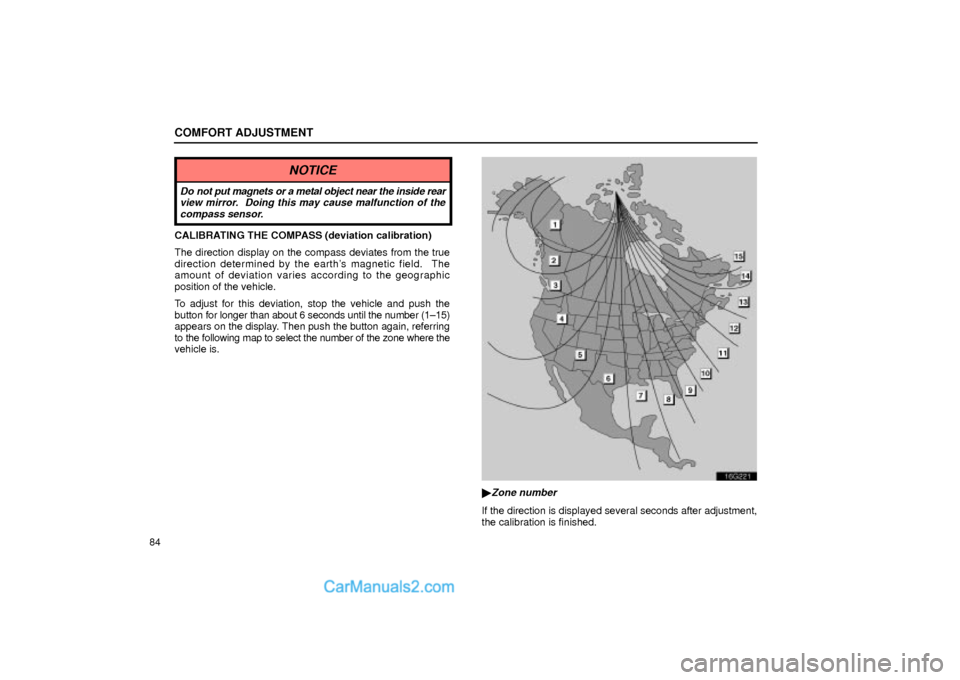

Page 12 of 56
COMFORT ADJUSTMENT
84
NOTICE
Do not put magnets or a metal object near the inside rear
view mirror. Doing this may cause malfunction of the
compass sensor.
CALIBRATING THE COMPASS (deviation calibration)
The direction display on the compass deviates from the true
direction determined by the earth's magnetic field. The
amount of deviation varies according to the geographic
position of the vehicle.
To adjust for this deviation, stop the vehicle and push the
button for longer than about 6 seconds until the number (1±15)
appears on the display. Then push the button again, referring
to the following map to select the number of the zone where the
vehicle is.
16g221
Zone number
If the direction is displayed several seconds after adjustment,
the calibration is finished.
Page 13 of 56
COMFORT ADJUSTMENT
85
CAUTION
Do not adjust the display while the vehicle is moving.
Be sure to adjust the display only when the vehicle is
stopped.
CALIBRATING THE COMPASS (circling calibration)
16g223
ªCº appears on the display in case the circling calibration is
required due to a drastic change in the magnetic field. To
rectify this, follow the calibration procedure below.
16g222
Drive the vehicle slowly (at 8 km/h (5 mph) or lower) in a circle
until the direction is displayed. If there is not enough space to
drive in a circle, drive around the block until the direction is
displayed.
After driving in 1 to 3 circles in the above method, calibration
is complete with the direction shown on the display.
If calibration cannot be performed because of the vehicle is
magnetized, take your vehicle to a Lexus dealer.
Do not perform circling calibration of the compass in a place
where the earth's magnetic field is subject to interference by
artificial magnetic fields (underground parking, under a
steel tower, between buildings, roof parking, near a
crossing, near a large vehicle, etc.).
During calibration, do not operate electric systems (moon
roof, power windows, etc.) as they may interfere with the
calibration.

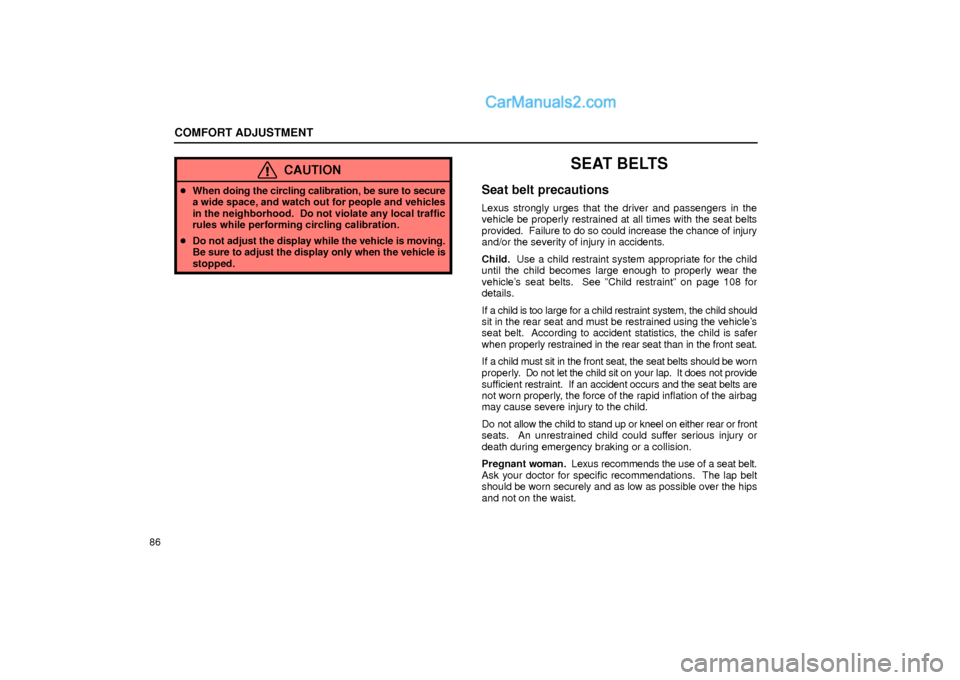

Page 14 of 56
COMFORT ADJUSTMENT
86
CAUTION
When doing the circling calibration, be sure to secure
a wide space, and watch out for people and vehicles
in the neighborhood. Do not violate any local traffic
rules while performing circling calibration.
Do not adjust the display while the vehicle is moving.
Be sure to adjust the display only when the vehicle is
stopped.
SEAT BELTS
Seat belt precautions
Lexus strongly urges that the driver and passengers in the
vehicle be properly restrained at all times with the seat belts
provided. Failure to do so could increase the chance of injury
and/or the severity of injury in accidents.
Child. Use a child restraint system appropriate for the child
until the child becomes large enough to properly wear the
vehicle's seat belts. See ºChild restraintº on page 108 for
details.
If a child is too large for a child restraint system, the child should
sit in the rear seat and must be restrained using the vehicle's
seat belt. According to accident statistics, the child is safer
when properly restrained in the rear seat than in the front seat.
If a child must sit in the front seat, the seat belts should be worn
properly. Do not let the child sit on your lap. It does not provide
sufficient restraint. If an accident occurs and the seat belts are
not worn properly, the force of the rapid inflation of the airbag
may cause severe injury to the child.
Do not allow the child to stand up or kneel on either rear or front
seats. An unrestrained child could suffer serious injury or
death during emergency braking or a collision.
Pregnant woman. Lexus recommends the use of a seat belt.
Ask your doctor for specific recommendations. The lap belt
should be worn securely and as low as possible over the hips
and not on the waist.

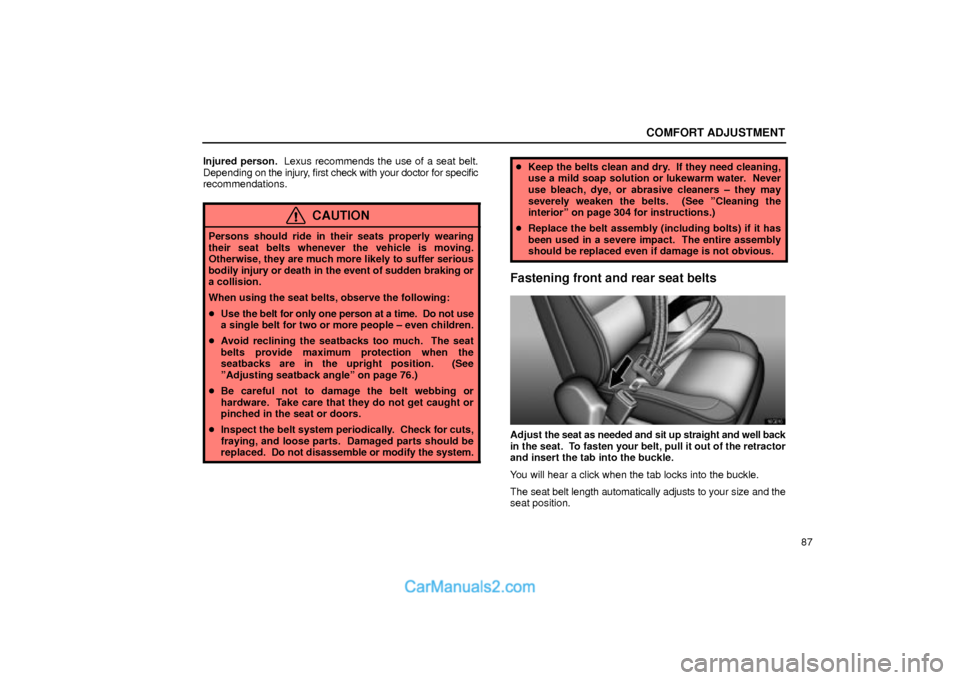

Page 15 of 56
COMFORT ADJUSTMENT
87 Injured person. Lexus recommends the use of a seat belt.
Depending on the injury, first check with your doctor for specific
recommendations.
CAUTION
Persons should ride in their seats properly wearing
their seat belts whenever the vehicle is moving.
Otherwise, they are much more likely to suffer serious
bodily injury or death in the event of sudden braking or
a collision.
When using the seat belts, observe the following:
Use the belt for only one person at a time. Do not use
a single belt for two or more people ± even children.
Avoid reclining the seatbacks too much. The seat
belts provide maximum protection when the
seatbacks are in the upright position. (See
ºAdjusting seatback angleº on page 76.)
Be careful not to damage the belt webbing or
hardware. Take care that they do not get caught or
pinched in the seat or doors.
Inspect the belt system periodically. Check for cuts,
fraying, and loose parts. Damaged parts should be
replaced. Do not disassemble or modify the system.
Keep the belts clean and dry. If they need cleaning,
use a mild soap solution or lukewarm water. Never
use bleach, dye, or abrasive cleaners ± they may
severely weaken the belts. (See ºCleaning the
interiorº on page 304 for instructions.)
Replace the belt assembly (including bolts) if it has
been used in a severe impact. The entire assembly
should be replaced even if damage is not obvious.
Fastening front and rear seat belts
16G016
Adjust the seat as needed and sit up straight and well back
in the seat. To fasten your belt, pull it out of the retractor
and insert the tab into the buckle.
You will hear a click when the tab locks into the buckle.
The seat belt length automatically adjusts to your size and the
seat position.

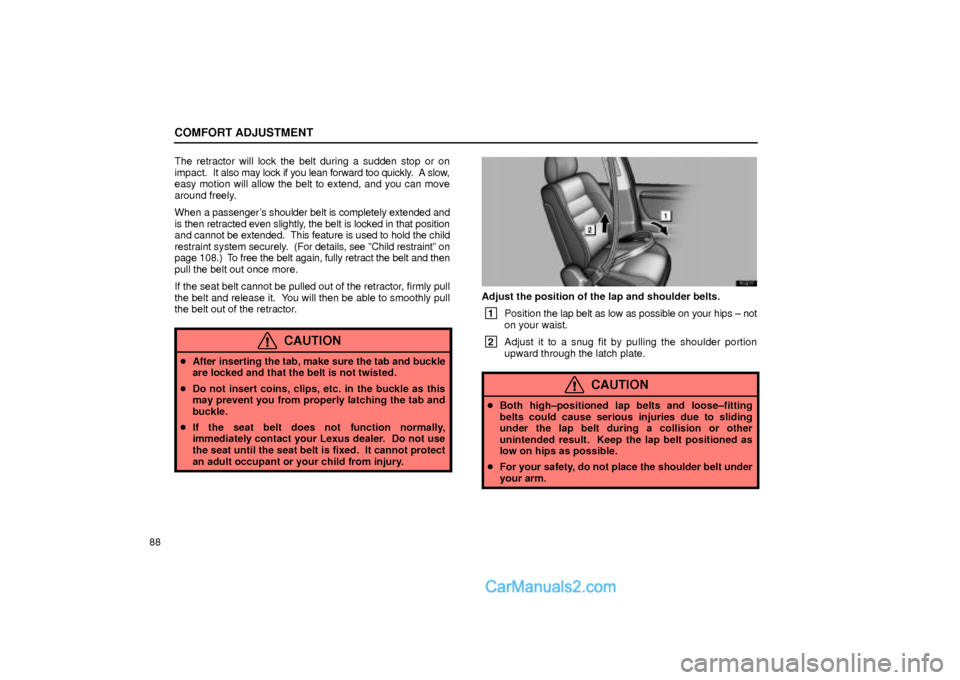

Page 16 of 56
COMFORT ADJUSTMENT
88The retractor will lock the belt during a sudden stop or on
impact. It also may lock if you lean forward too quickly. A slow,
easy motion will allow the belt to extend, and you can move
around freely.
When a passenger's shoulder belt is completely extended and
is then retracted even slightly, the belt is locked in that position
and cannot be extended. This feature is used to hold the child
restraint system securely. (For details, see ºChild restraintº on
page 108.) To free the belt again, fully retract the belt and then
pull the belt out once more.
If the seat belt cannot be pulled out of the retractor, firmly pull
the belt and release it. You will then be able to smoothly pull
the belt out of the retractor.
CAUTION
After inserting the tab, make sure the tab and buckle
are locked and that the belt is not twisted.
Do not insert coins, clips, etc. in the buckle as this
may prevent you from properly latching the tab and
buckle.
If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not use
the seat until the seat belt is fixed. It cannot protect
an adult occupant or your child from injury.
16G017
Adjust the position of the lap and shoulder belts.
1
Position the lap belt as low as possible on your hips ± not
on your waist.
2
Adjust it to a snug fit by pulling the shoulder portion
upward through the latch plate.
CAUTION
Both high±positioned lap belts and loose±fitting
belts could cause serious injuries due to sliding
under the lap belt during a collision or other
unintended result. Keep the lap belt positioned as
low on hips as possible.
For your safety, do not place the shoulder belt under
your arm.
