SECURITY AND LOCKS8H±5

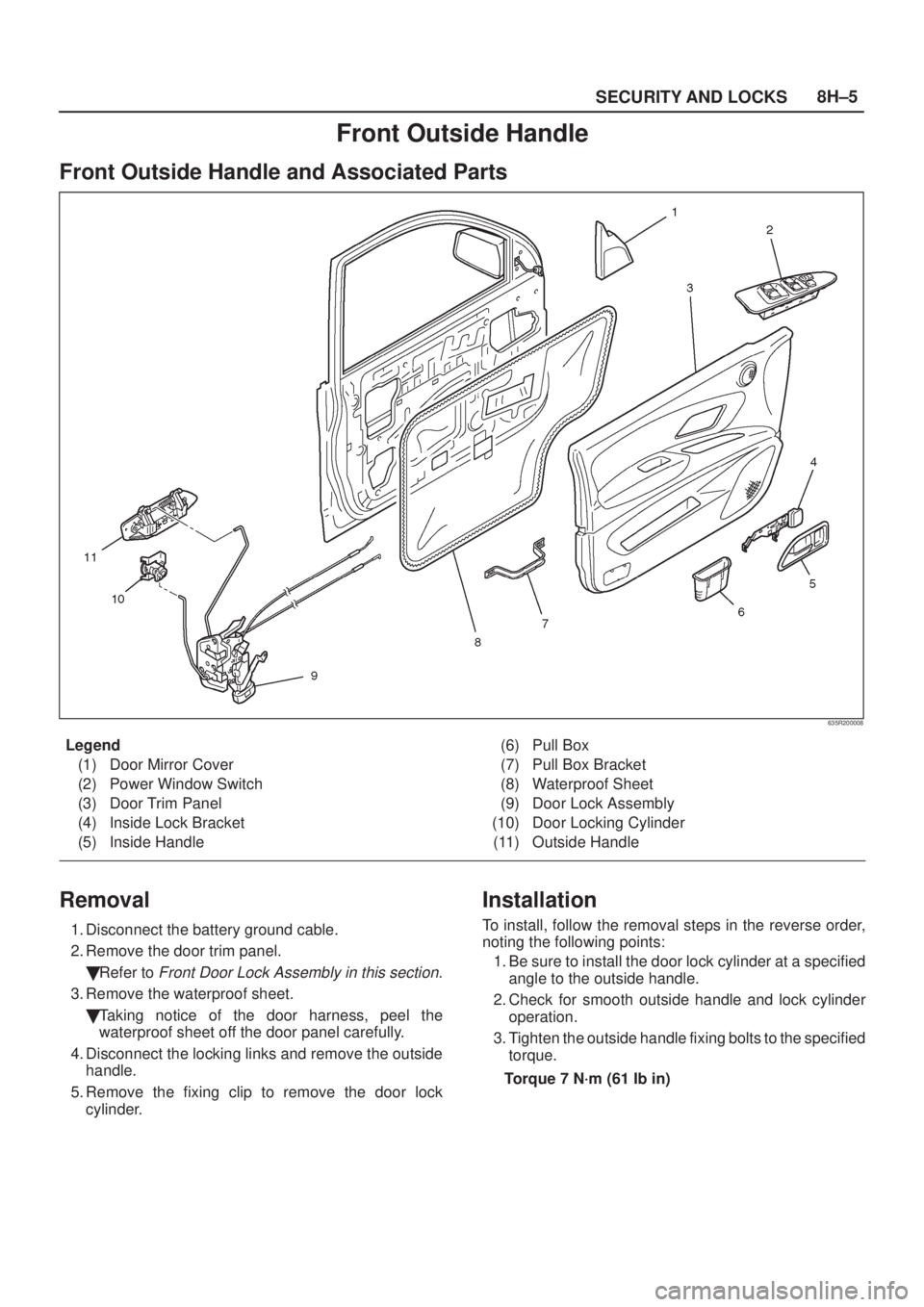

Front Outside Handle
Front Outside Handle and Associated Parts
635R200008
Legend
(1) Door Mirror Cover
(2) Power Window Switch
(3) Door Trim Panel
(4) Inside Lock Bracket
(5) Inside Handle(6) Pull Box
(7) Pull Box Bracket
(8) Waterproof Sheet
(9) Door Lock Assembly
(10) Door Locking Cylinder
(11) Outside Handle
Removal
1. Disconnect the battery ground cable.
2. Remove the door trim panel.

Refer to
Front Door Lock Assembly in this section.
3. Remove the waterproof sheet.

Taking notice of the door harness, peel the
waterproof sheet off the door panel carefully.
4. Disconnect the locking links and remove the outside
handle.
5. Remove the fixing clip to remove the door lock
cylinder.
Installation
To install, follow the removal steps in the reverse order,
noting the following points:
1. Be sure to install the door lock cylinder at a specified
angle to the outside handle.
2. Check for smooth outside handle and lock cylinder
operation.
3. Tighten the outside handle fixing bolts to the specified
torque.
Torque 7 N´m (61 Ib in)

8H±6SECURITY AND LOCKS

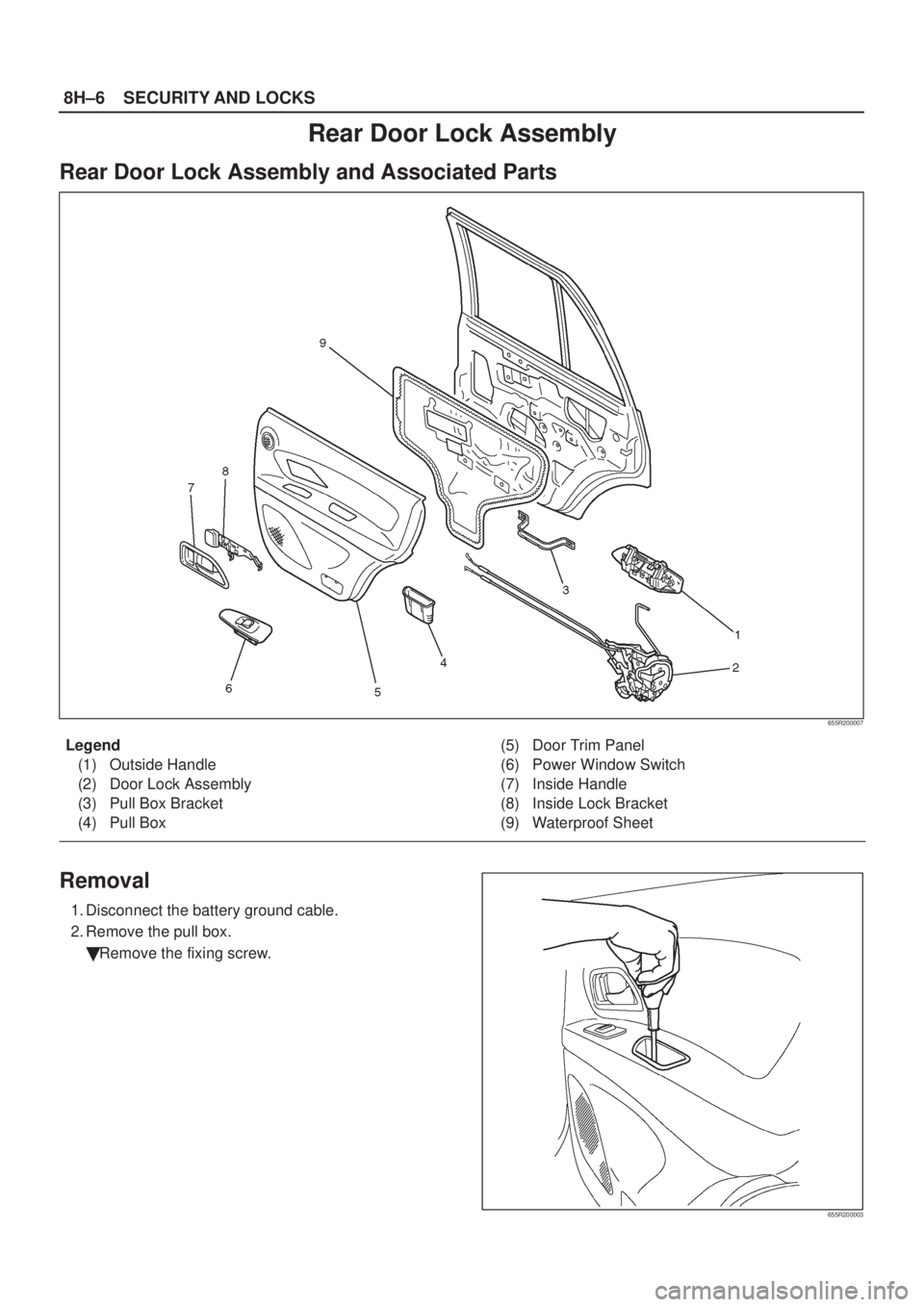

Rear Door Lock Assembly
Rear Door Lock Assembly and Associated Parts
655R200007
Legend
(1) Outside Handle
(2) Door Lock Assembly
(3) Pull Box Bracket
(4) Pull Box(5) Door Trim Panel
(6) Power Window Switch
(7) Inside Handle
(8) Inside Lock Bracket
(9) Waterproof Sheet
Removal
1. Disconnect the battery ground cable.
2. Remove the pull box.

Remove the fixing screw.
655R200003

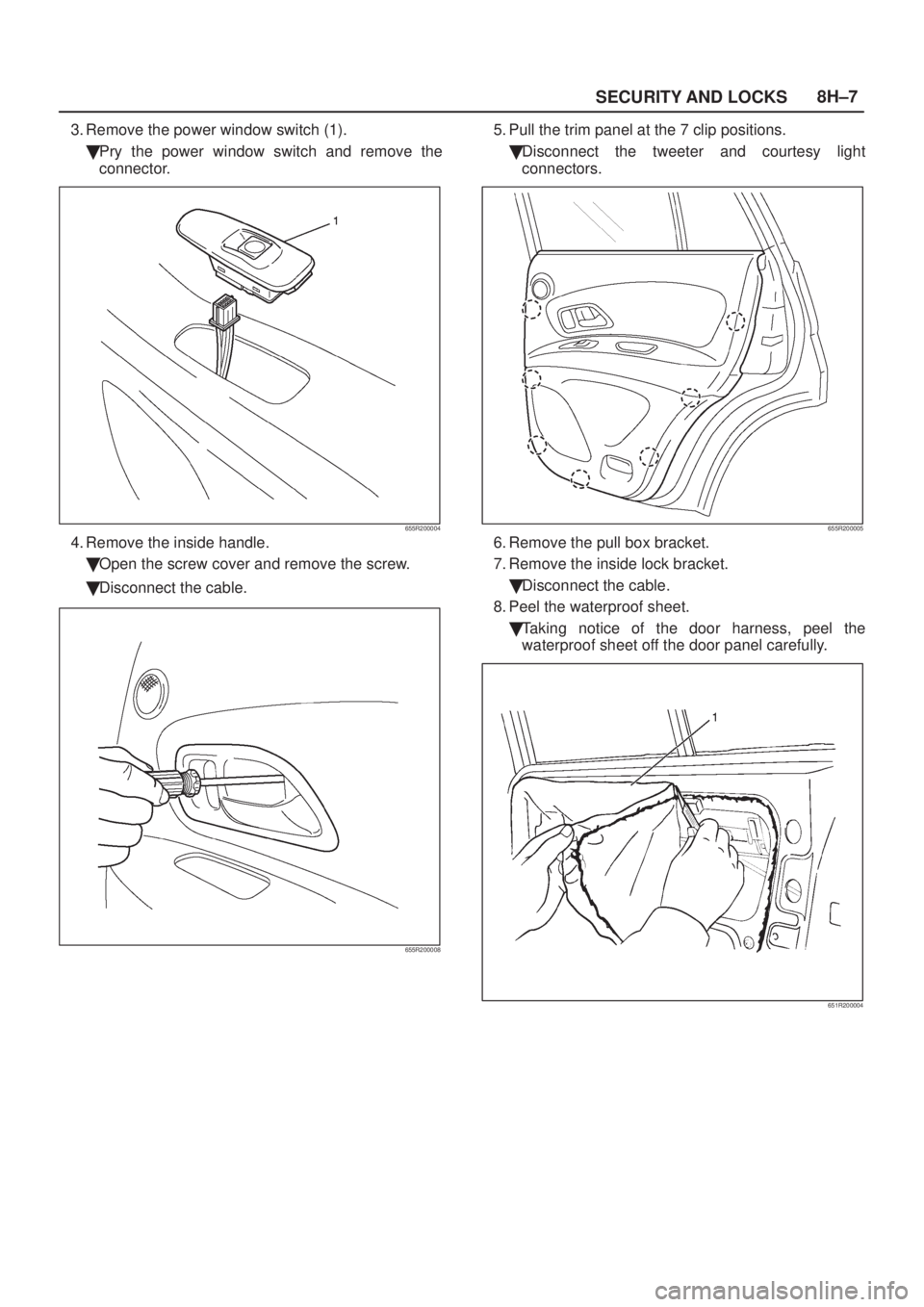

SECURITY AND LOCKS8H±7
3. Remove the power window switch (1).

Pry the power window switch and remove the
connector.
655R200004
4. Remove the inside handle.

Open the screw cover and remove the screw.

Disconnect the cable.
655R200008
5. Pull the trim panel at the 7 clip positions.

Disconnect the tweeter and courtesy light
connectors.
655R200005
6. Remove the pull box bracket.
7. Remove the inside lock bracket.

Disconnect the cable.
8. Peel the waterproof sheet.

Taking notice of the door harness, peel the
waterproof sheet off the door panel carefully.
651R200004

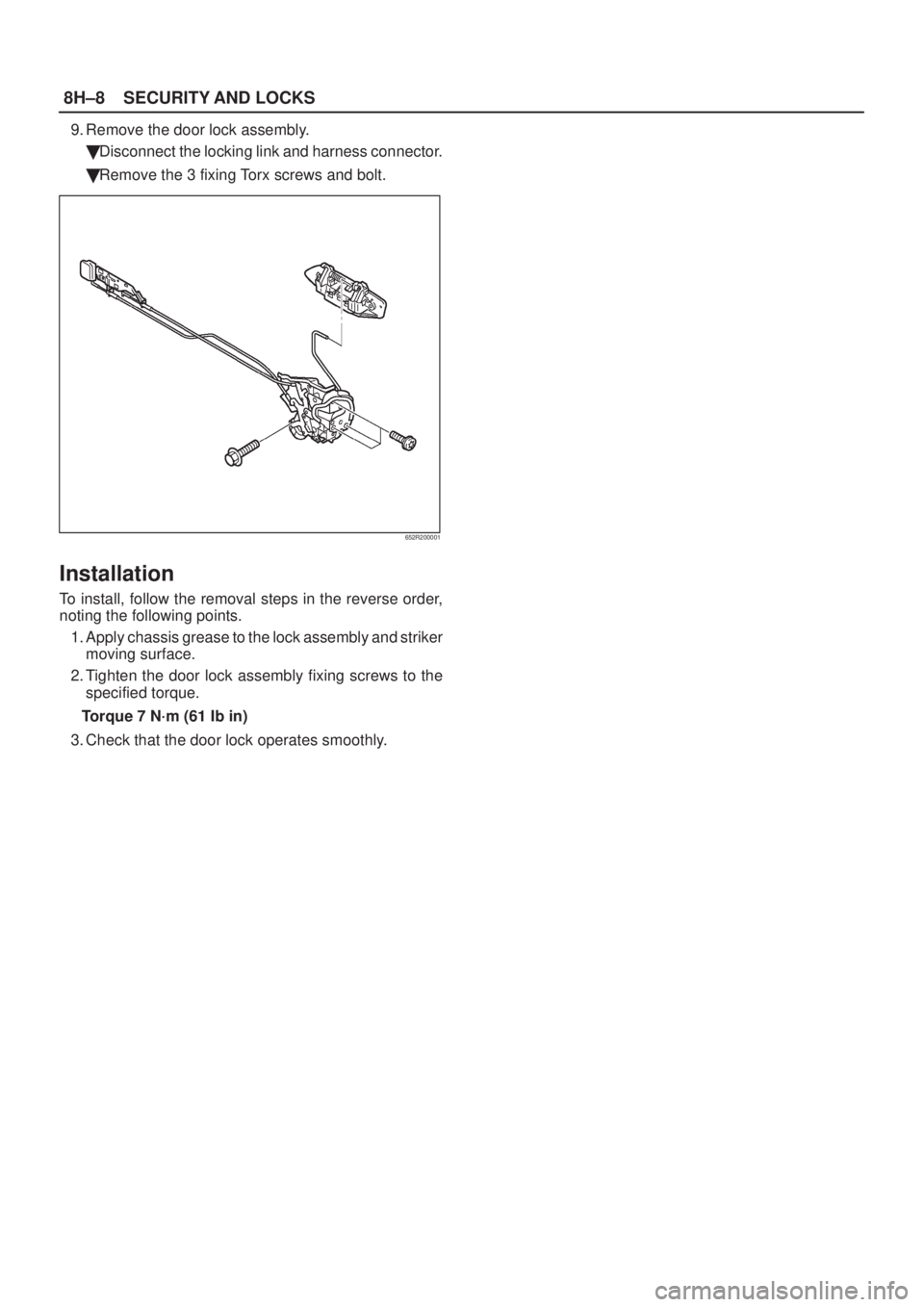

8H±8SECURITY AND LOCKS
9. Remove the door lock assembly.

Disconnect the locking link and harness connector.

Remove the 3 fixing Torx screws and bolt.
652R200001
Installation
To install, follow the removal steps in the reverse order,
noting the following points.
1. Apply chassis grease to the lock assembly and striker
moving surface.
2. Tighten the door lock assembly fixing screws to the
specified torque.
Torque 7 N´m (61 Ib in)
3. Check that the door lock operates smoothly.

SECURITY AND LOCKS8H±9

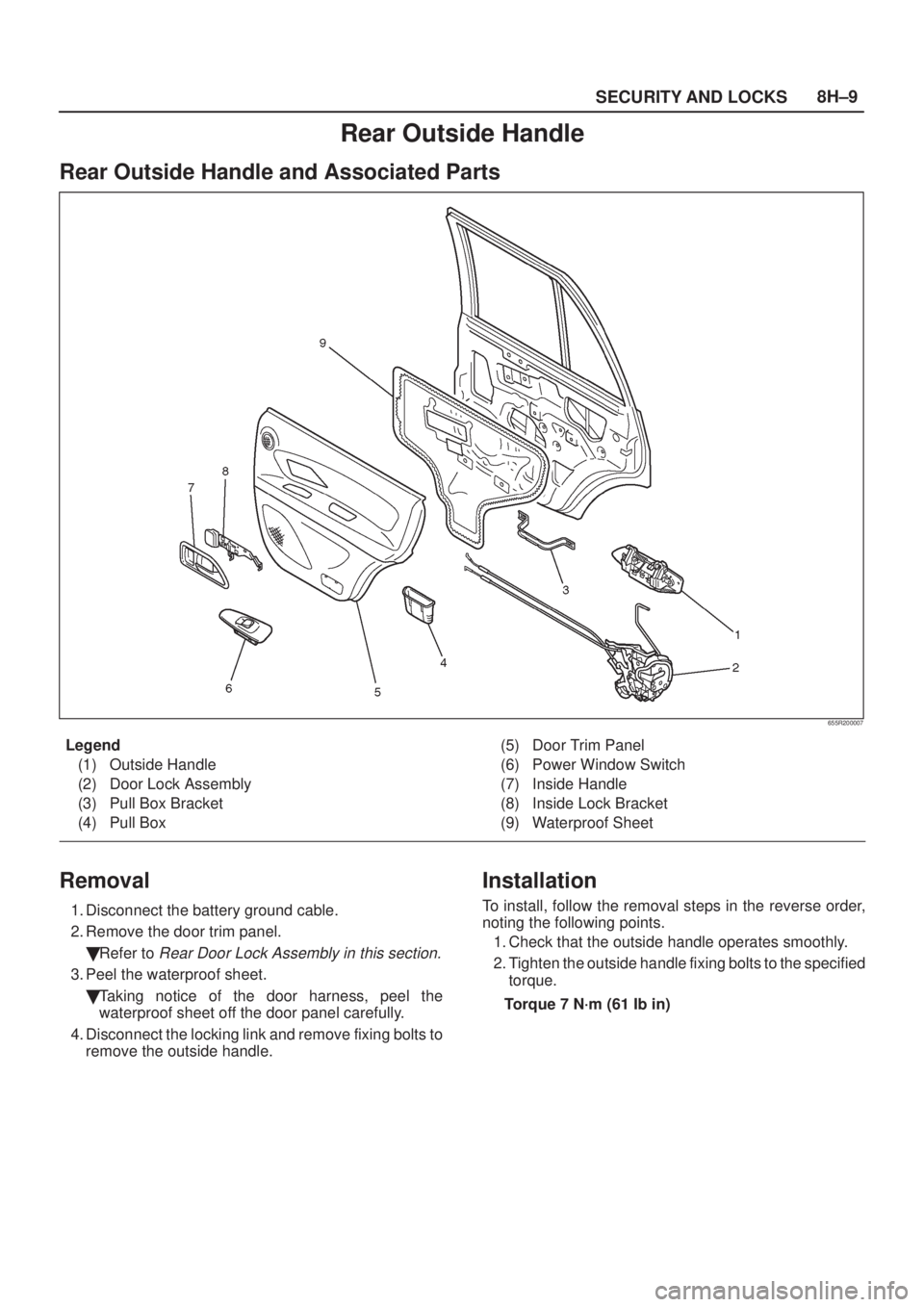

Rear Outside Handle
Rear Outside Handle and Associated Parts
655R200007
Legend
(1) Outside Handle
(2) Door Lock Assembly
(3) Pull Box Bracket
(4) Pull Box(5) Door Trim Panel
(6) Power Window Switch
(7) Inside Handle
(8) Inside Lock Bracket
(9) Waterproof Sheet
Removal
1. Disconnect the battery ground cable.
2. Remove the door trim panel.

Refer to
Rear Door Lock Assembly in this section.
3. Peel the waterproof sheet.

Taking notice of the door harness, peel the
waterproof sheet off the door panel carefully.
4. Disconnect the locking link and remove fixing bolts to
remove the outside handle.
Installation
To install, follow the removal steps in the reverse order,
noting the following points.
1. Check that the outside handle operates smoothly.
2. Tighten the outside handle fixing bolts to the specified
torque.
Torque 7 N´m (61 Ib in)

8H±10SECURITY AND LOCKS

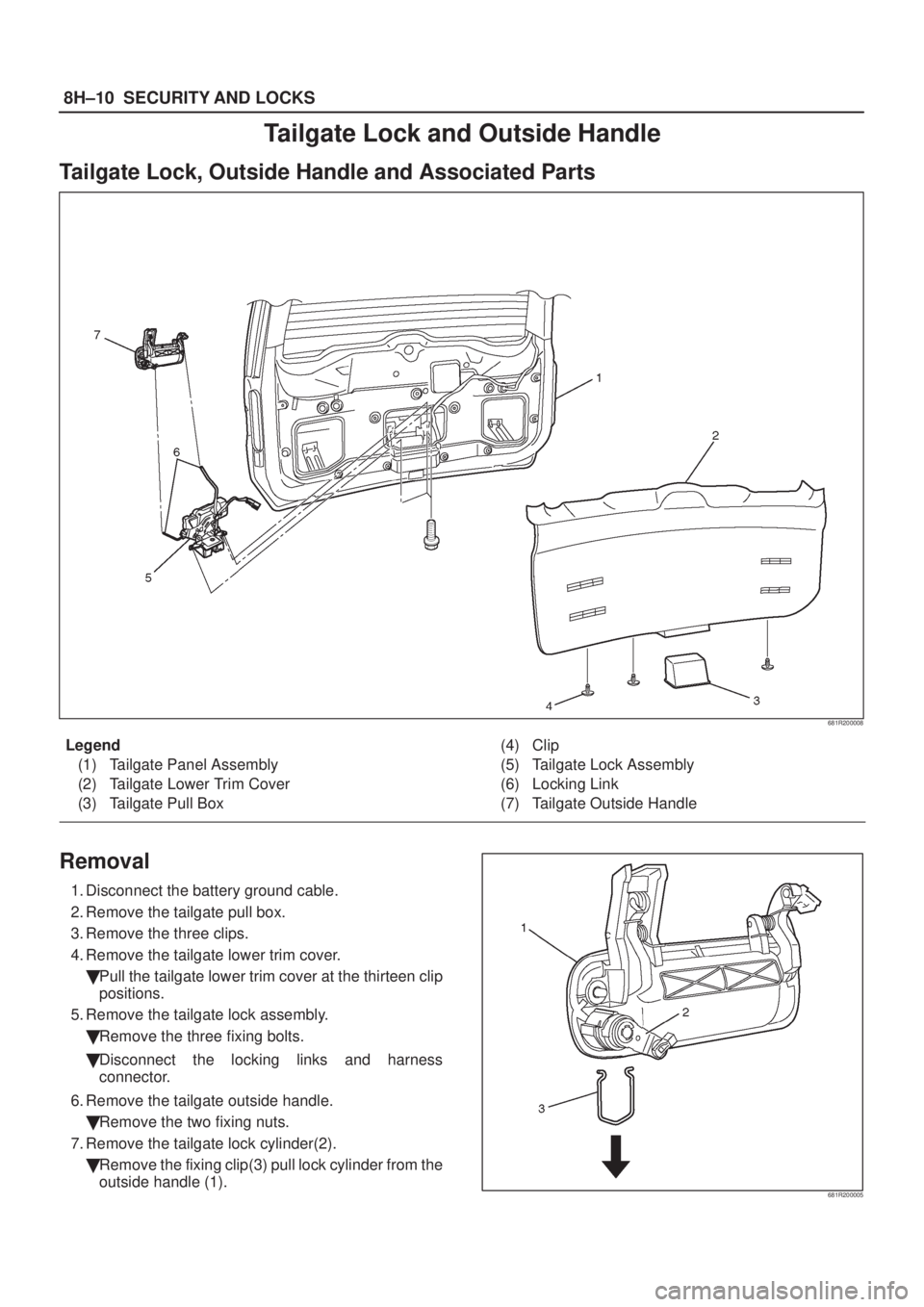

Tailgate Lock and Outside Handle
Tailgate Lock, Outside Handle and Associated Parts
681R200008
Legend
(1) Tailgate Panel Assembly
(2) Tailgate Lower Trim Cover
(3) Tailgate Pull Box(4) Clip
(5) Tailgate Lock Assembly
(6) Locking Link
(7) Tailgate Outside Handle
Removal
1. Disconnect the battery ground cable.
2. Remove the tailgate pull box.
3. Remove the three clips.
4. Remove the tailgate lower trim cover.

Pull the tailgate lower trim cover at the thirteen clip
positions.
5. Remove the tailgate lock assembly.

Remove the three fixing bolts.

Disconnect the locking links and harness
connector.
6. Remove the tailgate outside handle.

Remove the two fixing nuts.
7. Remove the tailgate lock cylinder(2).

Remove the fixing clip(3) pull lock cylinder from the
outside handle (1).
681R200005

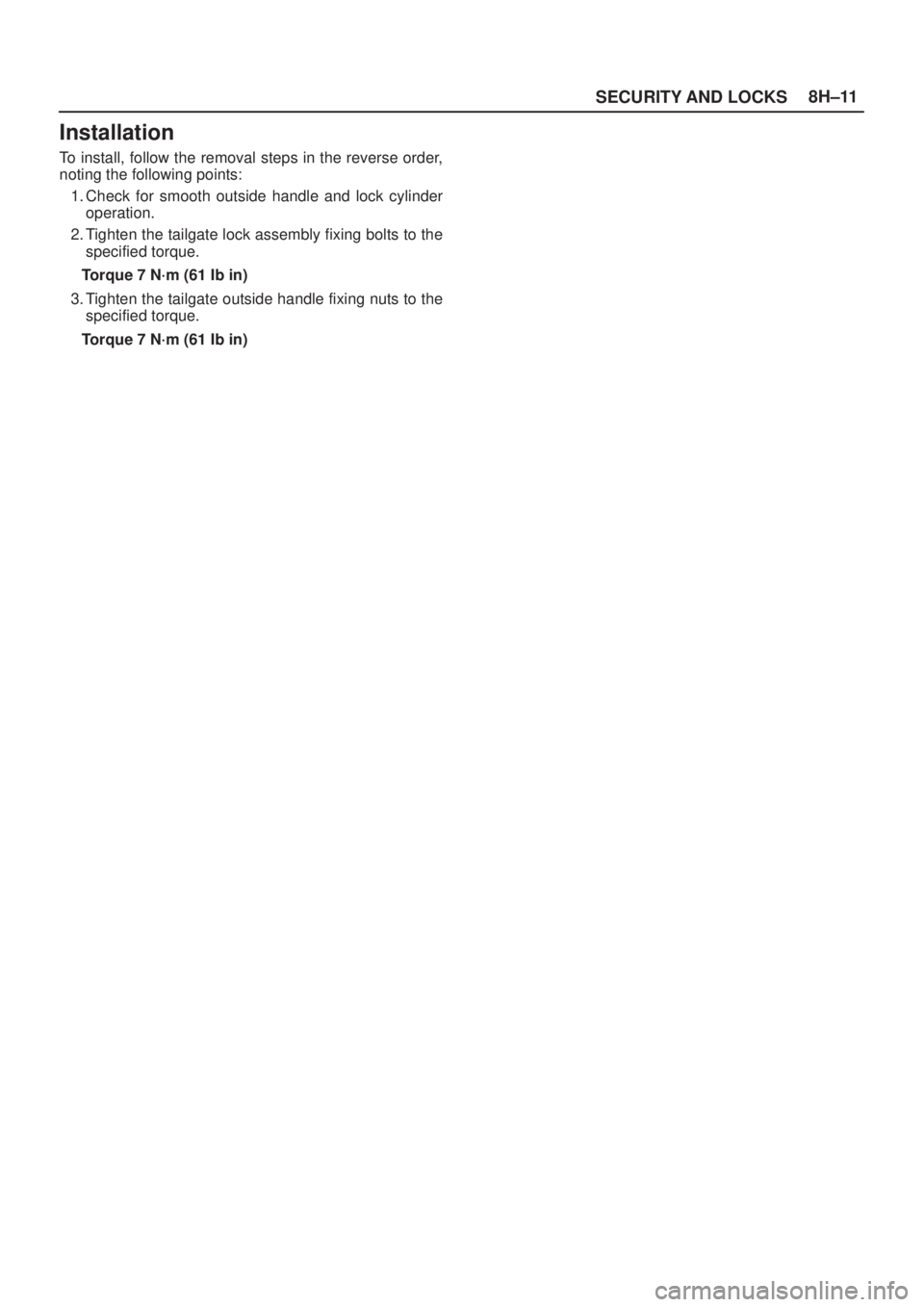

SECURITY AND LOCKS8H±11
Installation
To install, follow the removal steps in the reverse order,
noting the following points:
1. Check for smooth outside handle and lock cylinder
operation.
2. Tighten the tailgate lock assembly fixing bolts to the
specified torque.
Torque 7 N´m (61 Ib in)
3. Tighten the tailgate outside handle fixing nuts to the
specified torque.
Torque 7 N´m (61 Ib in)

8H±12SECURITY AND LOCKS
Key
Key Coding
730RX001
Legend
(1) Key (Actual size)
(2) Key Code Tag(3) Position
(4) Level
One key is used for the ignition, door, and tailgate lock
cylinders. The keys are cut on both edges to make them
reversible.
Key identification is obtained from the five character key
code stamped on the key code tag. From this key code,
the key code cutting combination can be determined from
a code list (available to owners of key cutting equipment
from suppliers).
If key codes are not available from records or tags, the
key code can be obtained from the right hand door lock
cylinder (if lock has not been replaced). Lock cylinders
supplied by the factory as service parts are unmarked.
If the original key is available, the key code cutting
combination can be determined by laying the key on the
diagram shown in the figure.Key Styles
730RX002
Legend
(1) Blank Key Style ªAº
(2) Blank Key Style ªBº
The keys come in styles A or B depending on the key code
cutting combination. When the first position in the
combination is a 1, 2 or 3, Style A is used. When the first
position is a 4, Style B (factory pre-cut key) is used.
