TRANSMISSION CONTROL SYSTEM (4L30±E)
DTC P0742 Torque Converter Clutch (TCC) System Stuck On
D07R200008
Circuit Description
The PCM energizes the TCC solenoid by creating an
ignition voltage on circuit BRN/BLU. When ignition
voltage is energized by the PCM, the TCC solenoid stops
converter signal oil from exhausting. This causes
converter signal oil pressure to increase and move the
TCC valve. The TCC solenoid will deenergize when the
PCM no longer provides ignition voltage. When the TCC
solenoid is deenergized, it will exhaust fluid and release
the TCC.
This DTC detects low torque converter slip when the TCC
is commanded ªoffº. This is a type ªBº DTC.
Conditions For Setting The DTC
The following conditions occur once per TCC cycle, three
consecutive times:

No TPS DTCs P0122 or P0123.

No OSS DTCs P0722 or P0723.

No TCC solenoid DTC P1860.

TP angle is greater than 20%.

Engine speed is greater than 500 rpm and less than
3,000 rpm.

Engine vacuum is between 0 and 70 kPa.

Commanded gear is not 1st.

Gear range is D4.

TCC is commanded ªoffº.

No TCC Stuck off DTC P1870.
TCC slip speed is between ±20 and 40 rpm for 2
seconds.

Vehicle speed is greater than 25 km/h (15 mph) and
less than 120 km/h (75 mph).

Speed ratio is greater than 0.9 and less than 2.0.
Action Taken When The DTC Sets

For lamp illuminate refer to DTC type definition (type
B).

Inhibit TCC engagement.
Conditions For Clearing The MIL/DTC

The PCM will turn off the MIL and CHECK TRANS
Lamp after three consecutive ignition cycles without a
failure reported.

The DTC can be cleared from the PCM history by
using a scan tool.

The DTC will be cleared from history when the vehicle
has achieved 40 warmup cycles without a failure
reported.

The PCM will cancel the DTC default actions when
the fault no longer exists and the ignition is cycled ªoffº
long enough to power down the PCM.

7A1±60
TRANSMISSION CONTROL SYSTEM (4L30±E)
DTC P0751 Shift Solenoid A Performance (Stuck Off)
D07RT011
Circuit Description
The shift solenoid A is used to control fluid flow acting on
the 1±2 and 3±4 shift valves. The solenoid is a normally
close exhaust valve that is used with the shift solenoid B
to allow four different shifting combinations.
The DTC detects when there is only a 1±1±4±4 shift
pattern depending on the state of the mechanical failure
instead of a 1±2±3±4 shift pattern. This is a type ªBº DTC.
Conditions For Setting The DTC

No ETC DTCs.

No OSS DTCs P0722 or P0723.

No TCC solenoid DTCs P0742, P1860, P1870.

No shift solenoid A DTC P0753.

No shift solenoid B DTC P0758.

Gear range is D4.

Transmission temperature is between 20
and 130
C
(68
and 266
F).

Output speed is greater than 375 rpm.

No range code P0705, P0706.

No torque code (to be confirmed).

Engine run for more 0 seconds and not influed cut-off
(to be confirmed).
All the above conditions have been met and the
combination of conditions 1, 2 occur two consecutive
times.
Condition 1:

2nd gear is commanded for . 1 second.

40 3 Engine Torque 3 400 N´m

Speed ratio . 0.6

Throttle position . 10 %

800 3 TCC Slip 3 4000 rpm

2.75 3 Modeled Ratio 3 3.2 for 1 second.
Condition 2:

3rd gear is commanded for . 1 second.

40 3 Engine Torque 3 400 N´m

Throttle position . 10 %

±8000 3 TCC Slip 3 8000 rpm

Speed ratio . 0.45

0.62 3 Modeled Ratio 3 0.92 for 3 second.
Action Taken When the DTC Sets

Maximum line pressure.

For lamp illuminate refer to
DTC type definition (type
B).

Turn Force Motor OFF.
Conditions For Clearing The The MIL/DTC

The PCM will turn off the MIL and CHECK TRANS
Lamp after three consecutive ignition cycles without a
failure reported.

The DTC can be cleared from the PCM history by
using a scan tool.

The DTC will be cleared from history when the vehicle
has achieved 40 warmup cycles without a failure
reported.

The PCM will cancel the DTC default actions when
the fault no longer exists and the ignition is cycled ªoffº
long enough to power down the PCM.
Diagnostic Aids

Verify that the transmission meets the specifications
in the 4L30±E shift speed chart.

Other internal transmission failures may cause more
than one shift to occur.

7A1±62
TRANSMISSION CONTROL SYSTEM (4L30±E)
DTC P0752 Shift Solenoid A Performance (Stuck On)
D07RT011
Circuit Description
The shift solenoid A is used to control fluid flow acting on
the 1±2 and 3±4 shift valves. The solenoid is a normally
close exhaust valve that is used with the shift solenoid B
to allow four different shifting combinations.
The DTC detects when there is only a 2±2±3±3 shift
pattern depending on the state of the mechanical failure
instead of a 1±2±3±4 shift pattern. This is a type ªBº DTC.
Conditions For Setting The DTC

No ETC DTCs.

No OSS DTCs P0722 or P0723.

No TCC solenoid DTC P0742, P1860, P1870.

No shift solenoid A DTC P0753.

No shift solenoid B DTC P0758.

Gear range is D4.

Output speed is greater than 375 rpm.

Transmission temperature is between 20
and 130
C
(68
and 266
F).

No range code P0705, P0706.

No torque code (to be confirmed).

Engine run for more 0 seconds and not influed cut-off
(to be confirmed).
All the above conditions have been met and the
combination of condition 1, 2 occur two consecutive
times.
Condition 1:

1st gear is commanded for . 1 sec

40 3 Engine Torque 3 400 N´m

Throttle positon . 10%

±8000 3 TCC slip 3 8000 rpm

Transmission out speed . 375 rpm

Speed ratio . 0.3

1.5 3 Modeled Ratio 3 2.4 for 0.687 seconds
Condition 2:

4th Gear is commanded for . 1 sec.

40 3 Engine Torque 3 400 N´m

Trottle position . 10%

±8000 3 TCC slip 3 8000 rpm

Speed ratio . 0.6

0.92 3 Modeled Ratio 3 1.5 for 7 seconds
Action Taken When the DTC Sets

Maximum line pressure.

For lamp illuminate refer to
DTC type definition (type
B).

Turn Force Motor OFF.
Conditions For Clearing The The MIL/DTC

The PCM will turn off the MIL and CHECK TRANS
Lamp after three consecutive ignition cycles without a
failure reported.

The DTC can be cleared from the PCM history by
using a scan tool.

The DTC will be cleared from history when the vehicle
has achieved 40 warmup cycles without a failure
reported.

The PCM will cancel the DTC default actions when
the fault no longer exists and the ignition is cycled ªoffº
long enough to power down the PCM.
Diagnostic Aids

Verify that the transmission meets the specifications
in the 4L30±E shift speed chart.

Other internal transmission failures may cause more
than one shift to occur.

7A1±64
TRANSMISSION CONTROL SYSTEM (4L30±E)
DTC P0753 Shift Solenoid A Electrical
D07R200010
Circuit Description

The shift solenoid A is a simple on/off solenoid
located in the main case valve body. The solenoid is
the normally closed type. In second or third gear the
Powertrain Control Module (PCM) energizes the
solenoid to open a fluid inlet port. When the port is
open, fluid pressure actuates the shift valve.

The solenoid is activated by a current. This current is
produced by applying a voltage to one side (the High
side) and a ground to the other side (Low side).

The High Side Driver (HSD) is a circuit of the PCM
that acts as a switch between the solenoids and the
supply voltage. The High side of the solenoid is
permanently supplied with voltage, except in
BACKUP MODE or when ignition is off the HSD is
turned off.
This DTC detects a continuous open or short to ground in
the shift solenoid A circuit or the shift solenoid A. This is a
type ªBº DTC.
Conditions For Setting The DTC

Ignition is ªonº, Engine ªrunº.

Battery voltage is between 10 and 16 volts.

The PCM commands the solenoid ªonº and the
voltage remains high (B+), or the PCM commands
the solenoid ªoffº and the voltage remains low (zero
volts).

All conditions met for 0.84 ± 1.0 seconds.
Action Taken When The DTC Sets

Maximum line pressure.

Immediate landing to 4th gear.

Inhibit TCC engagement.

For lamp illuminate refer to
DTC type definition (type
B).
Conditions For Clearing The MIL/DTC

The PCM will turn off the MIL and CHECK TRANS
Lamp after three consecutive ignition cycles without a
failure reported.

The DTC can be cleared from the PCM history by
using a scan tool.

The DTC will be cleared from history when the vehicle
has achieved 40 warmup cycles without a failure
reported.

The PCM will cancel the DTC default actions when
the fault no longer exists and the ignition is cycled ªoffº
long enough to power down the PCM.
Diagnostic Aids

Inspect the wiring for poor electrical connection at the
PCM and at the transmission 7-way connector. Look
for possible bent, backed out, deformed or damaged
terminals. Check for weak terminal tension as well.
Also check for a chafed wire that could short to bare
metal or other wiring. Inspect for a broken wire inside
the insulation.

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±67
DTC P0756 Shift Solenoid B Performance (Stuck Off)
D07RT011
Circuit Description
The shift solenoid B is used to control fluid flow acting on
the 2±3 shift valves. The solenoid is a normally open
exhaust valve that is used with the shift solenoid A to allow
four different shift combinations.
This DTC detects when there is only a 4-3-3-4 shift
pattern depending on the state of the mechanical failure
instead of a 1-2-3-4 shift pattern. This is a type ªBº DTC.
Conditions For Setting The DTC

No ETC DTCs.

No OSS DTCs P0722 or P0723.

No TCC solenoid DTCs P0742, P1860, P1870.

No shift solenoid DTCs P0753, P0758.

Gear range is D4.

Output speed is greater than 375 rpm.

Transmission fluid temperature is between 20
and
130
C (68
and 266
F).

No range code P0705, P0706.

No torque code (to be confirmed).

Engine run for more 0 seconds and influed cut-off (to
be confirmed).
All the above conditions have been met and the
combination of condition 1, 2 occur two consecutive
times.
Condition 1:

1st gear is commanded for . 1 second

40 3 Engine Torque 3 400 N´m

Throttle position . 10 %

±2300 3 TCC Slip 3 200 rpm.

Transmission output speed . 400 rpm

Speed ratio . 0.3

0.60 3 Modeled Ratio 3 1.49 for 1 second.
Condition 2:

2nd gear is commanded for . 1 second

40 3 Engine Torque 3 400 N´m

Throttle position . 10 %

±8000 3 TCC Slip 3 8000 rpm.

Speed ratio . 0.6

0.92 3 Modeled Ratio 3 1.5 for 0.687 second.
Action Taken When the DTC Sets

Maximum line pressure.

For lamp illuminate refer to
DTC type definition (type
B).

Turn Force Motor OFF.
Conditions For Clearing The MIL/DTC

The PCM will turn off the MIL and CHECK TRANS
Lamp after three consecutive ignition cycles without a
failure reported.

The DTC can be cleared from the PCM history by
using a scan tool.

The DTC will be cleared from history when the vehicle
has achieved 40 warmup cycles without a failure
reported.

The PCM will cancel the DTC default actions when
the fault no longer exists and the ignition is cycled ªoffº
long enough to power down the PCM.
Diagnostic Aids

Verify that the transmission meets the specifications
in the 4L30-E shift speed chart.

Other internal transmission failures may allow more
than one shift to occur.

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±69
DTC P0757 Shift Solenoid B Performance (Stuck On)
D07RT011
Circuit Description
The shift solenoid B is used to control fluid flow acting on
the 2±3 shift valves. The solenoid is a normally open
exhaust valve that is used with the shift solenoid A to allow
four different shift combinations.
This DTC detects when there is only a 1±2±2±1 shift
pattern depending on the state of the mechanical failure
instead of a 1±2±3±4 shift pattern. This is a type ªBº DTC.
Conditions For Setting The DTC

No ETC DTCs.

No OSS DTCs P0722 or P0723.

No TCC solenoid DTC P0742, P1860, P1870.

No shift solenoid A DTCs P0753.

No shift solenoid B DTC P0758.

Gear range is D4.

Output speed is greater than 375 rpm.

Transmission fluid temperature is between 20
and
130
C (68
and 266
F).

No range code P0705, P0706.

No torque code (to be confirmed).

Engine run for more 0 seconds and not influed cut-off
(to be confirmed).
All of the above conditions have been met and the
combination of condition 1,2 occur two consecutive
times.
Condition 1:

3rd gear is commanded for . 1 second

40 3 Engine Torque 3 400 N´m

Throttle positon . 10%

±8000 3 TCC slip 3 8000 rpm

Transmission out speed . 375 rpm

Speed ratio . 0.6

1.44 3 Modeled Ratio 3 2.4 for 4 seconds
Condition 2:

4th Gear is commanded for . 1 second

15 3 Engine Torque 3 400 N´m

Trottle position . 10%

±8000 3 TCC slip 3 8000 rpm

Speed ratio . 0.6

2.75 3 Modeled Ratio 3 3.2 for 2 seconds
Action Taken When the DTC Sets

Maximum line pressure.

For lamp illuminate refer to
DTC type definition (type
B).

Turn Force Motor OFF.
Conditions For Clearing The MIL/DTC

The PCM will turn off the MIL and CHECK TRANS
Lamp after three consecutive ignition cycles without a
failure reported.

The DTC can be cleared from the PCM history by
using a scan tool.

The DTC will be cleared from history when the vehicle
has achieved 40 warmup cycles without a failure
reported.

The PCM will cancel the DTC default actions when
the fault no longer exists and the ignition is cycled ªoffº
long enough to power down the PCM.
Diagnostic Aids

Verify that the transmission meets the specifications
in the 4L30-E shift speed chart.

Other internal transmission failures may cause more
than one shift to occur.

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±71
DTC P0758 Shift Solenoid B Electrical
D07R200010
Circuit Description

The shift solenoid B is a simple on/off solenoid
located in the main case valve body. It is normally
open. When the port is open, fluid pressure actuates
the shift valve. In first or second gear, the Powertrain
Control Module (PCM) energizes the solenoid to
close a fluid inlet port.

The solenoid is activated by current. This current is
produced by applying a voltage to one side (the High
side) and a ground to the other side (Low side).

The High Side Driver (HSD) is a circuit of the PCM
that acts as a switch between the solenoids and the
supply voltage. The High side of the solenoid is
permanently supplied with voltage. In BACKUP
MODE or when the ignition is off, the HSD is turned
off.
This DTC detects a continuous open or short to ground in
the shift solenoid B circuit or shift solenoid B. This is a
type ªBº DTC.
Conditions For Setting The DTC

Ignition is ªonº, Engine ªrunº.

Battery voltage is between 10 and 16 volts.

The PCM commands the solenoid ªonº and the
voltage remains high (B+), or the PCM commands
the solenoid ªoffº and the voltage remains low (zero
volts).

All conditions met for 0.84 ~ 1.0 seconds.
Action Taken When The DTC Sets

Fixed to 4th gear.

Maximum line pressure.

Inhibit TCC engagement.

For lamp illuminate refer to
DTC type definition (type
B).
Conditions For Clearing The MIL/DTC

The PCM will turn off the MIL and CHECK TRANS
Lamp after three consecutive ignition cycles without a
failure reported.

The DTC can be cleared from the PCM history by
using a scan tool.

The DTC will be cleared from history when the vehicle
has achieved 40 warmup cycles without a failure
reported.

The PCM will cancel the DTC default actions when
the fault no longer exists and the ignition is cycled ªoffº
long enough to power down the PCM.
Diagnostic Aids

Inspect the wiring for poor electrical connections at
the PCM and transmission 7-way connector. Look for
possible bent, backed out, deformed or damaged
terminals. Check for weak terminal tension as well.
Also check for a chafed wire that could short to bare
metal or other wiring. Inspect for a broken wire inside
the insulation.

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±75

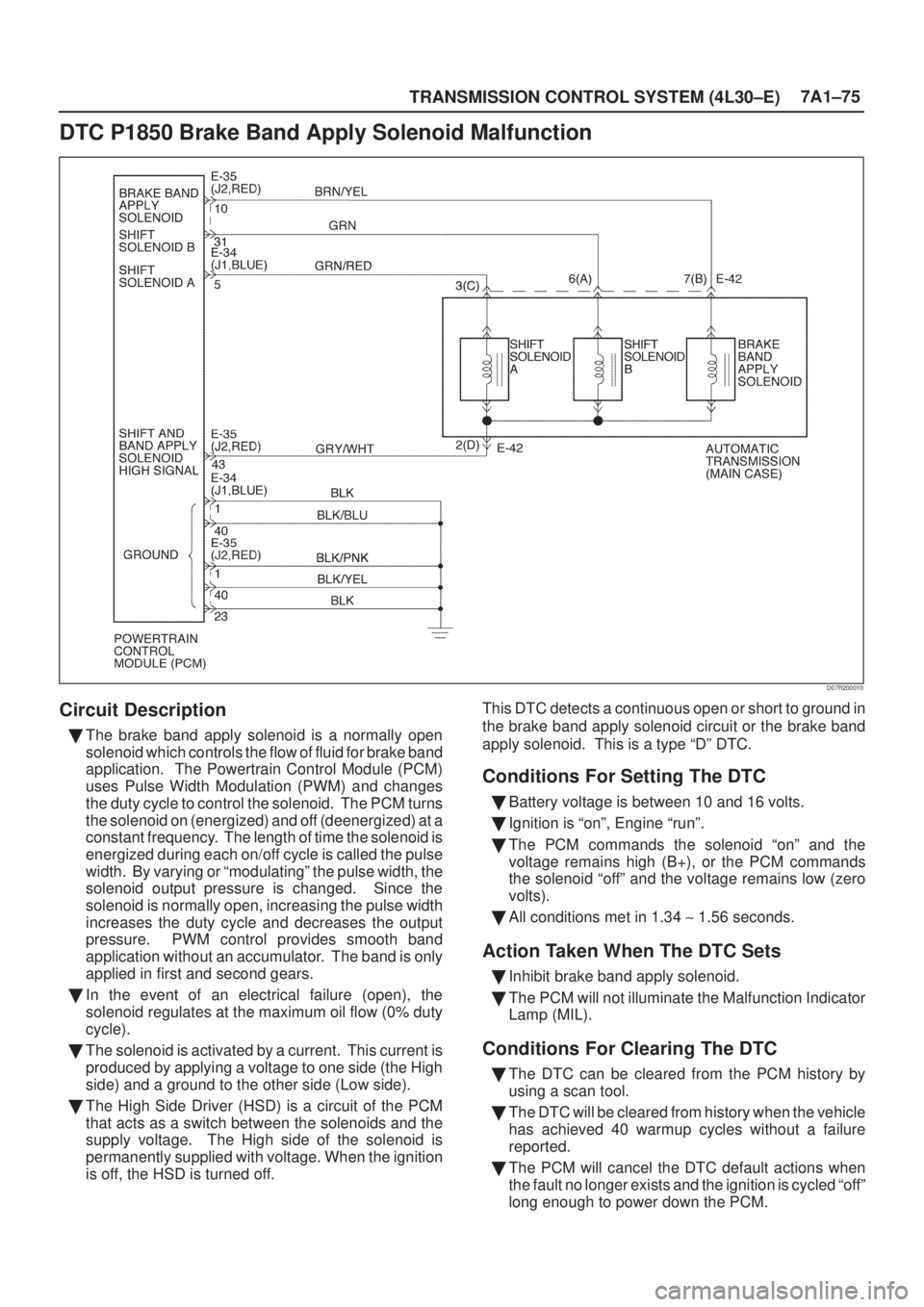

DTC P1850 Brake Band Apply Solenoid Malfunction
D07R200010
Circuit Description

The brake band apply solenoid is a normally open
solenoid which controls the flow of fluid for brake band
application. The Powertrain Control Module (PCM)
uses Pulse Width Modulation (PWM) and changes
the duty cycle to control the solenoid. The PCM turns
the solenoid on (energized) and off (deenergized) at a
constant frequency. The length of time the solenoid is
energized during each on/off cycle is called the pulse
width. By varying or ªmodulatingº the pulse width, the
solenoid output pressure is changed. Since the
solenoid is normally open, increasing the pulse width
increases the duty cycle and decreases the output
pressure. PWM control provides smooth band
application without an accumulator. The band is only
applied in first and second gears.

In the event of an electrical failure (open), the
solenoid regulates at the maximum oil flow (0% duty
cycle).

The solenoid is activated by a current. This current is
produced by applying a voltage to one side (the High
side) and a ground to the other side (Low side).

The High Side Driver (HSD) is a circuit of the PCM
that acts as a switch between the solenoids and the
supply voltage. The High side of the solenoid is
permanently supplied with voltage. When the ignition
is off, the HSD is turned off.This DTC detects a continuous open or short to ground in
the brake band apply solenoid circuit or the brake band
apply solenoid. This is a type ªDº DTC.
Conditions For Setting The DTC

Battery voltage is between 10 and 16 volts.

Ignition is ªonº, Engine ªrunº.

The PCM commands the solenoid ªonº and the
voltage remains high (B+), or the PCM commands
the solenoid ªoffº and the voltage remains low (zero
volts).

All conditions met in 1.34 ~ 1.56 seconds.
Action Taken When The DTC Sets

Inhibit brake band apply solenoid.

The PCM will not illuminate the Malfunction Indicator
Lamp (MIL).
Conditions For Clearing The DTC

The DTC can be cleared from the PCM history by
using a scan tool.

The DTC will be cleared from history when the vehicle
has achieved 40 warmup cycles without a failure
reported.

The PCM will cancel the DTC default actions when
the fault no longer exists and the ignition is cycled ªoffº
long enough to power down the PCM.
