2002 FORD F350 seat adjustment

HEATER ONLY SYSTEM
(IF EQUIPPED)
1.Fan speed adjustment:Controls
the volume of air circulated in the
vehicle.
2.Temperature selection:
Controls the temperature of the
airflow in the vehicle.
3.Air flow selections:Controls the direction of the airflow in the
vehicle. See the following for a brief description on each control.
:Distributes outside air through the instrument panel vents.
OFF:Outside air is shut out and the fan will not operate.
:Distributes outside air through the instrument panel vents and the
floor vents.
:Distributes outside air through the floor vents.
:Distributes outside air through the windshield defroster vents and
floor vents.
:Distributes outside air through the windshield defroster vents.
Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity build up inside the vehicle, do not drive with the
air flow selector in the OFF position.
•Under normal weather conditions, do not leave the air flow selector in
OFF when the vehicle is parked. This allows the vehicle to “breathe”
using the outside air inlet vents.
•Do not put objects under the front seats that will interfere with the air
flow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
To aid in side window defogging/demisting in cold weather:
1. Select
2. Set the temperature control to full heat
3. Set the fan speed to HI
Climate Controls
33
ProCarManuals.com

The front and rear outboard safety restraints in the vehicle are
combination lap and shoulder belts. The front passenger and rear seat
outboard safety belts have two types of locking modes described below:
Vehicle sensitive mode
This is the normal retractor mode, which allows free shoulder belt length
adjustment to your movements and locking in response to vehicle
movement. For example, if the driver brakes suddenly or turns a corner
sharply, or the vehicle receives an impact of approximately 8 km/h
(5 mph) or more, the combination safety belts will lock to help reduce
forward movement of the driver and passengers.
On SuperCab and CrewCab models, the front seat belt system can also
be made to lock manually by quickly pulling on the shoulder belt.
Rear seat belts (if equipped) cannot be made to lock up by pulling
quickly on the belt.
Automatic locking mode
The automatic locking mode is not available on the driver safety belt.
When to use the automatic locking mode
In this mode, the shoulder belt is automatically pre-locked. The belt will
still retract to remove any slack in the shoulder belt. The automatic
locking mode is not available on the driver safety belt.
This mode should be usedany timea child safety seat is installed in a
passenger front or outboard rear seating position (if equipped). Children
12 years old and under should be properly restrained in the rear seat
whenever possible. Refer toSafety restraints for childrenorSafety
seats for childrenlater in this chapter.
How to use the automatic locking mode
•Buckle the combination lap and
shoulder belt.
Seating and Safety Restraints
72
ProCarManuals.com

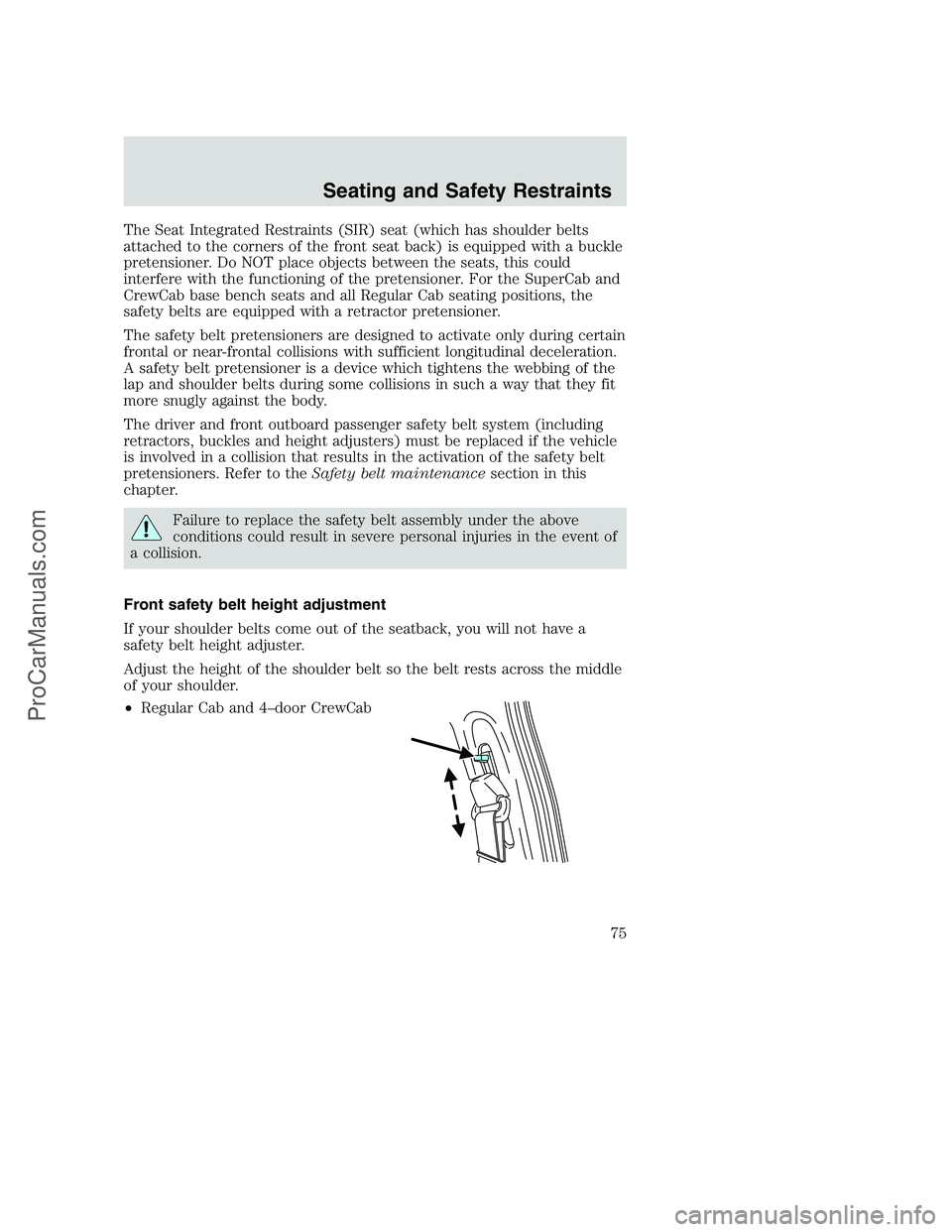

The Seat Integrated Restraints (SIR) seat (which has shoulder belts
attached to the corners of the front seat back) is equipped with a buckle
pretensioner. Do NOT place objects between the seats, this could
interfere with the functioning of the pretensioner. For the SuperCab and
CrewCab base bench seats and all Regular Cab seating positions, the
safety belts are equipped with a retractor pretensioner.
The safety belt pretensioners are designed to activate only during certain
frontal or near-frontal collisions with sufficient longitudinal deceleration.
A safety belt pretensioner is a device which tightens the webbing of the
lap and shoulder belts during some collisions in such a way that they fit
more snugly against the body.
The driver and front outboard passenger safety belt system (including
retractors, buckles and height adjusters) must be replaced if the vehicle
is involved in a collision that results in the activation of the safety belt
pretensioners. Refer to theSafety belt maintenancesection in this
chapter.
Failure to replace the safety belt assembly under the above
conditions could result in severe personal injuries in the event of
a collision.
Front safety belt height adjustment
If your shoulder belts come out of the seatback, you will not have a
safety belt height adjuster.
Adjust the height of the shoulder belt so the belt rests across the middle
of your shoulder.
•Regular Cab and 4–door CrewCab
Seating and Safety Restraints
75
ProCarManuals.com

washing ....................................190
waxing .....................................190
wheels ......................................191
wiper blades ............................192
woodtone trim ........................193
Clutch
fluid ..........................................221
operation while driving ..........112
recommended shift speeds ....113
Compass, electronic ....................55
calibration .................................56
set zone adjustment .................56
Console ........................................53
overhead ....................................46
Controls
power seat .................................68
Coolant
checking and adding ..............204
refill capacities ................208, 234
specifications ..................237, 240
Customer Assistance ................158
Ford accessories for your
vehicle .....................................194
Ford Extended Service
Plan ..........................................183
Getting assistance outside the
U.S. and Canada .....................187
Getting roadside assistance ...158
Getting the service you
need .........................................181
Ordering additional owner’s
literature .................................188
The Dispute Settlement
Board .......................................183
Utilizing the
Mediation/Arbitration
Program ...................................186D
Daytime running lamps
(see Lamps) ................................37
Dipstick
automatic transmission
fluid ..........................................222
engine oil .................................199
Doors
lubricant specifications ..........237
Driveline universal joint and
slip yoke ....................................226
Driving under special
conditions ..................112, 121, 124
sand .........................................123
snow and ice ...........................125
through water .................123, 128
E
Emergencies, roadside
jump-starting ..........................174
Emission control system ..........218
Engine ................................240–241
cleaning ...................................191
coolant .....................................204
diesel ...........................................5
fail-safe coolant ......................209
idle speed control ...................202
lubrication
specifications ..................237, 240
refill capacities ........................234
service points ..........................198
starting after a collision .........159
Engine block heater .................105
Engine oil ..................................199
checking and adding ..............199
dipstick ....................................199
filter, specifications ........201, 234
recommendations ...................201
Index
256
