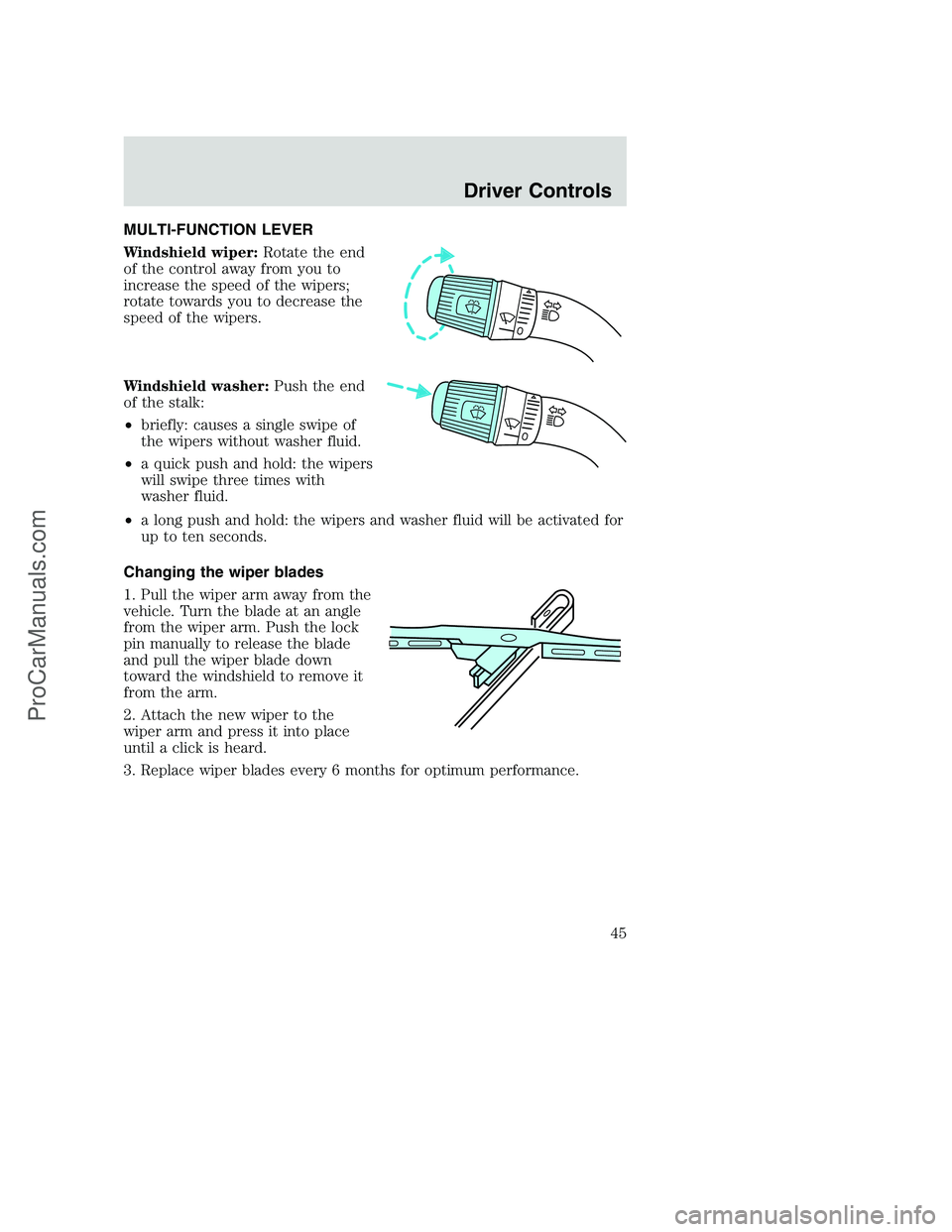

MULTI-FUNCTION LEVER
Windshield wiper:Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.
Windshield washer:Push the end
of the stalk:
•briefly: causes a single swipe of
the wipers without washer fluid.
•a quick push and hold: the wipers
will swipe three times with
washer fluid.
•a long push and hold: the wipers and washer fluid will be activated for
up to ten seconds.
Changing the wiper blades
1. Pull the wiper arm away from the
vehicle. Turn the blade at an angle
from the wiper arm. Push the lock
pin manually to release the blade
and pull the wiper blade down
toward the windshield to remove it
from the arm.
2. Attach the new wiper to the
wiper arm and press it into place
until a click is heard.
3. Replace wiper blades every 6 months for optimum performance.
Driver Controls
45
ProCarManuals.com
fluid, checking and adding
(manual) .................................225
fluid, refill capacities ..............234
lubricant specifications ..237, 240
manual operation ....................112
Turn signal ..................................38
V
Vehicle dimensions ...................241
Vehicle Identification Number
(VIN) ..........................................250
Vehicle loading ..........................128
Ventilating your vehicle ...........105W
Warning lights (see Lights)
.......10
Washer fluid
..............................199
Water, Driving through
.............128
Windows
power
.........................................48
Windshield washer fluid and
wipers
..........................................45
checking and adding fluid
.....199
replacing wiper blades
.............45
Wrecker towing
.........................179
Index
260
